Explore itemized guides, diagrams, and structured resources to understand components, layouts, and detailed breakdowns

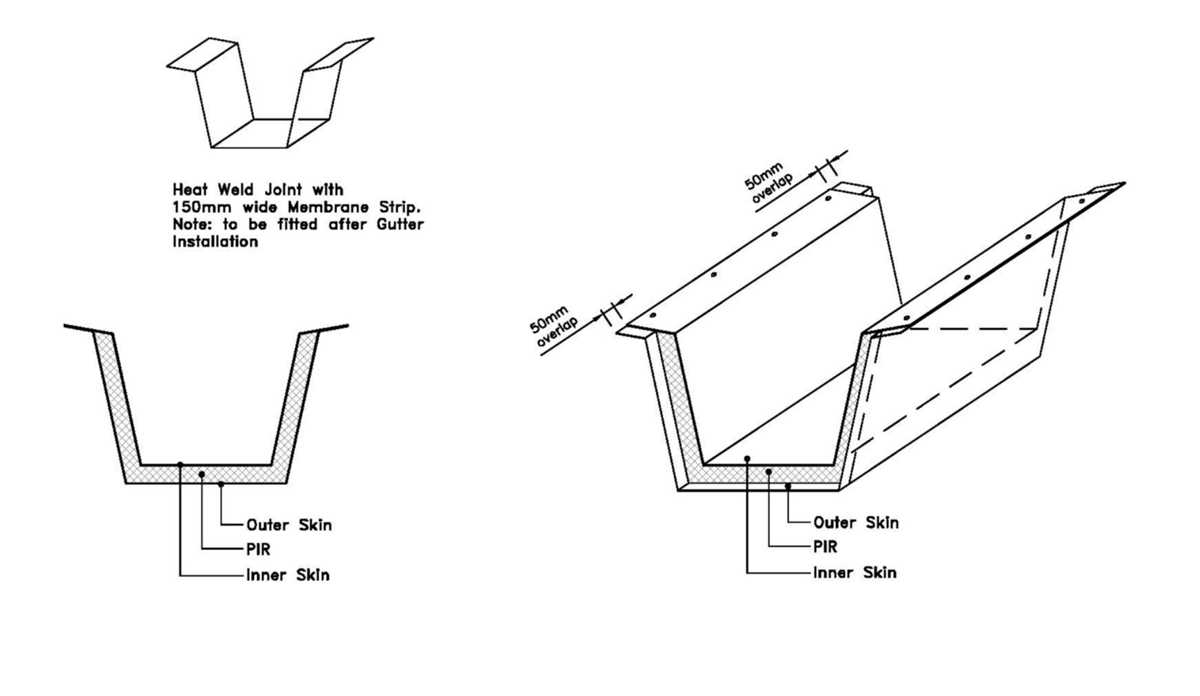

Select a detailed schematic when installing or repairing roofing drainage systems. The right chart clarifies connector types, joint configurations, and mounting hardware before you begin cutting or fastening materials. Start with a manufacturer’s official breakdown–generic illustrations often omit critical tolerances for angled brackets or hanger spacing. For aluminum channels, verify gap measurements between downspout elbows and wall anchors; improper alignment causes leaks under heavy rain.
For accurate repairs, begin with the official service manual schematic matching your model year–later revisions (post-2012) include updated torque specifications for the cylinder head bolts, now tightened in a 12-18 ft-lb sequence rather than the previous 10-14 ft-lb range. The impeller housing assembly, often misidentified as a single part, consists of three critical sections: the wear ring, the impeller itself (available in stainless steel or composite), and the retaining nut–each requiring distinct removal tools.
For owners of lawn machines built on the model platform similar to the 1990s MTD-produced 38-inch decks, the official exploded-view illustrations remain the most reliable way to identify replacement pieces. Original schematics split the machine into three primary assemblies: drive train, cutting deck, and engine block. Start by isolating the failed subsystem–most failures stem from the spindle housing, belt tensioner, or PTO clutch.
Begin by sourcing the official breakdown from the manufacturer’s service manual. This document typically includes numbered references for every component–from evaporator coils to door seals–aligned with a visual layout. If the original paperwork is unavailable, search for the unit’s serial number on authorized repair platforms; these often host downloadable schematics with cross-referenced labels.
For models 120, 125, and 130 series hay tools, begin by identifying the cutter bar assembly–typically stamped with a 5- or 6-digit product code on the underside near the left pivot arm. Cross-reference this code with OEM Part Number 541314 for standard 7-foot sections or 541315 for heavy-duty 8-foot variants. The knife head (blade carrier) may require Part 50934, while rivets securing sections align with 530399–ensure diameters match (0.1875” for standard, 0.25” for reinforced).
When repairing a mid-range professional chainsaw, the exploded view chart is the most reliable reference. This schematic breaks down each piece by number, grouping assemblies like the powerhead, guide bar, and clutch system for precise identification. Always cross-check part codes with the serial number stamped on the saw’s housing–variations between production years may affect compatibility.
Begin by locating the solenoid valve at the base of the water distribution tray. This component often malfunctions due to mineral buildup–use a fine wire brush or distilled vinegar solution (1:1 ratio with water) to dissolve deposits. If resistance persists, check the coil resistance with a multimeter: readings between 500-800 ohms confirm functionality; anything outside this range indicates replacement necessity.
Identify the engine assembly first. Locate the air filter housing on the right side of the power unit–usually secured by a single wing nut. Remove it to access the paper element inside, which should be replaced every 50 operating hours or sooner if debris accumulates. Directly beneath lies the carburetor, a brass-colored component with fuel lines attached. Label each hose before disconnecting to avoid incorrect reassembly.
For heavy-duty demolition equipment, start with the manufacturer’s official exploded view schematics–typically found in the service manual under "assembly breakdown" or "component identification." These documents isolate each piece by function: striking механизм (including piston, crankshaft, and cylinder), housing assemblies, vibration dampeners, and pneumatic control valves. If the manual lacks clarity, cross-reference with part numbers stamped on individual elements; these codes link directly to supplier databases for precise replacements.
Begin by securing the official technical schematics for your specific model–these are typically available through the manufacturer’s support portal or in the original user documentation. If digital copies are unavailable, request a paper manual from authorized service centers, as third-party reproductions often contain errors. Focus on labeled sections: identify the evaporator assembly (usually behind the rear interior panel), the condenser coils (positioned at the back or base), and the compressor unit (near the bottom, paired with the start relay). Mark these zones with a highlighter to avoid confusion during disassembly.
