For heavy-duty demolition equipment, start with the manufacturer’s official exploded view schematics–typically found in the service manual under “assembly breakdown” or “component identification.” These documents isolate each piece by function: striking механизм (including piston, crankshaft, and cylinder), housing assemblies, vibration dampeners, and pneumatic control valves. If the manual lacks clarity, cross-reference with part numbers stamped on individual elements; these codes link directly to supplier databases for precise replacements.
When disassembling, label each sub-assembly–focus first on high-wear items like bushings, seals, and chuck components. Mark their positions relative to the main body using a grease pencil or photographic mapping. For pneumatic models, priority goes to the air distribution block and diaphragm; incorrect reassembly here disrupts pressure regulation. Use compressed air to clear debris from channels before reattaching hoses–residual dust accelerates valve wear.
If schematics are unavailable, trace airflow paths from intake to exhaust ports. The trigger valve connects to the main piston via a control tube–misalignment here causes erratic operation or stalling. For electrical variants, note the brush gear and armature orientation; rotation direction is fixed by field coil windings. Before testing, apply dielectric grease to electrical connections to prevent moisture ingress during operation.
For tool bits, verify compatibility using the shank type (hex, spline, or SDS) against the hammer’s collar. Incorrect bit retention leads to slippage or catastrophic failure under load. When replacing the lower retainer sleeve, use a torque wrench–over-tightening distorts threads, while under-tightening risks ejection under impact. Store removed components in labeled trays sorted by disassembly sequence to avoid mixing left/right parts.

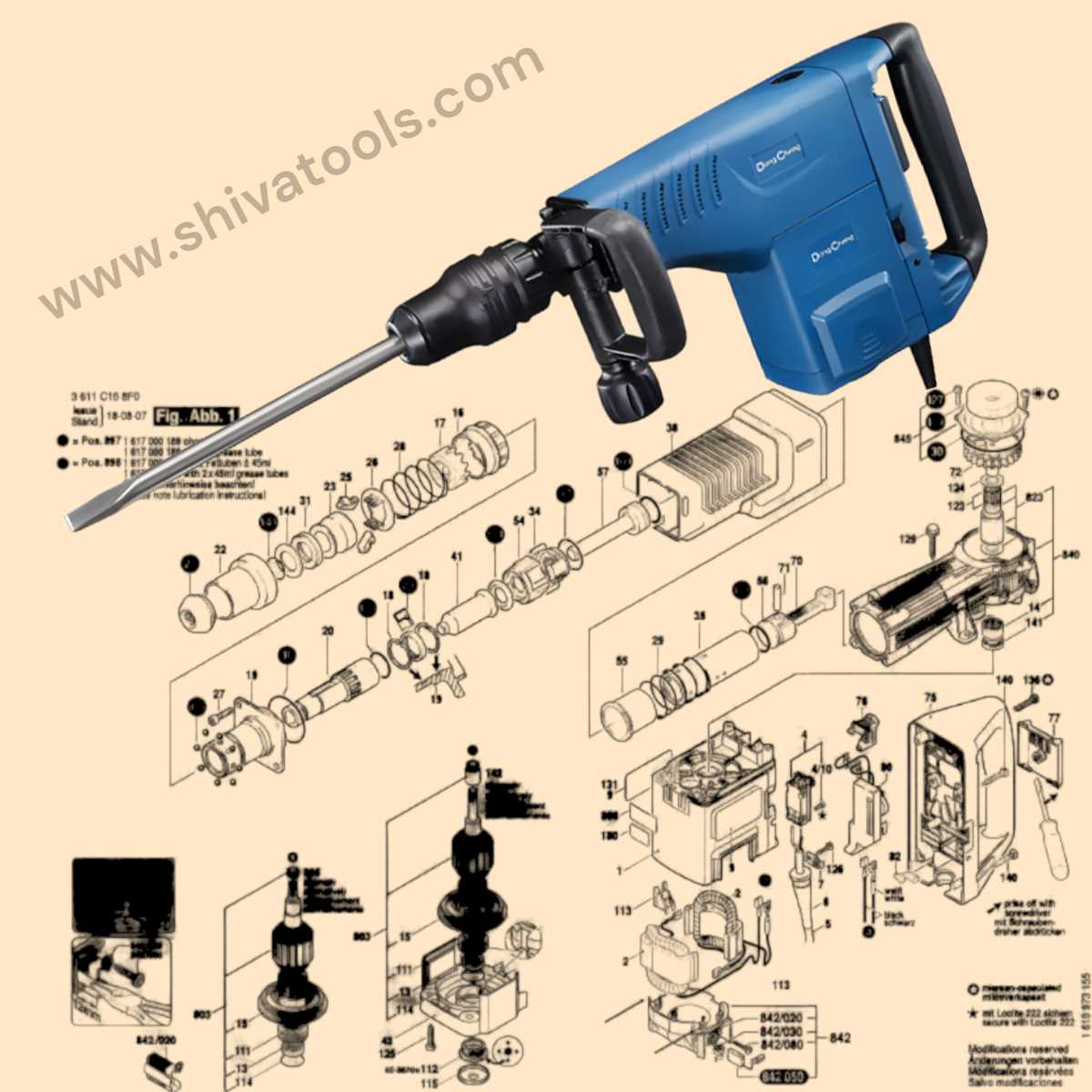

Breakdown of Heavy-Duty Breaker Components: Visual Reference for Repairs
Start disassembly by removing the rear casing–locate the two hexagonal fasteners at the base of the housing and unscrew them with a T40 Torx driver. The internal striker and combustion chamber will become accessible next, but handle the recoil spring carefully; it’s pre-loaded and can snap back if released improperly. Mark each component’s position with masking tape before extraction to avoid misalignment during reassembly.
Identify the piston and its guide sleeves–they are precision-machined and prone to scoring if contaminated with debris. Clean these surfaces with a lint-free cloth soaked in mineral spirits, then apply a thin film of molybdenum disulfide grease to reduce wear. Replace the seals if they show signs of hardening or cracking; OEM equivalents are critical for maintaining impact cycles without premature failure.
The anvil assembly requires periodic inspection–examine the retaining ring and its grooves for wear or deformation. If the ring loses tension, the entire striking mechanism risks disengagement during operation. Use a caliper to measure groove depth; replace the ring if it deviates beyond 0.3mm from the original specification. The hammer’s front cap must be torqued to 35 Nm–over-tightening risks thread stripping, while under-tightening causes excessive vibration.
Airflow channels inside the tool must remain unobstructed–remove the intake filter and check for dust buildup. A compressed air nozzle at 90 psi will clear residual particles without damaging internal membranes. If the motor vents show blackened residue, disassemble the commutator and sand the brush contact surfaces lightly with 1200-grit emery paper to restore conductivity.
Reassembling the trigger mechanism demands precision–ensure the microswitch aligns perfectly with the actuator pin. Misalignment by even 0.5mm can cause intermittent firing or unintended activation. Test the switch continuity with a multimeter before finalizing the assembly; resistance should read below 1 ohm. Lubricate the trigger pivot with PTFE spray to prevent seizing in cold conditions.
For tools frequently used in damp environments, inspect the coil windings for corrosion. A megohmmeter reading above 5 MΩ indicates insulation breakdown–replace the stator if resistance drops below this threshold. When swapping bearings, heat the bearing race to 120°C with an induction heater to ease removal; never force pull them with a hammer, as this risks inner race deformation.
Final calibration involves verifying stroke length–measure the distance between the striker and anvil at rest, which should match the manufacturer’s tolerance of ±0.2mm. Adjust the cushioning pad thickness if necessary; incorrect spacing reduces impact force by up to 15%. Secure all external bolts with thread-locking adhesive (medium-strength) to prevent loosening from vibration, but avoid applying it to the rear handle fasteners–these require periodic adjustment for ergonomic tuning.
How to Pinpoint Critical Elements in an Exploded Schema
Begin by isolating the power source assembly in the schematic–typically clustered at the base or motor housing. Trace the electrical leads or pneumatic hoses (highlighted in dashed red or blue lines) to their connection points, ensuring alignment with the labeled terminals. Misfitted components like brushes or seals often disrupt operation; verify their position against the reference numbers adjacent to each part in the illustration.
Navigating Wear-Prone Zones
- Impact pistons: Locate near the hammer mechanism, often marked with a numeric prefix followed by “-P” (e.g., 1234-P).
- Valves and seals: Check near air intake/exhaust ports–faulty seals are shown in cross-section views with diagonal hatch patterns.
- Anvil blocks: Positioned between striking elements, identifiable by threaded fasteners or hexagonal sockets.
For precision, cross-reference fragment labels with a manufacturer-supplied legend–usually a separate table matching IDs to descriptions like “bearing retainer” or “spline shaft.” If the visual lacks clarity, filter components by color-coding: red denotes high-wear items, yellow indicates lubrication points, and gray represents structural mounts. Ignore decorative graphics; prioritize annotated callouts with arrows pointing to tolerances or torque specs (e.g., “8 Nm” next to a bolt).
Step-by-Step Breakdown of Common Replaceable Components
Begin by securing the demolition tool on a stable work surface to prevent movement. Remove the retaining bolts at the base of the housing using a 10mm socket–these fasteners often shear under stress, so replace them if threads appear worn. Next, detach the striker pin guide by unscrewing the two lateral screws; inspect the guide for grooves deeper than 0.5mm, as excessive wear reduces impact efficiency. Lubricate the replacement with lithium-based grease before installation to extend service life.
Check the air cushion piston for scoring or cracks–even hairline fractures will disrupt air compression, leading to overheating. Measure the piston diameter with calipers; tolerances beyond ±0.1mm require immediate replacement. When reinstalling, align the piston’s air vent holes with the cylinder’s intake ports–misalignment degrades percussive force by up to 30%. Use a torque wrench to tighten the cylinder head bolts to 25 Nm, following a star pattern to avoid warping.
Examine the chuck retainer for deformation; a bent retainer causes bit slippage, damaging the shank collar. Replace if the retainer’s inner diameter exceeds 22.3mm. For SDS-max tools, verify the ball bearings’ condition–rust or pitting reduces locking force, increasing operational noise. Clean components with compressed air before reassembly to remove metal filings that accelerate wear. Apply a pea-sized amount of molybdenum disulfide paste to the bit shank to minimize friction.
| Component | Failure Signs | Critical Tolerance | Recommended Replacement Interval |
|---|---|---|---|
| Striker Pin | Mushroomed head, uneven strikes | Max 0.3mm wear (length) | Every 200 operating hours |
| Cylinder Head Gasket | Air leaks, reduced power | Compression thickness ≥1.2mm | Annually or at rebuild |
| Drive Gear | Erratic rotation, grinding noise | Gear teeth height ≥2.8mm | Every 3000 impacts |
How to Spot Critical Wear Areas With Equipment Schematics
Begin by examining the percussive tool’s internal striker path–common failure zones include the anvil surface where repeated impacts create micro-fractures. Check tolerance limits in the schematic; deviations exceeding 0.3mm indicate imminent fatigue. Focus on hardened steel components like breakers and bushings, as their wear patterns correlate directly with operational hours.
Inspect the locking collar threads, where galling often develops after 200-300 use cycles. Schematics highlight torque specifications–deviations beyond 15% suggest improper assembly or material degradation. Verify seal integrity along the piston chamber; brittle rubber or scored metal surfaces lead to air leaks, reducing efficiency by up to 40%.
Look for discoloration on the control valve assembly, a sign of overheating from insufficient lubrication or excessive load. Diagrams pinpoint heat-treated zones, where temper loss begins at temperatures above 250°C. Prioritize the exhaust port–carbon buildup here disrupts airflow, increasing wear on adjacent components by 25%.
Evaluate the retainer ring cracks, typically invisible until complete failure. Schematics mark stress concentration points; early detection requires dye penetrant testing after every 100 hours. Track grease flow paths–clogged lubrication channels accelerate abrasion in high-friction areas like the chuck guide.
Compare spring compression rates against factory standards. A reduction of more than 10% signals fatigue, affecting recoil force. Examine rubber dampeners–schematics show ideal durometer readings, while hardened or softened materials indicate chemical contamination or age-related failure.
Assess the tool holder’s alignment via laser measurement. Misalignment beyond 0.5mm causes uneven force distribution, leading to premature shank wear. Review bearing surfaces–pitting or spalling suggests inadequate filtration or incorrect fluid viscosity, reducing service life by 30%.
Monitor air inlet filters for particle infiltration. Diagrams specify micron tolerances; exceeding these limits introduces abrasives into the pneumatic system, eroding internal surfaces. Replace worn seals immediately–schematics identify pressure-sensitive zones where leaks compromise performance.
Cross-reference wear patterns with operational logs. High-frequency users should inspect gear teeth every 50 hours due to accelerated fatigue. Schematics denote critical dimensions; deviations may require reconditioning via precision grinding or full replacement, depending on cost-benefit analysis.
