Select a detailed schematic when installing or repairing roofing drainage systems. The right chart clarifies connector types, joint configurations, and mounting hardware before you begin cutting or fastening materials. Start with a manufacturer’s official breakdown–generic illustrations often omit critical tolerances for angled brackets or hanger spacing. For aluminum channels, verify gap measurements between downspout elbows and wall anchors; improper alignment causes leaks under heavy rain.

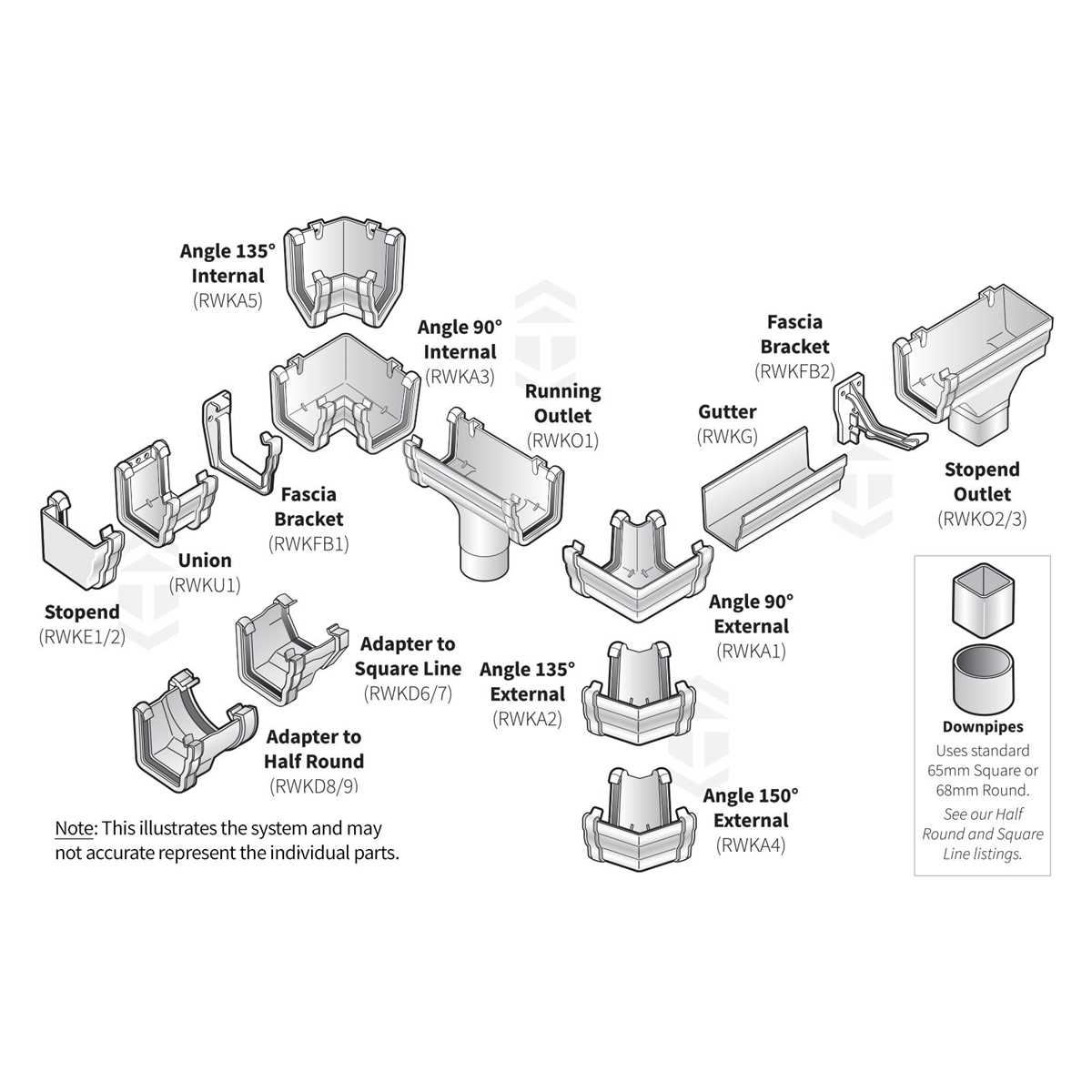

Identify the six core segments in any assembly: the main trough, end caps, drop outlets, straps, miters, and splash blocks. Each serves a distinct role–end caps prevent water escape at seams, while splash blocks disperse flow away from foundational walls. Use stainless steel screws for coastal regions; zinc-coated fasteners corrode within two years near salt exposure. Measure twice before securing straps–most residential systems require brackets every 30 inches, but commercial builds often demand a tighter 24-inch spacing.
Label every component on your reference sheet with material specifications and tool requirements. Vinyl sections warp above 120°F, while copper expands 0.4% per 100°F–factor this into seam overlaps. Include torque values for compression fittings (typically 8-12 ft-lbs) to avoid cracking PVC elbows. Keep a printed copy on-site; digital tools fail during storms or power disruptions. Prioritize clarity over aesthetics–the goal is zero guesswork during installation.
Understanding Rainwater System Component Layouts
Begin by identifying the four core segments of any roofline drainage assembly: the horizontal channel, vertical conduit, securing hardware, and termination fittings. Each plays a distinct role in managing water flow–mismatching their specifications leads to premature failure. For standard 5-inch residential configurations, ensure the horizontal trough has a minimum slope of ¼ inch per 10 feet to prevent stagnant water buildup, which accelerates corrosion in aluminum setups or sagging in vinyl alternatives.
Select downspout extensions based on regional rainfall intensity. Areas receiving over 60 inches annually require 3×4-inch outlets, while moderate zones (30–60 inches) perform adequately with 2×3-inch variants. Avoid corrugated flexible options–they trap debris and reduce flow efficiency by up to 40%. Instead, use smooth-walled conduits for unimpeded drainage. Position outlets at least 5 feet from foundations to prevent soil erosion and basement seepage.
Fastening solutions differ by material:
- Aluminum systems: Use concealed hangers spaced 24–30 inches apart with stainless steel screws. Pre-drill holes to prevent warping during installation.
- Copper assemblies: Require brass or copper nails to avoid galvanic corrosion. Maintain 18-inch hanger spacing due to copper’s higher thermal expansion.
- Vinyl installations: Snap-in brackets work best, but supplement with additional support every 18 inches if located in high-wind zones.
End caps and drop outlets demand precise sealing. Apply waterproof silicone or butyl tape to all seams before crimping aluminum joints–standard sealants fail within 12–18 months under UV exposure. For copper systems, use lead-free solder with a torch for permanent bonds, ensuring temperatures reach 450°F (232°C) to achieve proper capillary action. Vinyl end pieces press-fit but benefit from a thin bead of PVC-compatible adhesive along inner rims to prevent separation.
Internal miters (corner junctions) require reinforced hardware. Pre-formed 90-degree angles with built-in reinforcement ribs resist collapse under heavy leaf loads, which unibody corners tolerate only up to 15 pounds per linear foot. For angles exceeding 110 degrees, custom-fabricated segments prevent water overshoot during heavy downpours. Always elevate external corners above the main channel by ½ inch to create a smooth transition.
Filtration accessories prevent clogs in critical junctions:
- Mesh guards: ¼-inch aluminum mesh blocks debris while allowing unobstructed flow–avoid plastic varieties, which degrade under UV within 3 years.
- Bubble screens: Effective for pine needle regions but require monthly cleaning due to small 1/8-inch openings.
- Reverse curve designs: Exclusive to high-end systems; their shape forces water inward while deflecting leaves, reducing maintenance by 80% in temperate climates.
Termination components vary by drainage strategy. French drains need solid-to-perforated adapter kits with gravel filters in the trench bottom. Splash blocks must extend 4 feet from structures and slope 2% away from foundations. For rainwater harvesting integration, use leaf-trapping first-flush diverters calibrated to shed the initial 2–3 gallons of runoff, which contains the highest sediment concentration and heavy metals from roofing materials.
Recognizing Core Elements of a Typical Roof Drainage Assembly
Begin by inspecting the horizontal channel that runs along the roof edge–this primary conduit collects runoff effectively when sloped correctly, typically between ¼ inch and ½ inch per 10 feet. Misalignment here causes standing water, increasing corrosion risks in metal sections or sagging in vinyl configurations. Verify end caps are securely sealed with high-quality silicone or rubber gaskets to prevent leaks at termination points.
Downspouts require placement no farther than 20 feet apart for optimal flow, with a minimum diameter of 3 inches for residential applications. Larger roofs or heavy rainfall regions demand 4-inch or wider outlets to handle volume. Ensure brackets or straps secure vertical conductors firmly, spacing them every 8 to 10 feet to resist detachment under wind loads or ice accumulation.
Internal corners and junctions often fail first–use pre-formed miters with built-in expansion joints for seamless transitions. Avoid field-cut angles unless reinforced with a separate connector piece, as raw edges invite leaks. For seamless systems, observe the joinery method: snap-lock seams provide structural integrity, while hidden hangers prevent visible fasteners from disrupting flow.
Screen guards or leaf protection mesh must maintain at least 70% open surface area to filter debris without impeding water entry. Mesh finer than ½ inch risks clogging from pine needles or pollen, while coarser options allow accumulation beneath the cover. Self-adhesive or clip-on designs with reverse curves are most effective, as they direct debris off the system during rain.

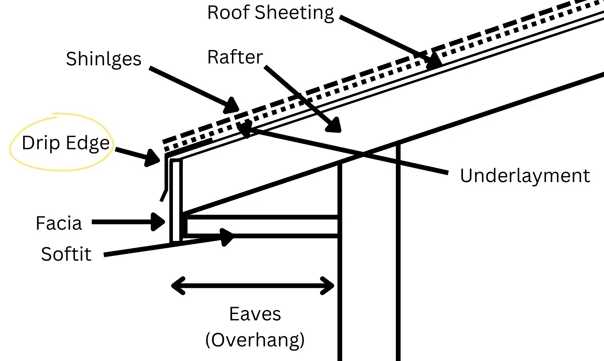

Evaluate the fascia integration–hidden brackets attaching to rafter tails offer superior strength compared to those mounted on the face board alone. Look for galvanized steel or aluminum hangers with a minimum thickness of 0.024 inches to resist bending under snow loads. For copper assemblies, use lead-coated screws to prevent galvanic corrosion at attachment points.
At ground level, observe the diverter setup: splash blocks should extend 3 to 4 feet from the foundation, directing water away from basement walls. Buried drain lines must slope minimally ¼ inch per foot to prevent sediment buildup, using smooth-wall PVC for longevity. Avoid corrugated flexible pipes, as their ridges trap debris and reduce flow efficiency over time.
Inspect expansion provisions–thermal cycling causes linear movement up to ½ inch per 50 feet in aluminum systems. Expansion joints must span every 30 to 50 feet, with a ¼-inch gap filled by a compressible sealant. Copper assemblies require welded expansion offsets due to their higher coefficient of thermal expansion compared to aluminum.
Regular maintenance focuses on the outlet screens and elbows, where blockages concentrate. Use a plumber’s snake or high-pressure nozzle to clear vertical conductors, ensuring water exits freely at the base. For metal systems, monitor for rust or paint failure at seams, as these indicate compromised protective coatings requiring prompt touch-up to prevent pinhole leaks.
Step-by-Step Assembly Guide for Rain Channel Segments and Drain Pipes
Mark the slope line with a chalk snap at 1/4 inch per 10 feet of lineal run before securing any brackets. This ensures proper drainage flow; deviations beyond 3/8 inch per 10 feet risk standing water accumulation.
Align the first bracket at the high end of the fascia, fastening it with 3-inch stainless steel screws driven into solid framing. Use a magnetic level to verify the slope before proceeding–misalignment here compounds down the line.
Space subsequent brackets every 24 inches for 5-inch channels or 18 inches for 6-inch variants. Pre-drill pilot holes to prevent fascia splitting, especially with hardwoods like oak or pressure-treated lumber.
Snap the channel lengths together by inserting the flared end into the adjacent piece until a 1/4-inch gap remains at the seam. Apply a bead of silicone sealant along the joint interior before final seating to prevent capillary water intrusion.
Secure the middle of each 10-foot length with a 1/4-inch hex-head screw through the back flange into the bracket. Avoid over-tightening; torque to 15-20 inch-pounds to allow thermal expansion without buckling.
Attach downspout outlets where marked, cutting the channel with a fine-tooth hacksaw blade. Deburr the cut edge with a file, then fit the outlet with a compression ring tightened to 30-35 inch-pounds to prevent distortion.
Connect vertical drain sections with slip joints, ensuring the male end faces downward to prevent debris traps. Secure each joint with two 1/4-20 stainless steel screws, driven at opposing 45-degree angles for pull-out resistance.
Test the system with a 5-gallon bucket of water poured at the high end. Observe flow uniformity; adjust any low spots by loosening brackets and re-tapping the slope line with a rubber mallet.
