Identify the engine assembly first. Locate the air filter housing on the right side of the power unit–usually secured by a single wing nut. Remove it to access the paper element inside, which should be replaced every 50 operating hours or sooner if debris accumulates. Directly beneath lies the carburetor, a brass-colored component with fuel lines attached. Label each hose before disconnecting to avoid incorrect reassembly.
Check ignition leads next. The spark plug wire connects to the top of the cylinder, while the coil sits adjacent, mounted with two screws. Use a multimeter set to 20k ohms to verify coil resistance–readings between 3.0–4.5 kΩ indicate proper function. If values fall outside this range, replace the coil immediately to prevent misfires.
The cutting deck elevation system relies on adjustable linkage rods. Each rod connects to a height lever via a clevis pin; inspect these pins for wear every 25 hours. Lubricate the pivot points with lithium grease to prevent corrosion. The blade spindle housings–three in total on standard 48-inch decks–require annual bearing inspection. Spin each blade by hand; grinding or roughness signals bearing failure.
Electrical schematics focus on the 10-amp fuse near the battery terminals. A blown fuse often mimics dead starter symptoms, so test with a voltmeter before assuming motor failure. Wiring colors follow a uniform code: red for positive, black for ground, and yellow for accessory circuits. Trace each wire to its terminal using the exploded view–mistakes here cause safety-switch malfunctions.
Hydrostatic transmission fluid should be drained and refilled every 200 hours. The reservoir cap is marked with a dipstick on the rear axle cover. Use only manufacturer-approved fluid (viscosity SAE 10W-30) to avoid seal degradation. Overfilling by even 50ml causes foaming, reducing cooling efficiency and leading to premature pump failure.
Finally, log all maintenance intervals in a repair journal. Record hour-meter readings, replacement part numbers, and torque specifications. This documentation prevents repeat failures by revealing patterns–e.g., recurring belt wear may indicate misaligned pulleys, not defective belts.
Finding the Right Components for Your Garden Tractor
Start by locating the model number on your equipment’s frame, usually beneath the seat or near the engine. This alphanumeric code–often 8-12 characters–is critical for identifying compatible replacements. Example: A label reading “LGTX2672” narrows your search to specific schematic breakdowns. Without this, cross-referencing is nearly impossible, leading to wasted hours browsing generic inventories.
Key assemblies like the cutting deck, transmission, and steering linkage have distinct sub-components that vary by series. For instance, deck spindles on models produced before 2020 may require metric fasteners (M10x1.25), while newer units standardize on SAE threads (3/8″-16). Below is a comparison of common fasteners:
| Component | Pre-2020 Models | 2020+ Models |
|---|---|---|
| Deck Spindle Bolt | M10x1.25 (22mm head) | 3/8″-16 (9/16″ head) |
| Transmission Mount | M8x1.0 (19mm) | 5/16″-18 (1/2″) |
| Wheel Hub Nut | M14x1.5 (27mm) | M12x1.75 (24mm) |
Schematic catalogs group elements by function–look for section headers like “Power Train” or “Operator Station” rather than individual labels. Transmission belts, for example, appear under “Drive System” with measurements in millimeters (length × width × teeth count). OEM belts use a proprietary tooth profile; aftermarket options like Gates PowerGrip GT2 often require dimensional verification before ordering. Misalignment by even 2% can cause premature wear or slippage.
Third-party suppliers often omit critical details like material grade or surface treatment for bolts. A grade-5 flange bolt (common for blade spindles) will shear under load if replaced with a grade-2 equivalent. Verify hardness markings on the bolt head–three radial lines indicate grade 5, while no lines mean grade 2. Use a torque wrench calibrated in inch-pounds for fasteners; over-tightening a deck pulley bolt by just 10% can warp the casting.
Electrical System Reference
Wiring harness connectors follow a color-coded logic but differ by voltage system. 12-volt models use red/white for ignition feed, while 18-volt models switch to purple/yellow. Verify with a multimeter–voltage fluctuations often point to a failed solenoid or corroded ground connection. Schematic symbols for switches (e.g., “SPST” or “DPST”) dictate replacement part numbers; mixing these can prevent the engine from cranking. Keep dielectric grease on hand for reattaching weather-sealed connectors to prevent moisture intrusion.
Understanding Core Elements in Your Garden Tractor’s Build
Locate the main frame first–this steel backbone supports the cutting deck and engine, typically bolted directly beneath the seat assembly. Check for weld seams near the rear axle mounts; cracks here often indicate stress from uneven terrain. Replace any compromised sections with 11-gauge steel plate to prevent structural failure.
Inspect the transmission housing next. The Kawasaki or Briggs & Stratton variants use a sealed hydrostatic unit, requiring specific fluid (Carter THF-3 or equivalent) every 200 hours. Overheating is a common issue if debris clogs the cooling fins–clear these with compressed air before each season. Look for signs of leaks at the axle seals; a thin film of oil on the inner tire suggests imminent failure.

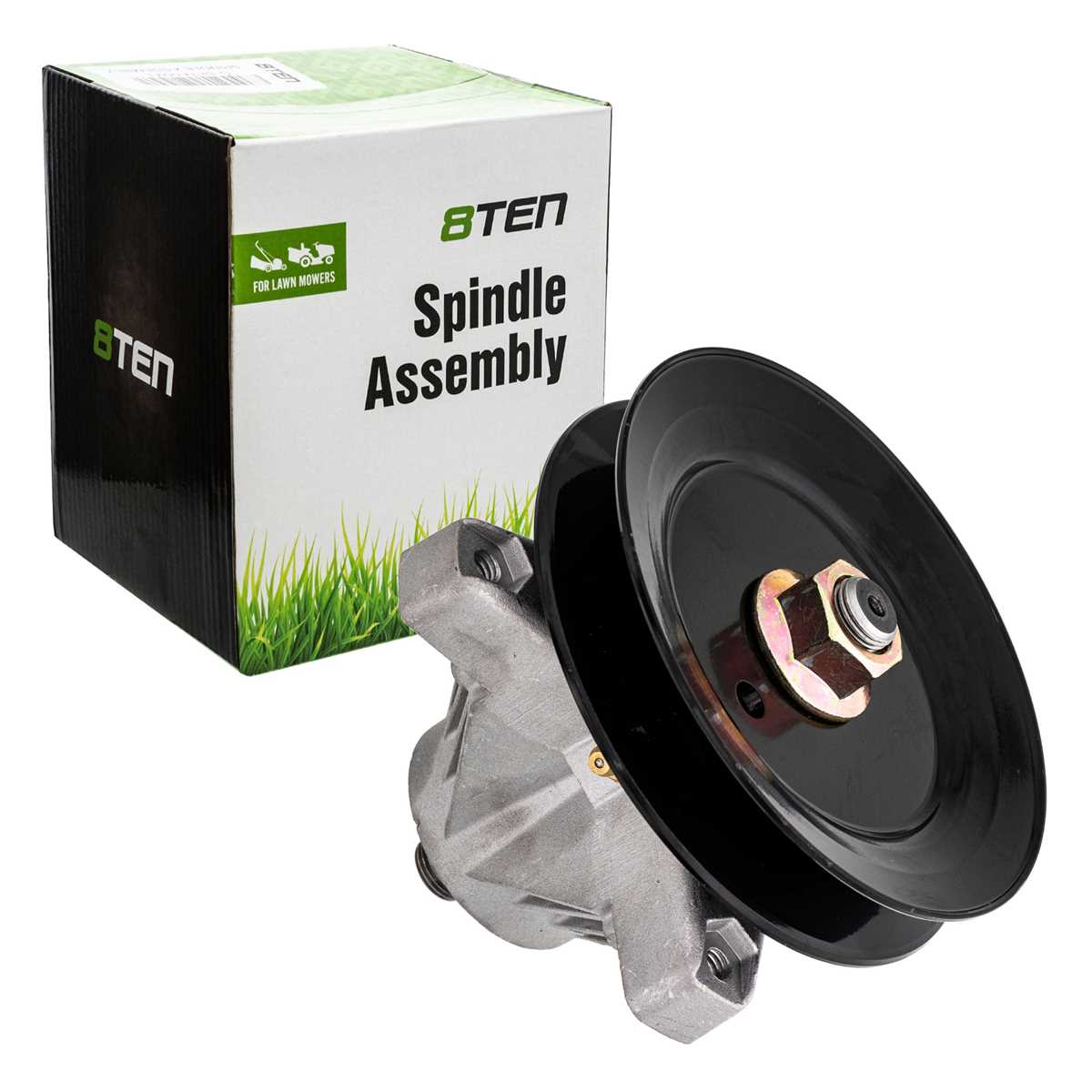

The cutting deck demands attention to three critical zones: blade spindles, belt tensioners, and discharge chute. Spindles should spin freely with no lateral play–replace bearings if resistance exceeds 5 inch-pounds. Belt tensioners often wear at the pivot point; measure deflection (ideal: 1/2 inch at midpoint) and adjust the spring-loaded arm. Clean the chute weekly to prevent grass buildup, which forces the deck motor to work harder.
Examine the fuel system under the hood. V-twin engines use a mechanical fuel pump; if starting issues arise, check for cracks in the pump diaphragm before replacing the carburetor. The fuel filter (inline, 10-micron) should be swapped annually–clogs starve the engine, causing surging at high RPM. Ethanol-blend fuels degrade rubber components; use Sta-Bil or switch to non-oxygenated gasoline if storage exceeds 30 days.
Steering linkage wear manifests as loose handling. The tie rods connect to ball joints on the front axle; replace if play exceeds 1/8 inch. Grease zerks at these points every 50 hours–dry joints accelerate wear and misalignment. For models with power steering, check the hydraulic fluid reservoir (John Deere Hy-Gard or equivalent) and top off if below the “Add” line.
The electrical system includes a 12V battery, starter solenoid, and alternator. Corrosion on battery terminals disrupts voltage; clean with baking soda paste and apply dielectric grease. A weak alternator (test: 13.8–14.4V at 2,000 RPM) drains the battery quickly–replace if readings are low. Fuses (typically 20A for ignition, 10A for accessories) should be checked if the engine cranks but won’t start.
Front and rear suspension components absorb shocks. The rear transaxle mounts on rubber bushings; replace if torn or compressed. Front axle bushings wear faster on uneven ground–silicone spray prolongs life but eventual replacement is unavoidable. Shock absorbers (if equipped) should extend smoothly; collapsed shocks reduce traction and stability.
Troubleshooting Common Failures
Engine stalling at full throttle often traces to a faulty PTO clutch. The magnetic coil should engage within 1 second of lever activation–replace if sluggish. If the engine runs rough, inspect the spark plugs (gapper set to 0.030 inches) and wires for carbon tracking. For hydrostatic drive lag, purge air from the system by parking on level ground and cycling the pedal 10 times with the engine off.
Finding and Interpreting Your Garden Machine Deck Blueprint

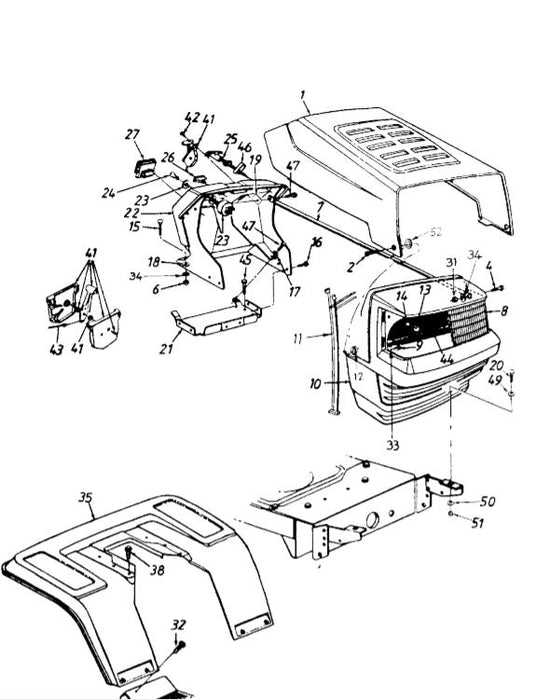

Start by retrieving the official manual from the manufacturer’s website using the product’s model number stamped on a metal plate beneath the seat or near the engine. Scan for the section labeled “cutting deck assembly” or “blade housing breakdown”–this visual guide will display exploded views of belts, pulleys, spindles, and fasteners in precise order.
Identify each component’s numerical label matching the parts list; numbers typically appear beside bolts, washers, or brackets in ascending sequence. Cross-reference these with the legend printed beneath the image to confirm shapes and placements–mismatched parts often indicate reassembly errors.
Decoding Symbols and Annotations
Solid arrows mark the rotation direction of blades or belts, while dashed lines outline cables or linkages requiring adjustment. Pay attention to torque specifications printed in small boxes next to critical fasteners; ignore these and stripping threads becomes inevitable.
Look for shaded areas or dotted outlines–these highlight wear-prone components like idler arms or deck lift rods needing seasonal inspection. If the blueprint includes inset close-ups of specific assemblies (e.g., spindle mounts), zoom mentally into their positioning; misaligned pulleys lead to uneven cutting.
Applying the Blueprint During Repairs
Print the sheet or load it onto a tablet kept in the workshop to avoid hand-soil smears. Tape a ruler alongside the belt path diagram to verify its actual routing against the visual–incorrect tensioning causes slippage. Keep a magnet tray nearby to collect screws sorted by quantity; mixing sizes distorts deck alignment.
