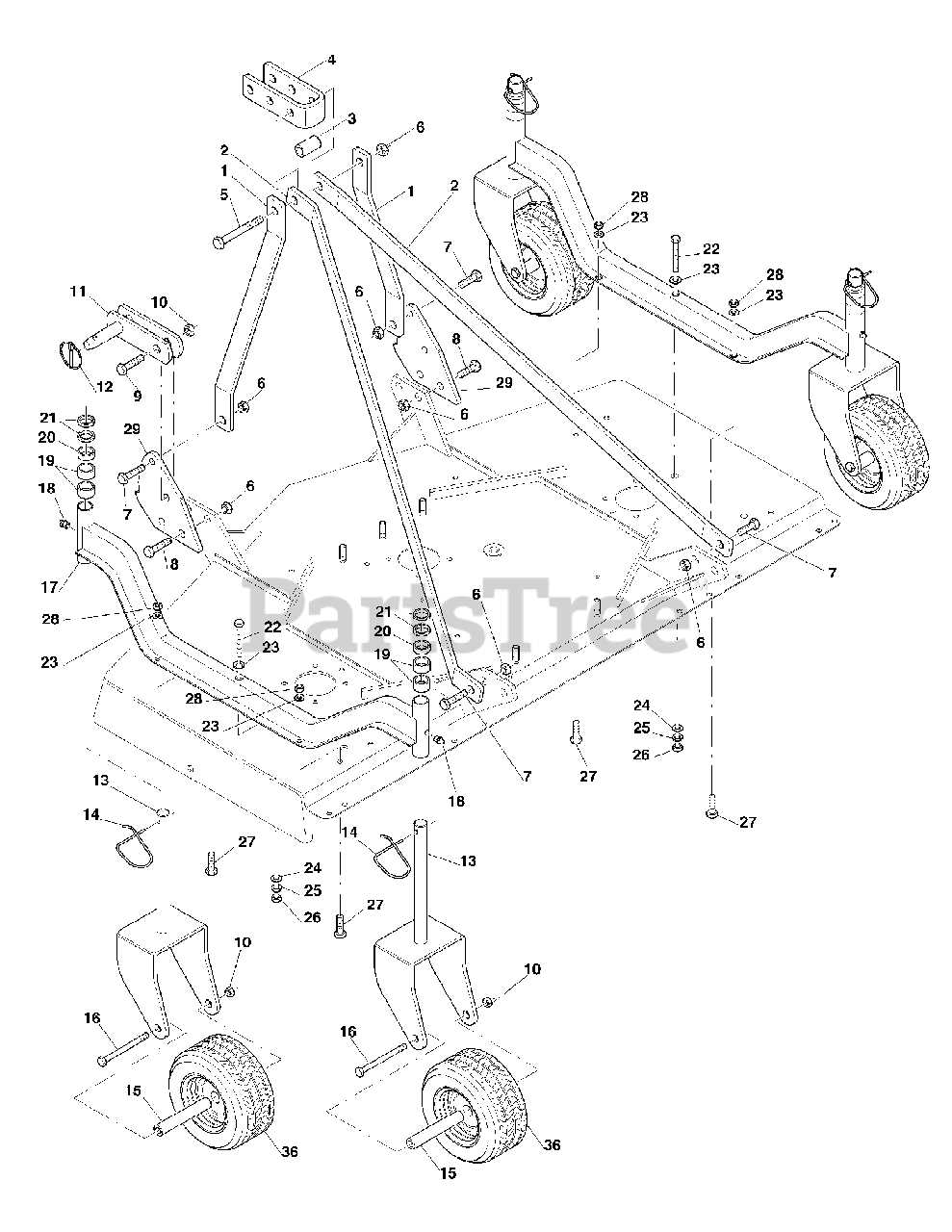

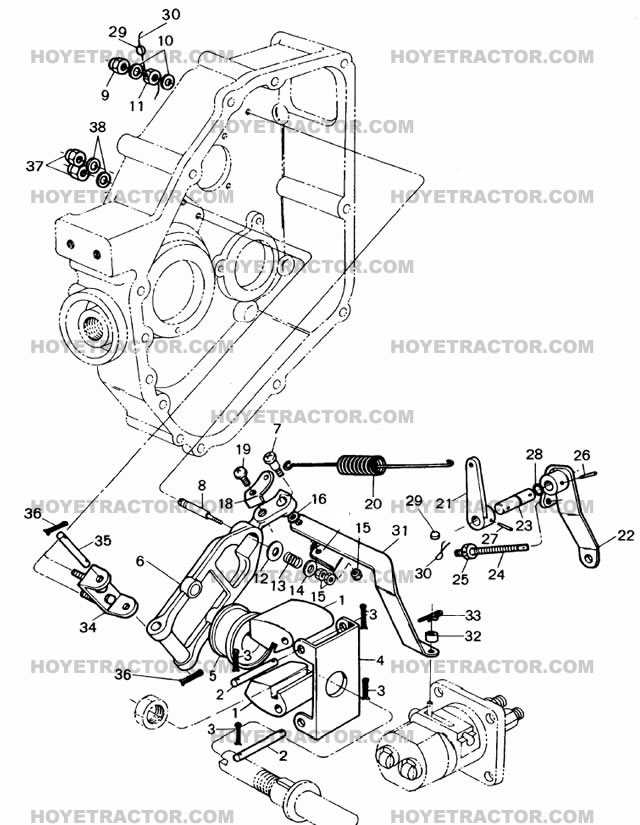

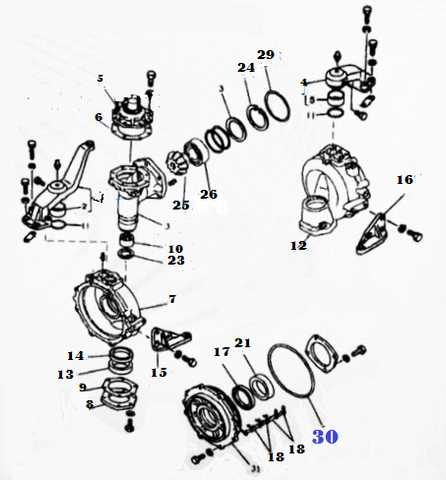

Begin by securing the official service manual for your model. Each machine variant–whether 20-series, 30-series, or 40-series–has a dedicated section containing exploded-view illustrations. These schematics label every component with an alphanumeric code matching the manufacturer’s inventory. Cross-reference this code with the parts catalog available on the brand’s support portal. If the manual is unavailable, obtain the serial number stamped on the main housing–this unlocks model-specific documentation.
Essential locations to inspect:
- Engine bay: Gaskets, filters, and pumps follow a clockwise numbering convention starting at the crankshaft.
- Hydraulic assembly: Valves and hoses use color-coded connectors; red for high pressure, blue for return lines.
- Transmission casing: Gear clusters are arranged in descending size order left to right.
For older units pre-2015, note that some components were phased out. Replace discontinued seals or bearings with upgraded equivalents listed in revision notices dated after 2018. Use a light meter to verify O-ring compatibility; measurements must match within 0.2mm tolerance. Avoid third-party wiring diagrams–manufacturer schematics are exact to millivolt specifications.
When sourcing replacements, prioritize distributors offering traceability certifications. Counterfeit components often lack heat-treatment stamps or misalign spline counts. For instant identification, photograph the original part before removal using macro settings to capture micro-text engravings. Upload this image to the brand’s verification tool–it cross-checks against a 4-million-entry database.
Understanding Your Compact Machine Component Layout
Locate the engine assembly schematic in the official service manual–specifically section 4.2–which details bolt torque specs (e.g., 45–55 Nm for cylinder head fasteners) and gasket positioning. Use the exploded view labeled “PTO shaft disassembly” to identify wear-prone components like the 20-tooth spline collar, found on page 117, before attempting repairs. Keep a micrometer on hand; spline wear beyond 0.05 mm requires immediate replacement.
Air filter housing diagrams often omit critical details–check the underside of the primary element for a small drain valve (part #1834-2198) that must be cleared every 50 operating hours to prevent hydraulic pressure loss. For electrical troubleshooting, reference the wiring harness breakdown under “Chassis Ground Points,” where terminals 8 (red/stripe) and 3 (solid black) handle glow plug relay signals. Verify continuity with a multimeter set to 200 ohms; anything above 1 ohm indicates corrosion needing dielectric grease treatment.
How to Identify Original Equipment Manufacturer Codes on Agricultural Machinery Components
Begin by inspecting the metal or plastic housing of the component–most genuine identifiers are engraved, etched, or embossed directly onto the surface. Look for alphanumeric sequences typically 6–12 characters long, often preceded by a prefix like “1,” “1Y,” “2,” or “K.” These codes may appear near mounting points, on the underside, or within recessed areas less prone to wear. For electrical modules, check the rear or side panel where wiring harnesses connect; labels here usually resist abrasion better than those on moving parts.
Use a flashlight held at a 45-degree angle to reveal faint markings, especially on older assemblies where paint or grime obscures details. A brass wire brush can gently remove corrosion without damaging the code, but avoid abrasive tools like steel wool or rotary brushes–they risk erasing critical digits. For diesel engines, focus on the block near the fuel injection pump or valve cover gasket surface; manufacturers frequently stamp identifiers here due to minimal vibration interference.
Common Locations for OEM Markings by Assembly Type
| Assembly Category | Typical Code Location | Visual Cues |
|---|---|---|
| Hydraulic pumps | Side flange or front casting | Stamped near inlet/outlet ports; may include date code in YYWW format (e.g., 2305) |
| Transmission cases | Lower rear near differential housing | Raised letters, often adjacent to drain plug threads |
| Engine control units | Backplate behind connector terminals | Printed label or laser-etched; check for QR codes on newer models |
| Gearbox shafts | End face proximal to splines | Micro-embossed, sometimes requiring magnifying lens |
When dealing with sheet metal panels, remove any protective film or adhesive residue–codes are often printed beneath these layers during manufacturing. For rubber components like hoses or belts, turn the item inside-out; numbers are molded into the compound near reinforcement layers. If markings remain elusive, consult the operator’s manual or service bulletins for exploded views–these documents often highlight code placement with red arrows or callouts labeled “REF” or “PN.”
Step-by-Step Guide to Interpreting a Compact Equipment Hydraulic Schematic
Identify the power source first–locate the pump symbol, typically a circle with an arrow indicating flow direction. Verify its placement relative to the reservoir, ensuring suction lines are unobstructed and return lines feed directly back without unnecessary bends.
Trace control valves next, marked by rectangular blocks with multiple ports. Each port corresponds to a function: work, tank, or pressure. Color-coding in manuals often designates work lines in red, tank lines in blue, and pilot lines in green–cross-reference symbols if colors are absent.
Examine pressure relief valves, shown as spring-loaded symbols adjacent to high-pressure lines. These protect the system by diverting excess flow; check their set points against the equipment’s specifications to prevent premature wear on seals and hoses.
Follow actuators–cylinders or motors–to their connections. Cylinders appear as a pair of nested rectangles; motors resemble gears. Confirm their linkage to directional valves, ensuring correct port alignment (A to work, B to work, or P to pressure). Misalignment here causes erratic motion.
Decoding Hydraulic Flow Logic
Start at the neutral position of the valve bank. In this state, flow should bypass directly to the tank via the center passage. If symbols show blocked centers, the system likely uses load-sensing–adjust expectations for auxiliary functions accordingly.
Simulate operation by mentally shifting valve spools. Note how open-center designs allow continuous pump flow, while closed-center configurations rely on pressure compensation. This distinction determines how quickly attachments respond after idle periods.
Inspect filtration components–strainer symbols resemble funnels, filters often include a dashed line for the element. Position matters: inlet filtration prevents pump damage, while return filtration captures post-work contaminants. Replace clogged elements promptly to avoid cavitation.
Troubleshooting with the Schematic
Compare actual pressures at test ports (marked “T” or with gauge symbols) against the schematic’s labeled values. A 20% deviation suggests internal leakage through worn seals or improperly adjusted relief valves–inspect these areas first.
For unresponsive functions, verify pilot lines (thin dashed lines) carry sufficient pressure. Weak pilots indicate failed solenoid coils or contaminated control fluid. Electrical diagrams often accompany hydraulic schematics for solenoid-driven systems–cross-reference if issues persist.
Check accumulator symbols (a storage piston or bladder) if erratic function occurs. Charge pressures must match factory specs; low pre-charge leads to inconsistent performance, while overcharging risks seal failure during thermal expansion.
Locating Complimentary Schematics for Compact Diesel Units
Begin with the manufacturer’s official repository: visit Yanmar Support Portal. The “Technical Publications” section hosts a searchable database where identified component blueprints can be downloaded without charge. Register using a valid email–verification takes under two minutes. Filter results by model number to bypass generic manuals; engine-specific schematics appear under “Exploded Views.” These files are vector-based PDFs, ensuring crisp zoom without resolution loss.
Third-Party Archives with Verified Content
- AgriExpert PDF Library (agriexpert.com/files) – hosts curated schematics for over 50 smaller diesel variants. Use the dropdown menu to select “Engine Assemblies”; files are sorted by serial range (e.g., 3TNV84T matches several common models).
- TractorData Schematic Index (tractordata.com/engine-diagrams) – displays clickable thumbnails. Focus on “Internal Combustion” tabs; schematics load as 2500×1800 PNGs. Right-click to save.
- DieselPartsDIY Forum – thread “Small Diesel Engine Layouts” (permalink: dieselpartsdiy.com/forum/t8762) contains member-uploaded archives. Each ZIP bundle groups related schematics by displacement (e.g., 0.8L, 1.1L).
For offline access, install Ag Parts Pro mobile application (iOS/Android). After granting storage permissions, download the “Yanmar Diesel” pack–it bundles comprehensive layouts in SVG format. Synchronize once weekly; updates push automatically when connected to Wi-Fi. Schematics occupy ~32 MB, compatible even on devices with 4 GB storage.
Key Components in Compact Agricultural Machines That Wear Out Fast
Replace fuel filters every 100–150 operating hours or at least once per season if the machine sits idle for long periods. Contaminants in low-quality diesel or biofuel blends accelerate clogging, leading to hard starts, uneven power delivery, and injector damage. Use only OEM-specified filters with a micron rating of 10 or finer; aftermarket alternatives often lack consistent filtration efficiency and can fail early under pressure spikes.
Air Cleaners and Pre-Cleaners Demand Frequent Checks
Inspect the primary air cleaner element every 50 hours in dusty conditions, more often if operating in dry, sandy, or chaff-heavy environments. A clogged element restricts airflow, increasing fuel consumption by up to 30% and causing the engine to overheat. Secondary elements should be replaced every 300 hours or annually, whichever comes first. Never reuse paper elements after washing; fine particles embedded in the media compromise filtration even if the surface appears clean.
On models with centrifugal pre-cleaners, empty the dust ejection tube daily. Ignoring this causes dirt buildup to bypass the primary filter, scoring cylinder walls and turbocharger blades within weeks. Spin-on pre-cleaners require torque specs of 25–30 Nm; over-tightening cracks the housing, while under-tightening leads to unfiltered air leaks.
Hydraulic fluid and transmission oil need swaps every 250–350 hours, regardless of appearance. Heat and shear degrade additives, thinning viscosity and reducing pump efficiency. Use only manufacturer-approved fluids; universal hydrostatic oils lack the friction modifiers needed for wet clutch packs and often cause slippage or premature lockup. Drain plugs should be removed completely to flush sludge from the sump; partial drainage leaves behind metallic debris that accelerates gear wear.
Battery terminals corrode rapidly in humid or salty air; clean them with baking soda and water every month, then coat with dielectric grease. A weak battery strains the starter, shortening its lifespan to 800–1,200 starts–less than half the expected cycle count. Replace drive belts if cracks exceed three per inch on the ribbed side; a snapped belt leaves operators stranded and often damages the alternator pulley. Check tension weekly; belts stretch under load, and improper adjustment reduces alternator output by 40%, leading to chronic undercharging.
