Start by locating the model number stamped on the equipment’s main frame or engine housing. For most commercial-grade cutting machines, this alphanumeric code identifies the exact configuration needed for replacement pieces. Check the manufacturer’s official documentation portal–many brands host downloadable PDFs of exploded views, often arranged by product series. If the original manual lacks clarity, third-party vendors specializing in aftermarket assemblies frequently provide scanned copies or vector-based illustrations detailing spindle housings, blade decks, and transmission linkages.
For hydraulic or rotary attachments, focus on assembly breakdowns rather than individual fasteners. Diagrams categorizing sub-assemblies–such as gearboxes, pulleys, or discharge chutes–will save time when troubleshooting wear or breakage. Pay attention to torque specifications listed adjacent to critical joints; over-tightening driveshaft couplings or pump mountings can cause premature failure. Cross-reference part numbers with OEM listings to avoid mismatches, especially when sourcing bearings or seals from suppliers outside the primary distribution network.
When physical schematics are unavailable, disassemble the problematic section methodically, photographing each layer before removal. Label components with masking tape and reference marks to ensure reassembly follows the original alignment. For complex mechanisms like mulching kits or PTO-driven augers, verify shaft orientation and belt tension paths using a visual reference–incorrect routing can lead to uneven cutting patterns or belt slippage. If replacing worn rods or skid plates, match material thickness and grade; lighter alloys may not withstand repetitive impact loads in rough terrain.
For electronic controls or solenoid-operated clutches, isolate the wiring harness first. Trace circuits using continuity tests prior to replacing relays or switches, as intermittent faults often mimic complete failure. Keep a record of hydraulic fluid bleed sequences if servicing pumps or valves–contaminants trapped in lines can cause erratic blade engagement. Always secure cutting blades with grade-8 bolts and lock washers; vibration from uneven surfaces accelerates loosening, risking detachment during operation.
Visual Schematics for Batwing Cutting Equipment
Start with the official service manual for your model–like the BB2000 or WB52–where exploded-view illustrations pinpoint blade carriers, spindle housings, and gearbox assemblies with part numbers. Manuals for 2021–2024 units often include torque specs (e.g., 45 ft-lbs for spindle nuts) and bolt thread patterns (typically ½”-13 UNC). Check the bottom-left corner of each schematic for revision dates; updates after March 2023 address tang weld failures in deck reinforcements.
If the manual lacks detail, use the manufacturer’s online parts lookup: filter by serial number, then select “Detailed Breakdown.” Hydraulic pump sheaves (e.g., part #43094) appear as color-coded layers–red for OEM, blue for aftermarket–with micron-level tolerances etched beside each pulley. Cross-reference illustrations with vendor catalogs like Messick’s or German-Bliss; mismatched gear ratios (e.g., 2.5:1 vs. 2.8:1) void belt warranties.
Finding and Matching Replacement Components via Manufacturer Blueprints
Download the official exploded view schematics directly from the equipment manufacturer’s website–look under “Service Literature” or “Support” for PDF downloads labeled with model numbers. Cross-reference the model plate on your cutter housing: the alphanumeric code stamped there must match the first four digits of the schematic filename.
Use a flashlight and magnifying glass to inspect worn blades, spindles, or belts; jot down every visible stamp, casting mark, or unique geometric feature. Compare these notes against the numbered callouts in the exploded view: each number correlates to a detailed parts list entry with OEM identifiers, dimensions, and material specifications.
Critical Identification Markers
| Component Type | Key Markers | Verification Method |
|---|---|---|
| Cutting decks | Rib spacing, hinge pin diameter | Measure spacing between ribs; match against schematic cross-section |
| Drive belts | Width, pitch length, tooth profile | Lay belt against schematic side-view; count teeth if synchronous |
| Spindle assemblies | Shaft diameter, pulley groove count | Use calipers on shaft; count grooves on pulley |
| Idler arms | Mounting hole pattern, spring hook shape | Trace bolt hole pattern on paper; overlay against print |
Scan the parts list for suffixes like “-L” or “-R”–these denote handed orientation; installing a left-side spindle on the right side will misalign pulleys and accelerate bearing wear. Locate color-coded dots on electrical harness connectors; these correspond to wire gauge charts in the technical manual appendix.
When the schematic offers multiple versions of the same assembly (e.g., early- and late-model spindles), count the number of hydraulic fittings or mounting bolt holes–even a single extra port signals a revision. Keep a digital folder of close-up photos for each disassembled piece; upload these to the manufacturer’s online parts lookup tool for instant visual validation.
Tools for Precise Matching
Equip yourself with a 0-6″ digital caliper for tolerances under 0.010″, a thread pitch gauge set for fasteners, and a dial indicator for checking spindle run-out. For welded subframes, measure diagonal cross-distances between opposing bolt holes–any discrepancy exceeding 1/16″ indicates a different assembly variant. Bookmark the manufacturer’s interactive 3D viewer; rotate and section assemblies to reveal hidden OEM stamps on internal surfaces.
Store verified component numbers in a spreadsheet alongside purchase dates, vendor SKUs, and warranty codes. Add two columns: one for field-observed failure modes (e.g., “sheared keyway”), another for recommended upgrade paths noted in service bulletins.

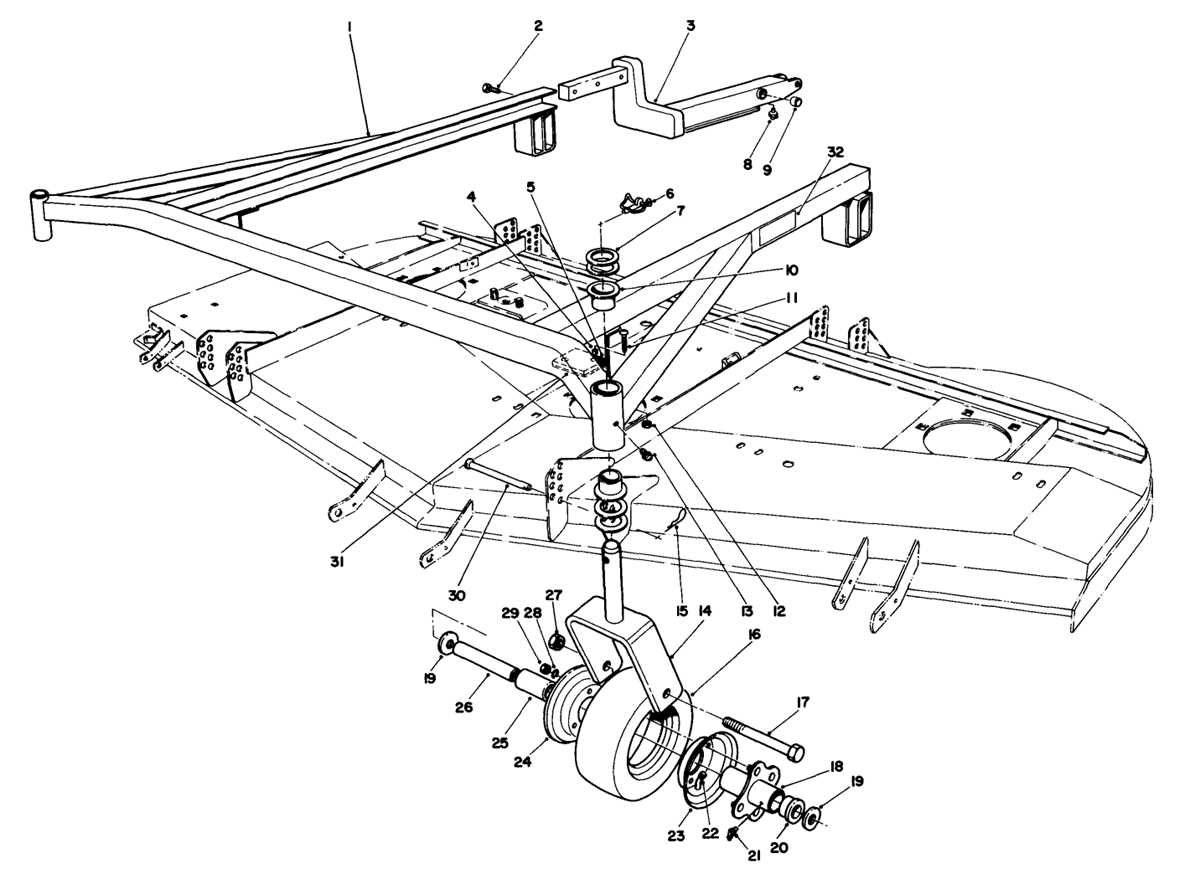

Step-by-Step Guide to Interpreting Exploded View Schematics for Batwing Cutting Decks
Locate the reference number adjacent to each component in the schematic–this matches the item list, often found on the same page or adjacent panel. Verify the count of fasteners (bolts, washers, nuts) before disassembly; missing or incorrect quantities indicate reassembly errors later. Pay attention to dashed lines or arrows, which denote movement, alignment, or installation sequence for pivoting arms, blades, or hydraulic linkages.
Isolate sub-assemblies by grouping related items visually. For batwing decks, typical clusters include:
- Blade spindle housing (shaft, pulley, bearings)
- Wing hinge mechanism (pivot pins, bushings, grease fittings)
- Deck lift system (cylinders, rods, mounting plates)
- Deflector shields (skid shoes, curtains)
Note orientation: right-side components mirror left-side counterparts, but hydraulic ports or electrical connectors may differ. Cross-reference with the parts manifest to confirm left/right distinctions.
Critical Alignment Details
Measure gaps or tolerances marked in the schematic (e.g., “1.5 mm clearance between wear plate and deck shell”). Use calipers if dimensions appear in millimeters or inches without decimal conversions. For tensioned components like belts or chains, locate the adjustment slot or jam nut–schematics often exaggerate these for clarity. Replace any item showing wear beyond specified limits, even if the illustration suggests it’s intact.
Identify hardware grades–schematics use symbols (e.g., circles for standard bolts, squares for hardened) or text codes (“HHCS” for hex head cap screw, “SS” for shear pin). Reuse torque specifications from the manual, not the diagram, as exploded views omit these details. Label each removed piece with masking tape and the reference number to prevent swapping during reinstallation.
Locating No-Cost Equipment Schematic Downloads
Begin with the manufacturer’s official portal. Many brands host open-access repair manuals under support or resources sections. For example, Bush Hog and Land Pride provide searchable archives–enter the model number to pull up exploded views. Third-party aggregators like ManualsLib and Partsvillage index these files; filter by equipment type and check for download buttons marked PDF.
Check machinery forums where users upload scanned documents. TractorByNet maintains a dedicated technical documents subforum–search threads tagged with schematics or blueprints. GarageJournal’s lawn & garden board also archives attachments; sort by most recent posts to avoid broken links.
Government and agricultural extension websites often share public-domain maintenance guides. USDA and university cooperative extensions post operator handbooks; navigate to equipment maintenance sections. The University of Nebraska-Lincoln’s testing lab publishes detailed breakdowns of cutting attachments–look for the PDF icon next to model listings.
Ebay’s parts listings frequently include high-resolution imagery–enter the model into the search bar, then click “view seller’s other items”. Select listings with clear item photos; right-click and save diagrams directly. Industrial salvage sites like SurplusRecord catalog auction lots–scan thumbnails for technical illustrations.
Key Components for Fast Blade & Deck System Repairs
Replace cutting blades using OEM numbers: 511042 (21″ standard), 511063 (24″ mulching), or 511088 (30″ high-lift). Verify spindle assembly compatibility–490037 fits most mid-deck models, while 490052 suits heavy-duty side-discharge units. Keep a 490061 pulley on hand for quick belt-driven deck swaps; pair with 490074 idler arm to prevent slack.
Critical Hydraulic and Drive Train Codes
- 470121 – Left-hand hydraulic wheel motor (22cc)
- 470145 – Right-hand wheel motor (22cc)
- 490189 – Pump drive belt (3/8″ x 38″)
- 470216 – Hydrostatic transmission filter (25 micron)
- 470304 – Input shaft seal kit
Order 470253 hydraulic hoses in pairs–left and right typically wear at similar rates. For zero-turn decks, swap 490312 caster wheels in sets to maintain balance; add 490329 grease fittings during installation.
Locate electrical schematics by panel labels:
- P-1: Ignition switch bundle (670198)
- P-2: Solenoid/starter relay (670223)
- P-3: Headlight harness (670256, 12V/35W)
Stock 670301 fuse assortment (3A-20A) for quick panel diagnostics. Replace all worn 670414 spark plugs at once–iridium lasts 200 hours but fails without warning.
