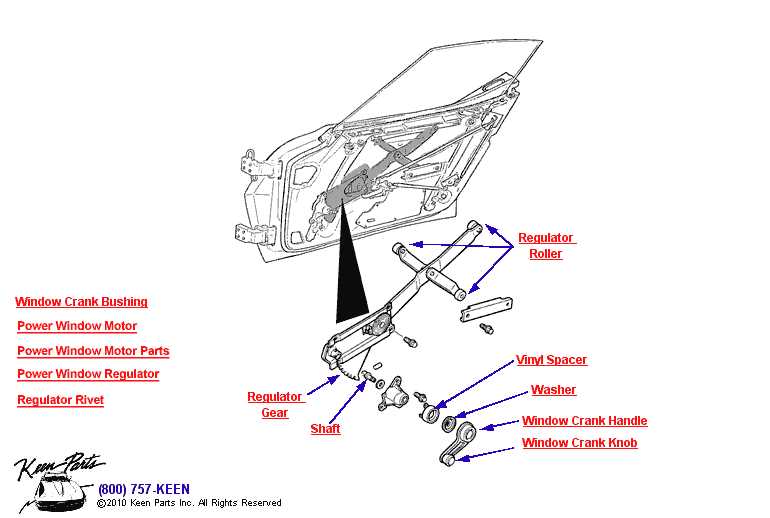

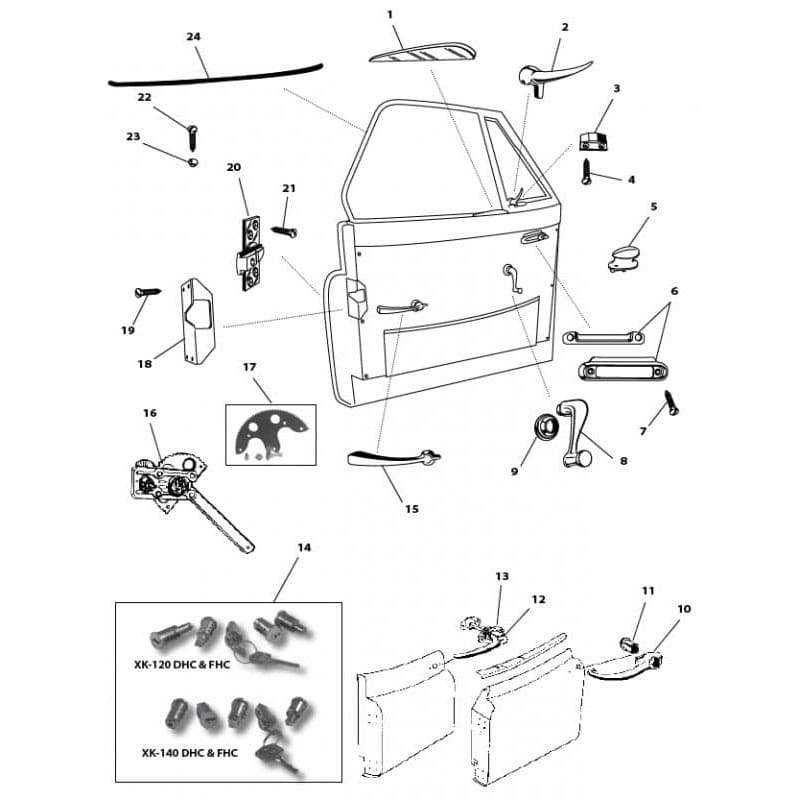

Replace a failing door lift assembly by first identifying each key element in a detailed illustration. A typical system includes a drive mechanism (electric motor or manual handle), cable or scissor arms, a glass carrier, and guide rails. Locate the motor’s gear housing–this is the most common failure point in power-operated setups. For manual mechanisms, inspect the pulley system or plastic gears for wear or breakage.
Trace the path of the flexible steel cables or scissor linkages in the diagram. These components must move smoothly along lubricated rails; corrosion or misalignment causes binding. Check the glass mounting plate–bolts can loosen over time, leading to rattling or uneven movement. If the glass sits crooked, verify the alignment of the lower track and upper stops.
Use the schematic to distinguish between single-cable and double-cable designs. Single-cable systems rely on a single wound wire, prone to snapping under stress. Double-cable designs distribute tension more evenly but require inspection of both cables for fraying. For scissor-type lifts, focus on the pivot points–these wear down and may need periodic greasing.
Test the switch functionality if the motor runs but the pane doesn’t move. Electrical faults often lie in the wiring harness or relay rather than the motor itself. For manual systems, ensure the handle lugs engage properly with the drive gear–stripped lugs prevent torque transfer. Diagram references simplify locating these components during disassembly.
Mechanism Component Breakdown for Smooth Glass Operation
Begin by locating the scissor-type or cable-driven assembly beneath the door panel–this is the core of the lifting system. Identify the gear housing where the motor engages with the track, typically secured by three to five bolts or rivets. If replacing, match the gear ratio (commonly 12:1 or 15:1) to maintain proper torque; mismatched gears cause slow operation or burnout. For cable systems, trace the path from the drum to the carrier plate–ensure cables are seated in pulleys without fraying, as slack leads to misalignment.
Critical Wear Points
- Sector gear teeth: Inspect for chips or wear; damaged teeth skip under load, causing intermittent failures. Replace if more than 30% of teeth show deformation.
- Carrier channels: Check for debris buildup or bent rails. Lubricate with dry silicone spray (avoid grease–it attracts dust). Misaligned channels bind the glass, increasing motor strain.
- Cable anchors: Confirm crimps are tight; loose anchors cause cable derailment. Apply thread-locking adhesive to set screws during reassembly.
- Motor mounts: Vibration indicates cracked brackets–replace immediately to prevent gear disengagement.
For electrical systems, test voltage at the motor connector (should be ~12V DC). If voltage drops below 10V during operation, inspect the fuse (typically 20-30A) and relay (check for corrosion on pin 87). Non-powered mechanisms often fail due to a seized drum–apply penetrating oil to frozen components, then manually rotate the spindle to free them. Always disconnect the battery before probing live circuits to avoid shorting the control module.
Reassembly Sequence
- Secure the glass in the fully raised position using masking tape to prevent it from falling into the door cavity.
- Align the carrier plate with the guide rails, ensuring the drive arm (scissor) or cable engages the plate’s mounting holes.
- Torque bolts to manufacturer specifications (usually 8-12 Nm); overtightening strips threads in aluminum doors.
- Test operation through three full cycles–listen for grinding or hesitation. If noise occurs, recheck gear meshing or cable tension.
- Replace the moisture barrier film if torn; trapped water accelerates corrosion and electrical failures.
Critical Elements in a Door Glass Mechanism
Begin diagnostics by inspecting the drive unit–typically an electric motor or manual crank–ensuring it delivers consistent torque without unusual noise. Motors failing under load often emit a high-pitched whine or clicking, indicating worn brushes or internal gear stripping. Replace if resistance exceeds 5 ohms when tested with a multimeter.
Examine the lifting arms for stress fractures, particularly near pivot points where metal fatigue is common. Stamped steel arms with thickness under 2mm require reinforcement; aluminum variants, while lighter, demand torque specifications 15-20% lower than steel to prevent thread stripping. Lubricate all moving joints with graphite powder–not grease–to avoid attracting debris.
Cables in cable-driven systems must maintain tension between 8-12 kgf to prevent slack-induced glass misalignment. Check for fraying at cable guides, especially where strands exit the sheath. A frayed cable reduces lift capacity by 30-40% and should be replaced as a set, never singly, to avoid uneven wear.
Key Failure Points by Material
| Component | Common Failure | Symptoms | Solution |
|---|---|---|---|
| Plastic Guide Channels | Cracked under lateral load | Glass tilt or binding | Upgrade to nylon-reinforced variants |
| Riveted Joints | Shear stress at pivot | Play >0.5mm | Replace with M6 flange bolts (torque: 8 Nm) |
| Spring Balancers | Loss of tension | Glass drops when door opens | Recalibrate to 1.2x door weight |
Glass mounting clips distribute weight unevenly if bent; measure both sides with calipers–tolerance deviation above 0.3mm causes binding. Prefabricated clips often use brittle ABS plastic; opt for stainless steel alternatives in high-stress applications like rear doors where rotational forces exceed 4 Nm.
Switch focus to the track alignment if glass skew occurs. Steel tracks require straightening with a mallet–not heat treatment–to avoid annealing. Measure parallelism at three points: top, midpoint, and base. Misalignment exceeding 1.5mm mandates track replacement to prevent recurrent glass chipping.
For electric variants, the limit switch dictates stroke length and often fails silently. Test continuity at fully open/closed positions–a dead switch shortens travel by 10-15mm, risking cable disengagement. Adjust actuator position before replacing the switch; most designs allow ±2mm fine-tuning via slotted mounting holes.
Tools for Precision Repairs
Use a feeler gauge to verify gear backlash in manual cranks–target range is 0.1-0.2mm. Excess play accelerates tooth wear; tighten the retaining nut incrementally while rotating the mechanism to detect binding. For electric systems, a scan tool with bidirectional controls (e.g., Autel MaxiSYS) verifies ECU-controlled soft-start functionality, preventing sudden jolts that crack glass seals.
How to Interpret a Vehicle Glass Mechanism Blueprint
Locate the motor assembly first–it’s typically marked with a circular or oval symbol near the bottom of the schematic. Trace the wiring harness from this component to identify power connections, ensuring the color codes match the manual (e.g., red for positive, black for ground). If lines intersect, note junction points where wires split or merge; these dictate signal flow to secondary systems like switches or sensors.
Identify the pulley system by following the dashed or dotted lines linking the motor to the carrier rails. Solid lines represent cables under tension, while segmented lines indicate flexible guides. Check for numerical annotations next to these pathways–these denote cable length or diameter tolerances, critical for avoiding slack or binding during operation.
Decoding Symbols and Notations
Symbols like arrows or triangles point to direction of movement–verify these align with the actual travel path (up/down or tilt). Cross-referenced letters or numbers (e.g., “A-5”) correspond to a legend or exploded view elsewhere in the document; ignore assumptions if the symbol isn’t defined. Pressure-sensitive components, such as pinch sensors, appear as dotted rectangles with internal zigzag lines–ensure these connect directly to the central control module.
Examine the mounting hardware: brackets are shown as L-shaped or U-shaped icons, accompanied by bolt sizes in millimeters. Missing or misaligned fasteners on paper often translate to real-world misinstallations, leading to rattling or premature wear. Highlight torque specifications if provided–over-tightening distorts frames, while under-tightening causes play.
Verifying Circuit Integrity
Use a continuity tester on the schematic’s wiring paths before physical checks. Power circuits should form a closed loop from battery to motor, with fuses (marked as elongated rectangles with a break) positioned no farther than 15 cm from the power source. Look for thermal cutoffs–depicted as a bimetallic strip symbol–near motors; these interrupt current if overheating occurs, preventing burnout.
Critical Wear Zones in Auto Glass Mechanism Components
Inspect the drive cables for fraying near pulleys–these strands often snap mid-track, leaving the panel immobile. Replace immediately if corrosion is visible; even minor rust weakens load-bearing capacity by up to 40%.
Lubricate the plastic guides every 10,000 km using silicone grease; dry surfaces create friction that wears saddles faster than expected. Factory guides average 80,000 km before replacement; neglected ones fail at 35,000 km.
Check the motor mounting bolts for torque–loose bolts cause misalignment, which distorts panel travel. Tighten to 12 Nm; overtightening strips threads, leaving the assembly unstable.
The scissor arms hinge points accumulate debris from road grime. Clean with brake cleaner and apply lithium-based grease–this prevents bind-up that jams the system suddenly.
Avoid Aftermarket Brackets
Cheap brackets bend under stress; OEM brackets withstand 15% more load cycles. Measure replacement brackets against factory specs–tolerances above 0.3 mm cause premature failure.
Test the door switches annualy; faulty switches send false signals that overwork the motor, shortening its lifespan. Replace switches showing resistance above 10 ohms.
Examine the lift plate mounting tabs–these snap under sudden impact or repeated stress. Reinforce weak tabs with JB Weld; untreated fractures propagate quickly under daily use.
Monitor glass alignment weekly. A misaligned panel rubs against seals, wearing them unevenly. Adjust using shims–misalignment greater than 2 mm requires full realignment to prevent future binding.
