Understanding Wheel Hub Assembly Components and Their Functions

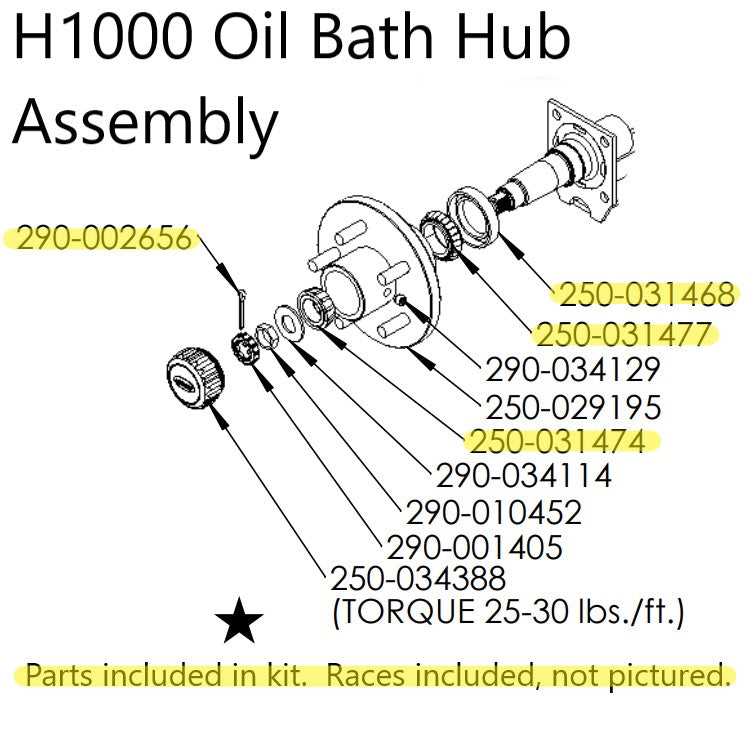

wheel hub assembly parts diagram

Begin troubleshooting or maintenance by locating the bearing retainer ring–it secures the rolling element in place and prevents axial movement. If corrosion or deformation is visible, replace it immediately; ignoring minor wear can lead to catastrophic failure under load. Most units use a grease seal rated for extreme temperatures (-40°C to 200°C), but verify compatibility with your vehicle’s specifications–aftermarket seals often lack the required durometer for high-speed applications.

The spindle nut must be torqued precisely: overtightening reduces bearing life by 40-60%, while undertightening causes play that accelerates fatigue. Use a calibrated torque wrench–generic values (e.g., “hand-tight plus 1/4 turn”) are unreliable. For dual-row configurations, ensure preload aligns with manufacturer data; incorrect preload increases rolling resistance by up to 30%, especially in heavy-duty applications.

Avoid common pitfalls: never reuse split pins on the castle nut–microscopic cracks propagate under stress, risking sudden disengagement. When inspecting the flange bolt pattern, check for elongation; holes exceeding 0.2mm over nominal diameter compromise structural integrity. For pressed-in components, use a hydraulic press with a precision adapter–hammering distorts the housing, misaligning bearing tracks and reducing service life by 70%.

Lubrication selection impacts performance critically: lithium-complex greases withstand high loads but degrade at lower temperatures, while molybdenum-disulfide blends resist water but require more frequent replenishment. Apply 30-50% of the cavity volume–overpacking causes churning and excessive heat. For sealed units, relubrication intervals depend on rotational speed: 5,000 RPM requires maintenance every 20,000 km, while 2,000 RPM extends this to 80,000 km.

Key Components of a Vehicle’s Central Bearing System Explained

Begin by locating the spindle nut at the core of the unit–it secures the rotating element to the axle flange and must be torqued precisely to manufacturer specifications (typically 150–250 Nm for passenger vehicles). Over-tightening risks thread stripping; under-tightening leads to premature bearing wear. Always use a calibrated torque wrench and replace the nut if it shows signs of deformation or corrosion.

The bearing unit itself consists of two tapered roller races, a cage, and sealed lubrication. Replace the entire cartridge if play exceeds 0.05 mm during a lateral shake test or if irregular noise persists under load. Leading brands like SKF and Timken engineer these for 100,000–150,000 km under normal conditions, but hauling or off-road use reduces lifespan by 30–50%. Check ABS sensor clearance–the gap should measure 0.5–1.5 mm to ensure accurate pulse generation; deviations cause false traction control interventions.

Inspect the mounting flange for stress cracks, especially around bolt holes. A damaged flange compromises the unit’s structural integrity, risking catastrophic failure at speeds above 80 km/h. Use a micrometer to measure flange thickness–minimum 8 mm for most sedans, 10 mm for trucks. Bolts fastening the flange must conform to ISO 8.8 or 10.9 standards; grade markings are usually stamped on the head. Mismatched bolts shear under torque, leading to sudden detachment.

Proper installation sequence matters. First, press the new cartridge onto the knuckle using a hydraulic tool–not a hammer–to avoid race misalignment. Align the bolt holes precisely before securing bolts in a cross pattern to distribute clamping force evenly. Apply thread locker (medium-strength) to bolts if not pre-coated; standard blue compound suffices unless operating in extreme temperatures (above 120°C), where red compound is necessary.

Critical Wear Indicators and Diagnostic Checks

wheel hub assembly parts diagram

  • Visible metallic particles in grease indicate race spalling–replace immediately.
  • Excessive lateral play (over 0.1 mm) signals bearing fatigue–measure with a dial indicator.
  • Humming or grinding noise that changes pitch with speed points to cage failure.
  • Uneven tire wear patterns (feathering) may suggest misalignment due to flange warping.
  • Corrosion on the ABS ring disrupts signal accuracy–clean with a wire brush, not abrasives.

Lubrication choice impacts longevity. Factory-filled units contain lithium complex grease, but polyurea-based alternatives resist heat better (critical for turbocharged or performance applications). Never mix greases–chemical incompatibility accelerates component breakdown. Aftermarket alternatives like Mobil XHP 222 tolerate temperatures up to 200°C, extending service intervals by 20–30% in high-stress environments. Re-lubricate non-sealed variants every 50,000 km using a grease gun adapter; overfilling causes seal rupture.

Maintenance Tools and Consumables Checklist

  1. Hydraulic bearing press (10-ton capacity for trucks).
  2. Torque wrench (0–300 Nm range, ±3% accuracy).
  3. Dial indicator (0–1 mm range, 0.01 mm resolution).
  4. Feeler gauges (for ABS sensor gap adjustment).
  5. Thread locker (blue or red, depending on temperature).
  6. Bearing installation kit (pilot sleeves, drift punches).
  7. Polyurea-based grease (for high-temperature applications).

Recognizing Core Elements in a Rotating Joint Mechanism

Begin by locating the bearing unit–it ensures smooth rotation under load. Modern vehicles typically use sealed, pre-lubricated bearings with built-in sensors for ABS monitoring. Examine the inner and outer races for wear patterns; pitting or discoloration indicates imminent failure. Verify torque specifications when reinstalling: overtightening accelerates degradation while under-tightening risks play in the joint.

Critical Fasteners and Their Roles

Component Material Torque (Nm) Failure Signs
Axle nut High-grade steel 180-250 Thread stripping, vibration
Studs Chromoly alloy 90-110 Rust, elliptical holes
Shield bolts Stainless steel 10-15 Loosening, noise

Inspect the flange–the interface between the knuckle and rotor. Measure runout with a dial indicator during installation; exceeding 0.05mm requires corrective machining. Check for cracks, especially on cast iron units; thermal cycling weakens them over time. Replace the entire unit if corrosion penetrates beyond surface-level oxidation.

Sensor alignment demands precision: incorrectly positioned tone rings disrupt ABS functionality. Use an oscilloscope to verify signal integrity if intermittent faults appear. For vehicles equipped with traction control, confirm the harness connections resist both road vibration and temperature fluctuations; brittle insulation is a common failure point.

Step-by-Step Disassembly of the Bearing Unit for Inspection

Secure the vehicle on a stable lift or jack stands before beginning. Remove the cap covering the central fastener–typically a dust cover or ABS sensor plug–using a flat-head screwdriver, prying carefully to avoid damaging the seal.

Loosen the spindle nut with a 30mm socket while someone applies the brake to prevent rotation. If corrosion is present, apply penetrating oil 10 minutes prior. Extract the nut and washer, noting their orientation for reassembly. Discard old fasteners if thread damage is visible.

Detach the rotor/disc by sliding it off the mounting flange. If seized, tap the backside with a rubber mallet–never strike directly on the friction surface. Inspect the back of the rotor for grooves or rust buildup, which may indicate bearing wear or improper seating.

Locate the snap ring securing the bearing unit in its housing. Use snap ring pliers to expand and remove it; store it in a designated container to avoid misplacement. If the ring resists, check for hidden retaining tabs or corrosion under magnification.

Press the bearing unit out using a dedicated puller or a hydraulic press with a correctly sized adapter. Align the press rod axially to prevent uneven force distribution. If manual removal is necessary, gently tap the outer race with a brass drift–never use steel tools to avoid deforming the housing.

Wipe the bearing cavity clean with a lint-free cloth. Examine the spindle taper for pitting, scoring, or heat discoloration. Measure the internal diameter and compare it to the manufacturer’s spec (tolerance ±0.02mm)–excessive wear mandates spindle replacement.

Replace all seals, bearings, and fasteners if signs of fatigue are present. Lubricate new bearings with NLGI #2 lithium complex grease only–avoid overpacking, which can cause overheating. Reinstall components in reverse order, torqueing the spindle nut to 200-250 Nm while rotating the assembly to ensure proper seating.

Critical Weak Spots in Bearing Units and Protective Gaskets

Inspect the inner race for micro-pitting every 20,000 miles–especially in vehicles with transverse-mounted engines. These tiny surface cracks, often invisible without magnification, propagate under cyclic loading and contaminant ingress. A 0.3mm pitting depth reduces bearing life by 40% according to SKF’s fatigue simulations. Replace units immediately if spectroscopy detects chromium concentrations above 0.5% in grease samples.

Seal lips fail most frequently at the garter spring interface. The spring’s tension should measure 12–15N; deviations beyond ±2N cause either premature lip wear or inadequate contact force. Polytetrafluoroethylene-coated seals outperform nitrile in environments with frequent temperature cycles (−40°C to 120°C), but require a 0.08mm interference fit–tighter than nitrile’s 0.05mm–to prevent fretting corrosion on the shaft journal.

Contamination entry points demand specific countermeasures: labyrinth seals on CV-jointed shafts need a primary dust shield with a 0.15mm grease-filled gap, while tapered roller bearings require a non-contact seal with a hydrodynamic groove pitched at 30° to the shaft axis. Water intrusion accelerates corrosion exponentially–steel retainers lose 60% of their fatigue strength after 500 hours of salt spray exposure per ISO 9227.

Lubrication Breakdown Triggers

Grease degradation starts with base oil separation. Lithium-complex thickeners lose structural integrity above 140°C; beyond this threshold, the oil bleeds 3x faster, leaving metallic surfaces unprotected. Monitor oxidation by testing for carbonyl absorption peaks at 1710 cm⁻¹ via FTIR–values exceeding 0.2 absorbance units signal imminent failure. Regrease intervals must halve for bearings operating continuously above 80°C.

Bearing cages fracture at load zones when radial clearance exceeds 0.05mm. Polyamide cages crack under shear stress if operating clearances reach 0.12mm, while brass cages succumb to fretting corrosion. Cold-formed cages tolerate higher clearances but fail catastrophically if lubricant starvation exceeds 3 seconds at 3,000 RPM–thermal expansion coefficients of steel and brass differ by 1.2 ppm/°C, causing micromovement and subsequent fatigue. Replace units if vibration signatures reveal sidebands at ±1.5x RPM.
