Begin by locating the casing schematic in your drilling manual–it details critical components like the production tubing, packer assemblies, and collar arrangements. Misidentifying these elements during maintenance leads to costly errors. For example, confusing a safety valve with a gas lift mandrel risks improper pressure regulation, potentially causing equipment failure or contamination.
Refer to the manufacturer’s exploded view for precise measurements. A 3.5-inch nipple differs functionally from a 4.5-inch crossover, though both may appear identical in low-resolution scans. Cross-check diameters with calipers–small discrepancies (e.g., 0.1 inch) disrupt sealing surfaces. Label each piece during disassembly using color-coded tags to avoid rework.
Replace sealing gaskets if the assembly diagram shows corrosion or scoring. Silicone-based seals degrade faster in high-sulfur conditions, while Viton O-rings handle temperatures up to 204°C. Ignoring this detail reduces pump efficiency by 12-18%, per industry benchmarks. Prioritize subsurface safety valves during inspections–failed springs or clogged ports trigger automatic shutdowns, halting production for 48+ hours.
Validate the downhole tool placement against the schematic’s depth markers. Off-positioning a perforating gun by just 6 inches misaligns charges, reducing reservoir contact by 30%. Use gamma ray logs to confirm tool depth before firing. For annular preventers, ensure the ram block diagram matches the actual bore size–mismatches cause blowouts under pressure exceeding 5,000 psi.
Essential Components of a Borehole Schematic
Start with the surface casing–it stabilizes the uppermost section and prevents contaminants from entering. Use API Spec 5CT Grade K55 or N80 steel with a minimum 120% cement bond to the formation. For depths exceeding 1,500 meters, opt for corrosion-resistant alloys like 13Cr or duplex stainless steel to combat hydrogen sulfide exposure. Always include a centralizer every 10 meters along the casing string to ensure uniform cement distribution and avoid channeling.
- Production tubing must match the anticipated flow rate; 2 7/8″ OD suits most onshore applications, while 4 1/2″ is standard for offshore high-volume wells.
- Install a gas lift mandrel above the packer for artificial lift, spacing mandrels 30–50 meters apart to optimize performance.
- Select packers based on differential pressure: retrievable packers for temporary completions, permanent for long-term isolation.
- Use a Christmas tree rated at least 5,000 psi for sweet oil and 10,000 psi for sour service, incorporating both master and wing valves for redundancy.
Downhole safety valves must comply with API 14A, positioned 30–50 meters below the mudline for subsea wells. Include a fusible link for surface-controlled subsurface safety valves (SCSSV) to ensure fail-safe operation. For deviated or horizontal sections, deploy swellable packers pre-loaded with 15–20% excess swelling agent to accommodate formation temperature variations. Always cross-reference the schematic with real-time logging data to validate casing shoe placement within 1 meter of targeted formation depth.
Critical Elements Shown in a Typical Borehole Schematic
Start with verifying the casing string integrity before interpreting any downhole schematic–its outer diameter and material grade dictate pressure resistance and corrosion lifespan. API standards (e.g., 5CT) classify casings: H-40 to Q-125 grades handle 2,000–15,000 psi burst pressures, while L80 chrome alloys resist CO₂-heavy environments. Always cross-reference the schematic’s specified dimensions with downhole logs to confirm actual depths–discrepancies exceeding 1% indicate potential formation collapse or cement voids.
The cement sheath thickness must exceed 1.5× the formation’s collapse gradient; schematics often underspecify this. Check centralizer placements–non-uniform spacing (ideal: ≤12 m for 9⅝” casing) creates channeling paths, detectable via CBL logs. Schematics omitting tieback liners? Assume incomplete zonal isolation unless cement bond maps prove otherwise.
Tubing hanger seals fail at 8–12% torque misalignment–schematics rarely show thread compound tolerances. Compare the depicted PBR (polished bore receptacle) to vendor specs: any stroke mismatch >2 mm risks seal extrusion during thermal expansion. Annulus fluid compositions (packer fluids) must match the schematic’s pressure ratings; brine density errors (
Packer types demand scrutiny: permanent models (e.g., Halliburton’s “SC-1”) require 30% more pressure to unset than retrievable variants, yet schematics lump them together. Always isolate the lower completion: gravel-pack screens should show ≥30% open flow area, while sliding sleeves must align with the reservoir’s permeability contrast–1 Darcy zones need 10× fewer ports per meter than tight sandstone.
Surface-controlled subsurface safety valves (SCSSVs) require hydraulic control line routing–schematics often omit loop diameters. Verify the depicted valve’s flapper angle (standard: 45°) against API RP 14B specs; angles ≤30° reduce debris tolerance by 40%. Pressure-charged accumulators must show nitrogen pre-charge at 70–80% of wellhead design pressure–skipped details here lead to premature closure.
Christmas tree configurations vary by field: horizontal trees reduce footprint but increase erosion risk at 45° entry bends–schematics should label the choke’s tungsten carbide trim grade (minimum 90% WC for sand-prone wells). Always trace the kill wing valve path: any cross-over to production lines creates a single-point corrosion failure. Schematics lacking flange ratings? Assume 5,000 psi working pressure unless FT reports prove otherwise.
Decoding Labels and Symbols on Subsurface Equipment Schematics
Begin by identifying the legend–usually a small box or inset on the schematic. It lists abbreviations like “Tbg” for tubing, “Csg” for casing, or “Pckr” for packer, alongside graphic symbols. Check if the legend specifies measurement units (e.g., inches, millimeters, or API standards) to avoid misreading dimensions. Schematics often use color-coding: red for pressure control, blue for fluid paths, and green for valves or safety devices. If colors aren’t labeled, cross-reference with industry standards like API RP 14FZ or manufacturer-specific documentation.
Focus on directional arrows. A solid arrow indicates flow direction, while a dashed arrow marks bypass routes or secondary circulation paths. Numbers next to arrows show design flow rates (e.g., “2,500 bbl/d”) or pressure ratings (e.g., “5,000 psi W.P.”). Symbols shaped like lightning bolts denote electrical components–cross-check these with wiring diagrams if troubleshooting downhole pumps. Triangles typically represent sensors; a hollow triangle is a temperature gauge, while a filled triangle signals a pressure transducer.

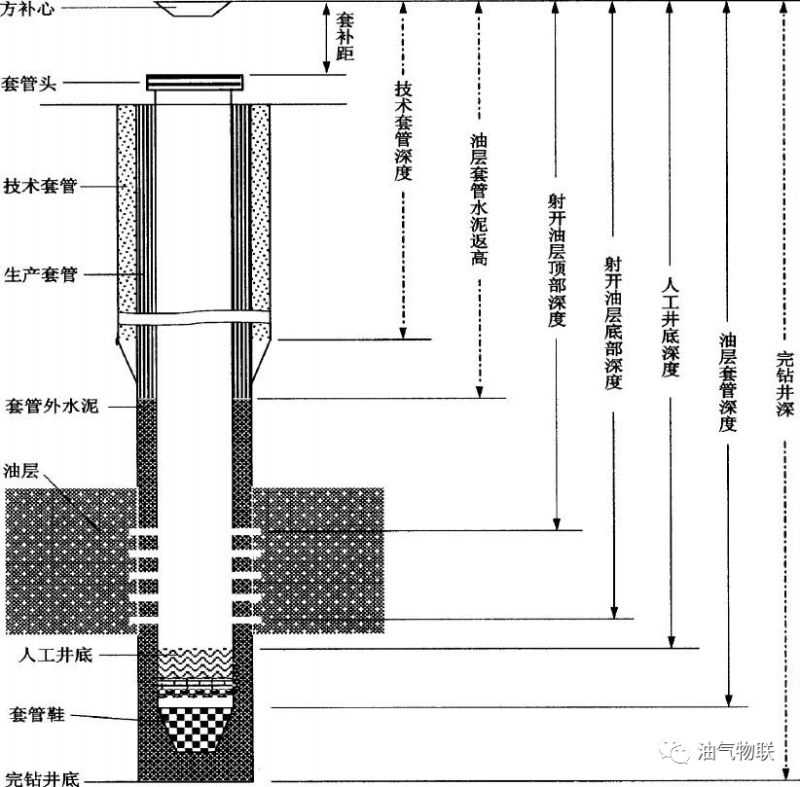

Locate the depth markings. These appear as segmented columns on the side of the schematic, with top and bottom depths labeled (e.g., “0 ft – GL” for ground level, “-8,500 ft – PBTD” for plug-back total depth). Intervals between markings often include annotations like “Cemented 3-1/2 in Csg” or “Open Hole 8-1/2 in.” Note that deviations from vertical wells show curved lines with angular measurements (e.g., “3°/100 ft”)–these require trigonometric calculations to verify true vertical depth.
| Symbol | Component | Common Variations |
|---|---|---|
| ⏣ (circle with central dot) | Centralizer | Dashed circle: bow-spring; concentric circles: rigid |
| □ (square) | Choke/Orifice | Filled square: adjustable; hollow: fixed |
| ⚡ (zigzag) | Downhole Heater | Double zigzag: higher voltage rating |
| ⌲ (curved arrow) | Gas Lift Valve | Arrow direction denotes injection point |
Interpret threaded connections by their labeled thread types. API connections show “NC50” or “3-1/2 IF,” while premium connections (e.g., Hydril PH-6) use proprietary symbols–consult manufacturer specs for torque values and seal requirements. Flange symbols (e.g., “6BX”) include pressure class numbers (e.g., “10M” for 10,000 psi)–verify these against API Spec 6A to prevent mismatches during installation. Crossed hammers next to a flange indicate required surface treatment (e.g., “250 BHN hardness”), critical for sour service components.
Distinguish between solid and dashed lines. Solid lines represent primary structural elements–tubing strings, mandrels, or completion tools. Dashed lines indicate auxiliary features: control lines (e.g., “╌╌ 1/4 in OD”), chemical injection tubes, or annulus access ports. A dashed circle around a component typically marks a wireline-retrievable item (e.g., sliding sleeves); absence of this circle means the part requires rig intervention for removal. Annotations like “FLAG 1” or “PBTD” correlate to survey points–match these to deviation logs to confirm spatial accuracy.
Step-by-Step Guide to Identifying Depth Measurement Marks
Locate the main casing string on the structural schematic–depth markings typically appear as etched or painted lines 6–12 inches apart along its exterior. Inspect the collar joints first; manufacturers engrave reference points like “GL” (ground level) or “K.B.” (kelly bushing) at the rig floor, serving as zero for vertical measurements. Verify units: oilfield operations use feet, metric systems may show meters or decimeters. Cross-check with the tubular specification sheet–nominal lengths (e.g., 30 ft, 40 ft) should align with physical mark intervals.
Deciphering Non-Standard Indicators
Watch for unconventional symbols: a triangle might denote the top of liner hanger, while a diamond often marks tool joint depths. Some service companies use colored bands–red for fluid interfaces, blue for casing shoe depths. If markings blur, measure from the nearest coupling using a steel tape: subtract or add the coupling thickness (typically 0.5–0.75 inches) to maintain accuracy. For deviated boreholes, seek directional survey charts–inclinometer data overrides surface measurements beyond critical angles (>15°).
Record discrepancies immediately. Document each mark’s position relative to the rig floor datum using a systematic log (e.g., “Mark #3: 1,245 ft K.B., 3-inch-wide white stripe“). Photograph each segment with a scale reference (e.g., 12-inch ruler) for later validation. Erroneous readings trigger cascade errors in packer placement or perforation depth calculations–confirm measurements with at least two independent tools before proceeding.
