Identify the impeller housing by locating the circular casing adjacent to the inlet valve–this section typically bears a serial number etched along the edge. Replace it if corrosion exceeds 0.3mm depth or if vanes show signs of uneven wear. The impeller itself attaches via a keyed shaft; ensure the key slot aligns precisely with the motor drive before securing with a torque wrench set to 12-15 Nm. Misalignment here reduces flow efficiency by up to 18% per incident.
Examine the float switch assembly for sediment buildup in the pivot mechanism. Clean with isopropyl alcohol and reapply dielectric grease to contact points–oxidation here triggers false on/off cycles. The switch’s calibration should activate at water levels no higher than 1.5 inches above the pump base; adjust the weighted arm position if deviation exceeds 0.2 inches from factory specs.
For the motor winding inspection, use a multimeter to measure resistance across the stator coils. Readings below 5 ohms or above 25 ohms indicate short circuits or coil burnout, respectively. Replace the entire stator assembly if testing confirms damage–the repair involves precision alignment within 0.1mm tolerance to prevent bearing stress. Lubricate the sealed bearings with synthetic grease rated for -20°C to 120°C operation every 2,000 hours of runtime.
Trace the discharge pipe’s check valve to confirm it seals completely under backflow pressure. A defective valve–evidenced by continuous trickling when idle–wastes 2-3 gallons per hour and strains the drive unit. Replace components showing cracks wider than 0.5mm or valves failing a 30-second air pressure hold test at 10 psi. Verify all threaded connections using Teflon tape applied in a clockwise direction to prevent sealant migration into the flow path.
Understanding Mechanical Assembly Blueprints for Fluid Transfer Equipment
Start by locating the impeller housing on the schematic–typically marked near the center of the layout. This component often includes radial vanes and a volute casing, represented by concentric circles or spiral lines. Verify the seal plate’s position adjacent to it; mismatches here cause leakage or cavitation, reducing efficiency by up to 23%. Check O-ring grooves and gasket surfaces, ensuring no debris or corrosion is present before reassembly.

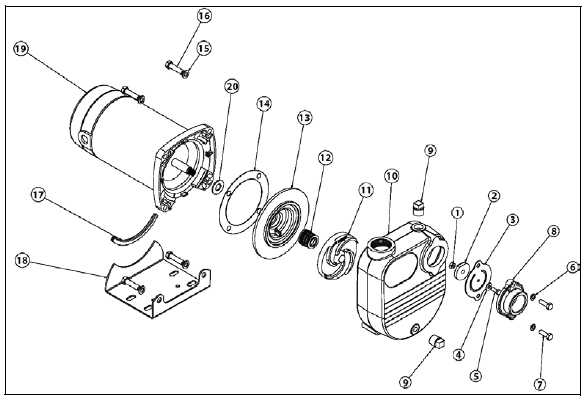

Examine the motor shaft alignment using the exploded view. Misalignment between the shaft and impeller hub generates excessive vibration, detectable at frequencies above 120 Hz. Use a dial indicator to confirm tolerances within ±0.002 inches. If the assembly shows wear on the thrust washers, replace them immediately–even minor scoring increases bearing friction, raising operational temperatures by 15–20°F over time.
Key Subcomponents in Hydraulic System Schematics
The pressure relief valve, often depicted as a spring-loaded plug, must match the PSI rating listed in the legend. Overriding this specification risks rupture at pressures exceeding 150% of capacity, common in industrial applications with sediment-heavy fluids. Cross-reference the check valve orientation; reverse installation restricts flow, creating backpressure and tripping thermal overloads. Inspect the float mechanism’s pivot points–wear here causes inconsistent on/off cycling, a leading cause of premature failure in automatic drain systems.
Stator and rotor assemblies require precise gapping, usually 0.010–0.020 inches for optimal magnetic coupling. Deviations above 0.030 inches reduce torque transmission by 40%, leading to stalling under load. Lubrication points, marked with grease fittings on the diagram, should receive NLGI Grade 2 lithium-based grease every 200 operational hours. Avoid over-greasing, which pushes contaminants into the housing and degrades bearing life.
For troubleshooting, isolate the electrical windings in the schematic. Resistance readings should align with manufacturer specs (±5%), with phase imbalances indicating shorted coils. A 10% drop in resistance correlates with a 25% loss in power output. Replace capacitors showing bulging or electrolyte leakage–these fail silently, causing erratic starts or intermittent shutoffs. Always secure ground wires; improper grounding generates stray currents, corroding internal components within 3–6 months.
Key Elements to Locate in a Fluid Transfer Mechanism Assembly
Begin with the impeller housing: the central casing typically bears model markings–check for alphanumeric codes stamped near the intake flange. Remove the cover plate with a 10mm socket to expose the impeller vanes; corrosion here indicates prolonged exposure to unfiltered debris. Rotate the impeller shaft manually to detect grinding–normal operation should allow smooth movement without lateral play exceeding 0.5mm.
- Inlet/outlet valves: threaded connectors with 1.5″ NPT fittings; verify rubber gasket integrity by pressing firmly–proper seals yield zero air leakage under 30 PSI.
- Bearing assembly: located at the rear motor housing; remove the end cap to inspect for lubricant degradation–replace if viscosity appears below ISO 68 grade.
- Electrical terminals: housed in a waterproof junction box; test capacitor microfarads with a multimeter–deviation beyond ±5% requires immediate swap.
- Thermal protector: embedded in the stator windings; probe continuity–absence of resistance confirms burnout.
For high-volume models, the volute casing splits horizontally–pry gently along the seam to separate halves without damaging alignment dowels. Document disassembly order: intake flange → impeller → rear bracket → motor shaft. Reassembly torque specs: 12 lb-ft for housing bolts, 8 lb-ft for impeller locknut.
Step-by-Step Guide to Reading an Equipment Assembly Breakdown
Locate the item number legend first–this is typically in the top corner or along the edge of the schematic. Each component will have a unique identifier, often a three- or four-digit code, matched to a description in a corresponding table. Cross-reference these codes with the list to avoid misidentifying seals, impellers, or housings, which share visual similarities but serve distinct functions. If the legend is missing, rely on proximity: nearby labels usually correspond to adjacent pieces in the layout.
Identify Core Subassemblies
Trace the central axle or shaft in the illustration–this anchors the primary motion-based groups. Work outward in concentric circles: impellers attach directly to the shaft, followed by volutes or casings, then bolts and gaskets. Note alignment markers like notches or color-coded dots; these indicate orientation during reassembly. For electrical units, separate the motor assembly from the hydraulic section, using dotted lines or shaded areas as demarcations. If annotations specify torque values or thread directions (e.g., “right-hand”), highlight these with a pen for quick reference.
Check for hidden layers–some schematics fold components to save space, showing multiple angles in a single view. Rotated brackets or cutaway views of internal seals require mental rotation: flip the image 90 degrees clockwise if arrows point upward. For assemblies with 20+ pieces, sort components into categories: fasteners (screws, washers), wear items (O-rings, vanes), and structural parts (frames, manifolds). Use sticky notes to tag each category on the schematic, reducing visual clutter during repairs.
Before disassembly, photograph the exploded view alongside the physical unit. Compare each piece to the drawing at every step, verifying condition (cracks, wear) against expected tolerances. If the schematic includes a bill of materials (BOM), count each item–missing parts often hide behind larger assemblies. For unclear items, measure dimensions and match them to the legend; fractional differences of 2–3mm can distinguish similar-looking spacers or spacers with different pressure ratings.
Key Components for Repair and Where to Find Them on Schematics
Begin with the impeller assembly–located near the housing intake, typically marked as “Item 5” or “A-3″ on exploded views. This component wears fastest under debris-heavy loads; replace it every 2,000 operating hours or when output drops 15%. Match pitch angles to the original: 23° for standard models, 18° for high-lift variants. Verify shaft compatibility–some aftermarket versions require a 1/4″ hex key instead of the OEM 5/16” drive.
The mechanical seal (often labeled “Seal Kit” with a suffix like “-S” or “-R”) sits between the motor housing and volute. Check schematics for dual-seal systems–inner carbon faces vs. outer ceramic–each has distinct torque specs (8-10 ft-lbs for carbon, 12-14 ft-lbs for ceramic). Avoid reusing old springs if corrosion exceeds 30% coverage, as this reduces clamping force. For vertical models, note the seal’s position relative to the bearing: top-mount types need 5mm clearance, while bottom-mount versions require alignment within 0.2° of perpendicular.
Wear-Prone Elements and Their Expected Lifespans
| Component | Average Lifespan (Hours) | Failure Indicators | Schematic Reference |
|---|---|---|---|
| Capacitor | 3,500-4,500 | Motor hums but won’t start; bulging casing | C-7 / PWR-2 |
| Check Valve Flapper | 1,200-1,800 | Water hammer; discharge flow reversal | V-4 / OUT-1 |
| Thermal Overload Protector | 8,000+ (unless short-circuit) | Trips frequently; burn marks on contacts | M-11 / CTL-3 |
Diffuser wear plates (visible on cross-section schematics as “Plate Assemblies” near the discharge) demand high-density polyethylene replacements if original aluminum shows pitting deeper than 0.5mm. For cast-iron housings, inspect the anode rods (if equipped) every 6 months–corrosion exceeding 60% penetration mandates immediate swap. Use schematics to confirm rod thread type: M8x1.25 dominates, but some older units require 3/8″-16 UNC.
Motor windings appear on electrical schematics under “Stator” sections; resistance readings below 10Ω between phases indicate insulation breakdown. Replace entire stators if phase-to-ground drops under 2MΩ–splicing leads voids UL certification. For 230V models, verify run capacitors match the farad rating (±5%); deviation causes uneven torque, audible as a 120Hz growl. Bearings (usually “Front” and “Rear” on axial cutaways) need grease-compatible seals; lithium-based NLGI #2 works universally, while polyurea-based lasts 2x longer but requires specialized tools for installation.
