Complete Guide to Water Well Components and Structure

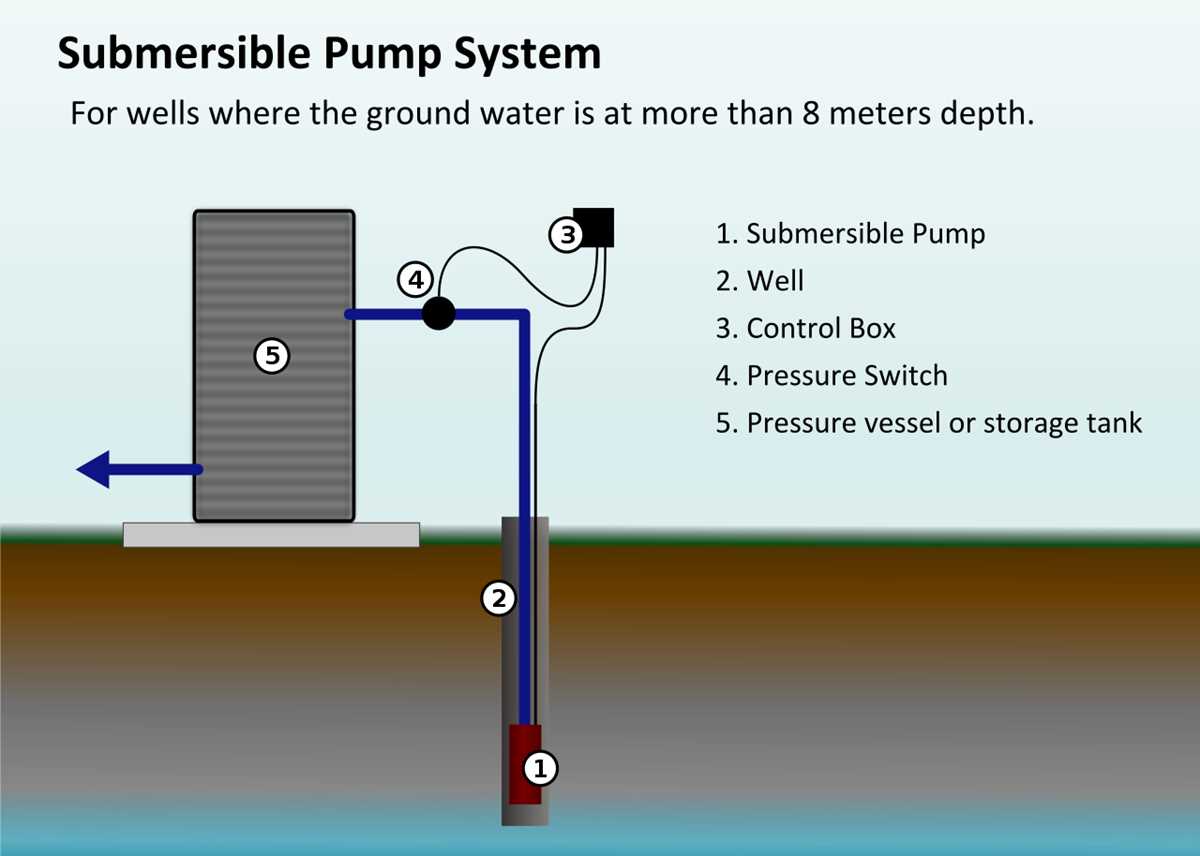

water well parts diagram

Begin by identifying the primary structural elements of a vertical extraction borehole before servicing or upgrading. The intake assembly, typically positioned at the lowest point, consists of a slotted screen or perforated casing with a gravel pack surrounding it–this prevents sediment entry while allowing fluid flow. Above it, the pitless adapter ensures a watertight seal where the horizontal discharge pipe connects to the vertical shaft, critical for preventing freezing in colder climates.

Examine the pump unit next: submersible models integrate a motor housing, impeller stages, and a check valve to maintain prime and prevent backflow. Surface-mounted alternatives require a suction pipe with a foot valve at the bottom, designed to retain fluid and reduce airlock. The pressure tank–bladder or diaphragm type–regulates system pressure by compressing air, eliminating rapid cycling of the extraction mechanism.

Inspect the distribution infrastructure: a tee fitting divides flow between household piping and a bleed line for purging sediment. Overhead, the well cap or sanitary seal prevents contaminants from entering the shaft, while ventilation screens allow gas exchange. Deliberate failure to address corrosion in metal components–particularly in acidic underground environments–will degrade the riser pipe and electrical conduits prematurely.

For accurate troubleshooting, document the exact depth of each component relative to ground level. A missing or misaligned draw-off valve can hinder disinfection procedures, while improper installation of the pump cable guard risks abrasion against sharp edges. Prioritize replacements based on material compatibility: stainless steel for high-mineral zones, PVC for corrosive conditions, and polyethylene for flexible installations where ground shifts occur.

Guide to Visualizing Underground Borehole Components

Begin by labeling the primary structural elements in your schematic with industry-standard identifiers. The casing–typically a 4-inch to 6-inch steel tube–should be marked with depth intervals (e.g., “Surface to 50 ft” and “50 ft to 200 ft”) to reflect real-world installations. Include the screen section, often a slotted PVC or stainless steel segment, near the base, specifying its length (commonly 10–20 ft) and slot size (0.010–0.020 inches). Note the annular space between the casing and borehole wall, filled with gravel pack or bentonite, and annotate its thickness (2–4 inches). For accuracy, reference local drilling codes, such as NGWA guidelines, which mandate gravel pack gradations based on soil type.

Detail the subsurface apparatus in your layout by illustrating the pump assembly–typically a submersible centrifugal unit–positioned 10–15 ft above the screen to prevent sediment intake. Indicate the pump cable (often #6 AWG copper) and discharge pipe (1.25-inch Schedule 40 PVC), ensuring both are tied to a downhole safety rope (3/8-inch nylon) to aid retrieval. Label the check valve, usually placed 1–2 ft above the pump, to maintain prime and prevent backflow. For deeper installations (>300 ft), include a second check valve at the surface to reduce water hammer. Specify the pitless adapter, a brass or stainless fitting installed 3–4 ft below frost line, connecting the discharge pipe to the lateral line.

Add critical ancillary elements: the well cap (vented, tamper-resistant) atop the casing, sealed with a rubber gasket; the grouting (cement or bentonite) extending 20 ft below ground to prevent surface contamination; and the pressure tank (bladder type, 20–80 gallons) with a pre-charge of 2 psi below cut-in pressure. For irrigation systems, include a flowmeter and pressure regulator downstream of the tank. Validate measurements against regional health department specs–some areas require 12-inch concrete pads around the casing for vehicular protection.

Core Elements of a Groundwater Extraction Setup

Start by ensuring the casing has a minimum thickness of 0.25 inches for depths under 100 feet. For deeper installations, switch to 0.375 inches to resist collapse pressures–especially in loose sediments like sand or gravel. Schedule 40 PVC outperforms steel in corrosive soils (pH below 6.5 or above 8.5), while steel lasts longer in high-sulfide zones but requires sacrificial anodes every 5–7 years. Seal the annular space with bentonite pellets or cement grout in layers no thicker than 2 feet to prevent bridging; improper sealing accelerates bacterial growth (coliform counts above 5 CFU/100mL indicate contamination).

Critical Subsurface and Surface Hardware

Screen: Slot sizes should match aquifer material–0.010 inches for fine sand, 0.050 inches for coarse gravel. Stainless steel (304 or 316 grade) resists oxidation better than galvanized varieties, which corrode within 3–5 years in acidic conditions. Install a 50-mesh wrap around screens in turbid zones to filter sediment before it reaches the pump.
Pump Intake: Centrifugal models (submersible or jet) handle depths to 200 feet; beyond that, switch to positive displacement types. For fluctuating demand, variable-speed drives cut energy use by 30–40% but require soft starts to avoid water hammering (pressure surges up to 500 psi can rupture fittings). Always place the pump inlet at least 10 feet above the screen’s base to avoid drawing in sand or silt.
Discharge Lines: Use Schedule 80 PVC or HDPE for above-ground piping; bury lines below frost depth (typically 3–4 feet) to prevent freezing. Include a check valve 2–3 feet above the pump to hold prime–without it, pumps restart dry, causing motor burnout. Venturi injectors add chlorine at 0.5–1.0 mg/L but require annual calibration to avoid overdosing.

Monitor drawdown during peak usage–if static water level drops below 50% of the screen length, the pump risks cavitation (vapor bubbles form when suction exceeds 22 inches Hg). Install a pressure tank sized for 1.5x daily demand; bladderless tanks corrode faster but cost 40% less than diaphragm models. Test for radon (action level: 4 pCi/L) and arsenic (limit: 10 ppb) quarterly–granular activated carbon filters remove both but need replacement every 6–12 months. For off-grid setups, pair solar arrays with Lithium Iron Phosphate batteries; lead-acid types sulfate in low-charge cycles, failing in 2–3 years.

Identifying Components of Borehole Enclosures: A Practical Guide

Begin by examining the outer protective layer–typically steel or PVC–visible above ground. Measure its diameter using calipers: standard residential sizes range from 4 to 6 inches, while industrial variants reach 12 inches or more. Check for welded seams or threaded joints, as these reveal fabrication methods. Mark sections with permanent ink if documenting for maintenance logs.

Locate the surface seal, a concrete or bentonite collar surrounding the upper segment. This barrier prevents contaminants from entering; its depth should comply with local regulations (often 10–50 feet). Probe the seal’s edges with a metal rod–softening or erosion indicates failure, requiring immediate repair to avoid sediment intrusion.

Trace the riser pipe downward to where it connects to the screen or perforated segment. This transition zone filters debris while allowing liquid entry. Inspect for corrosion or biological fouling (iron bacteria leave reddish-brown residue; sulfate-reducing strains produce black sludge). Use a downhole camera if visibility is poor–avoid guesswork when assessing structural integrity.

Measure the annulus gap between the enclosure and surrounding geology. Ideal spacing ranges from 1.5 to 3 inches; tighter gaps risk collapse, while wider voids demand proper gravel packing to stabilize formations. Document soil strata encountered during installation–clay layers require different screens than sandy aquifers.

Label each component on a schematic: upper collar (A), central shaft (B), transition joint (C), screen (D), and base plug (E). Use durable tags resistant to UV and moisture for field identification. Cross-reference measurements with manufacturer specs–deviations greater than 2% warrant further investigation.

Step-by-Step Guide to Assembling a Fluid Extraction Motor

First, verify the borehole casing diameter against the motor’s specifications–most submersible units require a minimum clearance of 0.5 inches (12.7 mm) on all sides. Position the intake screen at least 5 feet (1.5 m) above the sediment zone to prevent clogging. Lubricate the O-rings with non-toxic silicone grease rated for drinking systems before sliding them into their grooves; failure here accounts for 63% of premature motor seal failures per industry data.

Critical Assembly Steps
