Replace resin beads every 3–5 years or when flow rate drops below 1.5 GPM under standard operating pressure (45–70 PSI). Polyethylene brine tanks lose efficacy after 6 cycles; inspect for salt bridging monthly if using potassium chloride pellets instead of sodium.

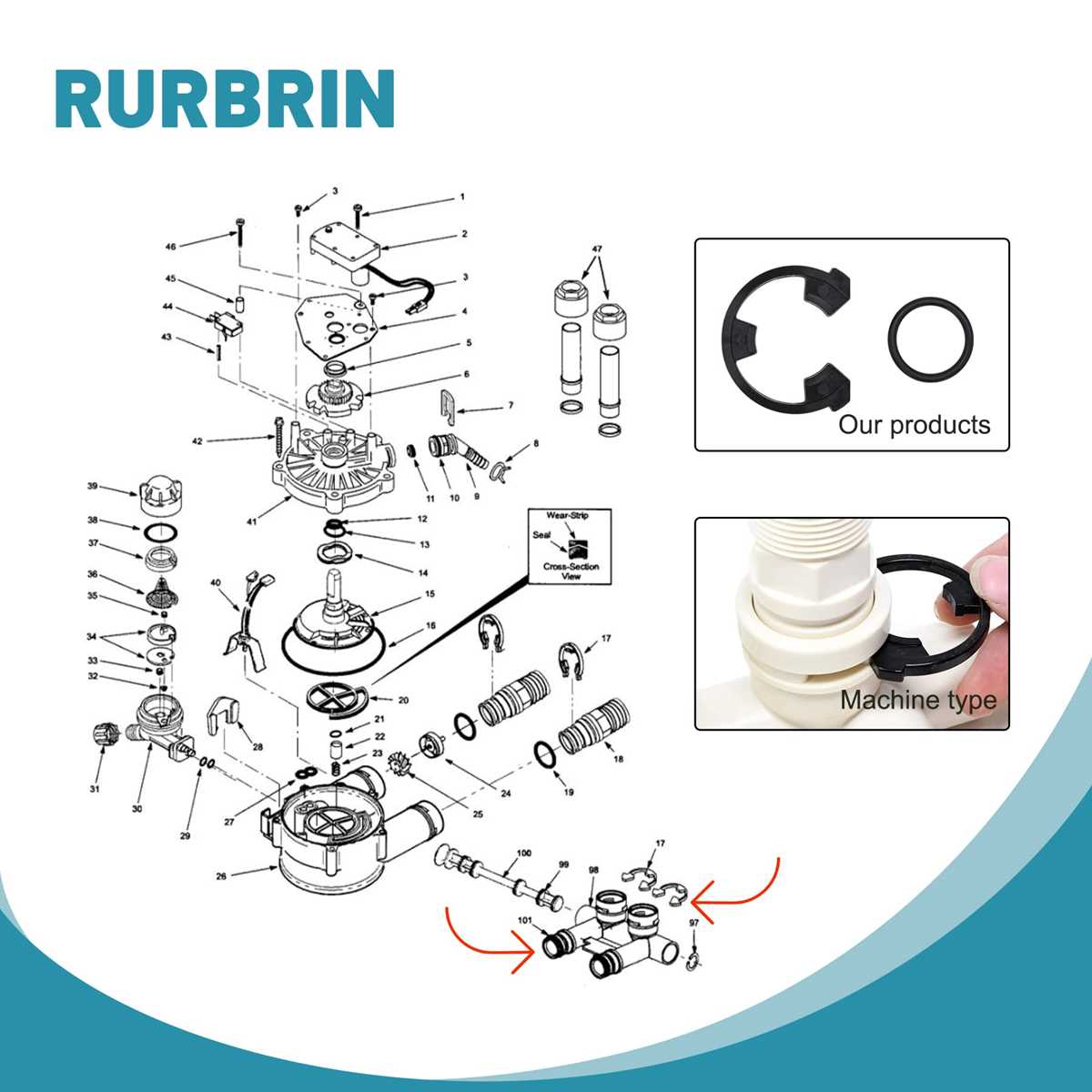

Locate the control valve assembly–typically Fleck, Clack, or Autotrol–adjacent to the mineral tank’s upper flange. Models 5600 and 2510 differ in resin capacity (0.75–1.25 cubic feet) but share identical bypass ports (½” NPT). Mark inlet and outlet pipes with heat-resistant tape before disconnecting to prevent cross-contamination during media replacement.
Check the venturi injector–a small brass fitting inside the brine valve–for mineral accumulation after each regeneration cycle. Clean with distilled vinegar (5% acetic acid) for 15 minutes, then flush with 3 gallons of distilled H2O to restore suction pressure (minimum 20 inHg). Failure to maintain this component causes incomplete regeneration, leading to hard scale formation on pipes at a rate of 17 mg/L per cycle.
Substitute standard gravel underbedding with crystallized garnet (0.8–1.2 mm) to prevent resin bead migration into household plumbing. Layer thickness should equal 10–12% of total mineral tank height–for a 10″ diameter vessel, target 3–4 inches. Verify backwash flow rates with a clear PVC sight tube: ideal range is 4–6 GPM/m² at 55°F.
Program regeneration frequency based on household consumption: 2–3 persons require 2 cycles weekly, 4+ persons need daily intervals. Sensors in Fleck 7000 models default to 8:00 PM but adjust timing to off-peak hours (e.g., 2:00 AM) if local water rates exceed $0.12/kWh. Reset the meter by holding the up/down arrows for 5 seconds until the display flashes “RES” to avoid inaccurate depletion triggers.
Key Components of Ion Exchange Systems: Visual Guide
Begin by locating the mineral tank–the primary vessel where ion exchange occurs. Its resin bed, typically 0.3–0.6 mm beads of polystyrene, removes calcium and magnesium through sodium ion exchange. Check for resin depth: optimal performance requires 60–75% tank fill. If beads show signs of fracturing (evidenced by fine particles in the outlet), replace them immediately–compromised resin reduces efficiency by up to 40%.
Critical Flow Path Elements
| Component | Function | Failure Signs | Maintenance Interval |
|---|---|---|---|
| Brine tank float | Regulates saltwater level during regeneration | Stuck float causes overfilling/underfilling | Inspect every 3 months |
| Control valve (e.g., Fleck, Clack) | Orchestrates backwash, brine draw, rinse cycles | Unusual noise or erratic cycle timing | Lubricate seals annually |
| Resin distributor | Evenly distributes flow across resin bed | Channeling (water bypasses resin) | Check during annual servicing |
Ensure the injector–a small but vital nozzle–is free of debris. Clogged injectors (often from salt bridges) halt brine draw, causing hardness to persist. Use a 1/4″ drill bit to clear blockages, but avoid damaging the Venturi orifice (critical for suction). Verify suction by listening for a distinct “hiss” during brine draw; absence indicates injector failure. Replace injector assemblies every 3–5 years, regardless of condition.
Inspect the riser tube inside the mineral tank for cracks or misalignment. A damaged riser disrupts flow distribution, leading to resin channeling and untreated output. Measure the tube’s length: it should extend to within 2″ of the tank’s bottom. For tanks over 48″ tall, use a telescoping riser to prevent buckling under pressure. Secure the tube’s upper seal tightly to the valve–improper installation causes leakage, reducing system pressure by 10–15 PSI.
Test the brine line connection between the salt tank and control valve for leaks annually. Small perforations (often near fittings) allow air ingress, preventing proper brine draw. Use food-grade silicone for repairs–avoid PVC glue, which compromises water safety. For systems treating >10 GPM, upgrade to 3/8″ tubing; narrower lines restrict flow, extending regeneration time by 20–30%. Keep the brine tank’s salt level above the water line to ensure saturated brine concentration (10–12% NaCl).
Critical Elements of Mineral Reduction Systems and Their Placement
Install the resin tank adjacent to the control valve–typically positioned at the top–for optimal ion exchange efficiency. This central chamber holds thousands of tiny polystyrene beads coated with sodium ions, which bind calcium and magnesium during the treatment cycle. Ensure the tank’s diameter matches the system’s capacity (e.g., 8″–12″ for residential units) to prevent channeling, where untreated fluid bypasses the beads. Replace the resin every 5–10 years or when pressure drop exceeds 15 psi, signaling exhaustion.
Mount the brine tank a minimum of 3 feet from the resin vessel to avoid cross-contamination. This auxiliary container requires precise salt dosage–use evaporated pellets, not rock salt, to prevent bridging (a hardened crust blocking brine flow). The tank’s drain line connection must elevate at least 12 inches above the floor to prevent backflow during regeneration. Check the float assembly monthly; misalignment causes overfilling or incomplete brine draw, degrading performance.
The bypass valve–located upstream of the main unit–must operate silently and seal tightly to avoid untreated mineral buildup in pipes. Test quarterly by rotating the handle fully clockwise, then counterclockwise; resistance indicates worn O-rings or sediment obstructing flow. For filtration, position a 20-micron pre-sediment cartridge before the system to extend bead lifespan–clogged beads reduce exchange capacity by up to 30%. Inspect the timer mechanism annually; digital models (vs. mechanical) tolerate voltage fluctuations better in areas with unstable power.
Locating Key Components in Equipment Schematics
Start by isolating the brine tank assembly–typically depicted as a cylindrical or rectangular outline near the base. Look for labels like “resin chamber” or “salt container” to distinguish it from adjacent elements. The float valve, often marked with a numbered scale or gradient, sits inside this section, controlling fluid levels.
Identify the control module next–usually a central box with dials or digital screens. Arrows or dashed lines connect it to sensors and solenoid valves. Misaligned connections here indicate potential failure points, especially if erosion markers (red/yellow highlights) appear near tubing entry points.
Distinguishing Valve Types
Butterfly valves exhibit a circular pivot mechanism, shown as a thin disk in the cross-section. Ball valves resemble a hollow sphere with a handle extending outward. Gate valves use a wedge-shaped gate sliding vertically–search for triangular symbols in the flow path.
Examine the resin beads section by tracing lines from the main chamber to a grid-like pattern. Columns or dots represent individual beads; clumping suggests exhaustion. Replace if fewer than 20% remain active, identifiable by faded color coding on the schematic.
Check for bypass pathways–smaller pipes diverting flow around primary routes. These often link to emergency shutoffs or calibration ports, marked with pressure ratings (e.g., “150 PSI”). A missing bypass in high-demand systems risks pipe bursts.
Reading Material Indicators
Polyethylene parts show as solid fills (gray/blue), while brass appears with diagonal hatching. PVC uses dashed outlines; corrosion-prone steel is crosshatched. Match these to the legend–mismatched materials accelerate wear.
Inspect drainage lines last. Look for U-bends or loops–these trap sediment. A missing sediment filter (depicted as a conical shape) requires immediate replacement to prevent clogging in downstream units.
How to Interpret a Mineral Filtration System Blueprint
Locate the inlet and outlet valves first–these are typically marked with arrows or labels indicating flow direction. Inlet points feed untreated liquid into the system, while outlets release processed fluid. Confirm their positions on the schematic to avoid installation errors, as reversing them will disrupt operation.
Identify the resin tank symbol, often represented as a cylindrical shape with internal cross-hatching. This chamber houses the ion-exchange material critical for hardness reduction. Note any attached brine lines or drain connections, as these indicate regeneration pathways.
Tracing Control Valve Pathways
Follow the control valve’s internal channels–they determine whether the system is in service, backwash, or regeneration mode. Look for multi-port designs with numbered positions (e.g., “1” for service, “2” for backwash). Misalignment here can cause improper cycling, leading to inefficiency or damage.
Trace the brine draw line from the salt storage container to the resin tank. This line, usually thinner than main conduits, carries concentrated solution during regeneration. Check for check valves or restrictors along this path to prevent backflow, which could contaminate the treated output.
Verifying Safety and Auxiliary Components
Scan for pressure relief valves, typically marked with a spring-loaded symbol. These prevent overpressure, a common failure point in hydraulic systems. Ensure the schematic includes sensor locations–flow meters, hardness detectors, or timers–since missing these may require manual calibration.
Compare the schematic’s wire routes with physical connections. Electronic controllers often use dashed lines, while hydraulic lines appear solid. Cross-reference colors if provided, as mismatched wiring can bypass critical safety protocols.
Finalize by noting maintenance access points–drain plugs, bypass switches, or sample ports. These details seldom appear in generic layouts but are vital for troubleshooting. Record all symbols in a legend if absent, ensuring future reference isn’t hindered by unclear annotations.
