Before attempting repairs or maintenance, locate the thermostat–usually positioned behind an access panel at the base of the unit. Ensure power is disconnected to avoid electric shock risks. The upper element, if present, activates first to heat the incoming cold inflow, while the lower one maintains temperature in the holding tank.
Inspect the anode rod annually for corrosion. This sacrificial component–often made of magnesium or aluminum–protects the tank’s interior by attracting corrosive elements. If reduced to less than ½ inch in diameter, replace it immediately to prevent structural damage. Use a 1 1/16-inch socket wrench to remove it from the top flange.
The pressure relief valve sits near the top outlet, marked by a discharge pipe. Test it quarterly by lifting the lever: water should flow briefly then stop. If it drips continuously, the seat may be worn or debris-blocked–flush it by operating the valve several times. Never cap this device, as it prevents hazardous pressure buildup.
Examine the dip tube where cold flows enter the vessel. A cracked or detached tube causes lukewarm output by mixing cold and hot streams prematurely. To verify, drain the tank completely, then probe the inlet port with a flexible wire–the tube should extend downward. If missing, install a replacement matched to your tank’s capacity (typically ¾-inch I.D.).
When replacing heating elements, match the existing wattage–usually 3,500W to 5,500W–to avoid circuit overloads. Stainless steel elements resist corrosion better than copper in hard water areas. Use a non-contact voltage tester to confirm zero current before handling wires, and apply anti-seize compound to threads to prevent future seizure.
Boiler Schematic Breakdown: Critical Elements Decoded
Start by locating the thermostat–typically tucked behind an access panel on the tank’s exterior. Most residential units operate within a 120–140°F range, but adjustable models allow fine-tuning down to 1°F increments. Verify compatibility before modifying settings: non-standard voltages (e.g., 277V) void warranties on some brands.
- Anode rod: Sacrificial magnesium or aluminum core, threaded into the tank’s top, preventing corrosion. Replace annually if water tests above 6.5 pH or if sediment accumulation exceeds 1 inch.
- Immersion element: Copper or Incoloy sheaths (dual 4500W configurations in 50+ gallon models). Test resistance–values should align with manufacturer specs (±5%). A deviation signals failure.
- Pressure relief valve: Rated for 150 PSI or 210°F; discharge pipe must slope downward to prevent scalding. Perform quarterly manual tests by lifting the lever fully–discontinuous flow indicates blockage.
Insulation varies: foam-wrapped models reduce standby loss by 25% compared to fiberglass, but thicker jackets (R-value ≥16) complicate repairs. Label cut lines with tape during removal to ensure seamless re-wrapping. For hybrid systems, the heat pump’s evaporator coil–positioned above the tank–demands 12″ clearance on all sides. Dust accumulation reduces efficiency by 3% per year; vacuum fins annually using a soft brush attachment.
Plumbing connections follow a standardized layout: dip tube (cold inlet) on the right, hot outlet atop the vessel, drain valve at the base. Use dielectric unions to prevent galvanic corrosion–especially in regions with soft or acidic supply. When servicing, isolate power, shut off the supply, and attach a hose to the drain valve; 5 gallons of residual fluid typically remains even after purported “empty” status. Document component serial numbers–cross-reference with OEM schematics to identify discontinuities pre-2018 vs. post-2019 models.
Locating Key Elements in Your Thermal Storage Unit Blueprint
Scan the schematic for the tank shell–the outermost cylindrical layer typically represented by a thick, continuous line. Inside, look for a dotted or hatched pattern indicating insulation, separating the inner chamber from the outer casing. If the model includes a sacrificial anode rod, it appears as a vertical line near the center, often extending from the top flange.
Identify the burner assembly (in gas models) at the base: it resembles a horizontal tube or cup with smaller concentric circles or flame icons adjacent. Electric variants replace this with heating elements, shown as thick U-shaped or rod-like symbols protruding from the side or bottom–usually two for dual-element systems.
Trace the thermostat near one of the heating coils; it’s a small rectangular or oval shape, sometimes labeled “T-STAT” or marked with a temperature scale. Below it, a temperature-pressure relief valve sticks out as a T-shaped fitting with a pipe leading downward–critical for overheat protection.
Find the dip tube starting at the top cold inlet (often colored blue), extending vertically almost to the bottom. This ensures incoming cold liquid enters near the base rather than mixing with heated contents. The outlet pipe (commonly red) sits at the top, drawing hot liquid from the upper strata.
In gas systems, locate the vent pipe at the top–a wide cylindrical duct emerging from the combustion chamber. Electric models omit this but include a junction box on the side, a small square or rectangular area with wiring symbols. Check for a drain valve at the base, depicted as a simple spigot or tap.

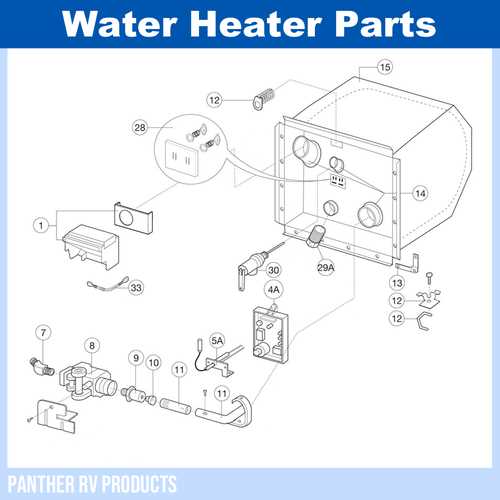

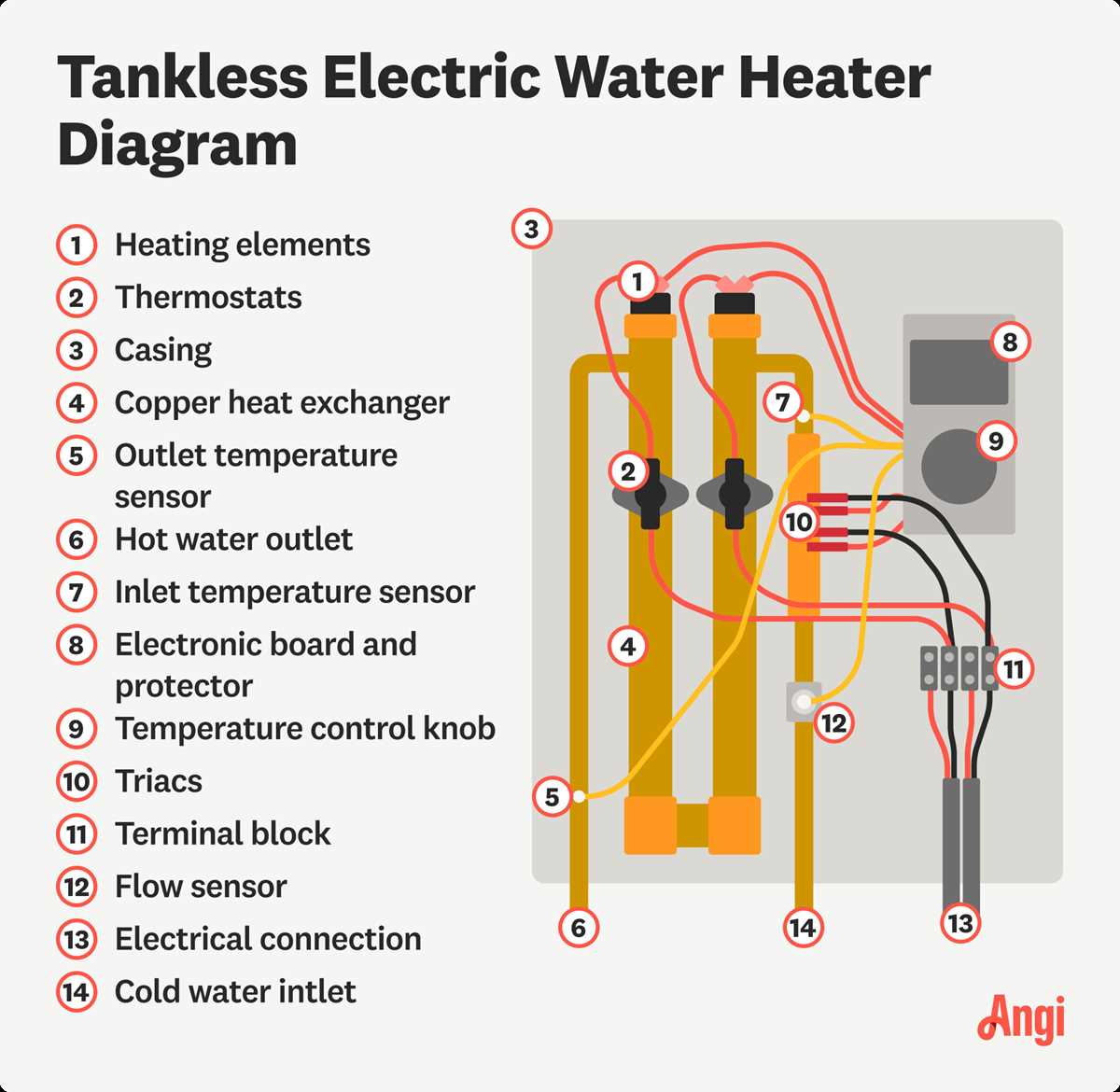

For tankless units, the schematic compresses components into a compact layout. Spot the heat exchanger–interwoven lines or finned coils–and the flow sensor, a small circular symbol often near the inlet. The igniter (for gas) appears as a spark symbol or curved line near the burner.
If the diagram includes expansion tank connections, they’ll show as a smaller vessel linked by a horizontal line to the main unit. Check for shutoff valves–ball-type or gate-type symbols–on both inlet and outlet lines. Some advanced schematics label smart controls, tiny circuit-board icons near the thermostat.
Verify the gas control valve (for fuel-based systems) as a rectangular block on the supply line, marked “GAS” or with pressure ratings. Electric models may highlight circuit breakers or fuse symbols. Cross-reference any colored lines–red for hot discharge, blue for cold intake–to confirm component roles.
Step-by-Step Guide to Locating the Thermostat and Heating Elements
Turn off power at the circuit breaker before inspecting the appliance–failure to do so risks electric shock. Most residential units have a dedicated 240-volt breaker; confirm it’s labeled correctly. Check for residual energy with a non-contact voltage tester near the access panel.
Remove the outer cover by unscrewing the fasteners with a Phillips or flathead screwdriver. Two panels typically exist: one for upper components and another for lower. The upper panel houses the primary temperature regulator–usually a small, rectangular box with adjustment dials. If the unit features dual controls, the secondary regulator sits behind the lower panel.
Identifying the Heating Components
- Locate the flange–circular or oval with bolts–securing the element to the tank. Standard sizes include 3000W (12-gauge nichrome wire) and 4500W (10-gauge).
- Trace wiring from the temperature regulator to the element terminals. Copper conductors should connect directly without corrosion or fraying.
- Inspect for sediment buildup–white or brown deposits on the element indicate scale, reducing efficiency. Replace if resistance exceeds 10-15 ohms (use a multimeter).
Mark wire positions with masking tape before disconnecting anything. Label “Line” (incoming power), “Load” (to element), and ground for reinstallation. For tanks with immersion-type sensors, the probes sit adjacent to the element flange, often secured by nuts or brackets. Verify sensor integrity by ensuring continuity; a broken probe causes erratic temperature swings.
Reassembly Checks
- Reattach wires in the correct sequence (match tape labels). Torque terminal screws to 15-20 in-lbs–overtightening cracks porcelain bases.
- Set the regulator to 120°F (49°C) for safety; higher settings increase scald risk. Calibrate if readings deviate by ±5°F using a thermometer at the nearest faucet.
- Restore power only after sealing panels completely–gaps allow moisture ingress, corroding contacts. Listen for activation clicks within 30 seconds; absence signals a faulty relay.
Key Elements Inside Your Storage Tank: Dip Tube and Anode Rod Explained
Replace the dip tube every 5–7 years, even if no visible damage exists–corrosion or cracks below the intake can disrupt temperature stratification, reducing efficiency by up to 30%. Polypropylene tubes degrade faster in hard-water areas, forming sediment clogs that trap heat near the upper thermostat while depriving lower elements of hot fluid. Use a 5/8″ outer diameter tube for most 40–50-gallon models; undersized options create bottlenecks during recovery cycles. Ensure the tube extends within 6–8 inches of the bottom flange to prevent cold-fluid shortcuts bypassing the heating zone.
Magnesium anode rods corrode at ~1.2 pounds per year in aggressive water (0–60 mg/L chloride), while aluminum lasts ~20% longer but may introduce hydrogen sulfide odors in softened supplies. Test rod length annually–replace when active material reduces below 1/2″ diameter, not just when fully consumed. Sacrificial rods in glass-lined tanks extend vessel life 3–5 years beyond unprotected units, but powered titanium or mixed-metal versions eliminate replacement cycles entirely. Install a hex-head anode (often labeled “combo” or “sidearm”) if the unit lacks a dedicated port–this avoids draining the entire reservoir for maintenance.
