To accurately replace or repair components in a carbureted fuel delivery system, identify the critical subassemblies first: the housing, impeller, check valve, and inlet strainer. The exploded view illustration for most high-pressure models (such as those rated at 255 LPH) splits these elements into numbered sections–match each label to the corresponding part number before disassembly. Ignoring sequence leads to fuel leaks or improper pressure calibration.
Focus on the mechanical tolerances outlined in the technical manual. For example, the impeller-to-housing gap on standard units ranges between 0.004–0.007 inches. Deviations beyond these specifications cause cavitation, reducing flow rates by up to 30%. Use precision calipers to verify measurements before reinstalling components.
Pay close attention to the one-way flow check valve placement. Misalignment here prevents proper priming, forcing repeated starter engagement. Install the valve with the arrow marking facing toward the outlet–backward orientation blocks fuel delivery entirely. Test by blowing through the outlet: air should pass in one direction only.
The strainer screen requires regular inspection–debris buildup restricts flow and increases pump load. Remove the screen by unscrewing the retaining cap; clean with compressed air or replace if mesh damage exceeds 20%. Neglecting this step leads to premature failure of the entire unit within 50–100 operating hours.
Visual Schematics for Fuel System Components: Hands-On Reference

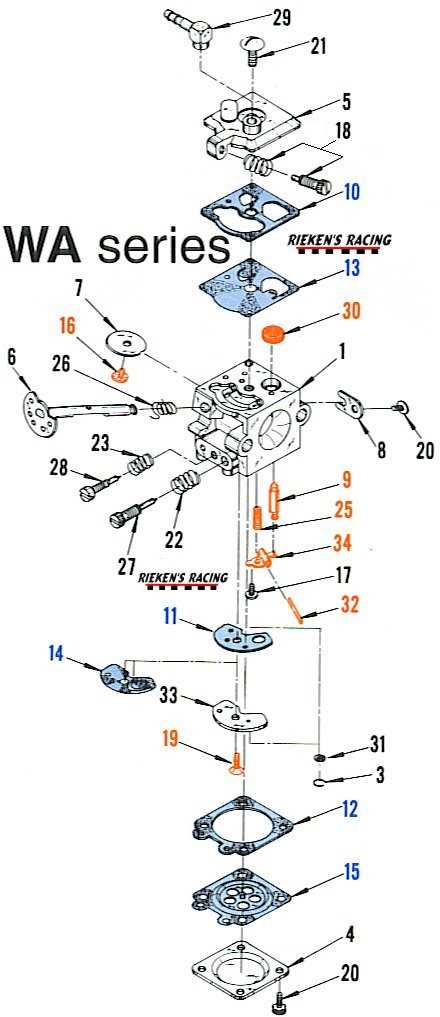

Locate the exploded view of the carburetor assembly by searching the model number stamped on the metal housing–typically found on the side near the inlet. Match this code against the manufacturer’s official breakdowns, where components like the inlet needle, diaphragm, and gasket kits are labeled with precise part numbers. Discrepancies between illustrations and physical units often occur; cross-verify with the engine’s serial tag to avoid misalignment.
Key Sections to Focus On
Prioritize the fuel pump area, which includes the pulse diaphragm, check valves, and cover plate–elements prone to wear under pressure fluctuations. If the engine hesitates or floods, inspect these first: remove the plate, clean the mating surfaces with isopropyl alcohol, and replace cracked diaphragms immediately. The throttle shaft and jet assemblies follow; corroded or clogged jets demand sonication in a dedicated cleaning solution, not compressed air alone.
Misassembly hazards escalate without torque specifications. For instance, the Welch plug–often overlooked–requires 5-7 in-lbs; exceeding this cracks the casting. Always use a calibrated driver. The primer bulb circuit, if present, should be dismantled only after marking fuel flow direction–reversing it creates a vacuum leak. Keep a digital multimeter nearby: resistance across solenoid coils must read 10-30 ohms; deviations signal internal failure.
For older units, resize worn linkages with shim stock rather than filing–the latter distorts taper fits. When replacing filters, opt for micron-rated mesh matched to the original blueprint; sub-par substitutes restrict flow. Document each step with timestamped photos; reassembly errors correlate directly with incomplete records. Store hardware in labeled magnetic trays–ferrous screws adhere, preventing loss in confined engine bays.
Locating Critical Elements in Fuel System Schematics
Trace the main fuel inlet starting at the needle valve–this component regulates flow from the tank and connects directly to the float assembly. Verify the float’s hinge pin position; misalignment here disrupts fuel level precision by ±0.5 mm, causing either lean or rich mixtures. Check the seat gasket for wear; a degraded seal allows unmetered fuel bypass, flooding the engine within 30-45 seconds of startup.
Inspect the throttle plate for carbon buildup, focusing on the idle and transition ports. Accumulated deposits as thin as 0.2 mm restrict airflow, skewing the air-fuel ratio by up to 20%. Clean mating surfaces with 400-grain abrasive pads, avoiding metal tools that score aluminum castings. Replace the plate if pitting exceeds 0.1 mm–warped surfaces create vacuum leaks detectable by a 15% RPM fluctuation at idle.
| Component | Failure Symptom | Tolerance Limit |
|---|---|---|
| Needle valve | Fuel drip at idle | ±0.1 mm from seat |
| Float assembly | Engine stall under load | ±0.5 mm buoyancy variation |
| Jet emulsion tube | Hesitation at mid-throttle | 0.05 mm orifice deformation |
Examine the emulsion tube’s calibration holes–enlarged orifices (beyond 0.02 mm) alter atomization, producing a 10-15% power loss at wide-open throttle. Compare hole diameters against service manual specs; deviations require tube replacement, not resizing. Confirm the choke plate’s spring tension with a 2.5 Nm torque driver; weak springs delay cold starts by 3-5 seconds, while overtightened springs bind the linkage, causing stalls.
Measure diaphragm thickness using a micrometer–values below 0.12 mm indicate fatigue, reducing vacuum response time by 40%. Inspect the pump cover gasket for compression set; flattened areas above 3 mm² create pressure leaks, preventing proper primer bulb inflation. Test solenoid plunger resistance (target: 12-18 Ω); outliers outside this range signal coil failure, manifesting as inconsistent fuel cutoff during deceleration.
Precision Assembly with Fuel System Schematics
Start by matching the intake manifold gasket to the engine block flange, ensuring the locating dowels align with the corresponding holes. Apply a thin bead of anaerobic sealant along the mating surface–avoid excess to prevent clogging internal passages. Tighten bolts in a spiral pattern, incrementally increasing torque to 8-10 Nm to guarantee even compression and prevent warping.
Identify the fuel pump housing by referencing the numbered callouts on the exploded view blueprint. The inlet valve seat should face the tank feed line, with the filter mesh oriented downward to trap debris. Secure the retaining ring with a snap-ring pliers, confirming an audible click; a loose fit risks pressure loss and erratic flow. Test pump resistance with a multimeter–readings between 1.5-3.0 ohms indicate proper function.
Calibration of Metering Components
Install the metering lever assembly by sliding the pivot pin through the carburetor body, ensuring the float tang rests flush against the needle valve. Adjust the float height by bending the tang with a 1.5mm feeler gauge between the tang and the gasket–target 0.7-0.9mm clearance for optimal fuel delivery. Over-bending causes lean mixtures; under-adjustment leads to flooding.
Attach the throttle plate with the slotted side facing the idle circuit. Torque screws to 1.2 Nm; overtightening distorts the bore, causing binding. The linkage arm must move freely through its full range–lubricate pivot points with PTFE spray to reduce friction. Verify the choke mechanism by manually cycling the lever; a smooth transition confirms correct diaphragm tension.
Orient the pressure regulator spring with the stiffer coil against the adjusting screw. Turn the screw clockwise until resistance increases, then back off half a turn for baseline settings. Fine-tune by monitoring fuel pressure at the Schrader valve: 21-28 psi at idle ensures consistent atomization. Replace the O-rings if pressure drops below 18 psi under load.
Final Validation Before Operation
Seal the carburetor body with a new gasket, aligning the venturi dowels with the intake ports. Use torque specifications from the technical schematic–typically 0.8-1.0 Nm for M4 screws. Connect the fuel lines with barb fittings, securing them with safety clips; improper attachment risks vapor lock. Prime the system by cranking the engine for 3-5 seconds without ignition, then check for leaks at all joints before starting.
Resolving Fuel System Blueprint Challenges
If a fuel pump assembly reference shows discrepancies in pressure ratings, cross-check the inline filter specifications against the OEM service manual–most aftermarket schematics omit micron size tolerances (e.g., 10μ vs. 40μ), leading to starvation or flooding. Verify the relief valve’s spring tension using a torque wrench; baseline settings for Model WT-893 require 12–15 in-lbs, while WT-904 variants demand 18–22 in-lbs. Use color-coded wiring looms from the blueprint–red/black denotes 12V input, yellow/black grounds the sender unit–to avoid reverse polarity, which trips internal diodes in the governor module within 2–3 ignition cycles.
For carburetor float chamber mismatches, compare gasket thickness between the exploded view and physical components; original equipment measures 0.8mm, while third-party replacements often shrink to 0.5mm, causing needle valve misalignment. Target idle speeds align with throttle lever positions: 1,200–1,500 RPM for fixed-speed units, 1,800–2,200 RPM for variable-speed governors–adjust the idle screw in ¼-turn increments, noting that each turn alters flow by ~3%. Replace the diaphragm if the visual guide shows cracks wider than 0.3mm; silicone-coated diaphragms last 150 hours under ethanol blends, whereas nitrile versions degrade after 80 hours.
Reliable Sources for OEM Component Schematics Online
Start with the manufacturer’s official portal–Zama.net–for original equipment breakdowns. The “Technical Information” section hosts downloadable PDFs of assembly blueprints for carburetor models including WT, WY, WZ, and WB series. Each file is indexed by product code, ensuring precise matching to your model number. Avoid third-party archives until you’ve cross-verified against these primary documents.
Distributor databases offer another layer of accuracy. STIHL’s service network (parts.stihl.com) includes exploded views for OEM components they rebrand, such as the Zama-built carburetors. Use the search bar with the full model designation (e.g., “Zama WT-260”) to pull up interactive schematics. Deere’s parts catalog (techpubs.deere.com) follows a similar structure, though filter results by “Fuel System” to isolate relevant subassemblies.
For vintage or discontinued units, Partstree aggregates schematics from multiple suppliers. Input the model prefix (e.g., “WT,” “WY”) into their search tool, then select the closest suffix match. Their interface overlays part numbers directly on the graphic, reducing cross-reference errors. Verify compatibility by checking the legend for serial number ranges.
Specialized Forums and Repair Communities
- LawnSite (lawnsite.com): Threads under “Small Engine Mechanics” often attach user-uploaded breakdowns for hard-to-find assemblies. Search posts from verified technicians like “hogolfin” or “SmallEngineGuy” for direct links to high-resolution files.
- Reddit (/r/smallenginerepair): Weekly megathreads compile PDFs shared by professionals. Filter posts by flair “Schematics” and look for comments containing Dropbox or Google Drive links.
- OPE Parts Lookup (opepartslookup.com): A lesser-known tool that scrapes schematics from dealer-only portals. Enter the full model string (e.g., “Zama WY-65”) to generate a parts list with visual overlays.
YouTube’s search function can surface teardown videos where creators annotate components. Use query strings like “[model code] + exploded view” or “[model code] + service manual” to locate walkthroughs. Channels like “RepairClinic” and “Shop Hacks” often pause on key frames, labeling gaskets, diaphragms, and linkages.
- Extract the carburetor’s model code from the unit (engraved near the throttle plate).
- Compare the code against Zama’s WT series reference or WY series reference.
- Note discrepancies in variants–for example, WT-260 and WT-265 differ only in choke lever orientation.
- Download the schematic from the source matching your serial number’s date range.
- Print the breakdown in landscape mode, highlighting the OEM item numbers of interest.
For quick offline access, bookmark ManualsLib or ManualsDir. Their databases host user-submitted schematics, though quality varies. Sort results by “Most Downloaded” to prioritize vetted files. Always cross-check part numbers against the manufacturer’s original documents before ordering replacements.
