Identify the brush assembly by locating the carbon contacts near the motor’s commutator–these wear fastest under load. Replace them when pitting exceeds 0.5mm or resistance rises above 1.5 ohms. Use a multimeter to verify continuity before reassembly; faulty brushes cause erratic motor speed.
Inspect the drive gear for cracked teeth or excessive backlash. Tolerances should not exceed 0.2mm of play between mating gears. If damage is present, match the replacement part number etched on the gear’s hub–Wahl variants differ in tooth count (12-18T) and spline profiles (straight vs. helical).
Clean the armature with isopropyl alcohol (99% purity), focusing on the commutator grooves. Remove debris without dislodging the mica insulation between segments–scoring here leads to short circuits. Apply dielectric grease sparingly to prevent dust buildup, but avoid over-application on contact surfaces.

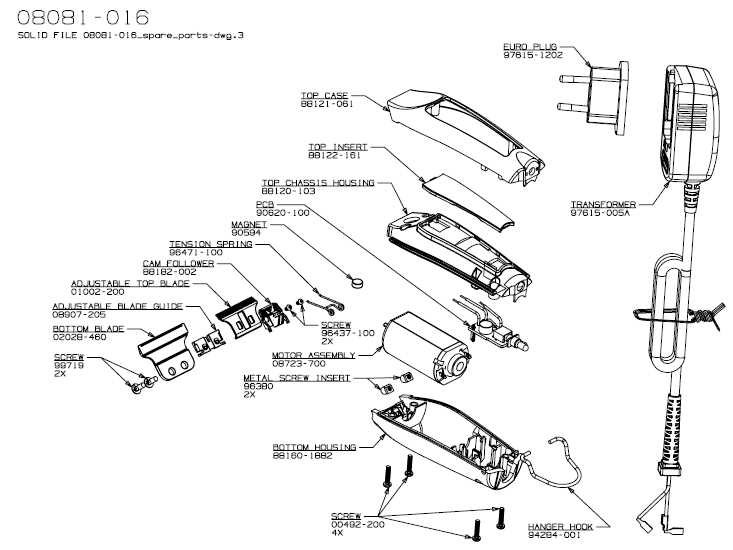

Reference the exploded-view illustration specific to your model’s series (e.g., Cordless Trimmer vs. Heavy-Duty Clipper). Key markers include the blade tension spring’s position (offset vs. centered) and the pivot pin’s diameter (2.5mm vs. 3mm). Misalignment here increases blade chatter by up to 30%.
Verify the voltage regulator on corded units by testing input/output with a variable power supply. Input should stabilize at 115-120V AC; output should hold at 12V DC (±0.2V). Fluctuations indicate a failing capacitor–replace with the exact microfarad rating (typically 1000µF/16V).
Mastering Clippers Component Charts: Immediate Steps
Locate the motor assembly first–it’s typically found under the gear housing, secured by two screws. Use a T6 torx driver for removal; standard Phillips will strip the heads. Label each screw by size and placement on masking tape before disassembly to avoid mixing them during reassembly. The armature plate may stick due to residue; pry gently with a plastic spudger to prevent cracking.
Check the carbon brushes for wear; anything under 4mm requires replacement. Slide new brushes into the holders before reinstalling the armature–never force them as misalignment damages the commutator. If the clipper runs but pulls unevenly, inspect the spring tension on the blade drive. Adjust tension by bending the spring arm incrementally; test after each tweak to avoid over-correction.
Troubleshooting Common Failures Without Schematics
Observe the blade’s engagement when powered: if it chatter rather than glides, the yoke likely needs realignment. Remove the top blade, lift the yoke, and re-seat it so the drive pin sits flush in the blade’s slot–no lubricant here, as it attracts debris. For overheating, verify airflow; compressed air through the ventilation slots removes trapped hair, often the sole culprit. If the unit hums but doesn’t run, the issue is 90% electrical–swap the power cord before disassembly, as cord failures mimic motor failures.
Critical Elements of a Professional Trimmer Schematic
Start by locating the motor assembly–typically marked with voltage specs (e.g., 120V/60Hz or 220V/50Hz) alongside a serial number. Verify compatibility with the tool’s model before disassembly; mismatched components cause overheating or premature wear. Keep a magnifying glass for small engravings on brushless motors, as these often indicate torque ratings critical for blade stability.
Examine the blade drive mechanism next. Metal gears should mesh without lateral play, and plastic variants must show no hairline fractures. Lubricate only with silicone-based solutions; petroleum disrupts O-ring seals. Check the gear ratio–high-speed trimmers use 4:1 for coarse cuts, while precision models employ 6:1 for fine work.
The power switch’s resistance readings should fall between 0.5Ω and 2Ω when activated. Replace if readings exceed 5Ω or fluctuate erratically. Look for corrosion on copper contacts; a pencil eraser removes oxidation without damaging the plating. For cordless variants, the battery contacts must align with the charger’s pin configuration–NiMH and Li-ion connectors differ by 1.5mm.
Blade adjustment levers rely on tension springs; a 0.2mm gap ensures smooth movement. Test spring strength by compressing it 5mm–it should rebound instantly. Adjustable blades require alignment with the stationary cutter; misalignment causes uneven cutting and increases motor load by 18-22%. Use a feeler gauge to confirm spacing at 0.05mm.
Inspect the housing for stress cracks, especially near screw mounts. ABS plastic withstands 15kg of torque before failure, but repeated drops reduce this threshold. Reinforce weak points with a heat gun and polycarbonate backing strips. The vent slots should never accumulate debris–clogging raises internal temperature by 8°C, shortening motor life.
Electrical and Thermal Safeguards
Thermal cutoffs embedded near the motor windings must trip at 135°C±5°C. Bypass these only for testing; permanent overrides risk fire. Capacitors near the power input smooth voltage spikes–replace if bulging or leaking electrolyte. For corded trimmers, the strain relief grommet should grip the cable without pinching; frayed wiring inside the housing requires immediate resealing with RTV silicone.
Brushless motors feature Hall sensors; these fail if exposed to moisture. Dry thoroughly if liquid enters, then apply dielectric grease to the sensor contacts. Worn brushes in commutator motors create excessive arcing–replace when length drops below 3mm. The armature’s resistance should match the original specs by ±2%; deviations signal internal shorts.
Precision Calibration Tools
A torque screwdriver prevents overtightening blade screws–8-10 in-lbs is optimal. Shim washers thicker than 0.1mm distort alignment; use a micrometer to verify. For blade sharpening, maintain a 45° angle to the cutter edge–deviations dull the blade faster. Store spare cutting attachments in electrolyte-free bags to prevent corrosion; humidity accelerates rust formation on high-carbon steel.
Finding Components with Schematic Guides

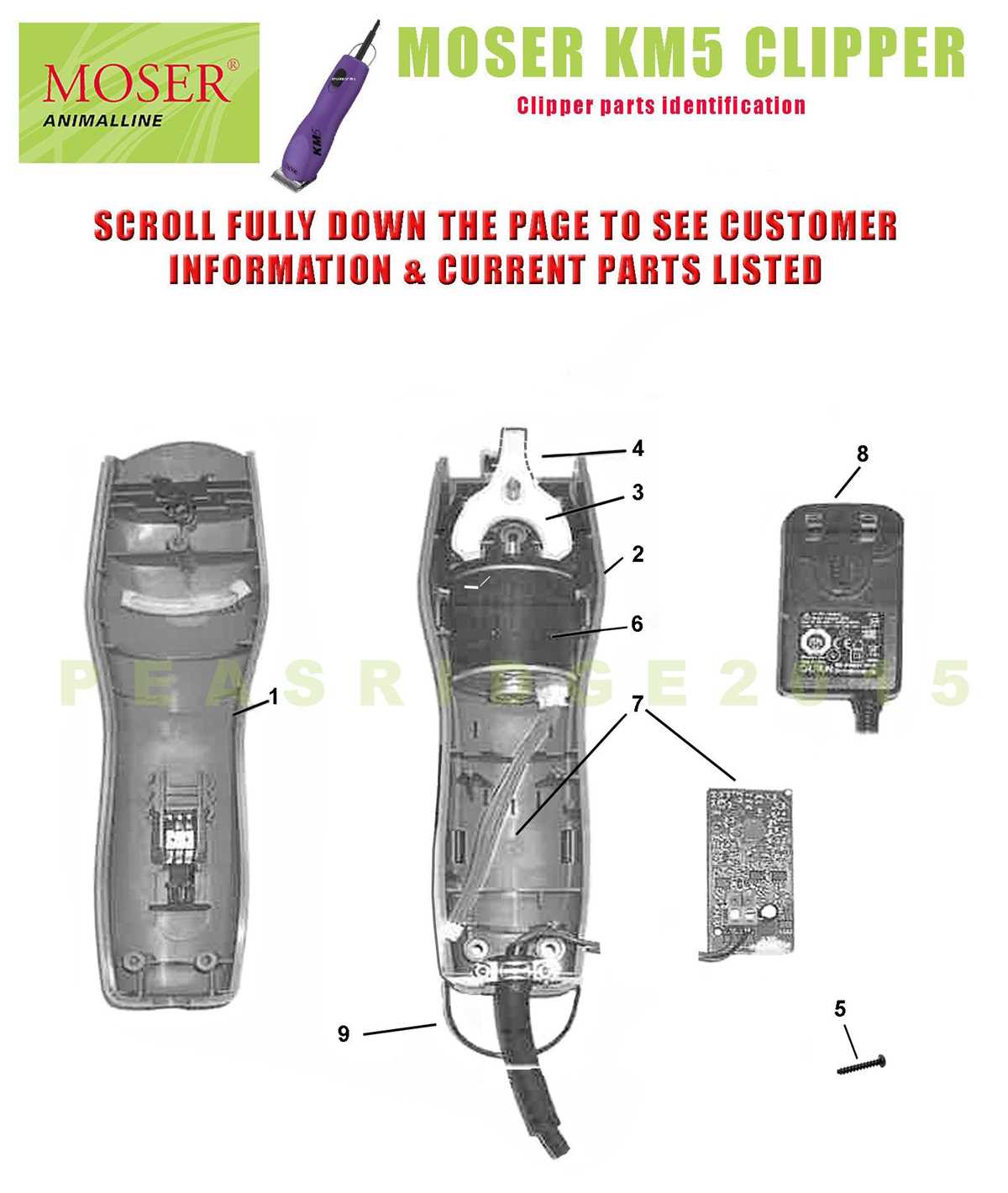

Locate the model number on your device–usually stamped on the underside or near the motor housing. Cross-reference this identifier with the official breakdown sheets provided in repair manuals or service brochures. Each illustration includes numbered callouts, matching a legend at the bottom or side margins, detailing exact placements for blades, springs, or gears. If the number is missing, compare the mechanical layout with online archives where similar models share structural similarities.
Check for color-coded sections in the exploded views. Red often marks cutting assemblies, blue denotes tension mechanisms, and green highlights electrical connections. Align these visual cues with the physical item, noting any wear patterns–rust on metal links or cracks near plastic housings–to pinpoint damaged segments. Ignore generic labels; focus on positional values like “left clipper arm” or “gear case 4th tooth” instead.
- Remove the housing screws first–use a screwdriver matching the head pattern (Phillips #2 or flat 4mm).
- Detach the blade set by sliding it forward along the track, rather than pulling upward.
- Inspect the drive shaft teeth for grease buildup–clean with isopropyl alcohol before reassembly.
Trace wiring routes if dealing with motorized units. Schematics illustrate wire colors and connectors; brown typically grounds to the chassis, while red supplies power. Probe continuity with a multimeter if power failures occur, bypassing areas shown as intact in the charts. For torque issues, reference the parts list for carbon brush dimensions–wear beyond 3mm requires immediate replacement.
Replace components in reverse order of removal, consulting the numbered steps in the guide. Apply thread locker to metallic screws under 5mm, avoiding adhesives near plastic friction points. Lubricate gears with manufacturer-specified grease–generic alternatives can erode nylon teeth within weeks. Verify alignment by rotating the main shaft manually before powering the unit.
Step-by-Step Guide to Breaking Down Clipper Components Using Manufacturer Schematics
Begin by identifying the schematic’s exploded view of the motor assembly–this section typically highlights the carbon brushes, armature, and stator coils. Use a 2.5mm hex key to remove the two screws securing the brush housing cover, then gently pry it off with a plastic spudger to avoid damaging the spring-loaded brushes. Note the orientation of each brush (marked with arrows on some models) to ensure correct reinstallation. For older units, check the commutator for pitting or discoloration; minor corrosion can be cleaned with 600-grit sandpaper, but replace the armature if grooves exceed 0.3mm in depth.
Disassembling the Blade Drive Mechanism
Refer to the technical drawing’s gear train section and locate the drive shaft coupling–this connects the motor to the blade linkage. Remove the retaining C-clip using needle-nose pliers, then slide the coupling off the shaft. Inspect the nylon gear teeth for wear; replacements are required if flats exceed 20% of the original tooth profile. Below the gear train, two lubrication ports (typically 0.8mm diameter) should be flushed with clipper oil every 20 hours of use–neglecting this causes premature failure of the eccentric cam. Use the schematic’s callouts to trace the cam’s throw distance (standard 2.1mm ±0.1mm) and verify alignment with a feeler gauge before proceeding.
| Component | Tool Required | Torque Spec (Nm) | Inspection Criteria |
|---|---|---|---|
| Brush housing screws | 2.5mm hex key | 0.8–1.2 | Thread integrity, brass inserts intact |
| Armature set screw | 1.5mm flathead | 0.4–0.6 | No mushrooming on screw head |
| Blade tension spring | 5mm wrench | N/A | Free length: 22mm ±1mm |
When separating the blade assembly, first disengage the tension spring by compressing it 3mm beyond its resting position–this releases pressure on the moving blade. Slide the moving blade off the fixed blade’s guide rails; excessive resistance indicates dried lubricant or burrs (polish with a ceramic stone). The fixed blade should be checked for straightness: place it on a granite surface plate–gaps exceeding 0.05mm require lapping with a diamond file. Reassemble in reverse, applying 0.5ml of synthetic oil to the guide rails before mating the blades. Final torque on the blade pivot screw should be 1.0Nm ±0.1Nm to prevent binding while allowing free movement.
