If your precision cutter has stopped holding a charge, inspect the battery contacts first–corrosion or misalignment often disrupts power transfer. Use a multimeter to confirm voltage output at the connection points before disassembling further. Replace the power cell only if readings fall below 1.2V under load, as premature replacement wastes functional components.
For blades that fail to glide smoothly, disassemble the cutting assembly and examine the guide teeth. Check for bent edges or accumulated debris between the inner and outer combs–common culprits for uneven trimming. Clean with isopropyl alcohol and realign using a magnifying tool to verify spacing. Avoid lubricants unless specified in the service manual, as some models rely on dry friction.
When reassembling the motor housing, note the orientation of the drive shaft. Misalignment by even 2mm can reduce efficiency by 30%. Secure all screws in a star pattern to prevent warping, tightening gradually to 0.5Nm. If vibration persists, check the counterweight balance–loose weights create excessive noise and premature wear.
For models with adjustable length settings, test the dial mechanism by cycling through all positions. If resistance increases, apply silicone-based grease to the internal gears, avoiding petroleum distillates that degrade plastic over time. Damaged detents often require full replacement, as DIY repairs rarely restore precision.
Store disassembled pieces in labeled containers–confusing small springs or washers during reassembly leads to irreversible damage. Cross-reference with the exploded view in the official service schematic to avoid missing essential spacers, which maintain proper blade tension and cutting clearance.
Understanding Your Grooming Tool Component Breakdown

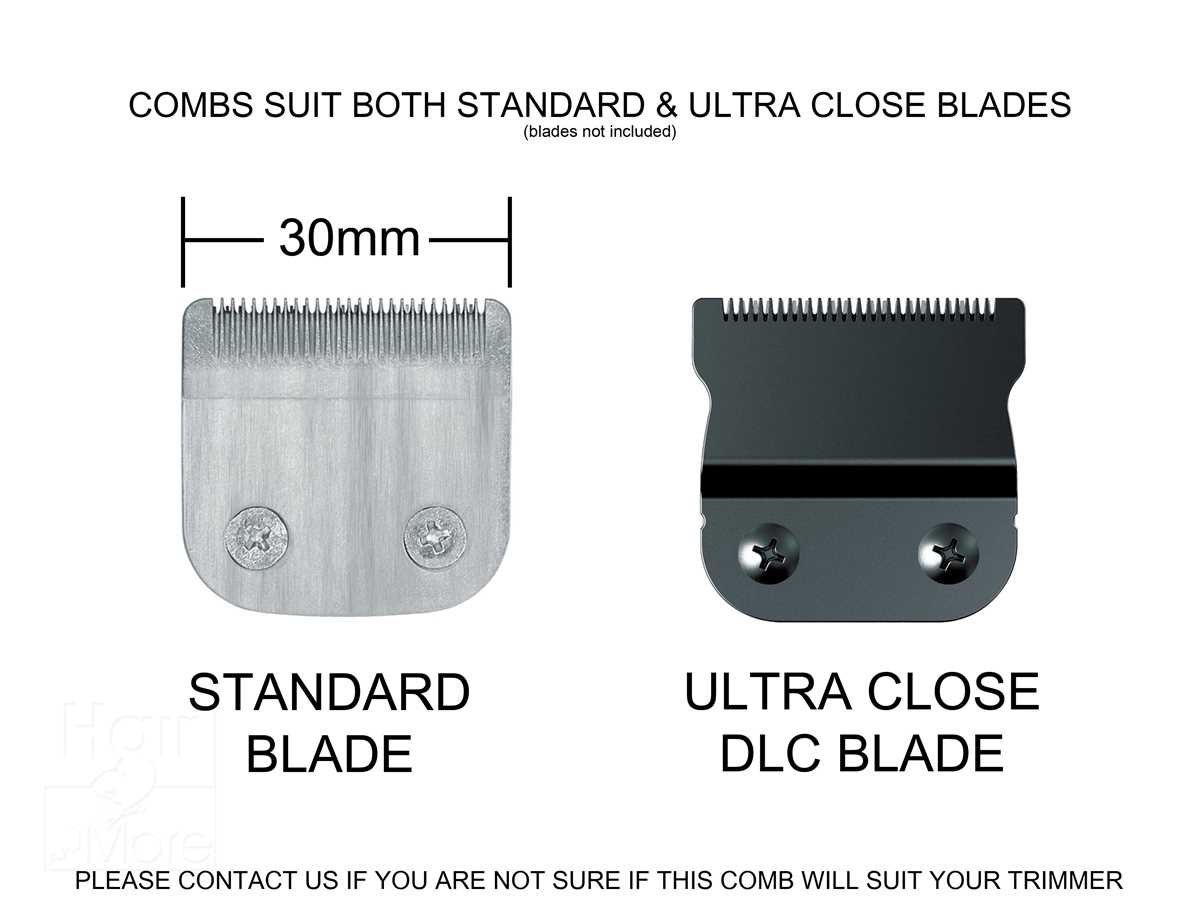

Begin by locating the detachable blade assembly–typically secured with two screws near the cutting head. Use a T5 torx screwdriver to remove these without stripping the threads, as this section houses the carbon steel comb guides responsible for precision length settings. If replacing worn guides, note the model-specific spacing (e.g., 0.5mm vs. 1mm) to maintain consistency in styling results.

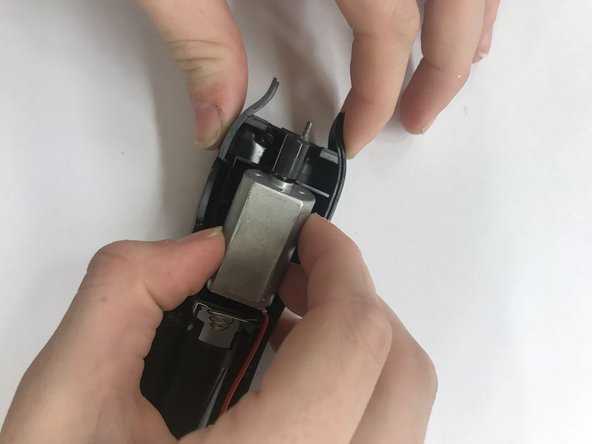

Inspect the motor housing next. A faint clicking noise during operation often indicates worn brushes inside the armature. Most models use copper graphite brushes measuring 4x2mm; replacements require soldering for secure contact. Check the gear train while disassembled–plastic gears degrade faster under high torque, so apply lithium grease sparingly to reduce friction.
Electrical Components and Troubleshooting
Examine the battery contacts for corrosion, especially if power cuts occur mid-use. Nickel-plated terminals should be cleaned with isopropyl alcohol; avoid abrasives that can remove the protective coating. For corded versions, trace the wiring from the power inlet to the switch–loose connections here often cause intermittent operation.
The circuit board rarely fails but accumulates dust near the charging port. Use compressed air to clear debris, ensuring the diode bridge remains intact. If LEDs flash erratically, test the capacitor (usually a 220µF 10V radial type) with a multimeter; bulging or leaking indicates replacement is needed. Always discharge stored energy before handling.
Maintenance for Longevity
Blade alignment drifts over time due to vibration. Recalibrate by loosening the pivot screws slightly, then sliding the cutter block until teeth mesh smoothly with the stationary blade. Tighten evenly to prevent uneven wear–misalignment causes tugging during trimming. For stainless steel blades, apply a drop of sewing machine oil weekly to the cutting edge to prevent heat buildup.
Store the device with the guard attached to protect the blades from impact damage. If noise levels increase, suspect the motor bearings–most units use 3x6mm sealed bearings. Press-fitting replacements requires even pressure to avoid cracking the plastic housing. For foam grip deterioration, use a heat gun on low to soften the adhesive before peeling off remnants; apply a thin layer of contact cement before attaching new grips.
Core Elements of a Precision Grooming Device and Their Roles
Always begin maintenance by disconnecting the power source–whether it’s a rechargeable battery or direct cord–to prevent accidental activation or shorts. The cutting head, typically containing self-sharpening blades, must be removed first; use the release button or twist mechanism as specified in the device’s manual, not brute force, to avoid damaging the housing.
The motor housing contains the gear assembly and vibration dampeners, critical for reducing noise and heat buildup during operation. Check for debris accumulation around the gears–even small particles can disrupt alignment and cause uneven trimming. Lubricate sparingly with a light machine oil, targeting only the contact points; excess oil attracts dust and accelerates wear.
Battery performance degrades if stored at full charge or in high temperatures. For lithium-ion models, discharge to 40-50% before storage and recharge every 6 months to maintain capacity. Nickel-metal hydride units, while less common, require full discharges monthly to prevent memory effect–never leave them plugged in continuously.
Waterproof seals at the power connection and blade assembly prevent moisture ingress, but prolonged exposure to humidity still corrodes internal contacts. After cleaning, dry components with a lint-free cloth and store in a low-humidity environment. Silica gel packets inside the storage case absorb residual moisture effectively.
The foil guard or taper lever adjusts cut length by altering blade exposure. Misalignment here creates uneven lines or pulls hair rather than cutting cleanly. Test adjustments on a small area first, then clean the guard’s adjustment slots–built-up residue stiffens movement and reduces precision.
Diagnosing Common Failures
If the unit vibrates excessively, the counterweight may have shifted or a blade tooth is bent. Comparison to a new blade set reveals subtle distortions; replace damaged blades immediately rather than attempting realignment. For reduced power, check the battery first, then inspect the motor’s brushes–wear here causes intermittent slowing or complete failure, and replacement requires disassembly to the motor base.
Step-by-Step Guide to Taking Apart a Precision Grooming Tool for Cleaning
Before starting, ensure the device is powered off and the battery or cord is disconnected. Place all components on a clean, well-lit surface with a soft cloth to prevent scratches. Use a small screwdriver (typically a T6 Torx or Phillips #0) to remove the screws holding the outer casing–most models have 4 to 6 screws, often hidden under rubber grip pads or labels. Keep screws organized by size and location in a magnetic tray or labeled container to avoid misplacement during reassembly.
- Lift the casing gently–some models have clips or tabs that may require slight pressure to release. Avoid forcing it, as internal wiring or a motor housing could be damaged.
- Detach the blade assembly by sliding it forward or lifting it from the rear, depending on the design. Some units have a release button near the hinge; press it while pulling the blades outward.
- If the head is removable, check for additional screws securing it (common in rechargeable models). These are usually smaller and may require precision tools.
Next, separate the cutting components. The fixed blade typically sits over a moving cutter bar–use a plastic pry tool or tweezers to lift the bar from its guides, noting its orientation. For thorough cleaning, soak both blades in a mixture of warm water and mild detergent (no more than 5 minutes) to dissolve hardened debris, then dry immediately with compressed air or a lint-free cloth. Avoid submerging electrical parts, including the motor or battery contacts.
- Inspect the gear mechanism (if exposed) for wear–apply a drop of light machine oil to the pivot points if movement is stiff.
- Reattach the cutter bar first, ensuring it aligns with drive pegs or gears before securing the fixed blade. Test the action by manually moving the bar back and forth.
- Reassemble the housing by reversing the disassembly steps, tightening screws in a cross pattern to ensure even pressure. Verify functionality before finalizing.
How to Track Down Spares for Grooming Tools Using Manufacturer Blueprints
Begin with the official brand portal–most companies list exploded-view schematics under the “support” or “repairs” tab. Enter the exact model number engraved on the device’s housing; schematics are typically grouped by series. If the portal only offers a PDF download, search within it for the numbered callout matching the failed element, then note the corresponding SKU or part nomenclature.
- Check secondary sources like authorized reseller websites that sort schematics by category–motors, blades, springs, or casings. These sites often include filters for batch numbers, which help pinpoint replacements for discontinued units.
- Locate part schematics on third-party repair hubs, where detailed breakout images include cross-references to industry-standard item codes (e.g., OEM or generic equivalents).
- Avoid guesswork by verifying physical dimensions and attachment points against the schematic’s scale before ordering.
For hard-to-find components, narrow the search using online marketplaces by filtering for listings that explicitly reference exploded-view illustrations. Include exact measurements, connection types (snap-fit, threaded, or contact-based), and material composition in search queries to reduce irrelevant results.
When the illustration lacks specifics, disassemble the unit, photograph each layer adjacent to the schematic on-screen, then overlay images using basic editing tools to confirm compatibility. This method resolves discrepancies between idealized diagrams and actual wear patterns.
