Identify the motor assembly first–it’s typically mounted behind the rear housing plate, secured with four hexagonal screws. If your unit lacks power or struggles during startup, this section often holds the culprit. Check for corrosion on copper windings or dislodged brushes before disassembling further.
The fluid pump sits directly beneath the intake valve, recognizable by its cylindrical brass or stainless-steel body. A telltale sign of wear includes erratic spray patterns or fluid leaks around the piston seal. Replace the packing nut if tightening the adjustment screw no longer regulates pressure.
Examine the spray gun’s trigger mechanism for play–excessive movement indicates a worn return spring or cracked latch. The needle assembly, housed within the gun body, should move smoothly when triggered; stiffness often signals buildup of dried lacquer in the fluid passage. Soak components in mineral spirits for 30 minutes to dissolve stubborn residue.
Inspect the inline filter between the pump and spray tip–clogged mesh reduces output and causes spitting. Remove the retaining ring with pliers, then rinse the mesh under running water. Replace the O-ring if cracks appear to avoid fluid bypass.
Locate the air cap and nozzle at the gun’s front–misalignment creates uneven fan patterns. Match replacement tips precisely: 515 for latex, 211 for stains, and 311 for epoxies. Wear gloves when handling; ceramic tips chip easily.
The pressure control knob attaches to the regulator valve via a threaded stem. Turning counterclockwise increases output; clockwise decreases it. If pressure drifts, disassemble the valve and clean the seat with a brass wire brush to remove debris.
Lastly, verify electrical connections–loose wires in the power cord or switch can cause intermittent shutdowns. Use a multimeter to check continuity; frayed leads require soldering or full replacement. Keep spare fuses (8A) on hand for models with integrated circuit protection.
Understanding Your Airless Device: A Component Breakdown
Begin by locating the fluid section–typically marked with a pressure adjustment knob near the handle. This controls atomization quality and must be set between 1,500 and 2,800 PSI for optimal results. Rotate clockwise to increase pressure for thicker coatings, counterclockwise for thinner materials. Always confirm settings before operation.
The pump assembly includes a suction tube, filter housing, and piston mechanism. Inspect the filter weekly, replacing it every 20 gallons of material processed. Use a #60 mesh for latex and a #100 mesh for stains. The piston rod should move freely–apply silicone lubricant monthly to prevent seizing.
Nozzles require precise pairing with material viscosity. Refer to the table below for compatibility:
| Material | Nozzle Size (inches) | Spray Pattern (inches) | PSI Range |
|---|---|---|---|
| Latex primer | 0.017–0.021 | 10–12 | 1,800–2,200 |
| Oil-based enamel | 0.013–0.015 | 8–10 | 1,200–1,600 |
| Varnish | 0.009–0.011 | 6–8 | 900–1,300 |
Prime the system by filling the container with one quart of clean water or appropriate solvent, depending on the coating type. Engage the trigger to purge air from the lines until fluid exits smoothly. Repeat if switching between water-based and solvent-based materials.
Motor brushes should be replaced annually or after 500 hours of use. Access them by removing the rear housing–two screws secure the cover. Match brush length to the original specification (±1mm). Reassemble with dielectric grease on the commutator to extend brush life.

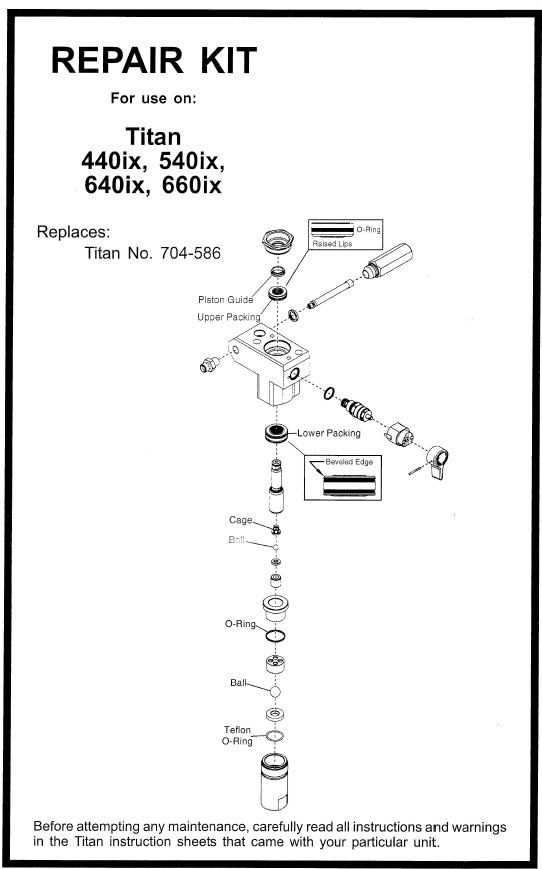

Seal kits include gaskets, O-rings, and rod seals. Replace all three simultaneously during maintenance intervals–mixing old and new seals creates leaks. Nitrile seals suit water-based applications, while Viton handles solvents. Store spares in a cool, dry location away from UV exposure.
For troubleshooting, attach a pressure gauge to the hose outlet. If readings drop below expected ranges, check for clogs in the nozzle, worn seals, or air in the fluid section. Clear blockages with a 0.010-inch wire–larger tools damage internal passages.
How to Spot Critical Elements in Your Airless Device Component Inventory
Start by locating the power supply assembly–typically listed as the motor housing or drive unit. Check for serial numbers or voltage ratings (e.g., 110V, 220V) printed on its casing. Mismatched specs here lead to overheating or failure. If the item description mentions “variable speed” or “turbo mode,” verify its inclusion in your purchase order, as these are often optional upgrades.
Next, examine the fluid handling section. The pump cylinder (sometimes called the “barrel”) should appear as a thick-walled metal tube with inlet/outlet threads. Confirm thread size–G1/4″ or NPT 3/8″ are common–and ensure seals (Viton or EPDM) match your coating type. Acid-resistant seals corrode quickly with latex, while standard rubber degrades under stains or oils.
Identify the nozzle system by its detachable jet tip. Look for three-digit codes like “515” or “311” in the inventory; the first digit indicates fan width (inches at 12″ distance), while the last two show orifice size (thousandths of an inch). A “517” tip, for example, delivers a 5-inch spray pattern with a 0.017″ hole. Missing or incorrect tips cause uneven coverage or excessive overspray.
The filter set often includes two types: a coarse inlet strainer (mesh size 60-100) and a fine suction screen (mesh 180-200). Descriptions may label these as “primary” and “secondary” guards. Replace clogged filters every 25-50 gallons; failing to do so starves the pump, reducing pressure by up to 40%. Note if your list specifies reusable stainless-steel filters–these require ultrasonic cleaning, not replacement.
Inspect the pressure control valve. Listings might call it a “regulator” or “adjustment knob.” Its range (typically 0-3300 PSI) determines compatibility with thin stains (300-800 PSI) versus thick primers (2000+ PSI). Some units feature a locking nut; if yours includes one, verify its torque rating (usually 15-20 ft-lbs) to prevent leaks.
- Hoses: Document length and burst rating. A ¼” ID hose rated for 3600 PSI handles most coatings, but epoxy or stone blends may need 5000+ PSI. Check for quick-disconnect fittings–these wear faster than threaded couplings.
- Gaskets: Locate diaphragm kits. These membrane-type seals (often Teflon-coated) sit between the pump and air chamber. A cracked diaphragm creates suction loss, detected as sputtering during operation.
- Cartridges: Some models use replaceable pump inserts. Confirm rod length (e.g., 4″ or 6″)–incorrect strokes reduce output by 20%.
Cross-reference electrical components. The trigger assembly should show continuity when tested with a multimeter (0.5-5 ohms). Wiring harnesses labeled “UL1007” or “AWG18” support higher currents; thinner wires overheat under prolonged use. If your inventory mentions a “soft start capacitor,” ensure its microfarad rating matches the motor (typically 10-50 µF).
Troubleshooting Missing Components
Compare your receipt against these red flags:
- Absence of “ball valves” (tiny stainless balls in nozzle housing)–critical for anti-siphon protection.
- No mention of “backflow preventer” (ball/needle combo)–without it, liquid floods the air chamber.
- Missing “thermal cutoff” switch–listed as a bimetallic disc or fuse. Trips at 180°F to prevent motor burnout.
Step-by-Step Guide to Disassembling an Airless Coating Applicator for Maintenance
Before starting, unplug the device and relieve pressure by triggering the gun until no residual fluid remains. Place the equipment on a clean, flat surface and gather needle-nose pliers, a small screwdriver set, and a soft cloth. Remove the fluid nozzle first by turning it counterclockwise–use a wrench if overtightened, but avoid excessive force to prevent thread damage. Set the nozzle aside in a labeled container to avoid misplacement.
Detach the guard and tip holder by unscrewing the retaining ring at the front. If corroded, apply penetrating oil and wait five minutes before attempting removal. Inside, locate the filter screen; pry it out gently with a flathead screwdriver, ensuring no debris falls into the internal passages. Next, disengage the piston assembly by removing the rear housing cap–rotate it clockwise for locking mechanisms or counterclockwise for threaded models. Slide out the piston rod carefully, inspecting for wear or buildup. Replace seals if hardened or cracked.
Handling Internal Components
Disassemble the pump section by removing the valve ball and seat–use a magnet for stainless steel versions. Check for scoring on the seat; if pitted, sand lightly with 800-grit paper or replace. For motorized models, detach the motor from the housing by unscrewing the mounting bolts; keep track of wire connections if capacitors are present. Clean all parts with a solvent compatible with the fluid previously used, avoiding water for oil-based residue. Dry thoroughly before reassembly.
Key Components Needing Regular Swaps in Airless Units
Nozzles wear out after 15–25 hours of operation, depending on material viscosity. Switch to stainless steel or ceramic tips for abrasive coatings to extend lifespan. Keep a set of 0.015″, 0.021″, and 0.027″ sizes on hand–these three cover 90% of residential projects.
Filter screens clog every 5–8 spray cycles if using unthinned latex. Clean with warm soapy water and a soft brush between jobs, but replace mesh filters at 20-hour intervals regardless. Opt for 200-mesh for most finishes; 100-mesh works for heavy-bodied primers.
Piston cups degrade from heat and solvent exposure. Check for hardening or cracking after 40 hours of runtime–earlier if spraying waterborne epoxies. Silicone-based seals resist swelling but require alignment with the pump’s stroke length; consult torque specs (typically 12–15 ft-lbs).
Hoses, Seals, and Valves
Flexible conduit liners split near connections after 60–80 hours. Inspect for micro-tears by running a rag through the length–replace if resistance exceeds 5 lbs. Abrasion-resistant variants last 30% longer but weigh 0.8 lbs more per 25-foot section.
Pressure release valves stick when debris accumulates. Test weekly by engaging the trigger–resistance should be instant, not gradual. Flush with mineral spirits if sluggish; swap if response time exceeds 1.5 seconds. Kits include washers; discard them every third valve replacement.
High-Wear Items
Gaskets on fluid inlet assemblies swell within 10–12 cycles if exposed to acetone or MEK. Nitrile variants fail faster than Viton–upgrade if spraying conversion varnishes. Replace both O-rings (0.125″ ID) simultaneously to prevent uneven wear.
Tip guards erode from overspray buildup. Sand down burrs every other session, but replace entirely after 30 hours–corrosion on the threads signals imminent failure. Anodized aluminum versions outlast plastic by 40% but cost 2.5x more upfront.
Check motor brushes at 50-hour intervals for wear markers. Carbon deposits signal imminent failure; replace before dust exceeds 1mm. Brushless models eliminate this but require firmware updates for torque calibration–factory defaults drift after 120 hours.
