Start by locating the model number on your engine’s upper housing–typically stamped near the serial plate or embossed on the casting. This alphanumeric code determines compatibility with replacement units and schematic guides. For example, a DP-S series assembly will not match parts from an SX or D4 variant, despite superficial similarities. Cross-reference this number with the official manufacturer’s parts catalog or authorized distributor databases to avoid mismatched components.

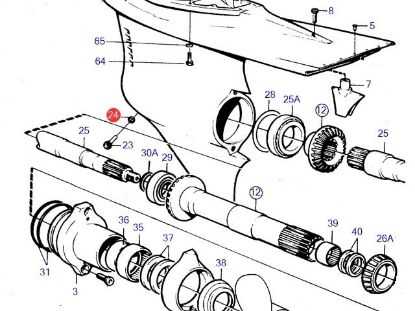

The lower gearcase is the most failure-prone section due to exposure to sediment, corrosion, and cavitation. Inspect the propeller shaft seals, bearing carriers, and drive housing gaskets every 100 hours of operation or annually, whichever comes first. Replace these elements in sets rather than individually–failure in one usually accelerates wear in adjacent parts. Use OEM seals; aftermarket alternatives often lack the precise tolerances required for long-term reliability.
When disassembling the drive leg, note the orientation of splines, alignment pins, and shims. Misalignment during reassembly leads to premature wear on the upper mount bearings and input shaft. Photograph each step or use a labeled tray to track components. Lubricate all moving parts with marine-grade grease–not automotive varieties–prior to installation. Pay special attention to the anode: corrosion here protects the entire system, so replace it if it’s more than 50% depleted.
For electrical components like the trim sender or solenoid pack, test resistance values with a multimeter before ordering replacements. A reading outside the 0.5–1.5 ohm range signals failure. Check the wiring harness for chafing, especially near vibration points–exposed conductors corrode quickly in saltwater environments. Use heat-shrink tubing and dielectric grease on all connections during reassembly.
Purchase components from authorized dealers or salvage yards with verified inventories. Counterfeit parts–common in online marketplaces–often fail within months due to substandard alloys or improper heat treatment. Compare weights: genuine lower units typically weigh 10–15% more than knockoffs due to denser castings. Keep a maintenance log with installation dates; this helps predict failures and simplifies warranty claims.

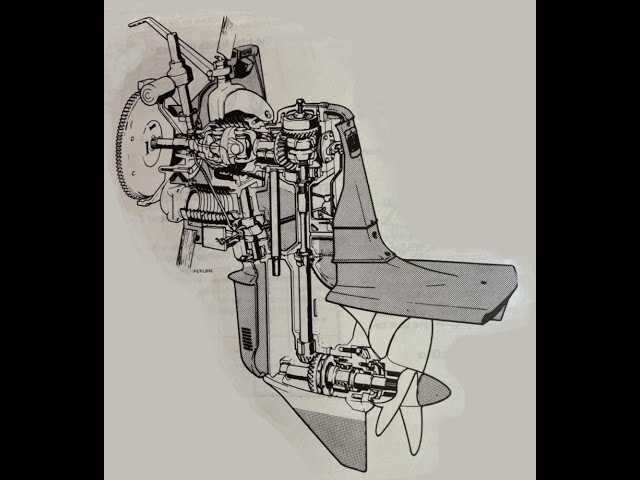

Understanding Marine Propulsion Unit Exploded Views: Hands-On Tips
Locate the assembly breakdown for your specific drive model by cross-referencing the serial number etched on the upper housing. Early SX models (pre-1998) will reference a three-digit suffix, while later DP-S units incorporate a full 12-character alphanumeric code. Print the matching schematic at 120% scale–the extra margin prevents misalignment when aligning gaskets during reassembly.
Group fasteners by size and thread type before disassembly. Use labeled magnetic trays; stainless steel hardware swells under heat cycles, making corrosion-prone bolts easily distinguishable. Keep drive shaft seals submerged in marine-grade lubricant during storage–their neoprene lips degrade if left exposed.
Mark each shim pack with a scribe before removal. Even two thou variance alters thrust alignment, so record measurements against the exploded view’s specified clearance ranges. Replace thrust washers if scoring exceeds 0.003 inches–plastic variants from aftermarket kits often lack the self-lubricating molybdenum coating found in OEM components.
Inspect bellows for hairline cracks using a 45-degree flashlight; rotate the boot slowly while watching for shadows. Repack universal joints with marine-grade NLGI 2 grease, filling until excess squeezes past the seals–overfilling damages clutch friction surfaces during engagement.

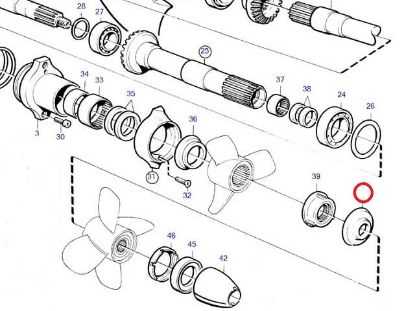

Compare propeller hubs against the thrust breakdown; three-blade aluminum models require balancing after repair, whereas stainless counterparts often arrive pre-static tested. Verify pitch via the printed stamp on the blade face–every half-inch deviation reduces cruising RPM by 150-200, directly impacting fuel burn curves.
Clean corrosion from electrical connectors using a stainless wire brush, then apply dielectric compound rated to -40°C. Avoid silicone sprays; their viscosity attracts salt crystals, causing voltage drop across ignition modules. For older cable-actuated systems, replace the outer sheath if friction exceeds 3 lbs as measured by a spring scale.
Torque drive housing bolts in a spiral pattern, incrementally increasing pressure to 45 ft-lbs. Check gasket surfaces for warpage exceeding 0.002 inches using an automotive-grade straightedge–machined aluminum warps from prolonged high-load operations, necessitating resurfacing by a marine-certified shop.
Update onboard diagnostics using the manufacturer’s software utility; firmware discrepancies between ECU and helm modules generate false fault codes identical to mechanical failures. Log sensor readings pre-and-post repair to establish baselines–exhaust temperature fluctuations above 30°F between cylinders indicate faulty injectors, misaligned timing, or clogged heat exchangers.
Guide to Pinpointing Critical Marine Propulsion System Elements in Schematics
Begin by isolating the upper gear housing section in the technical drawing–marked by a circular flange with multiple bolt holes. Inside, locate the input shaft bearing (typically item #42 in most manuals) adjacent to the splined drive coupling. Verify its position relative to the trim cylinder mount; misalignment often indicates incorrect assembly or wear.

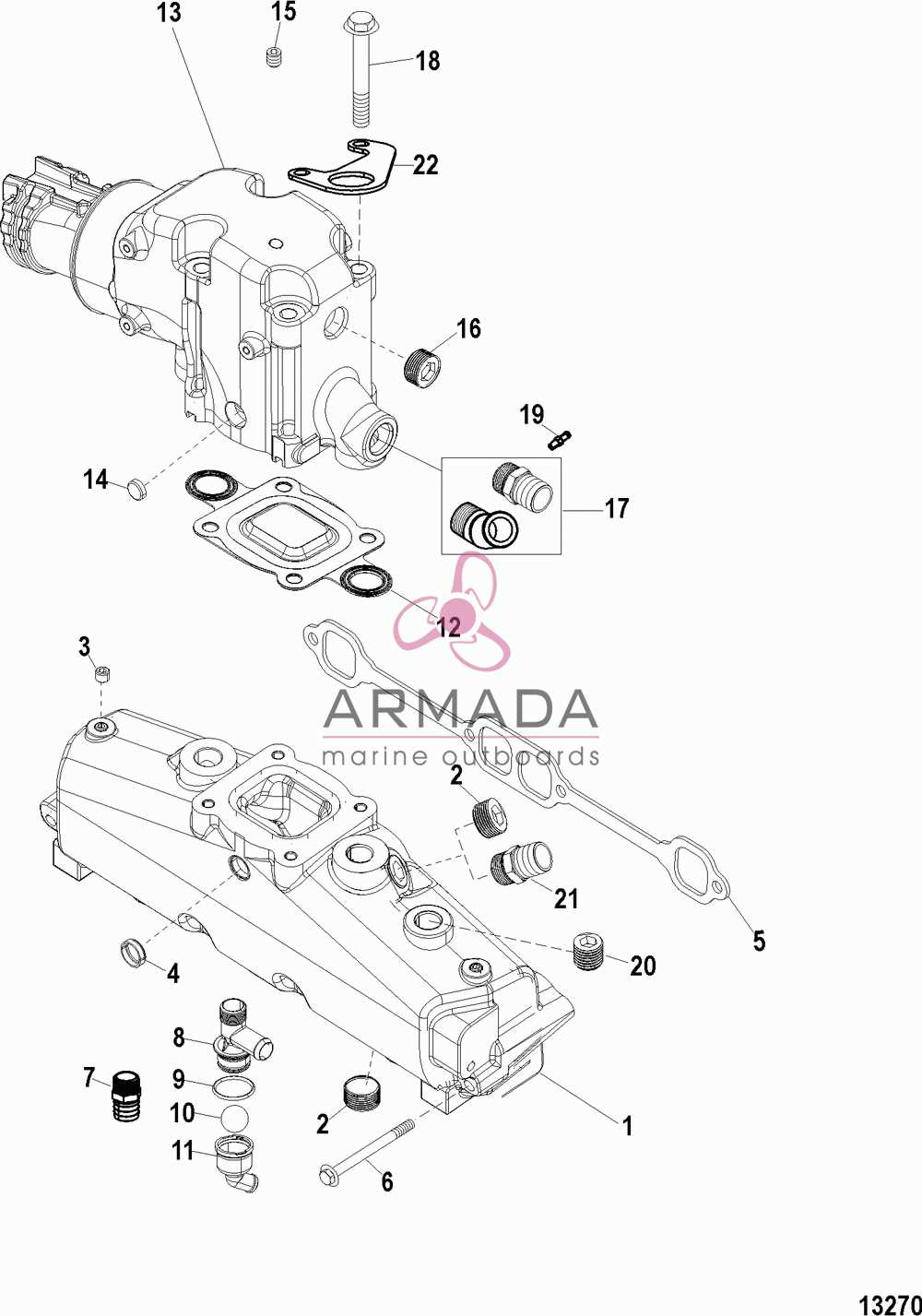

Trace the exhaust elbow path from the powerhead downward. The elbow connects to the intermediate housing via a gasketed joint (part reference #37). Check for corrosion around this junction, as saltwater deposits frequently accumulate here, impeding smooth flow and causing overheating.
Examine the shift linkage mechanism in the lower unit. The shift rod (item #61) extends from the control box through the transom assembly into the lower gearcase. Cross-reference its path with the schematic: the rod should align precisely with the pivot arm (item #58) to ensure clean gear engagement. Deviations of more than 2mm suggest bent components or improper installation.
Identify the water pump impeller assembly by following the cooling inlet hose from the powerhead. The impeller (item #23) sits within a stainless housing, secured by a cover plate (item #24) with four screws. Note the impeller’s clockwise rotation direction–incorrect orientation during reassembly will lead to cavitation and immediate pump failure.
Monitor the gimbal bearing (item #49) position within the transom plate assembly. This bearing supports the entire drive system’s weight and must align perfectly with the engine’s output shaft. Use a straightedge tool to verify alignment; a gap exceeding 0.5mm requires shimming or bearing replacement.
| Component | Schematic Reference | Key Inspection Point | Failure Symptoms |
|---|---|---|---|
| Input shaft bearing | #42 | Flange bolt torque (25 Nm) | Vibration at 3000+ RPM |
| Exhaust elbow gasket | #37 | Corrosion on mating surfaces | White smoke during warm-up |
| Shift linkage pivot | #58 | Rod alignment tolerance (±2mm) | Gear slippage under load |
| Impeller housing | #24 | Cover plate screw tightness | Overheating within 3 minutes |
Prioritize hydraulic trim components when diagnosing tilt issues. The trim piston (item #76) operates within a cylinder (item #75), fed by hydraulic lines from the reservoir. Check for fluid leaks at the base–any seepage indicates worn seals or cracked cylinder walls, requiring immediate attention to prevent sudden drive dropout.
Cross-check the anode placement on the gearcase lower unit. The sacrificial zinc anode (item #88) mounts externally but connects internally to the propeller shaft housing. Verify electrical continuity with a multimeter; readings above 0.2 ohms confirm the anode’s protective integrity. Replace if consumed beyond 50% of its original size.
Determine the precise location of the propeller shaft seal (item #92) beneath the propeller nut. This dual-lip seal prevents water intrusion into the gearcase. Use a seal driver tool during installation–hammering directly onto the seal will distort its profile, causing chronic leaks. Post-installation, test with pressurized air (15 psi) to confirm a watertight seal.
Step-by-Step Breakdown of Common Marine Propulsion Unit Assembly Sections
Begin by securing the lower gear housing to a stable workbench using clamps–ensure the mating surface is free of debris or residual gasket material. Align the propeller shaft with the driven gear splines before inserting; misalignment here causes premature wear on the bronze bearings. Apply marine-grade grease to the splines and seals to prevent corrosion during operation. Check the gear lash by rotating the shaft manually–any binding indicates improper seating or damaged teeth. Tighten the housing bolts in a cross-pattern sequence to 45 Nm, using a torque wrench to avoid distortion.
- Exhaust elbow and bellows section: Inspect the bellows for cracks or brittleness–replace if older than 5 years, regardless of visual condition. Lubricate the bellows clamps with dielectric grease before installation to prevent galvanic corrosion. When reattaching the exhaust elbow, ensure the water intake ports align with the cooling system channels; failure to do so will cause overheating. Use a new O-ring coated in silicone lubricant to seal the elbow joint, torquing the retaining bolts to 30 Nm. Verify coolant flow by running the unit briefly in a test tank–look for steady water discharge from the tell-tale.
- Trim cylinder and hydraulic components: Drain old hydraulic fluid completely before disassembly to avoid contamination. Check the piston rod for pitting or scoring–polish with 800-grit emery cloth if minor defects are present. Replace the inner and outer seals with OEM equivalents, ensuring the lip direction faces toward fluid pressure. Refill with fresh Dexron VI ATF, bleeding the system by cycling the trim repeatedly until no air bubbles appear in the fluid reservoir. Test for smooth operation under load; erratic movement signals internal damage or improper bleeding.
For the upper drive housing, focus on the shift cable attachment point–loosen the jam nut and adjust the cable length so the transmission engages fully in both forward and reverse without binding. The cable should have approximately 10 mm of free play when the lever is in neutral. Secure the cable with a zip tie to prevent vibration-induced slippage. Reassemble the gimbal bearing last, applying a light coat of lithium-based grease to the bearing races. Torque the gimbal ring bolts to 70 Nm in stages, verifying alignment with a dial indicator–runout should not exceed 0.05 mm. Failure to align this component precisely leads to chronic vibration and accelerated wear on the drive shaft splines.
