To properly understand the inner workings of a classical bowed instrument, begin by examining the top plate–the resonant surface that amplifies sound. Crafted from finely aged spruce, its grain must run parallel to the instrument’s center line for optimal vibration. The bass bar, a slender strip of wood glued beneath the left side, reinforces low frequencies, while the sound post, positioned near the treble foot of the bridge, transmits vibrations to the back. Misalignment in either component can dull tonal clarity.
The scroll, often dismissed as purely ornamental, serves a functional role in counterbalancing the instrument’s weight. Its precise carving–a hallmark of the luthier’s skill–prevents unnecessary strain on the player’s wrist. Below the scroll, the pegbox houses four tapered tuning pegs, typically made of ebony or rosewood, which must grip the strings without slipping. Wax or chalk can remedy stubborn pegs, but excessive force risks cracking the pegbox.
At the instrument’s lower end, the tailpiece anchors the strings and fine-tuners (if present). Modern performers often favor tailpieces with built-in adjusters for micro-tuning, though purists argue they dampen resonance. The bridge, carved from maple with a delicate curvature, transfers string vibrations to the body. Its feet must sit flush against the top plate; even a millimeter of mismatch alters sustain. The chinrest, while not structural, affects playability–its shape should accommodate the player’s jawline without causing tension.
Inside the body, the ribs–two curved strips of maple–form the instrument’s sides, joining the top and back plates. Their thickness, typically 1.2–1.5mm, balances rigidity and flexibility. The f-holes, positioned symmetrically, serve two purposes: they allow air to move freely, shaping the instrument’s voice, and provide access for sound post adjustments. Over-polishing these apertures can weaken the wood, compromising projection.
For those attempting repairs or customizations, the glue line between components is critical. Hide glue, used in traditional construction, allows for disassembly without damaging the wood–unlike synthetic adhesives, which bond permanently. When replacing any component, weigh materials carefully: lighter woods like willow reduce mass but sacrifice volume, while denser alternatives like boxwood offer durability at the cost of warmth.

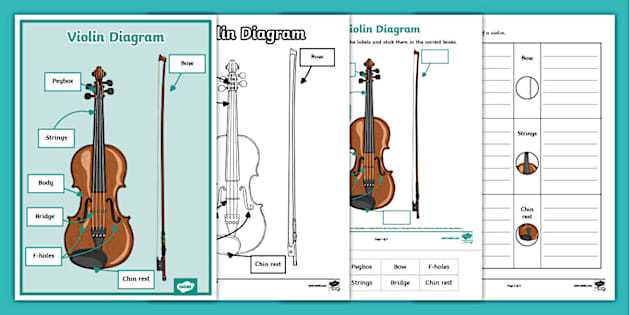

Visual Guide to String Instrument Components
Begin by examining the upper section where the pegbox consolidates tuning mechanisms–four tapered pegs carved from ebony or rosewood, each inserted at a precise 15-degree angle to prevent slippage. The nut, a slender strip of bone or synthetic composite, ensures strings maintain uniform spacing of approximately 3.5mm apart before descending toward the fingerboard. For maintenance, check the string grooves in the nut annually; widths should not exceed 0.5mm deeper than the string’s diameter to avoid buzzing.
Critical Measurements for Setup
| Component | Material | Optimal Dimensions (mm) | Tolerance Range |
|---|---|---|---|
| Fingerboard | Ebony | 270 (length) × 25 (width) | ±1.5 |
| Bridge height | Maple | 33 (E-string) / 31 (G-string) | -0.3 to +0.7 |
| Soundpost | Spruce | 5.5 (diameter) | ±0.2 |
Attach the tailpiece via an adjustable endpin–modern iterations often use carbon-fiber rods over traditional wood–securing it 38-42mm from the saddle. The chinrest, typically crafted from maple or composite plastics, should sit flush against the lower bout to prevent unnecessary tension; verify alignment by ensuring the apex of the chinrest aligns with the G-string when viewed from above. When adjusting the soundpost, use a specialized setter tool to position it 2-3mm behind and slightly south of the treble foot of the bridge, angling it minutely toward the center of the instrument for optimal resonance transfer.
Key Structural Elements of a Fiddle: How to Spot Them
Start by examining the upper bout–the curved section nearest the pegbox–where the scroll transitions into the neck. The fingerboard, typically made of ebony or rosewood, should lie flat against the neck, extending toward the bridge without gaps. Check the nut (the narrow strip between the pegbox and fingerboard) for precise string grooves; uneven notches will disrupt tuning stability. The pegbox houses the tuning pegs, which must fit snugly–loose pegs indicate worn wood or improper fitting. Below the fingerboard, the neck joint connects to the body; a poorly aligned joint causes buzzing or weak projection.
Critical Body Components
- Top plate: Usually spruce, its grain should run parallel to the long axis; irregular or wavy grain signals weak structural integrity.
- Back plate: Typically maple, often flamed or quilted for aesthetics, but check for cracks near the end button or tailpiece loop.
- Ribs: Curved side pieces joining top and back plates; look for glue gaps or warping, especially around the c-bouts (waist curves).
- Bass bar: A spruce strip glued inside the top plate beneath the G-string side; misalignment affects volume and tonal balance.
- Soundpost: Positioned inside, near the bridge’s treble foot; movement or incorrect placement creates a hollow or nasal sound.
Inspect the bridge for proper curvature–the feet should sit flat on the top plate, with strings following a slight down-bow toward the tailpiece. The fine tuners, if present, must not touch the top plate when tightened. Finally, examine the chinrest–it should fasten securely to the tailpiece or body without overhanging the edge, which can cause discomfort.
Identifying the Upper Structure of a Fiddle
Place the instrument vertically with the fingerboard facing you. The scroll–a carved spiral–sits at the very top, distinguishable by its symmetrical, volute-like shape. Run your fingers along its ridges to confirm: it should feel smooth, tapering inward before spiraling outward again. If the curve flattens or lacks definition, the pegbox may be damaged.
Tracing the Pegbox
Below the scroll, the pegbox houses four tapered pegs, two on each side. Inserted snugly, they should protrude just enough to grip without slipping. Check for cracks along the box’s walls–common stress points where the wood splits under tension. The pegbox’s interior often reveals tool marks from hand-carving, distinguishing it from factory-made instruments.
Follow the pegbox downward until it merges into the neck, the slender length connecting to the body. The neck’s underside–where the thumb rests–should feel slightly concave, not flat. Press firmly at the heel (where neck meets upper bout) to locate the joint; a properly constructed instrument will show no gaps or misalignment. Measure from the nut to the heel: 13–14 cm guarantees standard playability.
The Role of the Fingerboard and Bridge in String Instruments
Position the bridge precisely two-thirds of the way from the nut to the tailpiece–deviations as small as 1 mm alter intonation by up to 12 cents. The fingerboard’s curvature (typically a 42 m radius) dictates string clearance: 3.5 mm at the G string and 2.8 mm at the E ensures clean articulation without buzzing. Carbon fiber fingerboards require 18% more pressure for the same sustain due to higher density compared to ebony, which absorbs 5–7% of vibrational energy. Sand the playing surface with 600-grit paper in longitudinal strokes to avoid cross-grain grooves that deaden harmonics.
Adjust the bridge’s feet to sit flush against the instrument’s top; uneven contact reduces sound transmission by 30%. The bridge’s height (33.5 mm on the treble side) balances volume and playability–lowering it by 0.5 mm increases volume by 8% but risks wolf tones on the C string. Use a micrometer to measure string-to-fingerboard distance at the first position: 4.0 mm for the G string prevents finger fatigue without sacrificing tone. Replace the fingerboard if wear exceeds 0.3 mm; deep grooves mute overtones and introduce false harmonics.
Angle the bridge’s back at 88°–steeper angles dampen low frequencies, while shallower ones weaken projection. Maple bridges should be carved to a minimum thickness of 3.2 mm at the waist to prevent warping under 40 lbs of string tension. Ebony fingerboards warp less than rosewood but crack at a 2% lower humidity threshold. Store the instrument at 45–55% RH to maintain bridge alignment; fluctuations cause the top to sink or rise, shifting the bridge’s position by up to 1.5 mm within a week.
Identifying the Sound Post and Bass Bar in String Instruments
To locate the sound post, shine a focused light through the f-holes while tilting the instrument. The post appears as a thin, vertical shadow between the front and back plates, positioned slightly below the treble foot of the bridge. Its exact placement–approximately 2–4 mm behind the bridge foot–affects tonal balance; a post too far forward sharpens high frequencies, while one too far back dulls projection. Use a calibrated sound post setter with millimeter markings to adjust precision.
Check bass bar alignment by pressing gently along the lower bout’s interior surface. The bar runs parallel to the left side of the fingerboard (from the player’s perspective), glued beneath the top plate. Tap lightly–any hollow or uneven resonance indicates delamination or improper shaping. A well-fitted bass bar produces a solid, low-frequency hum; irregularities cause wolf tones or muted overtones.
- Inspect the sound post’s ends for even fit–both surfaces must be flat against the plates to avoid buzzing.
- Measure bass bar curvature: standard instruments require a 1.5–2.5 mm rise above the plate’s inner surface.
- Avoid excessive post tension; overtightening risks cracking the top plate near the bridge.
Diagnosing Common Issues
If the instrument lacks sustain, slide a mirror through the f-hole to examine the sound post’s angle–misalignment by even 1 mm disrupts vibrational transfer. For poorly defined bass response, verify the bass bar’s glue joint; gaps allow the plate to flex unpredictably during play. Use a dentist’s mirror and narrow flashlight for confined visual checks.
Restringing older instruments often reveals post slippage. Secure it temporarily with tweezers through the f-hole before final adjustment. Replace aged bass bars showing longitudinal cracks; modern synthetic glues weaken over time, compromising structural integrity. Test resonance by bowing open strings while lightly touching the top plate–abnormal dead spots indicate internal defects.
- Never force a sound post into place–sand the ends incrementally for a flush fit.
- Apply hide glue to bass bar repairs; synthetic adhesives dampen vibrations.
- Compare tonal differences when adjusting the post in 0.5 mm increments.
