Replace damaged carrier clips by matching the exact model number printed on the underside of the original–most manufacturers stamp a 3-5 digit code near the pivot point. If no code exists, measure the width at the narrowest point of the clip: standard sizes are 35mm, 50mm, or 89mm, with 50mm being the most common. Verify the material (polycarbonate vs. aluminum) by flexing a sample–aluminum bends under light pressure while polycarbonate resists deformation.
For track compatibility, examine the headrail’s cross-section. C-shaped tracks require bottom-loading slats, while J-shaped tracks (notched along the top edge) mandate top-loading insertion. Misaligned slats typically indicate a mismatched carrier type–check for rounded vs. squared-off carrier slots. Use a hex key to loosen set screws on variable-angle carriers before adjustment to prevent thread stripping.
Replacing vanes begins with removing the weighted hem bar–slide the bottom cap off by turning counterclockwise and tugging firmly. For fabric vanes, cut a replacement 1-2mm narrower than the track width to prevent jamming. PVC vanes require exact width matching (tolerance ±0.5mm) to avoid sagging. Secure the new vane by aligning the carrier hook with the vane’s punched hole, ensuring the hole sits precisely at the vane’s midpoint.
Chain tension issues stem from three components: the chain itself, the chain guide, or the tilt mechanism. Measure chain link diameter (typically 2.5mm or 3mm) and compare against the guide’s opening–excessive wear here causes skipping. The tilt mechanism’s gear ratio (usually 1:1.5 for 117° rotation) must match the original; mismatched ratios pull slats unevenly. Lubricate moving parts with dry silicone spray–avoid WD-40, which attracts dust and accelerates wear.
Track alignment demands a straightedge and laser level. Misaligned tracks bend carrier rods, causing slat gaps at intervals equal to the carrier spacing (100-150mm). Secure tracks every 30cm with screws driven into wall studs–anchor points solely in drywall will fail under repeated operation. For curved installations, use flexible tracks with pre-drilled mounting slots; standard rigid tracks require notching to bend and will crack if forced.

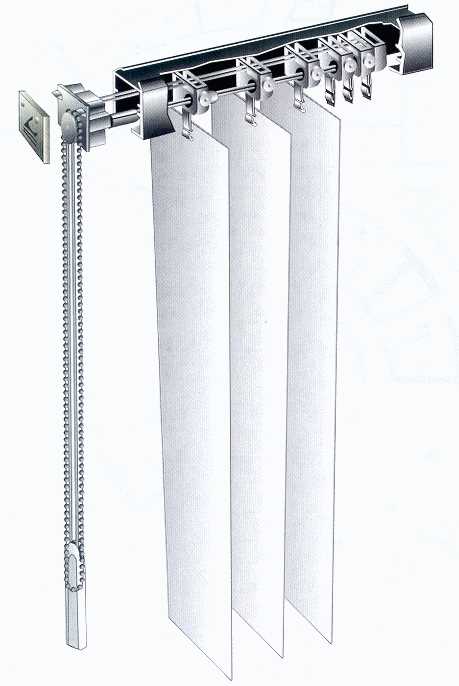

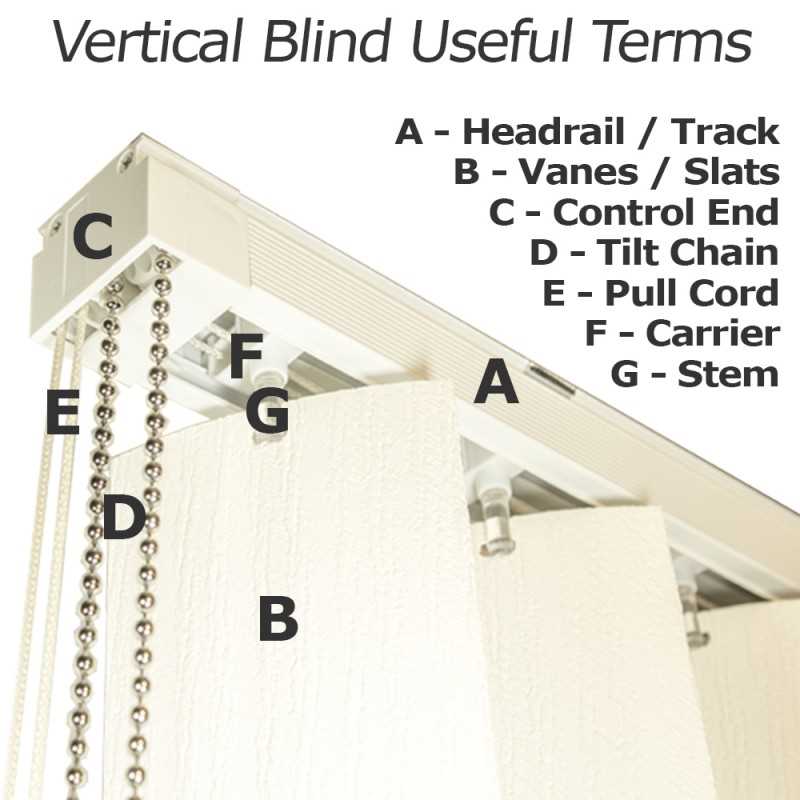

How to Identify Components in a Modern Window Treatment System
Begin by locating the headrail–the horizontal bar at the top. Measure its length; standard sizes range from 24 to 120 inches, but custom cuts may require trimming the aluminum extrusion. Check for a square or rounded profile–this dictates compatibility with carrier clips. Remove the end cap (usually snapped or screwed) to inspect the internal track. If the track has obstructions, clean it with a microfiber cloth dipped in isopropyl alcohol to prevent fabric slippage.
- Carrier assembly: Slide each unit along the track to feel for resistance. A smooth glide indicates intact wheels (nylon or PVC). Damaged carriers–identified by cracks or missing wheels–should be replaced in pairs to maintain balance.
- Control chain: Test the beaded cord for tension. If sluggish, disassemble the bottom chain guide (plastic or metal) and lubricate the gears with silicone spray. Ensure the chain loop measures 30–50% longer than the system’s drop to avoid strain.
- Weight rods: Count the rods (typically one per panel). Missing or bent rods cause uneven hanging; use 3/8-inch diameter steel rods for standard fabrics or 1/2-inch for heavy textiles.
For tilt mechanisms, distinguish between wand-operated and cordless systems. Wand types feature a 90-degree rotation limit; exceeding this bends the internal pin. Cordless models rely on a spring-loaded clutch–listen for a click when tilting. If the clutch fails, replace the tilt gear housing (3–5 mm hex key required). Note the offset angle (usually 15–22 degrees) to align replacement parts correctly.
- Pinpoint the mounting brackets–they’re spaced 4–6 inches from each end of the headrail. Use #10 or #12 screws for drywall anchors (minimum 25 lb load rating) or toggle bolts for hollow doors.
- Inspect fabric vanes for stitching integrity. Seams should have 10–12 stitches per inch; reinforce frayed edges with fabric glue or iron-on tape.
- When reattaching bottom hem bars, verify they’re parallel to the headrail (±1/8 inch tolerance). Misalignment causes gaps when closed.
Critical Elements in Fabric Shade System Constructions
Start with the carrier track: measure its length precisely–standard sections are 1.2m or 1.8m, but custom lengths require exact cuts to avoid gaps. Aluminum tracks weigh 0.8kg per meter, while steel alternatives reach 1.4kg, affecting wall mounting load calculations. Ensure brackets are spaced no more than 60cm apart for rigid alignment.
Suspension Components
- Hangers: Most models use nylon clips with a 5kg load rating. Check for UV resistance–polycarbonate variants degrade after 3 years of direct sunlight.
- Hooks: Steel-coated hooks prevent rust; zinc-plated options last 15% longer but increase cost by 0.4€ per unit.
- Beads: Acrylic beads reduce noise by 40% compared to metal. Opt for 8mm diameter beads for heavy fabrics (>250gsm).
Fabric selection determines functionality: 100% polyester resists mildew but shrinks 2% after washing; PVC-coated fabrics repel dust but crack at temperatures below -10°C. For thermal insulation, choose blackout layers with a minimum 3% light transmittance rating. Seams should be heat-sealed, not stitched–stitched edges fray within 18 months.
Control systems require precise tension: a 3mm misalignment in cord tension causes uneven rotation. Replace nylon cords every 24 months; wax-coated cords last 30% longer but must be degreased annually. For motorized units, verify torque specs–0.6Nm handles 1.5m widths, while 1.2Nm is needed for 2.5m spans.
Structural Integrity Checks
- Verify track straightness: a 2mm bow over 3m creates friction. Use a laser level for installation.
- Test weight distribution: evenly loaded panels sag
- Check weld points: steel tracks fail at welds under 50kg lateral force–reinforce with angle brackets.
End caps must seal tightly: loose caps collect dust, increasing cleaning cycles by 30%. Use silicone seals for outdoor applications–rubber degrades at 5% per year in humidity. For side channels, ensure they’re 0.5mm narrower than the track width to prevent snags.
Replace worn components based on usage: high-traffic areas need hanger replacements every 18 months; low-traffic zones extend to 3 years. Clean aluminum tracks with isopropyl alcohol–bleach corrodes surfaces 7x faster. Fabric panels should be vacuumed monthly; machine washing reduces opacity by 12% per cycle.
For child safety, use cordless systems or breakaway connectors rated at 2kg pull force. Bottom weights must match fabric density: 150gsm fabrics require 20g weights; 300gsm demands 50g. Misweighting causes twisting–rotate panels 180° during installation to test balance.

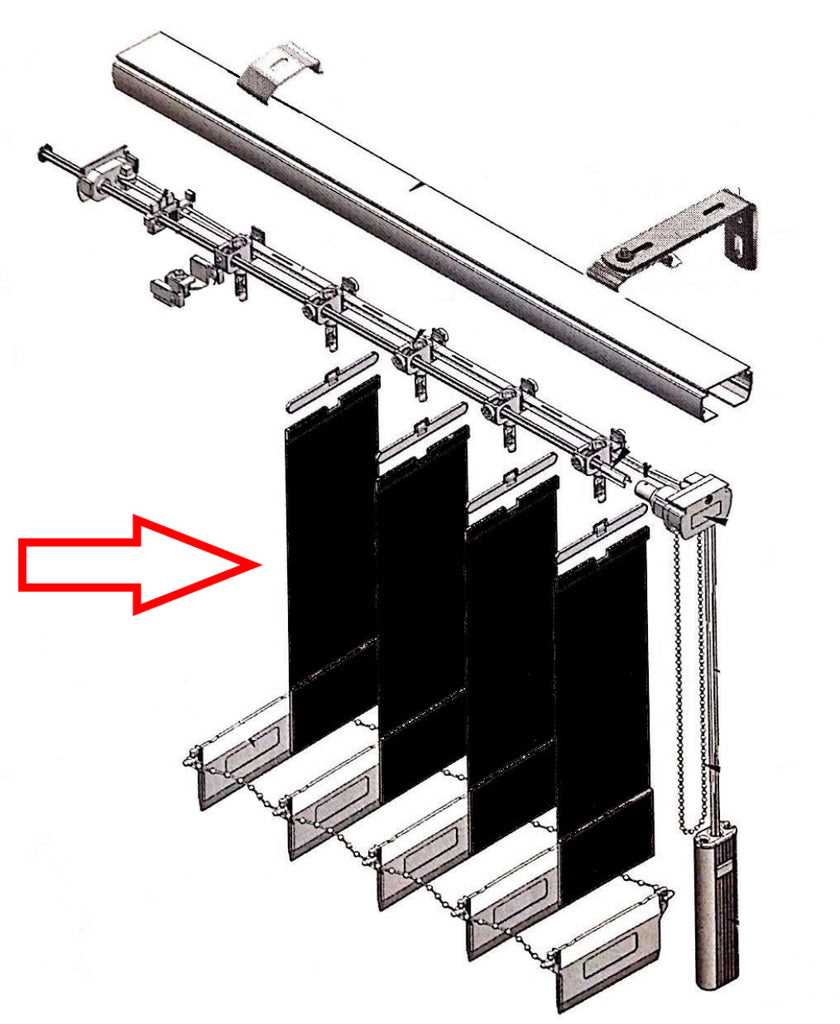

How to Decode Adjustable Window Covering Component Schematics
Locate the legend first–it’s usually in a corner or along one edge. Note symbols for hardware types: squares often denote connectors, arrows indicate direction of rotation or movement, and dashed lines typically mark adjustable or detachable sections. Compare each symbol to its listed description to avoid misidentifying clips as tracks or carriers as cords.
Trace the path of every control cord and chain next. Follow their routes from the headrail to the bottom hem, noting where pulleys and tensioners appear. Check for annotations specifying cord length or tension settings–these are critical for correct reassembly later.
Identify each slat’s attachment point. Schematic labels may show rivet placement, clip alignment, or stitching details. Count the number of attachment points per slat; discrepancies here hint at missing hardware or misaligned slots.
Examine the pivot mechanism symbols–small circles or notched lines usually represent these. Verify if the diagram shows single or dual pivots; this detail determines whether slats turn individually or as a linked group. Look for torque specifications if present, often listed near pivot points.
Assess the bottom weight and chain assembly separately. Weights typically appear as thicker lines or solid blocks, while connecting chains resemble zigzag lines or small linked circles. Confirm compatibility: some schematics specify weight measurements to prevent uneven hanging.
Cross-reference any numbered callouts with the parts list. If callout 3 refers to “3mm snap hooks,” ensure the list confirms quantity and material–plastic vs. metal–since this affects durability in humid environments.
Key Components for Maintenance and Where to Find Them
Begin repairs by identifying the headrail slots–each fabric louver hooks onto carriers here. Misaligned louvers often signal worn carrier clips (positioned along the track, marked as #3 on most schematics). Replace these in pairs to prevent uneven tension.
Check the wand assembly first if rotation jams occur. The gear mechanism (labeled #7) sits at the end of the track, connected to the wand via a flexible rod. Lubricate with silicone spray every 6 months; petroleum-based products degrade plastic over time.
For faulty tilting, inspect the cord tensioner (#5). Overstretched cords cause louvers to stay fixed–adjust the spring-loaded pulley or swap the entire unit if the cord frays near its attachment point. Measure cord length before ordering: stock sizes range from 150–250 cm, but custom cuts risk mismatched tension.
Worn bottom weights (#9) create gaps at the louver ends. These small metal bars slide into pockets sewn into each fabric slat–replace only the damaged ones, ensuring the new weights match the original thickness (typically 3–5 mm) to avoid drag on the track.
Track sections (#1) snap together but may warp over time. Unsnap segments near bends or seams first; stubborn sections require gentle tapping with a rubber mallet. Standard tracks measure 35 mm wide–verify compatibility before purchasing replacements, as non-matching widths cause misalignment.
For electrical variants, locate the motor housing (#12) at the track’s base. Test the fuse before ordering parts; burnout often mimics motor failure. Wiring diagrams vary by brand–HunterDouglas models use a 24V system, while Somfy integrates 110V–check voltage before replacing components.
