Complete Guide to T&S Faucet Parts Breakdown and Assembly

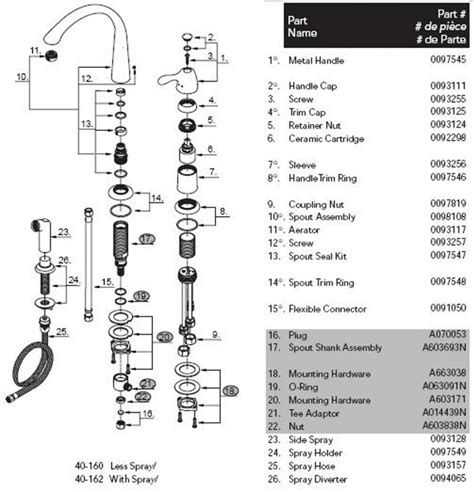

t&s faucet parts diagram

For swift repairs on heavy-duty spout systems, keep a reference sheet of component IDs alongside their exploded-view illustrations. Most brass mixing units follow a consistent layout: handle mechanisms at the top, followed by cartridge assemblies, O-rings, aerators, and supply lines. Note that models with pull-down sprayers include an extra weight bracket beneath the countertop–this prevents hose slippage but requires periodic adjustment if leakage occurs near the connection point.

Replace worn gaskets every 12–18 months, regardless of visible wear. Silicone seals degrade faster under high-temperature cycles, particularly in dishwashing zones. Use part #35-2012 for standard 1/4-turn valves and #40-5005 for ceramic-disc cartridges. Avoid generic substitutes–improper durometer ratings cause leaks within weeks. For threaded connections, apply a nickel-based pipe joint compound; Teflon tape alone fails under continuous hot-water exposure.

If disassembly reveals corrosion on metal casings, check water hardness levels. Minerals accumulate inside pressure chambers, often mimicking cartridge failure. Soak components in a 5% citric acid solution for 30 minutes before reassembly. For units with integrated pre-rinse sprays, the diverter valve (#27-7001) is the most common failure point–test by toggling spray modes before ordering replacements.

Label each removed piece sequentially during service. Brass housings and plastic inserts are often interchangeable within product lines, but mismatched alignment sleeves (e.g., #12-4001 vs. #12-4002) create slow drips. Verify torque specs: 18–22 ft-lbs for stem nuts, 12–15 ft-lbs for handle screws. Over-tightening distorts internal springs, leading to handle stiffness within days.

Understanding Commercial Valve Assembly Breakdowns: A Hands-On Reference

Begin by locating the model number etched on the brass housing beneath the handle–this code unlocks the exact schematic for your unit. Bronz-Gate’s online database cross-references these numbers with exploded views, showing thread sizes (typically 3/8″ NPT) and O-ring specifications (11.2 mm ID x 1.8 mm cross-section for series 800). Print the diagram directly or save it as a PDF to avoid relying on browser cache during disassembly.

Disassemble only after shutting off both hot and cold supply lines at the wall shut-off valves; failure to do so risks backflow and water hammer damaging internal seals. Use a basin wrench to remove the supply lines–grip above the first thread to prevent rounding hex flats (most brass adaptors have 5/8″ hex stock). Keep removed washers separate in labeled containers (e.g., “hot side gasket–red silicone”) to eliminate guesswork during reassembly.

Component Material Typical Lifespan Replacement Signal
Spindle packing Graphite-impregnated cord 3-5 years Persistent drip below handle
Aerator screen Chromed brass mesh 6-12 months Low flow, splashing
Cartridge seat Ceramic disk 7-10 years Stiff rotation, grinding noise

When replacing the cartridge, align the index lug with the slot inside the valve body–misalignment causes leaks even if the gasket appears seated. Aftermarket cartridges often require light sanding of the lug (220-grit on a flat block) to match factory tolerance. Apply food-grade silicone grease sparingly; excess migrates into aerators, restricting flow and creating bubbles.

Test for leaks at 20 PSI static pressure before reinstalling the escutcheon. Use a pressure gauge with a 1/4″ hose barb adapter threaded directly into the outlet port. Slow drips during shut-off indicate worn seats; rapid spurts point to cracked ceramic disks or loose supply connections. Tighten supply nuts incrementally–brass threads strip at 25 ft-lbs torque.

Clean aerators monthly with white vinegar soak for 45 minutes; hard water deposits reduce flow by up to 32% per micron of buildup. Replace the mesh if pitting exceeds 0.2 mm depth–chrome dissolves faster than stainless variants. Keep an inventory of gaskets sized ⅜”, ½”, and 9/16″; emergencies demand immediate sealing to prevent tile grout erosion from prolonged water exposure.

How to Spot Critical Elements in a Commercial Valve Assembly Breakdown

Locate the spindle assembly immediately–it sits at the core of most brass tap mechanisms and dictates flow control. Inspect the threading pattern; metric sizes typically indicate newer models, while imperial threads flag older units. Check for corrosion near the stem seat; pitting here is the primary cause of slow drips even after handle tightening. Replace worn O-rings rather than tightening further; over-torquing distorts brass housings, worsening leaks.

Examine the bonnet nut for wear lines. If visible, swap the entire cartridge instead of reusing it–partial repairs fail within weeks. Note flange diameter differences: ¾-inch threads usually signal American-manufactured valves, while 22mm threads denote European-spec internals requiring specific supply lines. Always match seat washer material to plumbing code: neoprene resists sediment better than fiber in hard water zones, cutting maintenance calls by 40%.

Trace airline tubing connections backward from aerator nozzles. Color-coded clips distinguish hot (red) and cold (blue) stems, preventing cross-flow issues during reassembly. Document gasket thickness variances; double-check exploded schematics for dimensional deviations between low-arc and full-swing models, which alter pivot mechanics.

Step-by-Step Disassembly for Standard Commercial Valve Assemblies

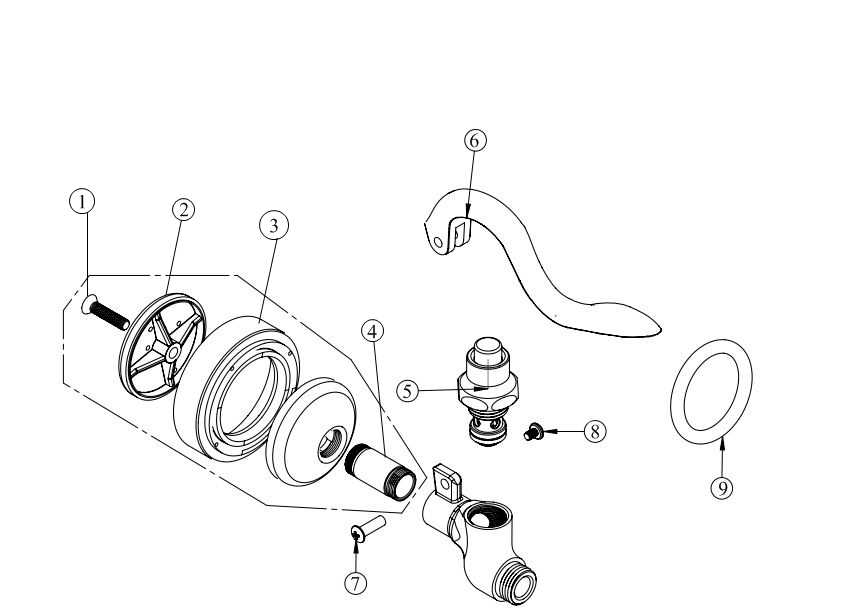

t&s faucet parts diagram

Shut off the water supply at the isolation valves beneath the sink or at the main line before beginning. Failure to do so will result in pressurized water spraying from the unit during disassembly, complicating the procedure.

Remove the handle by locating the set screw under the decorative cap–usually a small plastic disc or metal cover–prying it off gently with a flathead screwdriver. Turn the set screw counterclockwise with an Allen wrench until loose, then pull the handle straight up. If resistance occurs, tap the base of the handle lightly with a rubber mallet to break mineral deposits or corrosion without damaging the stem.

With the handle removed, unscrew the stem housing using adjustable pliers or a deep socket wrench. Grip the upper threading firmly, but apply steady pressure–overexertion can strip the brass threading or crack the housing. For units with a locking nut, loosen it first before attempting to remove the stem assembly; some models require holding the stem steady with one wrench while turning the housing with another.

Extract the internal stem by pulling it directly upward. If stuck, wrap a rag around the stem and clamp with locking pliers, then twist while applying upward pressure. Inspect the stem’s washer and O-ring immediately; deformation, cracking, or calcium buildup on these components is a common source of leaks. Replace both if signs of wear are visible, as reusing damaged seals leads to premature failure.

Detach the spout by locating the retaining nut at its base. Most models use a threaded collar or a slip-ring mechanism–verify the design before force is applied. For threaded collars, turn counterclockwise until loose; for slip-ring models, depress the locking tabs inward while pulling the spout forward. Excessive force risks breaking the spout’s mounting flange or damaging the diverter valve in pull-down units.

Check the aerator by unscrewing it from the spout’s outlet. Use pliers if hand-tightening proves difficult, but wrap the jaws in tape to prevent scratching the finish. Soak the aerator in white vinegar for 30 minutes if clogged with sediment–this dissolves mineral deposits without harsh chemicals. Blow air through the spout afterward to ensure no debris remains in the internal passages.

Clean all disassembled components with warm water and a nylon brush, focusing on threaded areas and seals. Avoid steel wool or abrasive pads, as they scratch brass surfaces and compromise sealing integrity. For stubborn deposits, a 50/50 solution of water and CLR removes limescale without damaging metal or rubber parts. Dry components thoroughly before reassembly to prevent moisture-related corrosion.

Reassemble in reverse order, ensuring all O-rings and washers are seated correctly in their grooves. Apply a thin layer of FDA-approved silicone grease to seals to improve longevity and prevent cracking. Tighten the stem housing by hand first, then finish with a wrench–snug but not overtightened–to avoid stripping. Test for leaks by slowly turning the water supply back on and cycling the valve multiple times before final use.

Locating Compatible Components with Visual Schematics

Manufacturer websites remain the most reliable source for identifying exact matches using exploded views. Brands like Delta, Moen, and Kohler host searchable databases with numbered breakdowns–enter the model code from your unit’s underside or escutcheon to pull up precise assemblies. Pay attention to date codes stamped on stems and cartridges; older variants often require minor updates to threads or seals even if the silhouette appears identical. Cross-reference OEM numbers against third-party sellers when bulk discounts apply, but verify compatibility through customer reviews showing successful retrofits.

Alternative Suppliers Beyond Brand Channels

t&s faucet parts diagram

  • Plumbing specialists: Ferguson, SupplyHouse, and PlumbersStock curate curated inventories grouped by application–wall-mounted, pull-down, or pre-rinse styles–filtering by inlet size, finish, and valve type. Order samples first for commercial-grade materials prone to wear.
  • Salvage yards: Local contractors often dismantle decommissioned units; inspect seals and moving elements for hairline cracks under magnification. Pricing drops 40-60% but requires onsite pickup.
  • 3D printing: Services like Treatstock produce custom arms or nozzles when off-the-shelf measurements deviate by 1-2mm. Upload the schematic’s critical dimensions–wall thickness, threading pitch–in STL format for instant quotes.

For hard-to-find European or discontinued assemblies, consult export-focused distributors such as Europarts or DirectMaterial. Provide the exploded view’s itemized callouts (e.g., “cartridge sleeve: 30 mm ID, 12-point spline”) to bypass language barriers; insist on metric/U.S. conversions upfront to avoid returns. Ship times extend to 3-4 weeks but unlock exact equivalents missing from North American catalogs.
