Begin by locating the mouthpiece–the detachable cone where airflow initiates vibration. Its rim, cup depth, and throat diameter directly affect tone quality and playability. A shallow cup produces brighter tones ideal for jazz, while a deeper cup suits classical repertoire. Secure it firmly but avoid excessive force to prevent damage to the leadpipe.
The valve pistons (typically three) alter pitch by redirecting air through tubing loops. Pressing a valve combinates different lengths of piping, lowering the pitch in specific increments. Ensure valves move smoothly; lubricate with valve oil every 2–3 days of use. Sticky valves disrupt intonation and require disassembly for cleaning.
The bells–flared section–amplifies sound and shapes timbre. A standard bell measures ~4.5 inches across; variations like the reverse or shepherd’s crook design modify projection. The bell’s material (yellow brass vs. gold brass) influences resonance–gold brass dampens high overtones for a mellower sound.
Inspect the water key (spit valve) near the tuning slide. Open it briefly after playing to release condensate; failing to do so causes corrosion in the inner slides. The main tuning slide adjusts overall pitch–extend it to lower the instrument’s concert pitch, retract to raise it. First-valve and third-valve slides fine-tune individual notes; mark their positions with cork or tape for consistency.
Regularly grease the slides to prevent seizing. Apply slide grease sparingly to the stockings (thicker tubing sections) every 3–4 weeks. For stubborn slides, use a slide puller–inject warm water if necessary, but avoid excessive force. Store the instrument in a case with humidity control to prevent warping or cracking.

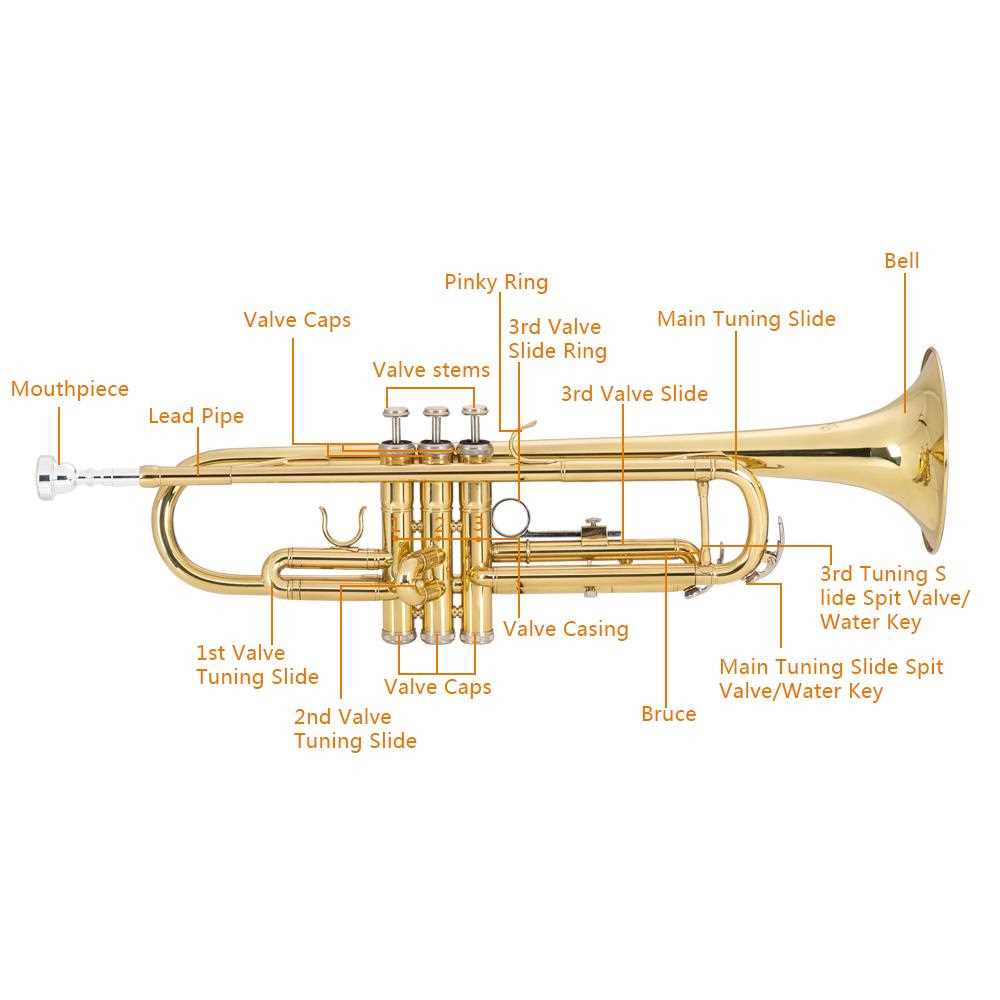

How to Identify Components of a Brass Instrument Visual Guide
Start by examining the mouthpiece receiver–the tapered tube where the mouthpiece inserts. It must be kept clean to prevent air leaks; use a flexible brush and mild soap monthly. A damaged receiver affects pitch stability, so check for dents or corrosion annually with a bore light.
- Leadpipe: The first curved section after the receiver. Its length and taper determine the instrument’s resistance. A leadpipe with excessive wear (visible scratches or green oxidation) requires professional buffing or replacement–cost ranges from $80 to $250.
- Main tuning slide: The U-shaped tube used for coarse pitch adjustment. Pull it out slightly and apply valve oil before each session to avoid sticking. If it moves sluggishly, disassemble it, scrub with warm water, and re-grease using slide grease (not valve oil).
- Valve casings: The vertical cylinders housing the pistons. Remove pistons one at a time, rotating them 45 degrees to avoid damaging springs. Clean ports with a nylon brush to remove debris–clogged ports cause muffled notes. Lubricate with synthetic oil (viscosity 20-30 cSt) every 5-7 days.
Inspect the third valve slide ring–often overlooked–located near the bell tail. This slide fine-tunes intonation for low D and C#. If notes in this range sound sharp, extend the slide 1-3 mm and test with a tuner. Use a rubber band to mark its optimal position for quick adjustments during play.
- Bell: Constructed from one-piece brass for optimal resonance. Polish it with a microfiber cloth weekly to prevent tarnish; avoid abrasive polishes. Small dents can be “burnished” with a wooden dowel–major deformations need professional hammering.
- Water keys (spit valves): Found on tuning slides and the third valve slide. Open them briefly after each passage to release condensation. If a key leaks air, inspect the cork for wear–replace it every 3-6 months. Use thin sheet cork, not standard valve felts.
- Finger buttons: Check alignment–misaligned buttons cause uneven piston movement. Adjust screws with a precision screwdriver; tighten just until snug (over-tightening strips threads). Engraved mother-of-pearl buttons require gentle handling to avoid cracks.
Braces–horizontal struts connecting tubes–strengthen the instrument’s structure and direct airflow efficiently. If braces show signs of loosening (audible rattling or visible gaps), secure them with silver solder. Avoid DIY fixes unless skilled; improper soldering can warp the tubing.
When storing, keep the instrument in a moderate humidity environment (40-50% RH). Low humidity dries felts, causing pistons to stick; high humidity accelerates corrosion. Store vertically with the bell facing upward to prevent moisture pooling in the leadpipe. Use a cartridge of silica gel in the case to regulate humidity.
Regularly measure bore dimensions–standard tubing diameter is 0.460 inches (11.68 mm). Deviations of ±0.005 inches affect intonation. Use a bore gauge for accuracy; reaming is risky and should be done professionally. For vintage models (pre-1960), consult a specialist–older alloys may be brittle.
Label each removed component during cleaning–use masking tape for pistons and slides. Misassembly alters airflow, leading to inconsistent response. Document the order of assembly in a notebook or app; include torque specs for screws (typically 5-7 inch-pounds). For advanced players, note how slight adjustments to slide positions affect specific notes (e.g., extending the first valve slide flattens F#).
Key Brass Instrument Sections Explained Through Visual Guides
Begin by locating the mouthpiece receiver at the instrument’s entry point–this slender tube, typically 0.5–0.6 inches in diameter, secures the detachable mouthpiece. Confirm its condition: check for dents or misalignment, as even minor damage disrupts airflow and tonal accuracy. Measurements matter here–standard B♭ models use a #1 or #3C shank, while auxiliary variations (piccolo, flugelhorn) may require specialized sizes.
Trace the leadpipe from the receiver, noting its gradual taper. This critical segment regulates resistance; a clogged or bent leadpipe forces players to overcompensate with embouchure pressure, risking fatigue. Use a cleaning snake (0.12–0.15″ diameter) weekly to remove debris–buildup here directly dulls high notes and introduces intonation flaws. Replace leadpipes with corrosion or pitting; gold brass or sterling silver versions offer 15–20% better resonance than standard yellow brass.
Examine the valve casing, focusing on piston alignment. Each valve should depress fully (0.25″ travel) without lateral play–misalignment by 0.05mm causes air leaks audible as airy notes. Finger buttons (often nickel-plated) must sit flush; protruding or recessed valves indicate worn felts or springs. Lubricate monthly with rotary valve oil (not slide oil), applying 2 drops per valve; heavier oil thickens in cold climates, requiring synthetic blends for sub-50°F conditions.
Follow the tuning slide curve to the bell flare. The main tuning slide affects overall pitch–extend it 0.5″ to lower pitch by 20 cents (middle C to B). Third-valve slides fine-tune specific notes (e.g., pushing in sharpens C#). Bell material defines timbre: copper produces warmer tones (loved in jazz), while silver bell/bow combos cut through ensembles for classical. Inspect the bell’s rim for uniformity; dents larger than 0.2″ scatter sound waves, creating muddy articulation.
Identifying and Labeling Each Piston on a Brass Instrument
Begin by holding the horn with the bell facing forward and the leadpipe curved toward you. The first piston, closest to the mouthpiece, is designated “1.” Press it with your index finger to confirm its position–this valve alters pitch by redirecting air through the shortest additional tubing.
Move to the middle piston, operated by the middle finger; this is “2.” It lengthens the airflow path moderately compared to the first. Check its alignment by pressing it–misaligned pistons often stick or resist movement.
The third piston, nearest the bell, is “3” and engages the longest auxiliary tubing. Use your ring finger for this one. Hold each valve separately to feel the resistance difference–”3″ typically requires slightly more force due to its extended slide.
Observe the valve casings for engraved numbers or wear marks if labels are worn. Manufacturers like Bach or Yamaha often etch “1,” “2,” and “3” near the tops. Rotary mechanisms (common in European models) reverse the order–”1″ sits closest to the bell in these cases.
Test each piston’s function by playing a simple ascending scale. The first valve lowers pitch by a whole step when fully engaged, the second by a half step, and the third by a step and a half. Incomplete depression causes pitch flattening–ensure full travel before judging intonation.
For maintenance, disassemble valves in reverse order (“3,” “2,” “1”) to avoid damaging the cork stops. Clean slides in the same sequence–residue buildup distorts pitch more noticeably in the third slide due to its length.
Triggers or thumb hooks (found on bass versions) follow the same numbering logic but add a fourth activator. Locate these by tracing the tubing path from the mouthpiece–any additional levers or slides modify the same valve sequence.
Memorize the numbering through tactile association: index (“1”), middle (“2”), ring (“3”). Reverse the grip for left-handed players–modify fingerings only after mastering standard placement to avoid confusion during ensemble playing.
The Critical Role of the Mouthpiece and Receiver Tube in Brass Performance
Select a mouthpiece with a cup depth matching your embouchure strength. Shallow cups (e.g., Bach 3C) require less air pressure but limit tonal richness–ideal for players prioritizing endurance over volume. Deep cups (e.g., Bach 1.5C) demand stronger lip control yet produce a darker, more resonant sound, suited for orchestral or jazz ballads. Measure the rim diameter: wider rims (17.5mm+) distribute pressure but reduce agility, while narrower ones (16.2mm) improve precision at the cost of comfort during extended play.
The receiver tube’s taper dictates airflow efficiency and tone color. Standard tapered models (e.g., Vincent Bach reverse leadpipes) create a focused, bright timbre favored in commercial music. Conversely, conical tubes (e.g., Monette’s “progressive backbore” design) offer a warmer, more flexible response–critical for classical or lead work. Inspect the interior finish: silver-plated tubes reduce friction and condensation buildup, cutting maintenance time by up to 30% during long rehearsals.
Align the mouthpiece’s shank length with the instrument’s receiver. A 0.05mm misfit causes air leaks, forcing extra effort and dulling articulation. Check with a caliper: most professional models (e.g., Yamaha, Schilke) adhere to a standard 5.4mm taper, while vintage or custom units may vary. For piccolos and flugelhorns, opt for shorter shanks to avoid intonation drift in the upper register, where even 0.1mm deviations distort pitch stability.
Clean the receiver tube weekly with a flexible brush soaked in 70% isopropyl alcohol–brass swabs leave residue that corrodes the bore over time. Avoid abrasive cloths; they scratch the lacquer and disrupt airflow. Replace the mouthpiece cork every 6 months if playing daily–hardened cork increases vibration leakage, reducing projection by up to 12%. For unconventional setups (e.g., plastic mouthpieces), pre-coat the receiver with synthetic grease to prevent galling, particularly in high-humidity environments.
