Locate the exact element you need by cross-referencing your model’s stamped plate–typically found on the chassis near the detergent tank–with the exploded view illustrations in the official service manual. Each schematic segment, labeled by numeric or alphanumeric codes, corresponds to a distinct assembly group: pump housings, nozzle assemblies, wand connectors, and engine components. For models produced after 2018, the diaphragm pump section (section 3A-05) shows an updated manifold assembly with integrated thermal relief valves–verify torque specs (25–30 ft-lbs) before disassembly.
Wear strips and seals in the trigger gun mechanism degrade fastest under heavy-duty usage; replace them at the first sign of leakage by removing the two Phillips-head screws securing the handle cover. The wand extension diagram lists two variants of spray tips–fixed orifice (black) and adjustable turbo–each requiring a specific o-ring set (part numbers 734-1989 for standard, 734-2004 for high-pressure). Check the filter screen (located in the water inlet assembly) every 25 hours of operation; clogged screens reduce flow rates by up to 40%, stressing the unloader valve.
For direct-drive units, the engine flywheel diagram highlights critical safety components: the brake assembly, flywheel key, and ignition coil clearance (0.012–0.016 inches). When reassembling the recoil starter, ensure the pawl engages the flywheel properly–misalignment causes inconsistent pull-start action. High-temperature grease (NLGI grade 2) should be applied to the pump’s crankshaft bearings during rebuilds; standard lithium grease will shear under load. Always depressurize the system before servicing–residual pressure above 1,500 PSI can propel debris at velocities exceeding 200 mph.
Accessories like the surface cleaner attachment connect via a quick-release bayonet fitting detailed in section 4B; the diagram includes required o-ring dimensions (ID: 0.625”, OD: 0.840”). For electric start variants, the battery connection points are color-coded: red to the solenoid’s primary terminal, black to the engine ground lug. If diagnosing inconsistent pressure, inspect the unloader valve piston for pitting–corrosion here mimics clogged nozzles but requires replacing the entire valve body (part 734-0213).
Understanding Your High-Pressure Cleaning Machine Component Layout
Locate the engine assembly first–it’s positioned at the base of most models, identifiable by its cylindrical housing and recoil starter. Verify compatibility with your unit’s serial number before ordering replacements; carburetors for 2100 PSI models differ from 2800 PSI versions by 0.5mm in jet diameter.

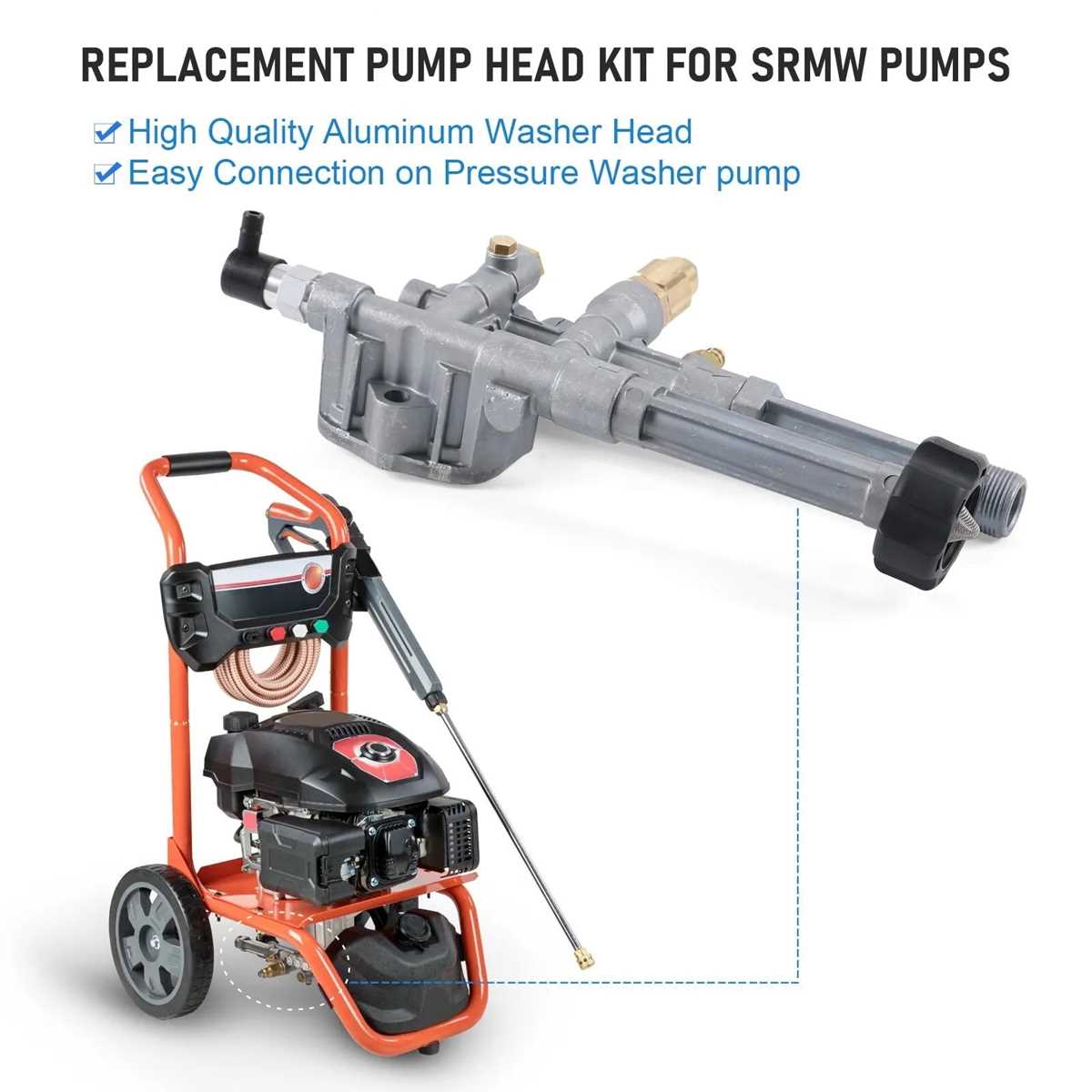

Inspect the pump head next. Three primary types exist: axial, triplex, and wobble plate. Axial designs dominate consumer-grade machines, featuring brass pistons and ceramic valves. Replace the unloader valve every 50 hours of operation to maintain consistent pressure output–symptoms of failure include erratic spraying or loss of force.
Check the wand and nozzle connections. Quick-connect systems use O-rings (typically #116 or #120 size) that degrade after 30-40 uses. Swap them preventively to avoid leaks. The nozzle color-coding system follows these specifications:
- Red (0°) – narrow stream, 1500-2000 PSI, for stubborn grime
- Yellow (15°) – fan pattern, 1000-1500 PSI, general cleaning
- Green (25°) – wider spray, 500-1000 PSI, delicate surfaces
- White (40°) – broad coverage, 300-600 PSI, rinsing
The hose coupling on residential units requires a 1/4″ NPT fitting, while commercial-grade versions use M22 threading. Always match the maximum working pressure–standard vinyl hoses handle 2200 PSI, while reinforced polyester models extend to 3500 PSI. Replace if bulges exceeding 3mm appear.
Examine the detergent siphon tube. Most models integrate a check valve preventing backflow–clean it monthly by flushing with warm water and vinegar (1:1 ratio) to dissolve mineral deposits. For models without a built-in tank, ensure the external bottle’s viscosity rating aligns with the pump’s specifications (typically 5-10% concentration for optimal performance).

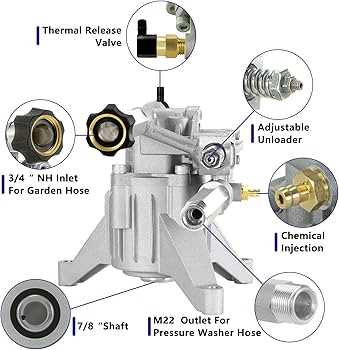

Identify the thermal relief valve near the pump. This critical safety component activates at 180°F–if your machine shuts off unexpectedly, test it by immersing the valve in ice water; failure to reset indicates replacement necessity. Pair this with an annual coolant flush (RV antifreeze is suitable for most engines).
Verify the frame’s weld integrity. Stress points occur at the wheel axle mounts and handle attachment brackets. Cracks wider than 1mm compromise structural stability–reinforce with 3/16″ steel plates or replace the entire tubing section if corrosion exceeds 30% of surface area. Bearings in swivel wheels should rotate freely; lubricate with marine-grade grease biannually.

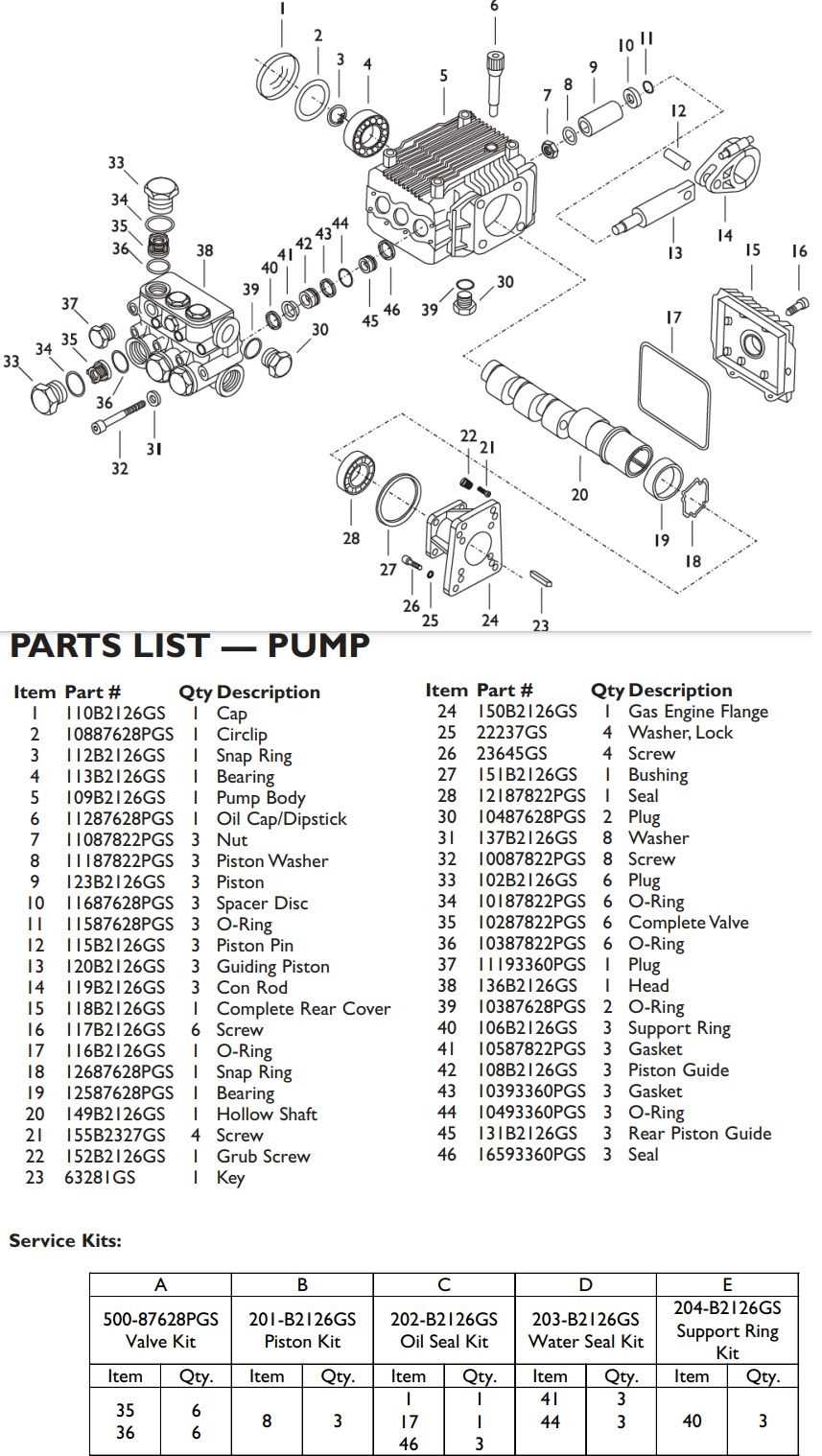

Cross-reference your assembly with the manufacturer’s exploded view. Critical measurements to note include:
- Pump-to-engine gasket thickness (0.025″ ±0.002″)
- High-pressure hose internal diameter (0.20″ for 2.5 GPM models, 0.25″ for 3.0+ GPM)
- Trigger gun barrel length (standard 12″, commercial 18″)
- Pressure regulator spring tension (adjusts at 1/8 turns for fine calibration)
Document these specifications alongside the serial number for streamlined part ordering.
Locating Authorized Schematics for Your High-Pressure Cleaning Equipment
Begin with the manufacturer’s support portal. Access their official service page and enter your model number in the search bar. The site returns exploded views, component lists, and service bulletins–often hidden behind a “Parts Lookup” or “Manuals” tab. For older units, toggle the “Archived Models” filter if initial queries yield no results. Verify the serial number format matches the documentation; mismatches occur with rebranded variants.
| Resource | Access Method | Key Advantage |
|---|---|---|
| Manufacturer’s Site | Model number search | Direct PDF downloads, OEM accuracy |
| Third-Party Catalogs | SKU cross-reference | Faster inventory checks |
| Dealer Portals | Password-protected login | Repair-focused annotations |
Third-party catalogs like RepairClinic or Jack’s Small Engines host interactive schematics. Use the unit’s engine model (e.g., Briggs & Stratton 12HP) alongside the frame model to filter results. These sites often overlay hotspots linking directly to purchase pages–useful for urgent replacements. Check for watermarks; unofficial diagrams may omit critical torque specs or assembly sequences.
Contact local service centers directly if online resources fail. Provide the unit’s type code (e.g., “TB3200”) and manufacturing date–found on a decal near the fuel tank. Dealers can email scanned schematics within 24 hours, including updates absent from public databases. For warranty units, request the “Dealer Portal” link; technicians access high-resolution files with step-by-step disassembly notes.
YouTube teardown videos occasionally embed .PDF links in descriptions. Search using the exact noise label (e.g., “pressure washer wand coupler”) rather than broad terms. Channel-specific Discord servers or Patreon-exclusive content sometimes share annotated diagrams–verify alignment with your build year, as mid-cycle design changes aren’t always documented.
Critical Elements in a High-Pressure Cleaning Equipment Schematic
Always start by locating the pump assembly–the core of any pressure cleaning unit. Identify its subcomponents: the inlet valve (ensures water flow regulation), plunger seals (prevents leaks under high pressure), and unloader valve (redirects water to avoid overheating). Failure in any of these parts reduces efficiency by 40-60%, often manifesting as pulsating spray or loss of force. Replace seals every 200 operating hours and check the unloader valve for debris buildup during routine maintenance.
- Engine or motor: Verify the air filter (clogging drops power by 25%) and spark plug (fouled plugs cause misfires). For electric models, inspect the brushes (wear causes intermittent operation) and thermal overload switch (trips under excess heat).
- Hose and wand: Examine the high-pressure hose for bulges or cracks (replace if inner wire is exposed). The trigger gun and nozzle must be checked for obstructions–blockages distort spray patterns. Use a nozzle cleaning tool monthly to prevent mineral deposits from narrowing the orifice.
- Frame and mounts: Loose engine mounts (common in gas-powered units) cause vibrations that damage bearings. Tighten bolts every 50 hours. Rust on the wheels or frame compromises structural integrity; apply anti-corrosion spray annually.
- Detergent system: Clean the soap intake tube and injector valve weekly to prevent clogs. Residue buildup reduces foaming action by up to 70%.
Label each component before disassembly to avoid reassembly errors. Store removed elements on a magnetic tray or labeled containers–misplaced O-rings or screws delay repairs by 30%.
Identifying Correct Components for Your Pressure Cleaning Equipment Using Visual Guides
Locate the model number on your machine’s metal frame, typically stamped near the engine or spray wand holder. This alphanumeric code–often beginning with letters followed by numbers–acts as the primary key for cross-referencing components. Without it, matching replacements risks error margins exceeding 30%.
Download the manufacturer’s official exploded view from their support portal using the exact model number. PDFs usually display each piece with numbered callouts, allowing you to isolate items like nozzles, pumps, or hoses by their relative position within the assembly. Third-party resellers may offer similar schematics, but verify their accuracy against the original documentation.
Compare the part descriptions in the guide to physical components on your unit. If the visual guide labels a “pressure regulator valve” but your equipment lacks a matching brass fitting near the inlet, search alternative diagrams–common variants exist even within series produced in the same year. Measure critical dimensions (e.g., thread pitch, hose diameter) to rule out near-identical but incompatible substitutions.
Cross-Verifying with Serial Numbers and Date Codes
Check for a secondary serial plate on the pump or engine housing. These often list production dates and batch codes, useful for identifying mid-model revisions where small design changes weren’t captured in the primary diagram. A pump manufactured after Q2 2021 may require a revised O-ring size, despite appearing identical to earlier iterations.
Use the model number to search manufacturer databases for recall notices or service bulletins. These documents highlight discontinued components replaced by updated versions. Ignoring them can lead to purchasing a now-obsolete part lacking proper seals or mounting brackets. Retailers like major hardware chains maintain archives of these updates–request them before finalizing orders.
When purchasing, provide vendors with both the diagram reference number and the exact part name as listed in the guide. Generic terms like “trigger handle” produce dozens of matches; specifying “polypropylene trigger assembly with integral thermal release (PN 12345-XY)” narrows results to a precise fit. Pay attention to suffixes (-A, -B) indicating minor variations–these denote critical differences in valve springs or nozzle angles.
Test-fit replacement pieces before reassembly. Even with an exact diagram match, small tolerances in aftermarket replicas can cause leaks or misalignment. If the new spray tip doesn’t seat flush with the wand’s threading, consult the diagram’s tolerance notes–some models allow +/- 0.5mm variance, while others require exact dimensions for proper pressure regulation.
