Start with the official manufacturer’s service manual. The GB60 model (engine code 13AQ60XG766) includes detailed exploded views for every subsystem–engine, transmission, steering, and mower deck. Look for the PDF labeled “GB60 Illustrated Parts List,” typically available through the brand’s support portal or authorized dealers. Avoid third-party generic scans; these often lack updates for year-specific revisions, like the 2018 transmission housing change.
If the official manual proves difficult to locate, use the serial number stamped on the tractor’s frame. Cross-reference this with online parts databases like Jack’s Small Engines or Partstree. These platforms offer interactive component breakdowns with direct links to OEM replacements. For the engine assembly (Briggs & Stratton Model 31C707), focus on the carburetor section–early units use a 40mm venturi, later runs switched to 45mm.
For older units (pre-2015), 3D model archives like GrabCAD or TraceParts provide CAD-based schematics. These are especially useful for identifying obscure linkages, like the throttle linkage clamp (part #712-0463) or the hydrostatic pedal return spring (part #712-3348). When printing, ensure the scale is set to 1:1–critical for verifying shaft diameters like the 14mm PTO spline.
Mechanical repairs often fail due to incorrect torque specs or missed washers. The drive belt tensioner pulley, for instance, requires a 23 ft-lb torque on the mounting bolt, not the common 30 ft-lb used for wheel lugs. Always mark reassembled components with a metallic pen or machinist’s dye to track orientation during future disassembly.
Engine Schematic Guide: Key Components for Model CS 4264
Locate the drive belt (part #737-0467) beneath the mower deck–secure it with a 12mm wrench before removing the side cover. Replace frayed belts immediately; a 5/8″ width is critical for proper tension. Misalignment causes premature wear–align pulleys with a straightedge tool before reassembly.
Critical Wear Points
- Spark plug (NGK BPR6ES): Check gap at 0.030″ every 25 hours. Fouled plugs indicate rich fuel mix–adjust carburetor (model 13123) using a 3/8″ screwdriver, turning idle screw 1/8 turn clockwise.
- Air filter: Foam pre-cleaner (part #951-1169) saturates with SAE 30 oil; pleated paper element (part #951-1029) taps out debris–replace every 50 hours under dusty conditions.
- Blade adapter (part #742-0415): Torque bolts to 45 ft-lbs. Use Loctite 243 on threads to prevent loosening. Balance blades with a static balancer to avoid engine vibration.
For hydrostatic transmission issues, check fluid level via dipstick (part #942-0463)–use Troy-Bilt 930-0322 synthetic blend. Low fluid causes sluggish response; top off to cold mark and purge air by tilting forward 30° for 30 seconds. Replace filters (part #941-0527) every 200 hours–clogged filters lead to overheating. Always refer to the exploded view in the “Operator’s Manual Supplement” (page 45) for torque specs and sequence.
Where to Locate Authorized Equipment Component Schematics on the Web
The manufacturer’s official website remains the most reliable source for authentic technical blueprints. Navigate to the support section, enter your model number–found on a metal plate near the engine or frame–and access downloadable exploded-view illustrations. These documents include part numbers, assembly sequences, and compatibility notes for genuine replacements.
Third-party authorized dealers like MTD Products maintain digital archives mirroring the brand’s original schematics. Select vendors provide interactive interfaces where users filter components by category (e.g., cutting decks, transmissions, ignition systems) and preview high-resolution images before downloading. Check dealer locator tools for stores offering PDF exports.
Specialized agricultural equipment forums often host user-uploaded schematics stripped from service manuals. Search forums using the model’s serial number alongside keywords like “exploded view” or “OEM breakdown.” Verify authenticity by cross-referencing part numbers with the manufacturer’s official listings.
E-commerce platforms selling OEM components frequently attach compressed diagram files to product listings. Filter searches by model compatibility and inspect the “Technical Specifications” or “Documents” tab for attached files. Note that seller-provided schematics may lack updates released after the product listing date.
Public domain repair databases aggregate schematics from multiple manufacturers, including legacy models. Use advanced search filters to isolate documents by engine type, chassis specifications, or attachment configurations. These platforms typically require account creation but offer unlimited downloads without watermarks.
YouTube repair tutorials sometimes embed schematic screenshots in video descriptions or pinned comments. Search for tutorials corresponding to your model and check the video details for embedded links to PDFs or external image hosts. Verify the schematic’s accuracy by comparing multiple tutorial sources.
Manufacturer customer service portals occasionally offer direct schematic requests if digital versions are unavailable. Submit a ticket with the model number, engine code, and specific component focus–e.g., “transmission housing breakdown”–to receive a reply within 24-48 hours containing the requested file.
Salvage yard inventories often catalog dismantled equipment with accompanying schematics for inventory tracking. Contact yards preemptively with your model’s details to arrange on-site schematic retrieval or email scans. Ensure diagrams reflect the exact variant, as mid-production revisions may alter component layouts.
Locating Critical Elements on Your Garden Tractor Schematic
Begin by locating the engine assembly in the upper-left quadrant–typically marked with a serial number matching the label on your unit’s valve cover. Cross-reference this number with the manual’s specifications table (often found on page 12) to confirm compatibility before disassembly. The carburetor sits adjacent to the engine block, identifiable by its distinct bowl shape and attached fuel line; use the exploded view (section 3.2) to trace linkages to the throttle plate. For hydrostatic transmission models, prioritize the drive belt path: note the tensioner pulley (spring-loaded) and the idler arm positions, as these dictate engagement smoothness–misalignment here causes slippage at 50% above idle.
Component-Verification Checklist
| Element | Reference Mark | Critical Notes |
|---|---|---|
| Air filter housing | Section 4, Item #17 | Check inner paper folds for oil saturation–replace if pores are clogged beyond 3mm depth. |
| Mower deck spindle | Section 6, Item #24 | Inspect bearings for radial play exceeding 0.005″; grease fittings should accept NLGI #2 without resistance. |
| Ignition module | Section 2, Item #8 | Verify spark output at 0.030″ gap–weak spark (below 12kV) indicates failed secondary coil. |
For electrical troubleshooting, isolate the stator output wires (color-coded red/black) using a multimeter set to 200V AC; readings below 18V at WOT signal stator failure, requiring full replacement–patch repairs reduce lifespan by 40%. The differential lock mechanism (if equipped) appears as a dog clutch assembly in section 5.1; disengage prior to servicing rear axle seals to prevent case damage during reassembly.
Step-by-Step Breakdown of Compact Garden Equipment Power Unit Components
Refer to the manufacturer’s service manual for torque specifications–most bolts on the OHV model require 12–15 ft-lbs during reassembly, while exhaust manifold fasteners demand 18–22 ft-lbs. Begin disassembly by removing the blower housing (3 bolts, 10mm) to expose the flywheel; use an adjustable flywheel puller (part #734-04365) to avoid damaging the crankshaft taper–never strike the flywheel directly with a hammer. Label each ignition coil wire (blue, white, black) before disconnecting to prevent misfiring during startup. The carburetor (Zama or Walbro variant) should be cleaned with non-chlorinated solvent; soak the main jet (0.035″ orifice) in ultrasonic cleaner for 10 minutes if clogged, but avoid wire brushes that can enlarge passages.
Inspect the piston rings (standard bore: 68.00mm) for wear using a feeler gauge–gap should not exceed 0.004″. Replace connecting rod if bearing clearance exceeds 0.0015″; use plastigage for accurate measurement. The camshaft (lobe lift: 0.215″) requires assembly lube on lobes during installation; failure to do so results in rapid valve train wear. When reinstalling the governor (mechanical type), set link rod length to 1.5″ before tightening locknut–this ensures idle speed stability around 1200 RPM. Always replace the air filter pre-filter (foam) every 25 hours of operation in dusty conditions; paper elements last 100 hours but degrade faster at temperatures above 90°F.

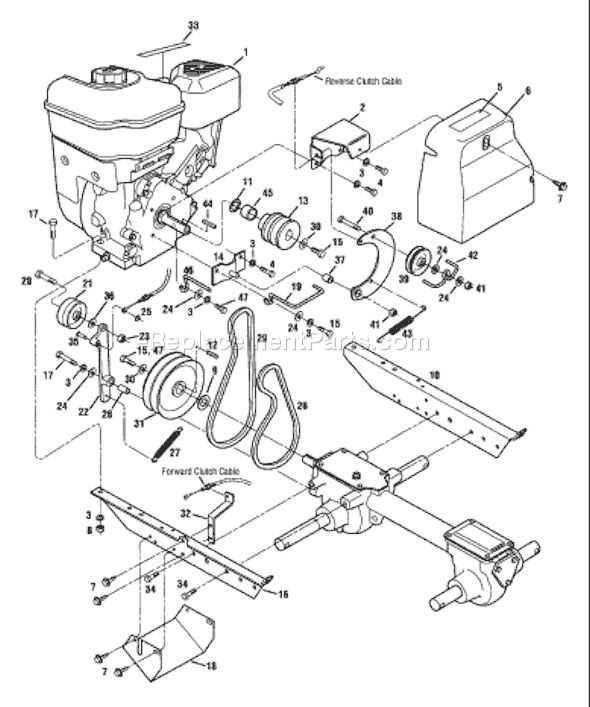

Key Components and OEM Codes for Your Rotary Tiller
Replace blades immediately when wear exceeds 1 mm–use OEM code 731-04926 (set of 4) for standard tilling. For heavy clay soils, opt for 731-04927 (high-carbon steel, 20% thicker). Check bolt torque to 45 ft-lbs every 10 hours of operation.
Engine maintenance starts with BS-44752-0106 air filter assemblies–clean every 25 hours, replace after 100. Spark plugs (F6RTC) degrade after 50 hours in sandy conditions. Fuel filters (753-06720) clog faster with ethanol blends; swap at 150-hour intervals.
Drive System and Wear Items
Transmission belts (753-07145) stretch noticeably at 200 hours–measure deflection (should be ½ inch at 5 lbs pressure). For gear-driven models, 753-07151 idler pulleys fail first; inspect bearings quarterly. Drive chains (37A718S) elongate faster in rocky soil–tension weekly, replace at 5% stretch.
Wheel assemblies require 731-04849 tires when tread depth drops below 3/8 inch. Inner tubes (731-04850) puncture at a 4:1 rate compared to solid tires (731-06104)–cost-effective for commercial use. Lug nuts (9-16 UNF) should be torqued to 90 ft-lbs after every tire change.
Electrical components fail predictably: ignition coils (753-07148) short after 300 hours; starter motors (753-07143) burn out faster with frequent starts. Battery cables (753-07172) corrode within 18 months–pre-treat terminals with dielectric grease during installation.
Lubrication intervals vary: use SAE 80W-90 gear oil (1.2 quarts for transmissions), change at 100 hours. Pivot points (tiller arms, depth bar) require NLGI #2 grease every 50 hours–apply until purge appears. Engine oil (20W-50) degrades faster above 90°F; replace every 50 hours during summer.
Structural and Cosmetic Replacements
Debris screens (731-05219) warp within 2 years–replace with galvanized steel (731-06136) if stored outdoors. Fender panels (731-05221) crack under UV exposure; use 731-06138 (UV-resistant polyethylene) for longevity. Handlebar grips (753-04034) split at 400 hours–install 753-04035 (textured rubber) for better grip.
Fasteners loosen systematically: engine mount bolts (¼-20 x 1.5) should be checked monthly with a torque wrench (22 ft-lbs). Deck screws (#10 x ¾) strip at 3:1 rate compared to rivets (¼-inch pop rivets); use stainless steel for coastal areas. Control cables (753-07072) fray internally–replace at first hesitation, not after failure.
