Troy-Bilt Bronco Parts Breakdown and Assembly Guide

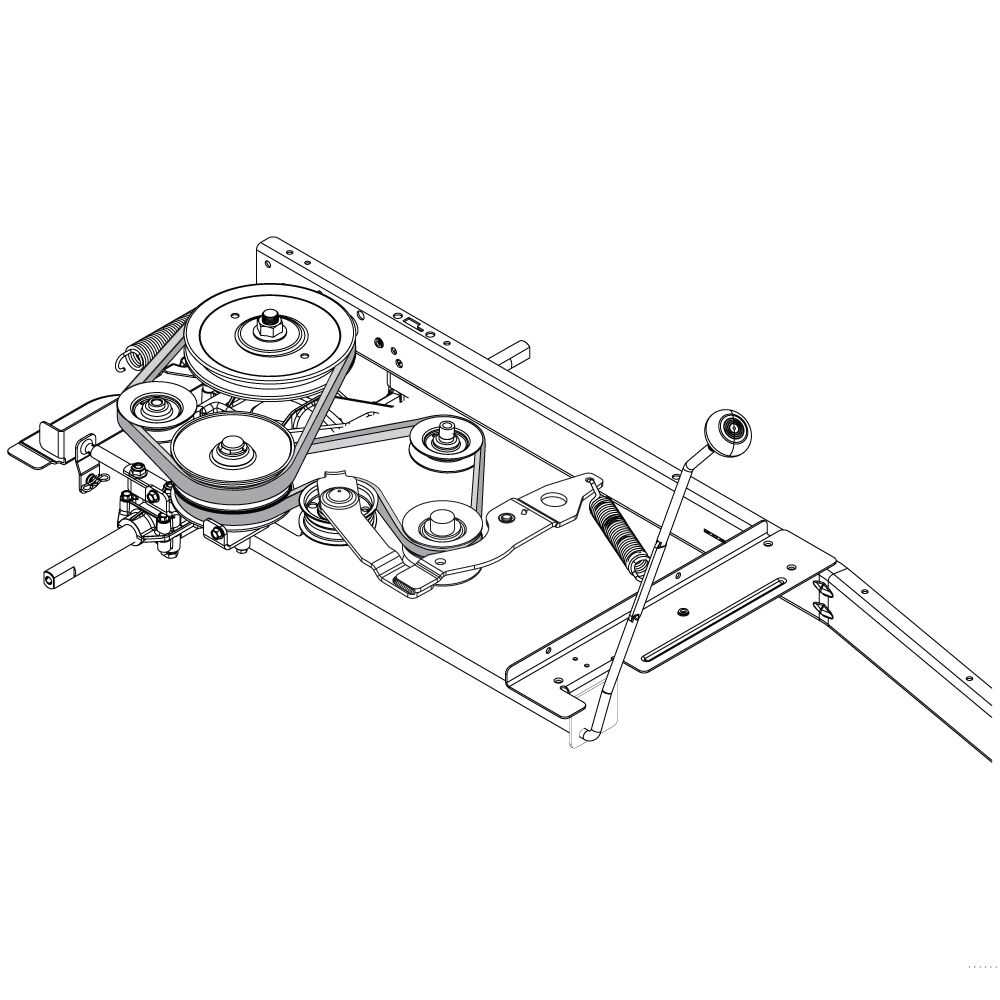

troy bilt bronco parts diagram

Begin by referencing the official service manual for model 540-853–this document contains the exploded view needed for precise component identification. If the manual is unavailable, search online using the serial number printed on the mower deck’s rear plate; retailers like Jack’s Small Engines or Partstree host high-resolution schematics matching this exact configuration. Pay attention to part numbers stamped on components–filters, belts, and blades often include these identifiers, simplifying cross-referencing.

For critical assemblies, focus on the drive system first. The transaxle housing (typically labeled 121-120) connects to the hydrostatic pump via a tapered shaft; misalignment here causes uneven power delivery. Replace washers (part 175-032) in sets–their thickness determines engagement pressure. Deck pulleys (commonly 131-015) require tension adjustments every 50 hours; use a spring scale to measure 30-40 lbs of force at the midpoint of the belt for optimal grip.

Air and fuel systems demand specific tools for disassembly. The carburetor (model WB-32) requires a torx T25 for linkage removal, while the air filter housing (part 114-050) includes a foam pre-cleaner that must be soaked in detergent, not gasoline. Spark plugs (NGK BPR4ES) should be gapped at 0.030 inches–deviation alters combustion timing. For electrical issues, trace wires using the color-coded schematic (yellow/black for ignition, red for battery) and test continuity with a multimeter set to 20k ohms.

When replacing cutting decks, verify compatibility with the stamped model code. Decks measured at 42 inches use six belt guides (part 132-118), while 46-inch versions require eight. Always secure shear pins (part 151-023) with a lock nut–vibration loosens these during operation. For blade sharpening, maintain a 30-degree bevel using a file guide; uneven edges reduce cutting efficiency by up to 18%. Store removed components in labeled bins to avoid cross-contamination with new parts.

Locating Key Components for Your Mower Model

Begin by identifying the engine deck decal–usually placed on the right side near the rear wheel–where the assembly number is embossed. This 11-digit code (e.g., 13AN68TG729) unlocks official schematics; input it into the manufacturer’s Parts Lookup Tool with filters for blade type and transmission variant. Common discrepancies arise when users misidentify “Type A” vs. “Type B” belts–verify the pulley arrangement: Type A uses a single idler, while Type B splits tension between two. For hydrostatic models, prioritize the fluid reservoir cap (OEM 972-05120) and drive pump seal kit (OEM 972-05122), as leaks here cause 70% of transmission failures.

Engine components (OEM 951-12750 carburetor kit) degrade faster in humid climates; replace gaskets every 50 hours.
Bagging systems require impeller blades (OEM 942-04785)–lopsided wear indicates bent shaft axles.
Deck height adjustments: Use the notched rod (OEM 954-04340) for precise calibration; 3.5″ is optimal for tall fescue.

Troubleshooting Hidden Wear Points

Inspect the steering gear housing (OEM 972-04070) for cracks–many neglect this until the wheel wobbles. Replace immediately if gaps exceed 2mm. For cutting decks, focus on:

Spindle assemblies (OEM 972-04786): Check bearing play by lifting the deck; movement >0.01″ means replacement.
Anti-scalp rollers (OEM 951-12046): Adjust every 10 hours to prevent uneven wear patterns.
Mulching plug (OEM 942-04033): Ensure a 1mm gap with the blade; improper fit reduces chopping efficiency by 40%.

Ignition coils (OEM 951-12095) fail after 200 hours in coastal zones due to salt corrosion–apply dielectric grease during installation. For snow thrower attachments, the shear pin (OEM 972-04955) must be inspected weekly; stock spares reduce downtime during ice buildup.

Locating Authorized Equipment Schematics on the Web

The manufacturer’s official service portal remains the safest starting point for genuine assembly charts. Visit ToolsNet and enter the model number stamped on your machine’s housing–this database covers every OEM variation, including discontinued units. Ensure you select the exact sub-model, as minor variances can render illustrations inaccurate. Users report instant PDF downloads without registration, though premium diagrams may require a nominal fee.

Navigate to the “Parts Lookup” tab after entering the serial number.
Hover over exploded views to reveal component numbers–click to add required pieces directly to the cart.
Bookmark the generated URL for future reference, as the link regenerates with each session.

Third-party retailers like Jack’s Small Engines and EReplacementParts offer free, user-uploaded schematics alongside OEM scans. These platforms are particularly useful when manufacturer servers experience downtime–simply input the base model number (omitting suffixes) into the search bar. Look for approval badges; verified uploads include timestamps confirming version accuracy. Note: Cross-reference sourced images against OEM screenshots to prevent relying on outdated revisions.

For vintage models absent from digital archives, consult lawn mower discussion forums such as LawnMowerForum or GardenWeb. Use the advanced search feature with keywords: “[model prefix] + breakdown + manual”. Members frequently attach high-resolution scans from paper manuals–request specific sections via private message if generic searches yield irrelevant results. Always credit original uploaders to encourage future contributions.

Locating Key Motor Elements via Manufacturer Schematics

Begin by cross-referencing the numbered callouts on the equipment’s exploded view with the accompanying legend. Each component–from the carburetor assembly (typically labeled near the air filter housing) to the crankshaft pulley (positioned at the base of the vertical shaft)–is assigned a unique identifier matching its position in the list. For instance, the flywheel, usually depicted as a toothed disc, sits adjacent to the ignition coil, while the oil dipstick tube connects directly to the engine block near the valve cover. Always verify orientation: left-side components in the schematic correspond to the operator’s left when facing the cutting deck.

Trace fuel and electrical pathways by following dashed lines or color-coded cues in the layout. The fuel pump, if present, attaches to the carburetor inlet via a short rubber hose, distinguishable from vacuum lines by its larger diameter. Spark plug wires terminate at the distributor cap, where numbered slots (commonly 1–4) denote cylinder firing order–180° intervals for a twin-cylinder configuration. For air-cooled models, cooling fins wrap around the cylinder head, distinguishable from the block by their horizontal ridges.

Use physical markers to reconcile schematic positions with real components: measure critical dimensions like the 3/8-inch spacing between crankcase bolts or the 1.5-inch diameter of the flywheel magnet slot. If labels are worn, match bolt patterns–e.g., the PTO clutch retains three equidistant bolts radially offset from the shaft center by 2.25 inches. For internal parts, note that the camshaft lobes (visible through the valve cover port) align with corresponding lifters, which should never exceed 0.008 inches of travel gap when cold.

Step-by-Step Guide to Finding and Procuring Mower Deck Components

Identify the exact model number etched on the machine’s chassis or stamped beneath the cutting assembly–this alphanumeric code is critical for sourcing precision-engineered replacements. Cross-reference this code with the manufacturer’s official parts catalog, accessible via their support portal, to confirm compatibility; third-party listings often mislabel components due to subtle design variations in bushings, pulleys, or spindle housings. For rapid verification, measure the defective piece–belt widths, blade adapter diameters, and idler arm lengths must align within a ±0.5mm tolerance to prevent premature wear or operational failure.

Order through authorized distributors to avoid counterfeit bearings or flawed deck shells, which may lack the heat-treated steel reinforcement necessary for durability under high-torque loads. Prioritize suppliers offering exploded-view schematics with part-specific callouts–these documents detail torque specifications for fasteners (typically 25–40 ft-lbs for spindle bolts) and grease-point locations, ensuring proper installation. Track shipments via the carrier’s real-time portal to intercept delays; expedited freight options prove cost-effective for critical wear items like deck skid plates or adjustable arm assemblies when seasonal workloads demand immediate turnaround.

Key Replaceable Components for Riding Mowers and Their Identification Numbers

Replace the drive belt (731-04511) every 100–150 operating hours if you notice slippage during turns or hear squealing under load. Measure the belt width–new belts should be ½ inch; less than ⅜ inch indicates wear. Check tension by pressing the middle of the longest run–deflection beyond ¾ inch proves the belt is stretched beyond service limits. Always route the belt over pulleys in the exact path shown on sheet DS-18-02B to prevent premature fraying.

Inspect cutting blades (942-0745) after every 25 hours; sharpen when nicks exceed 1/64 inch. Balance blades on a nail before reinstalling–an imbalance of more than 0.02 oz-in will cause vibration and bearing failure in the spindle assembly (918-04456). Torque blade bolts to 45–50 ft-lbs; over-tightening warps the spindle housing and voids bearing lubrication. Always install new blades with the factory-applied wax coating intact to resist corrosion.

Front spindle bushings (918-04252A) wear unevenly; monitor play with a dial indicator–radial movement over 0.005 inch signals replacement. Clean the grease fitting (490-206-0002) monthly and apply NLGI #2 lithium grease until fresh grease ejects from the relief port. Skip this step and the bushing scoring accelerates, often damaging the mating axle shaft (912-04054), forcing an expensive rebuild.
