For accurate troubleshooting, begin by locating the multiport valve assembly at the top of the unit–marked by a hexagonal base and six distinct positions: Filter, Backwash, Rinse, Waste, Recirculate, and Closed. The pressure gauge mounts directly above, with its 0-30 psi range providing immediate operational feedback. If readings exceed 25 psi, initiate a reverse flush cycle within 24 hours to prevent sand bed channeling.
Examine the internal laterals–thin, slotted tubes running vertically through the media chamber. These plastic grids (typically eight) must remain intact; cracks or missing sections will allow granular material to bypass into return lines. Replace damaged laterals immediately using part number SP0711 for 1.5-inch models or SP0713 for 2-inch variants.
The standpipe connects the valve mechanism to the chamber base, distributing water evenly during normal operation. Ensure its O-ring (size Buna-N -012) is seated correctly–misalignment causes leaks at the valve junction. For sealing, use Oatey 30795 thread sealant, applying a thin bead before reassembly.

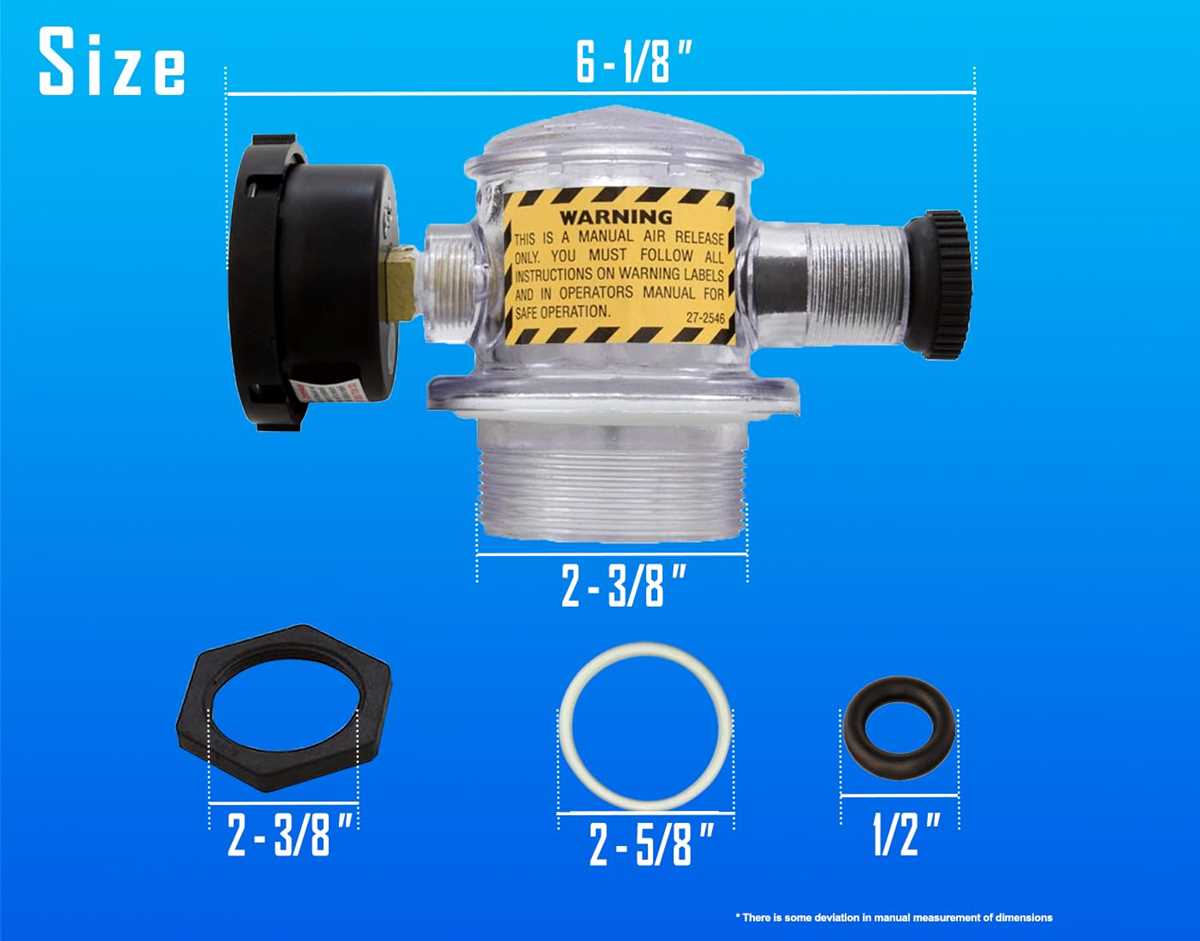

Check the air relief assembly on the chamber lid. A manual release valve (3/8-inch brass) should click when opened; failure indicates clogging by sediment. Clean with a 0.018-inch guitar string wired through the orifice, then lubricate with Dow Corning 111 silicone compound before reinstallation.
Inspect the tank body for corrosion spots, particularly along the weld seams near the base. Surface pitting deeper than 0.03 inches requires professional evaluation–internal structural failure can occur suddenly at pressures above 28 psi. Apply Rust-Oleum 7769 coating for temporary protection, but plan replacement if integrity is compromised.
Key Components of the Hayward Multiport Valve Assembly
Locate the multiport selector valve at the top of the vessel–this unit controls flow direction with settings like *Backwash*, *Rinse*, *Waste*, and *Winterize*. Inspect the O-ring sealing the valve lid; replace it if compression marks appear or leaks occur around the base. Use silicone-based lubricant (not petroleum) to maintain flexibility, applying sparingly during reassembly to prevent debris buildup.
Internal Distributor and Collectors
The central standpipe inserts into the lateral assembly at the tank’s base–ensure it sits flush without cracks, as misalignment disrupts even water distribution during filtration cycles. Check the lateral fingers for clogs; soak them in a muriatic acid solution (1:10 dilution) for 15 minutes to dissolve mineral deposits, then rinse thoroughly. Replace laterals if slits exceed 0.5mm in width, as compromised slits reduce efficiency.
Examine the diffuser basket mounted atop the standpipe–this component prevents media migration during backwash. Secure it tightly; a loose basket allows silica to escape, leading to pump damage. For models with a pressure gauge, calibrate it annually using a manual test gauge–deviations over 2 psi indicate either a faulty gauge or internal blockages.
Inspect the tank’s internal coating for peeling or blisters–exposed fiberglass encourages corrosion and shortens lifespan. Touch up damaged areas with epoxy-based pool paint (e.g., “RhinoHide”), sanding lightly beforehand to ensure adhesion. Avoid abrasive pads on the inner surface; they weaken structural integrity over time.
The air relief valve (typically on the lid) should vent smoothly when opened–sticking indicates debris obstructing the mechanism. Clean it with a pipe cleaner or compressed air, ensuring the float moves freely. For persistent issues, replace the entire valve assembly; aftermarket kits (e.g., “Pentair 3-way”) offer drop-in compatibility with enhanced durability.
Locating Critical Elements in a Multi-Port Valve Assembly Breakdown
Begin by pinpointing the pressure release mechanism at the top of the housing–its threaded cap must align with the O-ring groove to prevent leakage during backwashing. Misalignment here causes inconsistent flow rates and air pockets, visible as erratic gage readings.
The diverter valve sits below the control knob, identifiable by its distinct multi-channel pathways etched into durable polymer. Markings on the outer collar (usually “F,” “B,” “R,” “W”) correspond to specific internal seals; verify their integrity before reassembly to avoid cross-contamination between service modes.
Inspect the standpipe–its vertical slits should remain unobstructed to maintain even water distribution. Sediment accumulation here disrupts filtration cycles; flush it with high-pressure water prior to reinstallation if buildup exceeds 2mm in thickness.
Side ports connect to lateral tubes responsible for redirecting flow. Their rubber gaskets degrade faster than other components; replace them if cracking or brittleness appears under light pressure. Use silicone-based lubricant sparingly to prevent swelling of seals.
Examine the base plate’s threaded fittings; cross-threading during attachment strips threads, leading to structural failures. Apply plumber’s tape clockwise before securing, ensuring no debris enters the connection point–this prevents small leaks that escalate over time.
The tank’s internal sieve basket requires annual cleaning, though manufacturers often omit this from maintenance guides. Remove it by rotating counterclockwise; trapped debris here affects water clarity more than sand bed contamination alone.

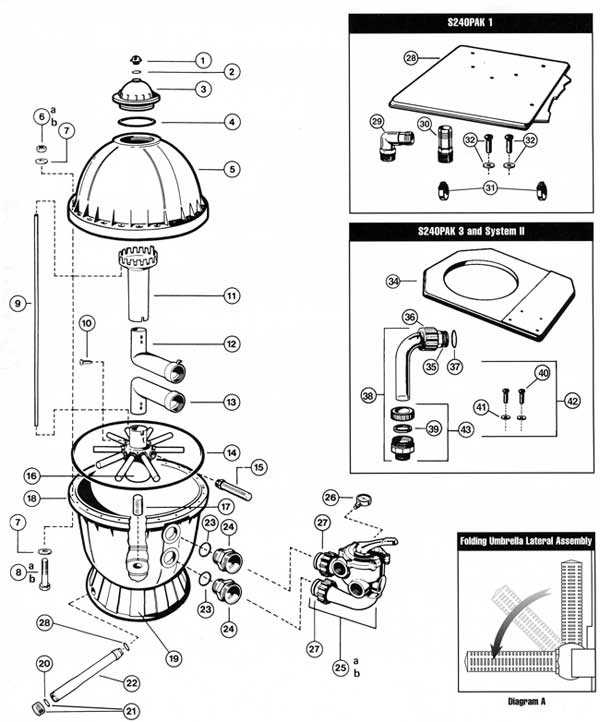

When reviewing the exploded schematic, note the spacer ring’s position between the top lid and main chamber. Its absence creates excessive vibration during operation, damaging seals within 50 hours of runtime. Check thickness tolerances if replacing–variances above 0.3mm compromise the seal’s effectiveness.
Finally, confirm the handle’s locking pin engages fully in each service mode. Loose engagement leads to partial flow bypass, reducing system efficiency by 30% or more in backwash cycles. Test friction levels after lubrication; resistance should remain consistent across all positions.
Step-by-Step Assembly Guide Using the Hayward Swing-Lid System Schematic
Locate the multiport valve first–it’s marked on the blueprint as the circular component with labeled ports. Position it atop the vertical chamber so the “Filter” inlet aligns with the tank’s designated pipe slot. Secure with the provided clamp ring, tightening systematically in a cross-pattern to prevent uneven pressure.
Attach the pressure gauge next–thread it directly into the port at the valve’s 2 o’clock position. Hand-tighten only; over-tightening can strip the brass fittings. Verify the needle rests at zero before proceeding–deviation indicates trapped air requiring release via the bleed screw.
Connecting Internal Distribution Mechanism
Insert the diffuser hub into the tank’s central riser tube, ensuring the slotted side faces downward toward the media bed. Slide the laterals into place one at a time, spacing them evenly around the hub. Each prong should click audibly–absence of sound signals misalignment corrected by rotating the entire assembly 15 degrees counterclockwise.
Layer the filtration medium in 2-inch increments, distributing 50 lbs of #20-grade silica granules per 10-minute interval. Pause after each pour to gently vibrate the outer housing with a rubber mallet–this eliminates voids that compromise flow dynamics. The final level should sit 2 inches below the diffuser hub baseline.
Finalizing Plumbing and Electrical
Route flexible PVC piping from bottom drain ports upward along the rear bracket channels, securing them with UV-resistant zip ties every 12 inches. For pumps rated above 1.5 HP, reinforce joints with solvent-weld primer followed by quick-dry cement thinned with 10% MEK substitute. Test for hydrostatic balance by filling the chamber 3/4 full–leaks appear within 90 seconds if welds are compromised.
Verify the backwash sequence using the schematic’s numbered arrows: rotate the selector handle clockwise from “Filter” to “Backwash,” then immediately to “Rinse,” waiting precisely 60 seconds between each step. Observe the sight glass–clear effluent confirms proper lateral seating and granule packing. Close all isolation valves before storing the blueprint in a weatherproof sleeve near the system for future reference.
Key Components for Hayward Series II Media Separators and Where to Find Them
Replace the multiport valve assembly every 3–5 years to prevent leaks at pressure points. The valve, mounted atop the tank, includes the handle, rotor, and gasket–visible upon removing the lid. Order the complete kit (model SPX710Z) if the rotor shows cracks or the gasket appears brittle. For lateral collector systems, check the underdrain hub (part #SP0714) at the base; corrosion here causes uneven flow. Replace if threads strip or the slotted caps break. Always use Teflon tape on threads to avoid cross-threading during reinstallation.
Wear-Prone Elements and Maintenance Intervals
| Component | Location | Replacement Signs | Service Interval |
|---|---|---|---|
| Pressure gauge (SP0715) | Side port near valve | Reading stuck, cracked lens, or inaccurate | Annually |
| O-ring seal (SP1404) | Between tank and valve base | Flattened, dry, or leaking water | Every 2 years |
| Air relief cap (SP0717) | Top of valve housing | Cracked plastic or missing gasket | As needed |
| Diffuser screen (SP0713) | Inside tank inlet | Brittle, warped, or clogged | Every 4 years |
Inspect the backwash pipe (SP0711) biannually for splits–typically hidden behind the unit. Replace if you find hairline fractures, as they worsen under pressure. For internal sediment collectors, soak laterals (SP0714L) in muriatic acid to dissolve calcium buildup, but discard if slits widen beyond 0.5mm. Always power down the pump before servicing and bleed pressure via the air relief valve to avoid component ejection.
