Begin by locating the barrel hinge pin–this is the fulcrum of the entire disassembly process. Most modern vertical double-barreled models secure it with a single cross-pin, often recessed beneath a protective cover near the breech. Use a purpose-made punch (3mm for standard gauges) to drive it out without marring the finish. If resistance occurs, apply penetrating oil and allow 10-15 minutes for seepage before reattempting removal. Avoid brute force; misalignment here bends internal linkage rods, leading to cycling failures.
Next, detach the forearm by sliding it forward while simultaneously depressing the release button. On rear-locking designs, this button sits just beneath the barrels; on front-locked variants, it’s integrated into the magazine cap. If the forearm sticks, check for debris accumulation in the guide rails–carbon buildup here causes premature wear on the action sleeve. Clean with a nylon brush and dry lubricant (PTFE-based) to maintain smooth operation. Don’t overlook the ejector springs; these coil tensioners fatigue over time and may require calibration if ejection angles become inconsistent.
Inspect the trigger group housing by removing the stock screw (typically a 6mm hex) and separating the receiver from the buttstock. The hammer assembly should pivot freely on its axis pin; binding here indicates either excessive dry lubrication or a misaligned sear. For single-selective trigger systems, note the engagement sequence: the primary sear must disengage before the secondary contacts the hammer notch. Replace the trigger return spring every 2,500 rounds to prevent light strikes. Always verify safety mechanism functionality before reassembly–this includes the manual safety, intercepting sears, and firing pin blocks.
Examine the bolt carrier for galling or stress fractures along the locking lugs. These surfaces should exhibit uniform wear; uneven patterns suggest improper chamber alignment. The extractor claw must exert 8-12 lbs of linear tension–measure this with a pull gauge during routine maintenance. If the bolt fails to lock back fully, suspect a worn feeding ramp (polish with 400-grit wet/dry paper) or excessive headspace. For gas-operated semiautomatic variants, disassemble the gas piston system only after ensuring residual pressure is bled–failure to do so risks component ejection at high velocity.
Reassemble in reverse order, applying grease (molybdenum-disulfide based) to all friction surfaces. Pay special attention to the ejector timing–adjust via shims if spent hulls are flung rearward or fail to clear properly. Tighten all screws to 25-30 inch-lbs using a torque driver; overtightening cracks receiver frames, while undertightening leads to action flex. Finally, perform a function check with snap caps to verify proper feeding, locking, and ejection cycles before live fire.

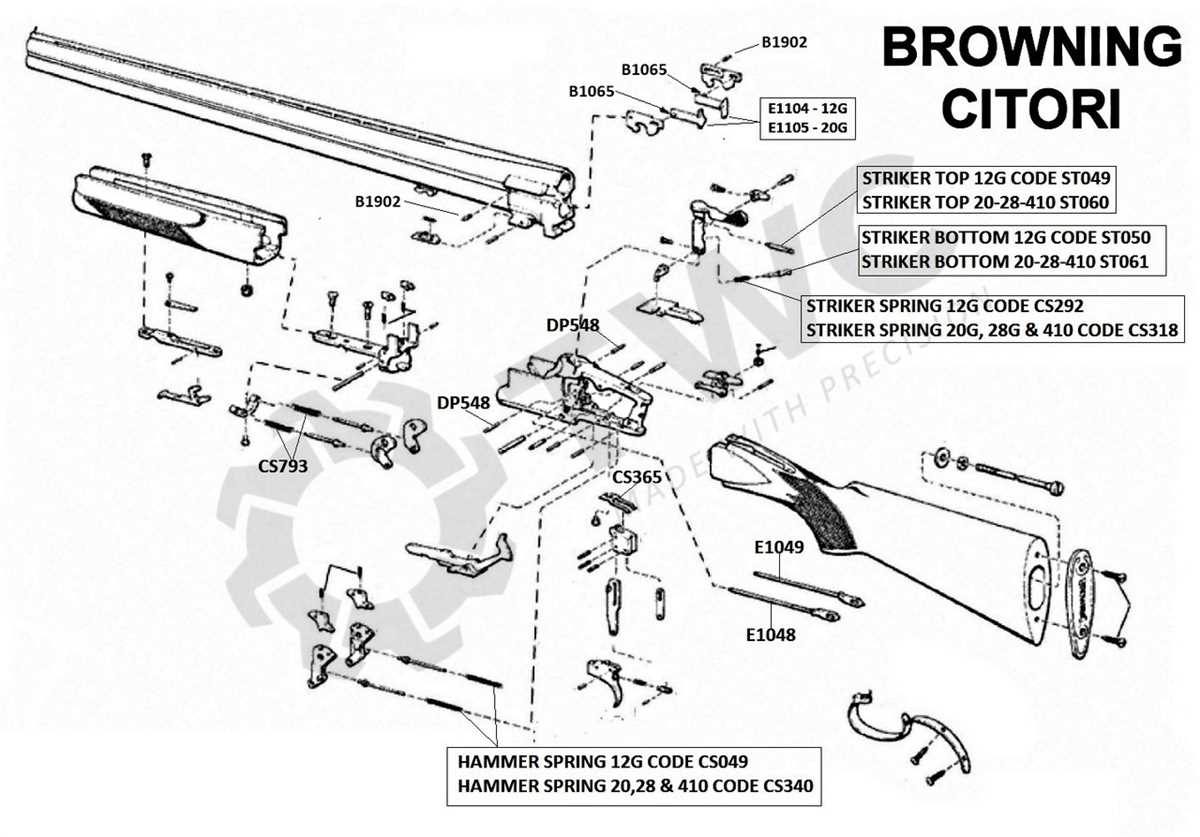

Breakdown of Over/Under Firearm Component Schematics
Locate the trigger assembly first–it’s numbered #17 in most manuals. Remove the forend by sliding it forward after disengaging the barrel lock (#5), exposing the action bars (#8) and hammer mechanism (#12). Misalignment here often causes ejection failures; check for debris around the extractor (#22) before disassembly. If replacing firing pins (#14), ensure the new unit matches the original’s length (±0.3mm) to avoid light strikes.
Critical Wear Points
- Breech face (#3): Scratches >0.1mm deep reduce sealing; lap with 400-grit abrasive
- Valve spring (#19): Fatigue occurs at ~800 cycles–replace if free length shrinks 12% from stock
- Stock bolt (#25): Shear failures develop at torque >35 Nm; use thread-locking compound
Barrels (choke tubes #2) require specific torque: 25-28 Nm for improved cylinders, 32-35 Nm for full chokes. Over-tightening distorts patterns–or cracks threads. Use a strap wrench for removal; never clamp the barrel directly. For rib alignment (ventilated sight rail #7), check gap consistency (0.8mm ±0.1mm) along the entire length. Gaps exceeding this cause point-of-impact shifts.
- Disassemble in this order: safety (#9) → trigger plate (#18) → lockwork (#11, #13)
- Clean interior surfaces with nitrile-bristled brushes; carbon buildup here accelerates frame corrosion
- Lubricate action rails (#10) with molybdenum disulfide grease–standard oils wash out under 500 rounds
- Test reassembly by dry-firing 3 times before live ammunition–listen for uniform “click” duration (±12ms)

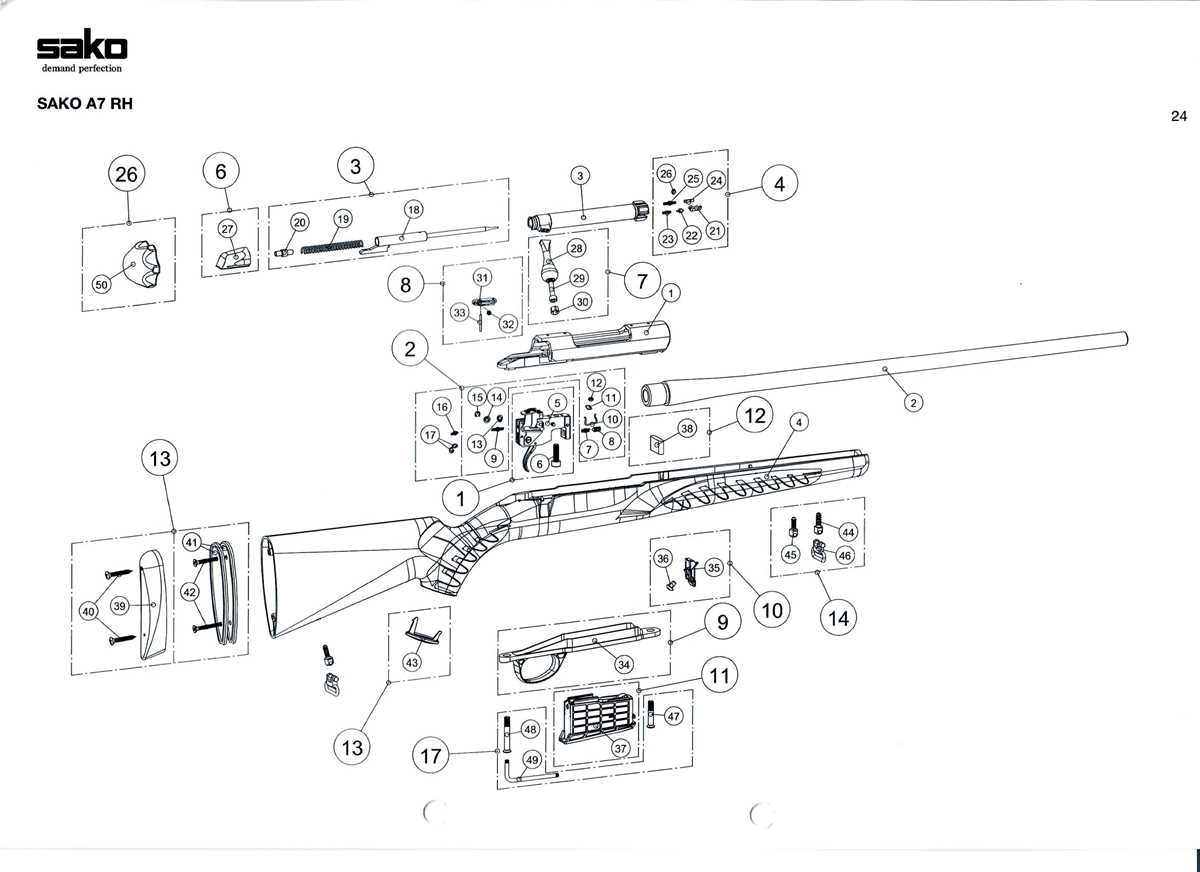

Finding and Recognizing Core Elements on a Firearm Schematic
Start by isolating the action assembly, typically positioned near the firearm’s midpoint. Look for the barrel’s mating surface, often depicted as a thick black line extending toward the muzzle, and follow it backward until you spot the bolt or breechblock–this component locks the cartridge in place during firing. Labels may abbreviate it as “bolt” or “breech,” but the shape (a compact, angled block with extractor claw notches) remains consistent across most semi-auto and pump-action models.
Next, trace the trigger group directly beneath the receiver, identified by its triangular or rectangular housing. The trigger itself appears as a curved lever, while the hammer–if present–resembles a crescent-shaped piece with a striking surface. Look for small pins securing these elements; schematics often highlight them in contrasting colors (red or blue) to indicate disassembly points. Verify the sear’s position: a tiny, L-shaped component that engages with the hammer or striker until the trigger is pulled.
Examine the fore-end (or slide assembly if applicable) by locating the tubular section running parallel to the barrel. In pump-action variants, this includes a grooved grip, while semi-autos may feature a gas piston or recoil spring housed within. Schematics usually show the magazine tube extending from the receiver’s base–follow it to the follower (a small, often teardrop-shaped piece) and spring, which push cartridges upward. Note the feed ramp angle, a critical detail for reliable cycling.
Decoding Safety Mechanisms and Minor Components
Pinpoint the safety lever–typically a sliding or pivoting tab near the trigger guard–by its arrows or raised textures. Some models integrate it into the crossbolt (a horizontal push-button behind the trigger), while others use a tang-mounted switch near the stock. Schematics may exaggerate its size for clarity, but its function (blocking trigger or hammer movement) remains the same. Check for a secondary disconnect safety, which prevents discharge if the action isn’t fully closed.
Inspect the stock attachment methods: recoil pads, screws, or a through-bolt securing the butt to the receiver. Schematics often depict these fasteners as dashed lines or exploded views. For synthetic stocks, locate reinforcing inserts (usually rectangular or oval cutouts) that distribute recoil forces. Wooden variants may show checkering patterns (cross-hatched lines) to indicate grip surfaces, though modern composites often omit this detail.
Identify the choke system–if equipped–by following the barrel’s muzzle. Threaded tubes or visible constrictions indicate interchangeable chokes, while fixed models use gradual tapers. Look for tiny set screws or wrench flats near the muzzle; these secure removable chokes. Some schematics include internal views of wads and shot patterns to illustrate choke function, but focus on the barrel’s end geometry first.
Finally, cross-reference numbered callouts with the legend, ensuring no component is confused with adjacent parts. For instance, the magazine follower’s spring frequently mirrors the recoil spring’s shape but operates in a perpendicular plane. Use a bright light and magnifier to distinguish similar-shaped pieces, like the firing pin’s slender profile versus the thicker extractor. If schematics lack labels, rely on industry-standard placements: split triggers sit closer to the operator, while strikers align with the bolt’s rear face.
Comprehensive Breakdown for Field-Stripping a Semi-Automatic Firearm Using Illustrated Guides
Ensure the chamber and magazine tube are empty before beginning. Remove the fore-end by sliding it forward and twisting counterclockwise until it disengages from the barrel assembly. Set it aside, noting the position of the recoil spring and action rod underneath–these must not be forcibly separated.
Detach the barrel by rotating the knurled ring at the breech counterclockwise until resistance ceases. Lift the barrel straight upward, ensuring the firing pin assembly remains seated in the receiver. Misalignment here risks damage to the extractor or firing mechanism.
Locate the bolt carrier group by pulling the charging handle rearward until the bolt locks into place. Push the takedown lever inward–positioned above the trigger guard–and rotate it 90 degrees. The receiver halves will now separate; lift the upper section vertically while keeping the lower aligned to avoid dislodging the hammer or sear.
Extract the bolt by grasping the bolt handle and pulling it rearward until it clears the carrier rails. Slide it forward to fully remove it, then inspect the locking lugs and gas piston for carbon buildup. A brass brush or nylon pick is recommended for cleaning these surfaces without marring the finish.

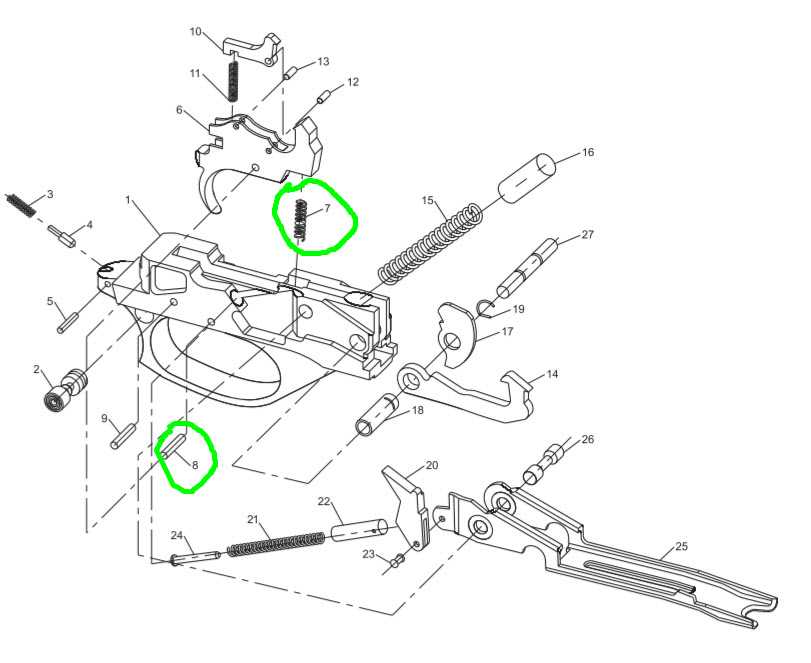

Disassemble the trigger assembly by pushing out the single retaining pin at the bottom of the housing. The hammer and disconnector will now disengage; handle these components carefully–they are under spring tension. The magazine catch and safety can be removed by pressing inward on their respective plungers while unscrewing the retaining screws.
Clean each component with a solvent-soaked patch, focusing on the gas ports, chamber, and ejector channel. Lubricate the bolt rails, hammer hooks, and recoil spring with a light coat of firearm-specific grease. Avoid over-application; excess lubricant attracts debris and may impede function.
Reassemble in reverse order, verifying proper alignment of the barrel extension and bolt face. Test the trigger pull weight and safety engagement before cycling the action to confirm smooth operation. Dry-fire the weapon in a safe direction three times to ensure no residual solvent interferes with the firing mechanism.
Store disassembled components in a lint-free container, separating springs and small parts to prevent loss. For long-term maintenance, apply a corrosion-inhibiting oil to all metal surfaces, paying special attention to the magazine tube interior where moisture accumulates.
