If you need to identify or replace elements on a premium road or mountain frame, start with the crankset. Most modern setups use a Shimano Hollowtech II or SRAM DUB bottom bracket–check for compatibility before ordering. A 11-speed system will have narrower chainrings (e.g., 50/34T for road, 32T for trail) compared to 1×12 drivetrains, which eliminate the front derailleur entirely. Measure the bolt-circle diameter (BCD) to confirm fitment: standard road rings use 130mm, while mountain variants often opt for 104mm.
For suspension forks, focus on the steerer tube and crown race. A tapered 1.5″ lower headset bearing requires a corresponding fork–conical designs like RockShox Pike or Fox 36 dominate the market. Adjustable air springs (e.g., RockShox DebonAir) demand periodic pressure checks: 80-100 PSI for 75kg riders on XC rigs, up to 150 PSI for enduro applications. Damper settings–low-speed compression (LSC) and rebound–should be fine-tuned based on terrain: 8-12 clicks out for aggressive trails, 14-18 for smooth surfaces.
Wheel systems demand precision torque values. Thru-axles (12x142mm for road, 12x148mm Boost for MTB) secure the hub with 10-12Nm; over-tightening risks frame damage. Quick-release skewers (5-7Nm) remain common on budget builds but lack stiffness for technical descents. Tubeless setups require 28-32mm rim tape (measured by internal width) and 250-300mL sealant for 29″ wheels–check sealant levels every 2-3 months to prevent flats. Spoke tension should read 100-130kgf on the drive side; use a Park Tool TM-1 for calibration.
Brake assemblies prioritize pad material: resin (organic) for quiet stopping in dry conditions, metallic for wet/muddy trails with better heat dissipation. Rotor size scales with riding style–140mm for cross-country, 200mm for downhill. Bleeding hydraulic systems (e.g., Shimano BH90 or SRAM bleeding edge) requires DOT 4 or mineral oil, depending on the brand–never mix fluids. Piston retraction must be reset after pad changes to avoid drag; use a pad spacer during the process.
Handlebar and stem orientation impacts control. Aluminum 7075-T6 (31.8mm clamp) bars offer durability at 740g for trail, while carbon fiber (800mm width) saves 150g but demands cautious torque (4-5Nm). Stem length (50-100mm) alters steering responsiveness: shorter values reduce twitchiness on steep descents. Grips should match hand size–lock-on designs (e.g., Ergon GA3) prevent slippage; glue-on styles require frequent replacement for sweat absorption.
Understanding Your Road Machine’s Component Layout
Start by locating the bottom bracket shell–this cylindrical housing sits at the frame’s lowest junction, where crank arms pivot around a spindle. Brands like Shimano or SRAM often label spindle types (BB86, PF30, etc.) directly on the cups; check these specs before disassembly. Misalignment here causes creaking, so use a torque wrench set to 35-45 Nm when tightening.
Shift levers integrate with derailleurs via thin, coated cables or internal wires encased in polymer sheaths. For accurate indexing, measure cable tension with a Park Tool CT-3–optimal pull for rear gears falls between 1.5-2.5 mm per click. Replace frayed sections immediately; a single strand failure mid-ride jams the entire drivetrain.
Wheels rely on sealed cartridge bearings pressed into hubs. Identify bearing codes (e.g., 6802, 6902) stamped on the rubber seals–these dictate compatible replacement units. Spoke count affects stiffness; 24-hole rims suit aggressive riding, while 32-hole builds offer compliance for endurance routes. Truing stand adjustments should stay within ±0.2 mm radial tolerance.
Critical Wear Points to Inspect
Brake calipers (rim or disc) demand monthly pad checks. Resin pads last 1,200-1,600 km but shed dust; sintered metal lasts 2,500+ km but grips less in wet conditions. Hydraulic systems need a bleed cycle every 6 months–DOT 5.1 fluid absorbs moisture, reducing boiling points by 30% if neglected.
Saddle rails attach via a clamp hidden under the cover. Carbon rails require precise torque (5-7 Nm) to prevent cracking; titanium rails tolerate 8-10 Nm. Seatpost dropper levers have internal travel seals–clean with isopropyl alcohol monthly to prevent grit buildup that shortens their lifespan.
Frame-Specific Considerations
Aluminum frames feature replaceable derailleur hangers–store a spare (compatible with hanger code like Direct Mount 12) to avoid bending the frame. Carbon forks need visual inspections for delamination near the crown race; tap lightly with a coin–dull thuds indicate internal damage. Press-fit bottom brackets (BB30) often have adhesive labels revealing frame tolerance specs; always re-grease with waterproof lithium compound during servicing.
Grips and bar tapes serve dual roles: vibration damping and sweat absorption. Cork tape lasts 800-1,200 km; synthetic options stretch 1,500 km but feel slicker. For drop bars, wrap from the hoods downward–this prevents unraveling under braking loads. Replace immediately if fraying exposes adhesive edges.

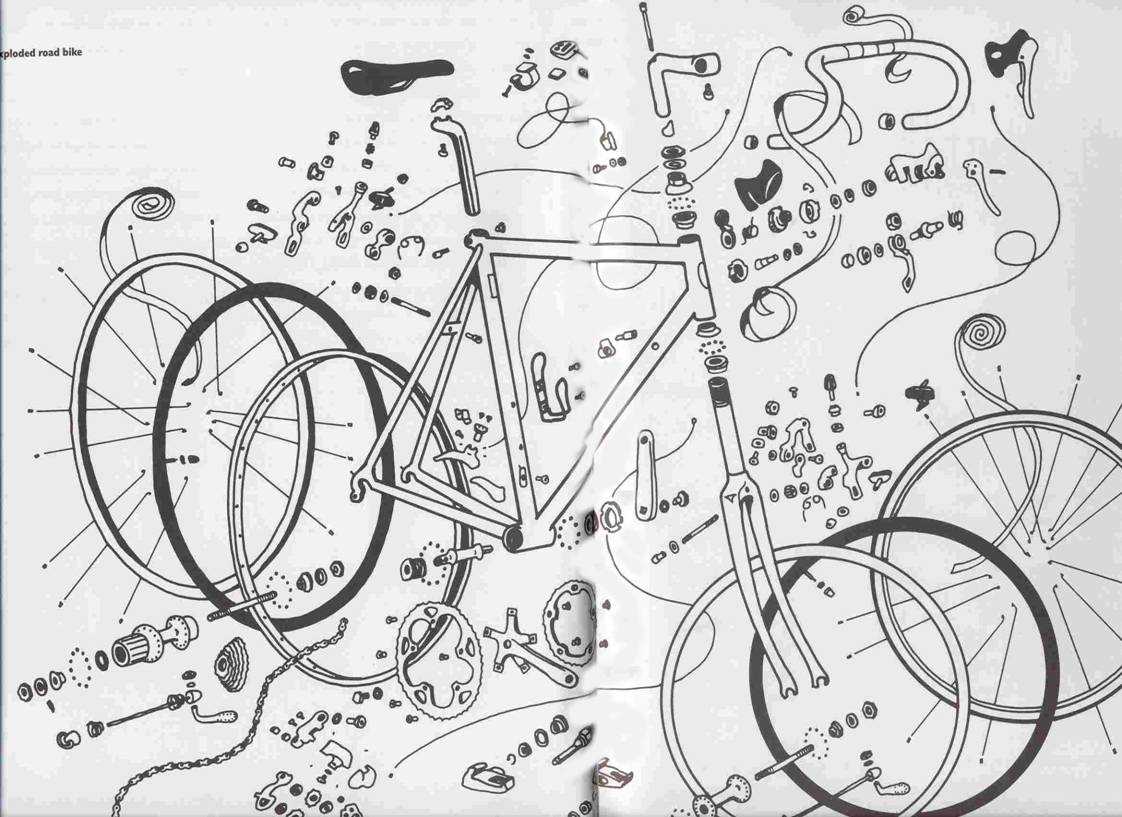

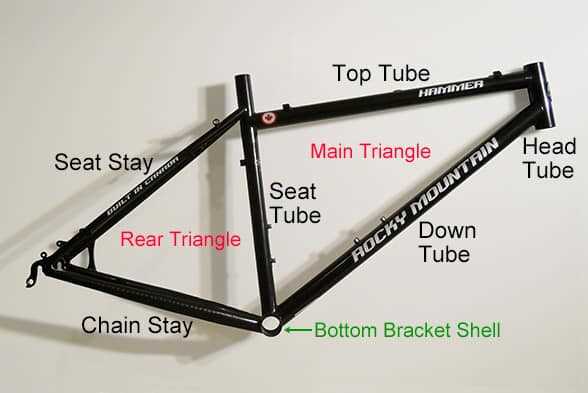

Identifying Core Elements on a Modern Road Machine Frame
Begin by locating the serial number–typically etched beneath the bottom bracket shell on most high-end alloy or carbon constructions. This alphanumeric code follows a structured format: the first two letters denote the manufacturing facility, the next four digits represent the production date (week and year), while the final six characters serve as a unique identifier for inventory tracking. Cross-referencing this data with the manufacturer’s database yields precise build specifications, including frame material grade and original component kit compatibility.
Critical Junction Points for Maintenance
| Frame Segment | Markers | Purpose | Inspection Protocol |
|---|---|---|---|
| Head Tube | Upper/Lower bearing race interfaces | Steering linkage | Check for micro-fractures using a flashlight at 45° angle; replace bearings if play exceeds 0.5mm |
| Bottom Bracket | Press-fit cups or threaded shells | Drivetrain power transfer | Measure shell width (68/73/83mm); verify torque on cups (35-50Nm) with calibrated wrench |
| Seat Cluster | Integrated/post-mount hardpoints | Rider position stability | Inspect bonding lines on carbon frames; test pivot bolts at 9-12Nm |
Pay particular attention to weld seams on alloy frames–polished transitions should show consistent bead width without discoloration, indicating proper heat treatment. For carbon layups, examine the directional fiber weave at stress zones (chainstays, head tube junctions); irregular patterns suggest impact damage. Use a calibrated torque driver (2-8Nm range) for all fastening points, referencing the frame-specific manual for exact values.
Identifying and Interpreting Key Gear System Elements
Start by inspecting the crankset–the primary driver of pedal force. On most modern multi-speed models, you’ll find either a double (two chainrings) or triple (three chainrings) setup. The outermost ring typically ranges from 38 to 53 teeth, while the inner ring often falls between 24 and 36 teeth. Check for wear on the teeth; shark-fin shapes or hooked edges signal excessive use. Replace if the profile appears asymmetrical.
Shift cables route through derailleurs, which require precise tension adjustment. The front pivots horizontally to guide the chain across chainrings, while the rear derailleur handles lateral movement across the cassette. Measure cable tension by applying 2–3 kg of force at the shifter–excess slack causes delayed shifts, while overtightening strains the mechanism. Lubricate pivot points every 500 km to prevent stiffening.
The cassette–the cluster of sprockets at the rear wheel–determines gear range. Count teeth on each cog: entry-level setups often span 11–34 teeth across 8–10 speeds, while high-end units squeeze 12 speeds with ratios as tight as 10–50 teeth. Remove the lockring with a cassette tool and inspect for worn pins or ramps; even slight rounding reduces shifting precision. Clean sprockets with degreaser, not water, to avoid corrosion.
Chain compatibility hinges on speed count. A 10-speed chain won’t mesh with an 11-speed cassette due to narrower spacing (5.6 mm vs. 5.4 mm). Check for elongation using a chain checker: values above 0.75% warrant replacement. Overstretching accelerates sprocket wear, creating a snowball effect. Reconnect using a master link, not hammering–a weak joint risks failure at high torque.
The bottom bracket houses bearings that allow the crankset to spin. Threaded units (68 mm or 73 mm shell widths) dominate, but press-fit designs exist in performance frames. Symptoms of failure include creaking, rough rotation, or lateral play. Extract bearings with a dedicated tool–never force with a screwdriver. Sealed cartridges last 5,000–10,000 km; service by removing old grease and repacking with lithium-based compound.
Shifters integrate into brake levers on drop-bar setups (brifters) or mount separately on flat bars. Indexed models click into precise positions, but friction shifters require manual trim. Faulty shifting often stems from dirty pawls inside the mechanism–flush with isopropyl alcohol and relubricate with thin teflon oil. For brifters, remove hood covers to access the ratchet; do not disassemble sealed internals.
Pedal axles thread into crank arms–right-side (drive-side) is standard, left-side (non-drive) reverses threading (turn clockwise to loosen). Check for play by gripping the pedal and rocking side-to-side; loose axles damage crank threads. Service bearings annually by removing axle seals, cleaning races, and repacking with waterproof grease. Replace wobbling or ovalized pedals; bent axles cannot be rectified.
Finally, the chainstay protector prevents chain slap damage. Remove it to inspect the frame for dents or cracks–common failure points absorb shock poorly if compromised. Reinstall using rubberized adhesive to prevent slippage. If the chain contacts the frame, adjust derailleurs or limit screws to halt premature wear. Rotate wheels to confirm clearance before finalizing adjustments.
