Start repairs or upgrades by locating the chassis layout guide–typically included in the original manual or available on the manufacturer’s support portal. The front suspension assembly, including A-arms and shock mounts, connects directly to the bulkhead via four bolts; misalignment here causes irregular tire wear or handling instability. Verify torque specs: 8–10 lb-ft for steel hardware, 5–7 lb-ft for aluminum.
Replace the drivetrain’s slipper clutch if acceleration feels sluggish or the motor spins freely without load. Disassemble the rear gear case first–remove the two screws securing the cover, then extract the spur gear (module 0.8, 54-tooth default) and internal friction pads. Clean surfaces with isopropyl alcohol before reassembly; residue compromises engagement. Check the pinion gear (12T–18T range) for stripped teeth–visible damage means immediate replacement.
Inspect the steering linkage for play: pull the servo horn laterally–any movement beyond 1mm indicates worn ball ends or loose servo screws. The bellcrank pivots on a single post; lubricate with silicon grease every 5 hours of runtime to prevent binding. If the vehicle pulls to one side under braking, check the rear axle hubs–loose hex-drives cause wobble, while overtightened bearings (4–6 lb-ft) generate heat and premature failure.

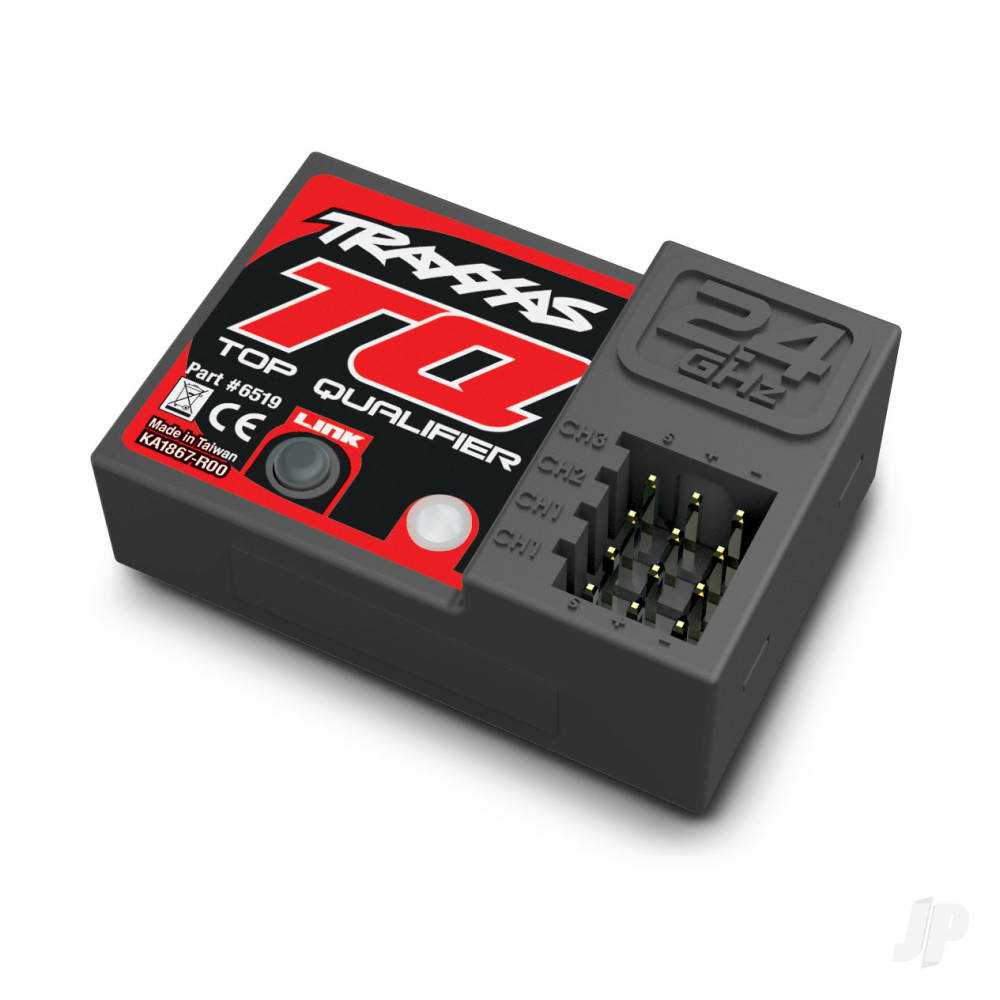

For electrical diagnostics, trace the main wiring harness from battery tray to ESC. Connector pins (JST-XH) often corrode–scrub contacts with a fiberglass brush and apply dielectric grease. If the receiver loses signal during jumps, relocate the antenna tube away from metal components; even a 5cm clearance improves reception. Battery tray bolts (12 lb-ft) must be torqued evenly–uneven pressure cracks plastic mounts.
How to Use Your Off-Road Buggy’s Exploded View for Repairs
Begin by locating the rear suspension assembly in section 3B of the manufacturer’s schematic. The shock tower (P/N 5357) attaches with two M3 screws; apply thread-locking compound to prevent loosening during high-speed runs. If upgrading to aluminum components, verify compatibility with part numbers ending in “-X” for aftermarket variants–these require shim washers (0.5mm) to maintain proper clearance.
For drive train maintenance, focus on the differential housing (ref. 6789). Disassemble carefully: the ring gear must seat flush with the carrier, and the spider gears should rotate freely without binding. Lubricate with 50K-weight synthetic grease before reassembly. Replace the drive cups (P/N 7892) if wear exceeds 0.2mm on the inner splines–inspect visually using calipers rather than relying on tactile feedback alone.
Common failure points include:
- Steering linkage ball ends (P/N 4561): replace if play exceeds 0.3mm;
- Motor mount screws (M4x12): torque to 4.5 Nm;
- Tires (P/N 2345G): check tread depth weekly–outer knobs wear 30% faster on paved surfaces.
When sourcing components, filter suppliers by ISO 9001 certification–OEM replacements often incorporate undisclosed material upgrades (e.g., nylon-reinforced gears versus pure plastic). Keep a printed A3 reference sheet taped to your workbench for quick cross-checking against the digital manual, as screen glare can obscure fine print during outdoor repairs.
Locating Authorized Breakdown Schematics for Your Off-Road RC Vehicle
Begin by visiting the manufacturer’s primary support portal. The official site hosts a dedicated section for technical documentation, including high-resolution exploded views. Navigate to the “Downloads” or “Resources” tab, then filter by model–search for the specific variant (e.g., VXL, brushed, or brushless configurations) to ensure accuracy. These schematics are indexed by serial number ranges, so cross-reference your vehicle’s sticker or manual for precise matches. File formats typically include PDF and interactive 3D viewers, allowing zooming and component identification without third-party interference.
Retailers authorized by the brand often maintain archived schematics for customer service. Check hobby shops with direct manufacturer agreements; staff may provide direct links or printed copies upon request. Online marketplaces like Horizon Hobby, Tower Hobbies, or AMain Hobbies embed these diagrams within product listings–look under “Supporting Documents” or “Parts Breakdown.” Avoid unofficial sources unless absolutely necessary, as third-party uploads may contain errors or outdated revisions.
Forums dedicated to remote-controlled vehicles frequently share verified schematic packs. Communities such as RCGroups, RCTech, or Reddit’s RC subreddits upload curated zip files with labeled images. Vet contributors carefully–prioritize posts from moderators or members with high reputation scores. Some forums require registration to access attachments, but the delay is worth the legitimacy. Always cross-check file names against known official diagram titles to avoid malware risks.
Manufacturer-issued printed manuals remain a reliable fallback. If your vehicle included a paper guide, scan or photograph the exploded view pages for easy reference. For lost manuals, contact customer support with proof of purchase–they often email replacements within 48 hours. Schematics in manuals are organized by assembly groups (chassis, drivetrain, electronics), making troubleshooting more efficient than digital searches.
Specialized RC repair platforms aggregate schematics from multiple brands. Sites like RC-Masters or Schematics-RC compile databases with OCR-enabled search tools, allowing keyword queries (e.g., “front shock tower” or “motor mount”). These platforms update weekly but may lag behind official releases by a few days. Use them for rare variants or discontinued parts, where manufacturer archives are incomplete.
When all else fails, dismantle a small section of your vehicle and photograph each stage. Label components in reverse order of removal, then overlay these images onto a blank template to create a custom exploded view. This method ensures accuracy for unique modifications but demands patience–reserve it for situations where factory schematics exclude aftermarket upgrades or regional model differences.

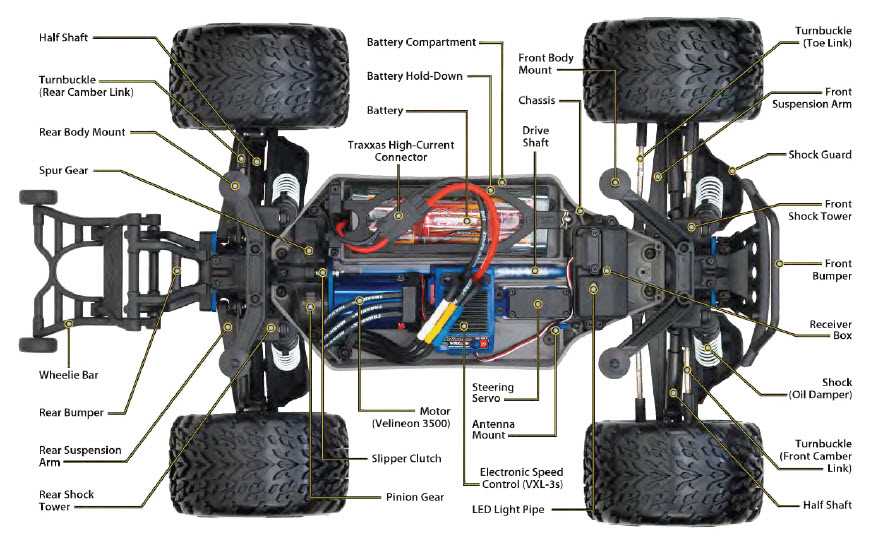

Identifying Key Components: Chassis, Shock Towers, and Drivetrain Breakdown
Begin by inspecting the main frame’s structural integrity–check for cracks near suspension mounts and motor plate attachment points. The reinforced polymer composite used in high-impact models typically resists fatigue, but stress fractures can develop after prolonged off-road use. Use a flashlight to examine hard-to-see areas, especially where the chassis narrows near the front bumper; these zones are prone to hairline fractures. If replacing the frame, ensure compatibility with your model’s wheelbase–even a 3mm discrepancy can misalign the suspension geometry.
Shock towers act as the primary load-bearing points for suspension arms and coil-over units. The front tower connects to the A-arms via ball studs, while the rear integrates with the driveshaft housing. When servicing, remove the shock absorber first to avoid damaging the mounting posts. Inspect the tower’s lower section for deformations–bent metal here disrupts wheel camber and toe settings. For vehicles weighing over 4.5 kg, reinforced aluminum shock towers are recommended; plastic variants may flex under aggressive jumps, causing inconsistent damping.
| Component | Material | Failure Signs | Replacement Considerations |
|---|---|---|---|
| Front Shock Tower | Anodized aluminum / Reinforced nylon | Cracks at ball stud bases, misaligned suspension | Verify alignment with steering servo mount |
| Rear Shock Tower | Composite polymer | Warping near driveshaft clearance | Ensure free movement of dogbone joint |
| Lower Chassis Brace | Stamped steel | Bent angles, loose screws | Torque to 8-10 Nm to prevent shifting |
Drivetrain disassembly requires methodical sequencing–start by disconnecting the slipper clutch assembly. The spur gear (typically 48-pitch, 86-tooth) meshes with the pinion at a precise 0.1mm gap; misalignment accelerates gear wear. For brushless setups, inspect the motor can for debris accumulation; even fine grit can infiltrate the bearings, increasing resistance. Replace the drive cups if play exceeds 0.5mm–they’re press-fit components and require a bearing puller for extraction.
The differential unit demands periodic lubrication; use silicone-based grease (10,000-15,000 cSt viscosity) to prevent seizing. The ring gear’s teeth should show uniform wear patterns–pitting or chipping indicates insufficient lubrication or excessive pinion preload. When reassembling, set the slipper plate tension to allow brief wheel spin under load; overtightening causes motor overheating. For models equipped with locked diffs, check the hardened steel pins every 5 hours of runtime–shearing here disables power transfer entirely.
Suspension arms pivot on captured metal bushings or bearing mounts–degradation here manifests as sloppy handling or uneven tire wear. The front A-arms connect to the chassis via turnbuckles; adjust them to maintain 0° camber at ride height. Rear toe-in should measure 2-3° for stability at speed–use a digital camber gauge for precision. Replace cracked or worn ball ends immediately; failure mid-run can eject the wheel assembly, risking damage to the gearbox.
Coil-over units combine springs and dampers in a single package; nitrogen-charged variants offer consistent rebound but require bleeding before disassembly. Inspect the shock shafts for scoring–deep grooves necessitate full replacement. Spring rates vary by application: 2.3-2.7 kg/mm for basalt terrains, 3.0-3.5 kg/mm for jumps. Preload adjustment should lift the chassis by 5-7mm at neutral; excessive preload causes suspension binding, reducing articulation.

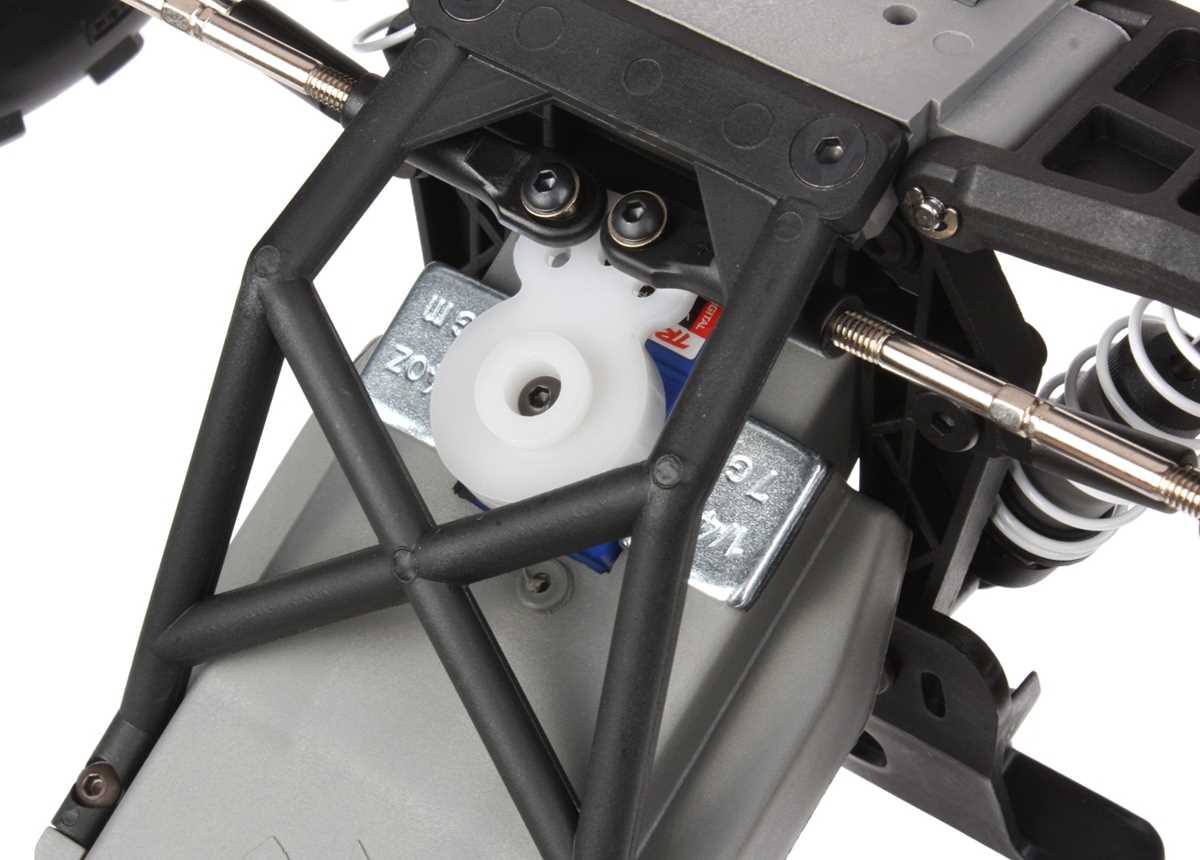

Steering linkages warrant close attention–each tie rod end should articulate smoothly without lateral play. The servo saver (if equipped) absorbs impacts but can shear under extreme stress; replace it if the plastic flexes beyond its limits. For brushed motor setups, examine the comm brushes–wear beyond 2mm requires replacement to avoid arcing and voltage drops. Battery tray integrity is critical; cracked mounts can shift center of gravity, destabilizing high-speed runs.
Final assembly verification involves static load testing–press each corner of the vehicle downward to confirm suspension travel returns to ride height without binding. Actuate the steering servo through full throw to ensure no interference with the shock towers. Run the drivetrain at 50% throttle for 30 seconds to check for unusual noises or overheating. Document initial settings for future reference; discrepancies here often reveal underlying wear patterns before catastrophic failure occurs.
