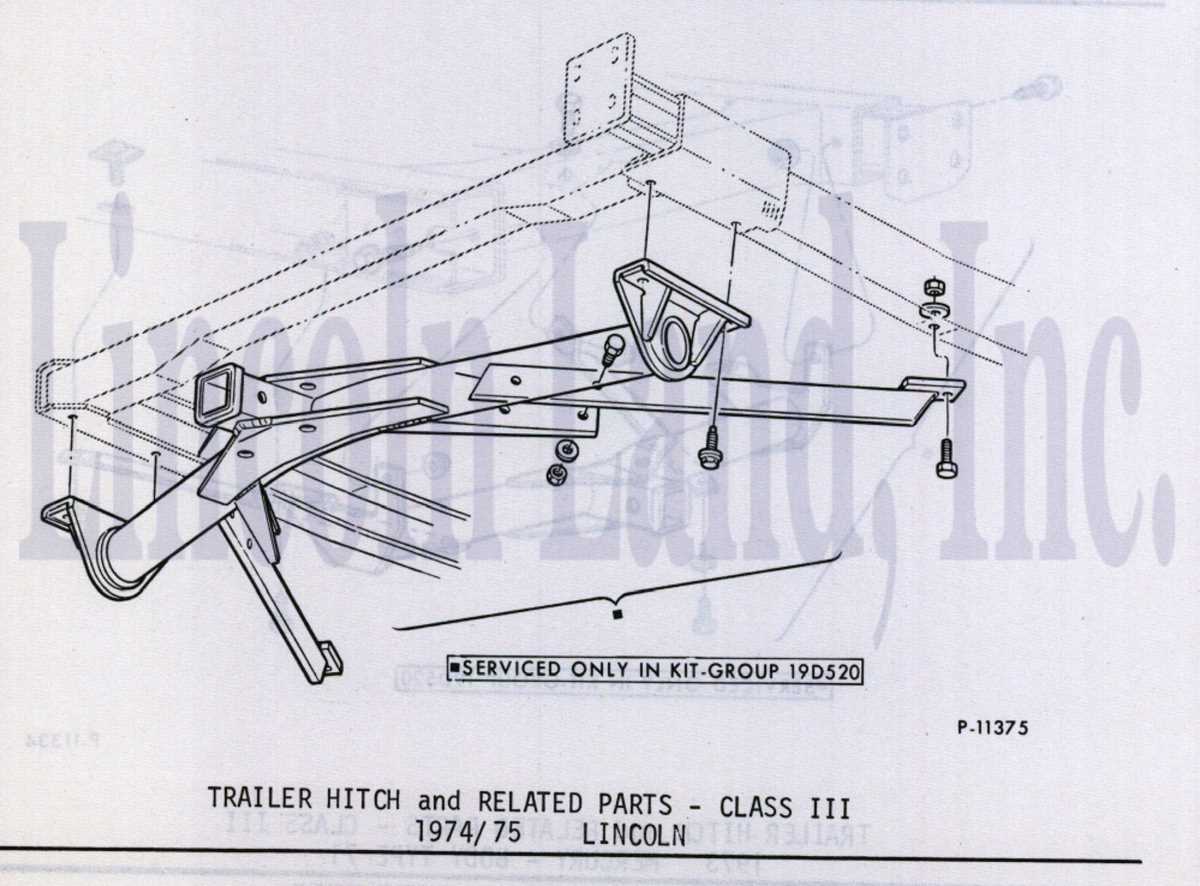

Start by securing the receiver tube to the vehicle’s frame using grade-8 bolts–never substitutes. Torque them to 75-85 ft-lbs to prevent loosening under dynamic loads. The mounting plate must align flush with the frame rails; misalignment reduces shear strength by up to 30%. Check clearance between the bumper and the coupler socket–minimum 1.5 inches avoids interference during articulation.
For the drawbar assembly, match the shank diameter to the receiver’s class rating: 2-inch for weights under 5,000 lbs, 2.5-inch for 10,000 lbs+. Verify the pin hole axis aligns within 0.01 inches of the receiver’s centerline; angular deviation increases wear on the locking mechanism. Use a cotter pin with the hitch pin–spring clips fail under vibration. Lubricate the shank with lithium grease to reduce corrosion; powder coatings disintegrate in salt-prone regions.
Attach the safety chain in a crossed pattern beneath the tongue, creating a cradle effect. The working load limit of each chain must exceed 150% of the gross towing weight. Grade-70 chain is mandatory; lower grades snap under sudden acceleration. The connection hardware–bolts, washers–requires stainless steel in coastal areas; zinc coatings corrode within 12 months. Inspect the electrical harness for wire gauge thickness: 14-gauge for lights, 12-gauge for brakes. Route wires through a protective conduit; loose wiring causes shorts from road debris.
Verify the weight distribution system (if used) with a torque wrench: spring bars should deflect no more than 0.25 inches under load. Over-tightening warps the frame. For gooseneck adapters, use a forged ball rated to 30,000 lbs; stamped options crack at 22,000 lbs. Always cross-reference the assembly with the manufacturer’s load chart–exceeding the tongue weight by 10% voids the warranty. Test the entire setup with a 5-mph reverse maneuver; check for binding at the pivot points.

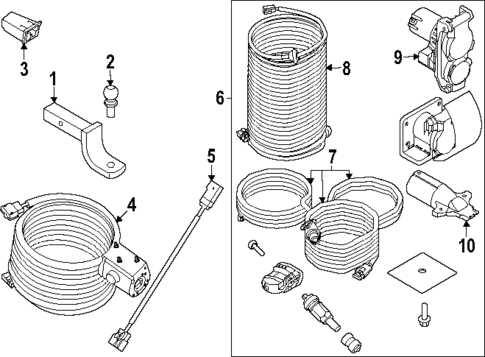

Key Components of a Vehicle Towing Assembly
Begin by inspecting the receiver tube for signs of corrosion or deformation–common in models older than five years. Use a caliper to measure internal dimensions against manufacturer specs; deviations over 0.5mm compromise load distribution. Replace immediately if wall thickness is reduced by more than 10%, as this increases failure risk under dynamic forces. For heavy-duty applications, opt for a 2.5-inch receiver with 3/8-inch wall thickness over the standard 2-inch variant.
The coupler mechanism demands meticulous attention: verify the latch engages fully without requiring excessive force, and test the safety chain attachment points for weld integrity. A properly rated Grade 70 or 80 chain must exhibit less than 5% stretch under maximum stated capacity. For off-road use, consider swivel-style hooks to prevent binding under articulation. Lubricate pivot points with molybdenum disulfide grease every 5,000 miles to maintain smooth operation.
Examine the wiring harness for frayed insulation or loose pins in the connector–voltage drop across a corroded 7-pin plug can exceed 0.3V under load, triggering ABS or brake controller faults. Replace any connector showing green oxidation, and apply dielectric grease to prevent future corrosion. For vehicles with integrated brake controllers, ensure the harness includes a dedicated power lead (minimum 12-gauge wire) to handle surge currents from electric actuators. Aftermarket modules should be mounted within 18 inches of the controller to minimize signal degradation.

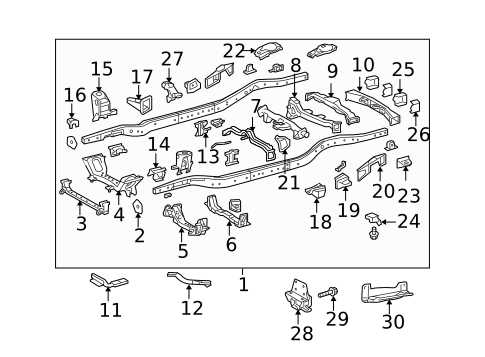

Crossmembers and mounting plates require torque verification every 12 months–use manufacturer-recommended values plus 5% for galvanized bolts due to thread lubricity variations. For adjustable height assemblies, confirm the drop shank’s hole alignment matches the tow vehicle’s frame rail spacing, as misalignment by even 3mm can induce harmonic vibrations at speeds above 55 mph. Retighten all fasteners after 50 miles of initial towing, then at 500-mile intervals, using a pattern specific to the assembly type to prevent stress risers.

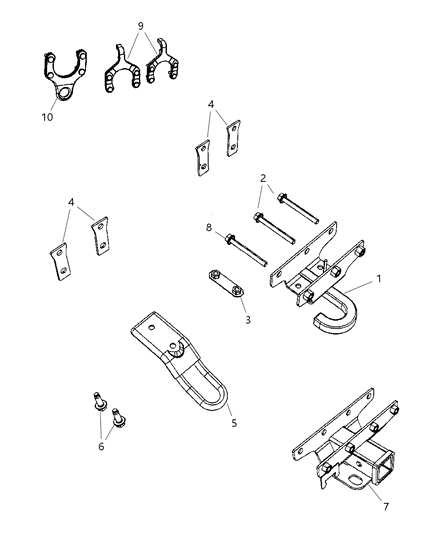

Key Elements of a Towing Coupling Structure
To accurately assess a coupling setup, begin by locating the receiver tube–the foundational socket mounted to the vehicle’s chassis. This component, typically a square or round sleeve, determines compatibility with inserts like drawbars or brackets. Verify its class rating (I–V) by checking the stamped markings on the tube’s face; commercial-class setups (IV–V) support heavier loads up to 20,000 lbs, while recreational models (I–III) max out at 12,000 lbs. Misalignment here risks structural failure under load.
Examine the insert pin mechanism–the locking rod securing the accessory bar. A 5/8-inch diameter pin is standard, though heavy-duty units may use a 3/4-inch variant. Ensure the retention clip (often a cotter pin or spring-loaded latch) is free from corrosion and seated fully; a missing clip allows unintended disengagement. For frequent use, consider upgrading to a padlock-compatible pin to deter theft. Inspect the pin hole for wear; oval-shaped deformations indicate repeated stress and necessitate replacement.
| Component | Material | Load Capacity (lbs) | Failure Signs |
|---|---|---|---|
| Receiver Tube | Carbon steel (welded) | 2,000–20,000 | Cracks, rust-through, wall thinning |
| Ball Mount | Forged steel | 3,500–14,000 | Ball deformation, shank bend |
| Safety Chains | Grade 70 alloy steel | 5,000–12,000 | Frayed links, elongation >5% |
Evaluate the ball mount plate–the removable arm hosting the coupler interface. Check for a minimum 2-inch drop/rise to align with the load’s tongue height; improper sizing causes uneven weight distribution. Confirm the ball’s diameter matches the towable unit’s coupler (common sizes: 1-7/8″, 2″, 2-5/16″). Torque specifications vary: 2″ balls require 250 ft-lbs, while 2-5/16″ balls demand 450 ft-lbs–use a calibrated wrench to avoid under-tightening. Replace any ball exhibiting flattening or thread stripping.
Safety chains act as the critical redundant link if primary connections fail. Cross chains under the tongue to form an “X” pattern, ensuring a cradle effect if disengagement occurs. Use chains rated at least equal to the gross towed weight (GTW), with a minimum working load limit (WLL) of 1.25×GTW. Avoid twisted chains or missing quick links–both reduce strength by up to 40%. For compliance with DOT regulations, chains must not drag when properly affixed, and S-hooks should be replaced with closed clevis hooks for secure attachment.
Inspect the electrical connector–typically a 4-pin or 7-pin plug–ensuring terminals are corrosion-free and fully seated. The 4-pin handles basic lighting, while the 7-pin adds brake controllers and auxiliary power. Test continuity with a multimeter: voltage should range from 12–14V across pins. Upgrade to a power-coated harness for off-road use, and apply dielectric grease to pins to prevent moisture ingress. A non-functional brake circuit renders a loaded weight inoperable under braking, risking catastrophic failure.
Interpreting Vehicle Towing Electrical Schematics
Begin by locating the color-coded legend on the wiring plan–each wire’s function corresponds to a specific shade standardized across most connectors. Brown typically denotes tail lamp circuits, yellow handles left turn/stop signals, green carries right turn/stop functions, and white grounds the system. Verify these against the actual harness before connecting anything to prevent miswiring that could damage the light assembly or fuse.
- Flat 4-way connectors follow a linear pattern: ground, tail lamps, left turn/stop, right turn/stop.
- 7-way round connectors add dedicated circuits for electric brakes (blue), auxiliary power (black), and reverse lights (purple).
- Note pin labels–1 (ground), 2 (reverse), 3 (electric brakes), 4+ aux power–since manufacturers may rearrange these.
Check for continuous lines versus dashed or dotted paths–solid lines represent permanent connections, while broken lines indicate optional or switch-activated circuits. A dotted path to the brake controller output, for example, only activates when the vehicle’s brake pedal engages. Trace these paths back to the power source to confirm they align with the fuse rating specified in the legend.
Identify relay components if present–these small black boxes interrupt or amplify signals for heavier loads like electric brakes. The schematic will show relays as rectangular blocks with numbered pins: 85 (trigger), 86 (power in), 87 (output), 30 (load). Failure here often mimics a faulty controller, so probe these pins with a multimeter before replacing parts.
Cross-reference the harness layout against the towing module’s function labels. If the plan shows a trailer brake output leading to pin 3, but your connector only has 4 pins, the additional circuit likely requires an adapter or controller bypass. Sketch these discrepancies directly on the printed plan to avoid confusion during installation.
- Set multimeter to continuity mode–touch probes to connector pins while activating lights/brake signals to validate proper voltage (12V nominal for stop lamps, 6-8V for LED running lights).
- Inspect for corrosion or frayed strands–these disrupt currents before any visible damage appears on the light assembly.
- Confirm ground integrity by measuring resistance between the white wire terminal and chassis (should read below 0.5 ohms).

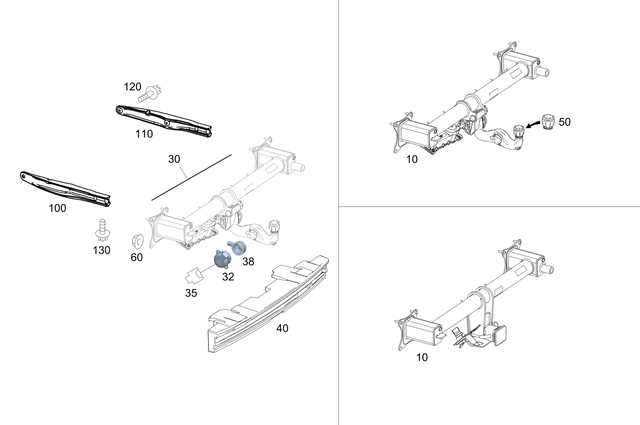

Step-by-Step Guide to Installing a Receiver Towing Assembly
Measure the vehicle’s frame width and compare it to the mounting bracket specifications in the kit. Most aftermarket towing setups require a minimum 2-inch clearance between the frame rails and the bracket’s base plate. Mark the drill points using a center punch–this prevents the bit from wandering when securing the hardware. Ensure the vehicle’s undercarriage is supported with jack stands rated for at least 1.5 times the vehicle’s curb weight before proceeding.
Align the crossmember with the pre-drilled holes or factory weld nuts on the frame. Use a torque wrench to tighten the bolts in a crisscross pattern–start at 45 ft-lbs, then increase to the manufacturer’s specified torque (typically 70–90 ft-lbs). Avoid over-tightening, as this can strip threads or warp the bracket. For vehicles with corrosion-resistant coatings, clean the contact surfaces with a wire brush and apply dielectric grease to prevent galvanic reactions between dissimilar metals.
Electrical Connection and Safety Checks
Locate the factory wiring harness beneath the bumper or behind the rear fascia–most vehicles have a plug-in connector for the lighting module. If splicing is required, use heat-shrink butt connectors and a crimping tool; avoid soldering unless working in a controlled environment, as heat can damage nearby components. Test all electrical functions (turn signals, brake lights, reverse lights) with a circuit tester before finalizing connections. A voltage drop exceeding 0.5V indicates poor grounding–clean the grounding point with sandpaper or relocate it to a bare metal surface.
Attach the drawbar to the receiver socket using the hitch pin and retainer clip, ensuring it slides in smoothly without play. For weight distribution systems, position the spring bars at a 45-degree angle relative to the trailer frame and secure them with the chain brackets. Double-check the maximum tongue weight rating (often 10–15% of the total loaded mass) and adjust the load accordingly. Use a tongue weight scale to confirm the distribution remains within 10% of the gross trailer weight.
Lower the vehicle and perform a final inspection: verify all bolts are tightened to specification, no wiring is pinched or exposed, and the assembly does not interfere with exhaust components or suspension travel. Conduct a short test drive on a level surface, monitoring for unusual noises or vibrations. If the setup includes a sway control device, adjust the friction pads to provide resistance without restricting movement–too much tension can cause stiff steering, while too little may allow excessive sway at highway speeds.
