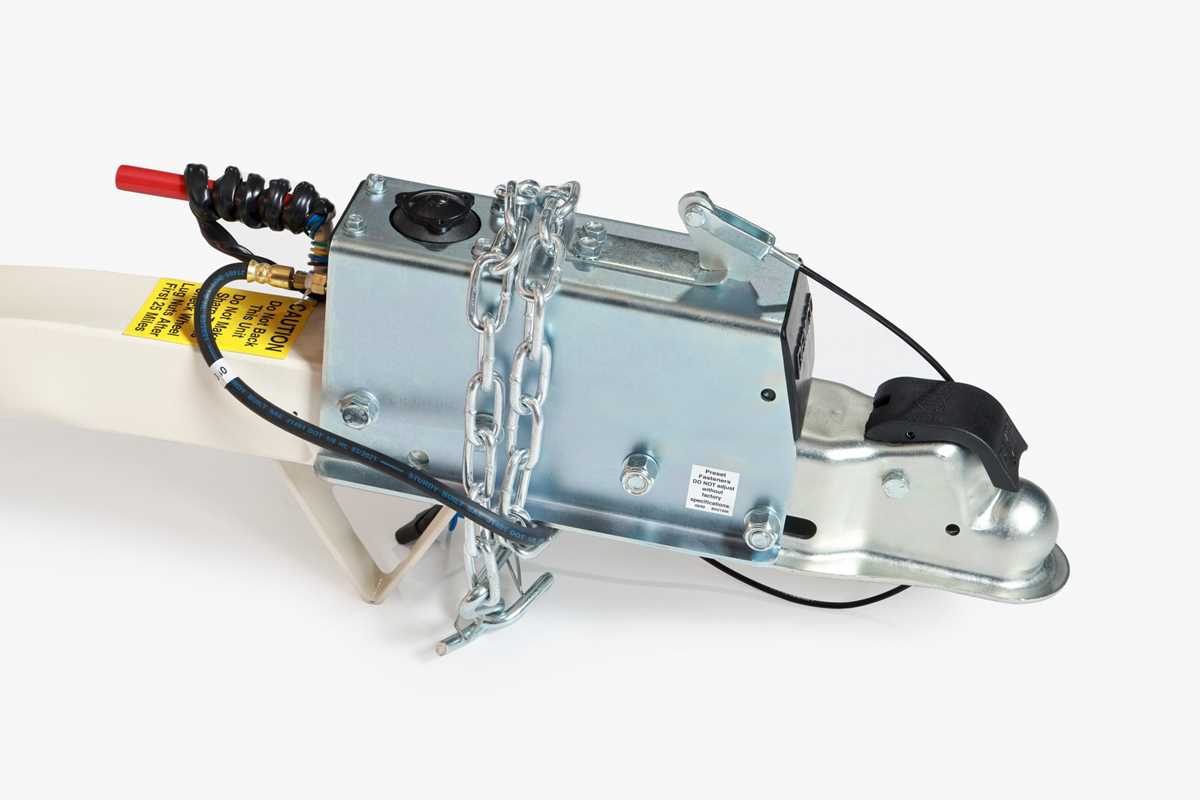

For safe towing and proper maintenance, begin by locating the tongue assembly–the front connection point where the trailer couples to the vehicle. Check for rust, cracks, or misalignment in the coupler, as these compromise stability. The safety chains must be crossed underneath the tongue to act as a cradle if the primary connection fails. Ensure the chain links are free of excessive wear and rated for at least double the trailer’s gross weight.
Inspect the axle system next. The leaf springs or torsion bars should show no sagging or corrosion. Verify that shock absorbers–if equipped–are securely fastened and not leaking fluid. Measure the hub face to confirm the axle is straight; a deviation beyond 3mm indicates damage requiring professional alignment. Grease the wheel bearings every 5,000 miles or before long trips, using high-temperature lithium-based grease (NLGI Grade 2).
Examine the platform structure for cracks, especially around welds. The ramps–if included–must lock securely in place; test the hinge mechanism with a minimum 1,500 lbs load to confirm durability. The tail lights and reflectors must be DOT-compliant: check for water ingress in the lens seals and ensure all electrical connectors are corrosion-free. Use a multimeter to verify voltage at each light (12V ± 0.5V) under load.
For steering-wheel tow bars, ensure the swivel assembly moves freely without binding. Lubricate the pivot points with silicone spray to prevent seizing. If the unit has braking components, inspect the brake cables for fraying and the actuator for proper engagement. Test the emergency breakaway system monthly by pulling the pin and verifying the battery holds a charge (minimum 8V under load). Replace the battery every 3 years regardless of usage.
Store the unit on level ground with wheel chocks engaged to prevent rolling. Cover the platform with a breathable tarp to avoid moisture buildup but allow airflow to prevent mold. Before each use, perform a torque check on all bolts (refer to the manufacturer’s specs–typically 80-100 ft-lbs for axle nuts). Keep a spare tire and lug wrench rated for the trailer’s wheel size, as mismatched tools can strip lug nuts.
Understanding Your Vehicle Transport Trailer Blueprint
Start by locating the coupling device at the front–verify its weight rating matches your towing setup. Most models support 3,500 to 5,000 lbs, but check the manufacturer’s plate for exact figures. Replace worn hitch pins immediately; corrosion weakens structural integrity by up to 30% under stress.
Inspect the frame rails for hairline cracks, especially near weld points. Use a flashlight at a 45-degree angle to detect micro-fractures invisible under direct light. Aluminum trailers develop fatigue cracks 22% faster than steel counterparts due to flex fatigue.
Examine the suspension system’s leaf springs or torsion axles. Measure sag: standard clearance is 8–10 inches from ground to axle housing. Less than 6 inches indicates overloading or spring failure. Lubricate bushings with lithium-based grease every 500 miles to prevent seizing.
Check the wheel hubs for excessive play–lift each corner and wiggle the tire horizontally. Any movement beyond 1/8 inch means worn bearings; repack with high-temp bearing grease (NLGI GC-LB rated) or replace sealed units if corrosion is evident.
Verify brake actuator function on models with electric or surge systems. Test by backing up slowly; drums should engage within 3 seconds. Clean magnets with sandpaper (400-grit) to remove glaze, restoring 90% of braking efficiency.
Assess lighting connections–corrosion on terminals causes intermittent failures. Apply dielectric grease after each disconnection to prevent moisture ingress. Replace LED bulbs only with identical voltage ratings to avoid voltage spikes damaging the tow vehicle’s circuit.
Review safety chains and cross them under the tongue to create a cradle. Ensure chain links are grade 70, with a 1/4-inch minimum diameter. Overlapping by 2–3 links prevents dragging while maintaining compliance with DOT regulations (49 CFR § 393.70).
Critical Elements of a Vehicle Transport Trailer System
Inspect the coupling mechanism weekly if used frequently–rust or wear on the latch can cause sudden disconnection. Replace components showing more than 0.5mm of play in moving joints. Ball sizes of 1-7/8″, 2″, and 2-5/16″ require matching trailer tongues with exact tolerances to prevent sway during towing at speeds above 55 mph.
The suspension system bears the load of both the trailer frame and the transported vehicle. Leaf springs should be checked for cracks every three months, while torsion axles require less maintenance but must have their rubber cords replaced if sagging exceeds 10mm. Hub bearings must be repacked with high-temperature grease annually–failure leads to overheating and wheel detachment.
Tire selection depends on payload capacity. ST-rated tires support heavier loads than passenger (P) tires but have stiffer sidewalls, reducing ride quality. Inflate to manufacturer-recommended PSI plus 5% for highway use, and rotate positions every 6,000 miles to even out wear patterns. Spare tires on trailers should match the main tires’ load range to avoid uneven handling.
Electric brake assemblies must be wired with 10-gauge copper wire for circuits under 30 feet; longer runs require 8-gauge to prevent voltage drop. Brake magnets wear unevenly–replace them if resistance measures outside 3.0–3.5 ohms. Trailers over 3,000 lbs gross weight require a breakaway battery that activates if the trailer separates; test it monthly by pulling the pin and verifying brake engagement within 0.3 seconds.
Key structural components include:
- Frame rails–must be steel with minimum 3″x2″ rectangular tubing for trailers under 5,000 lbs; heavier loads need boxed beams.
- Ramps–aluminum ramps save weight but dent under impact; steel ramps flex less but require corrosion protection.
- Safety chains–cross chains under the tongue to prevent nose-diving if the hitch fails; use proof coil chain rated for twice the gross trailer weight.
- Lighting–LED markers last longer than incandescent but need sealed connections to prevent moisture ingress; check for dimming during pre-trip inspections.
Lubricate pivot points on tilting beds with lithium-based grease–avoid petroleum-based products on nylon bushings. For trailers with surge brakes, ensure the actuator cylinder moves freely but resists pressure; a stuck cylinder prevents braking, while excessive play causes premature engagement. Winches on ramps should have a 3:1 mechanical advantage; test the strap integrity by loading it to 1.5 times the expected weight before each use.
How to Interpret Vehicle Trailer Electrical and Fluid Flow Blueprints
Begin by locating the key legend in the upper corner of the schematic–it decodes symbols for wires, connectors, valves, and pumps. Each wire is labeled by color (e.g., YL for yellow with green stripe) and gauge (commonly 12-14 AWG for auxiliary circuits). Fluid lines use dashed, solid, or dotted patterns to indicate pressure levels: a single solid line signifies a primary hydraulic line, while a dotted line marks a low-pressure return or vent.
Trace electrical circuits methodically:
- Identify the power source: look for a battery symbol or alternator icon connected to a thick red line.
- Follow each wire to its destination (e.g., brake lights, auxiliary outlets) and note splices marked by a “T” or dot.
- Check for fuses (rectangular symbols with a zigzag) or relays (a small box labeled “85/86/87”) in critical paths.
- Verify ground connections–a downward-pointing triangle with a “G” or chassis symbol–ensuring they terminate at a bare metal surface.
Hydraulic Schematic Breakdown
Focus on these critical components when analyzing fluid systems:
- Pump: Look for a circular symbol with an arrow or “P” label. Note displacement (e.g., 3.5 cc/rev) if specified.
- Control Valves: Portrayed as rectangles with arrows indicating flow direction. Labels like “NC” (normally closed) or “NO” (normally open) dictate default states.
- Accumulators: Represented by a half-circle or cylinder symbol. Check pre-charge pressure (typically 90-110 PSI) and volume.
- Lines: Highlighted by thickness: thicker lines handle higher pressure (e.g., 2,500 PSI for brake assist), thinner lines serve lubrication or cooling.
Cross-reference schematic notations with physical components. For example, a solenoid valve (depicted as a rectangle with dashed lines) should match an identifiable solenoid on the trailer’s braking actuator. Use a multimeter to confirm continuity between the valve’s terminals and the wiring diagram’s blue (brake signal) or green (taillight) lines. For hydraulics, visually inspect lines for matching color-coding (e.g., yellow for high-pressure, blue for return) and diameter (1/4″ vs. 3/8″).
Safety checks demand precision:
- Test brake circuits by engaging the towing vehicle’s manual lever; the trailer’s electric-over-hydraulic controller should illuminate an LED (positioned on the schematic).
- For hydraulic systems, pressurize the circuit incrementally (start at 500 PSI) while monitoring for leaks or erratic gauge readings. Abnormal spikes above 1,500 PSI indicate a stuck valve or failed relief valve.
- Label a printed copy of the schematic with real-world observations: mark wire splices, valve adjustments, and pressure readings directly on the diagram for future reference.
