Begin by sourcing the official service manual for your specific machine model. Manufacturers typically embed high-resolution illustrations within these documents, labeling each element with numerical identifiers. Verify the model number on the equipment’s data plate–this ensures compatibility between the schematic and the physical assembly. Misalignment between the diagram and actual parts often stems from outdated manuals or incorrect model references.
Use OEM-authorized distributors or verified online repositories to obtain schematics. Avoid third-party reproductions, as they frequently omit critical details like torque specifications, material grades, or assembly sequences. For hydraulic or electrical sub-systems, cross-reference the schematic with a wiring or fluid flow chart–these details prevent misinstallation of seals, connectors, or relays, which can void warranties or cause safety hazards.
Focus on the legend first. Standardized symbols indicate fasteners, bearings, or seals, but variations exist across brands. For example, a dashed line may denote a hidden edge on one diagram but represent a flexible hose on another. Confirm the key before disassembly. Highlight the section of the schematic corresponding to the malfunctioning subsystem–whether it’s a transmission, blade spindle, or cooling module. Annotate the diagram with measurements from the physical part to verify wear or dimensional deviations.
Digital exploration tools, such as interactive PDFs with searchable text layers, expedite troubleshooting. Use keyword searches for terms like “drive belt tension” or “solenoid valve” to jump to relevant sections instantly. For older models lacking digital enhancements, print the schematic and use tracing paper to overlay observed damage or modifications. This method reveals discrepancies between factory blueprints and field alterations.
Store schematics in a waterproof, indexed binder alongside maintenance logs. Update these records whenever modifications occur, such as aftermarket upgrades or repaired components. This practice ensures future technicians–whether you or a hired specialist–can diagnose issues without repeatedly reverse-engineering the assembly.
Understanding Schematics for Professional-Grade Zero-Turn Mowers
Begin by locating the engine assembly blueprint, typically found on the first or second page of any official service manual. Identify the air filtration system–marked with a three-digit code–and cross-reference it with the parts list to avoid mismatches during replacements. The oil cooler, often overlooked, connects near the hydraulic pump; verify its placement in section 4B to prevent installation errors.

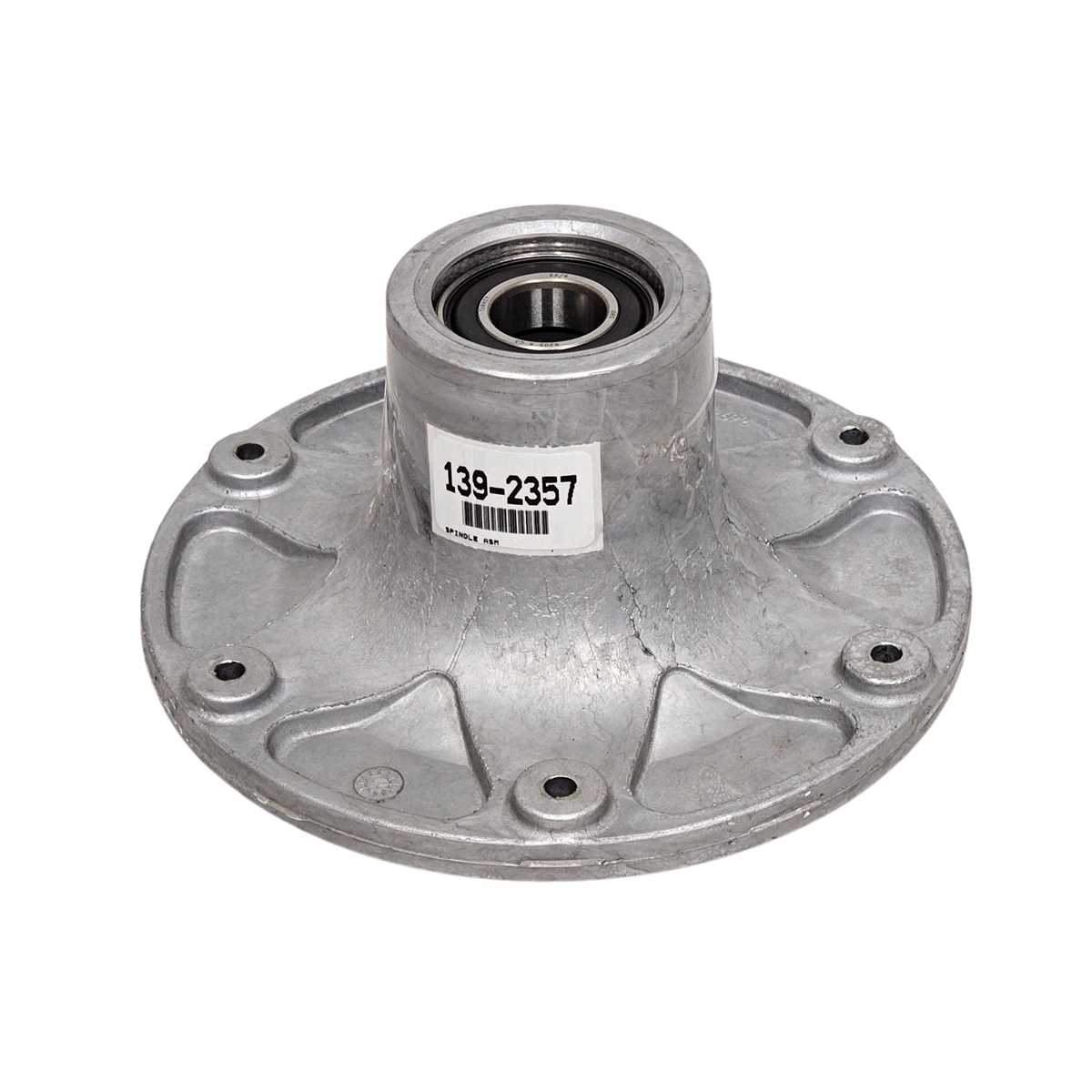

Hydraulic lines require precise routing per the illustrated paths, especially around the rear transaxle. Misalignment here causes premature wear–use colored tags to trace each hose before disassembly. The spindle assemblies, detailed in sub-section 7, include torque specifications for bearings and pulleys; exceeding these values risks catastrophic failure under load.
Examine the deck lift mechanism early, focusing on the actuator linkage. The diagram splits this into upper and lower views–align the pivot points exactly as shown to maintain cutting height consistency. Blade engagement cables, noted in red on most schematics, must be inspected for fraying every 50 hours; refer to the tensioning guide in the appendix for exact measurements.
Electrical wiring diagrams frequently confuse technicians–isolate the ignition circuit first. The solenoid’s ground connection, a common failure point, should be cleaned and secured with dielectric grease. For models with LED lighting, check resistor values against the legend to avoid voltage irregularities that shorten bulb lifespan.

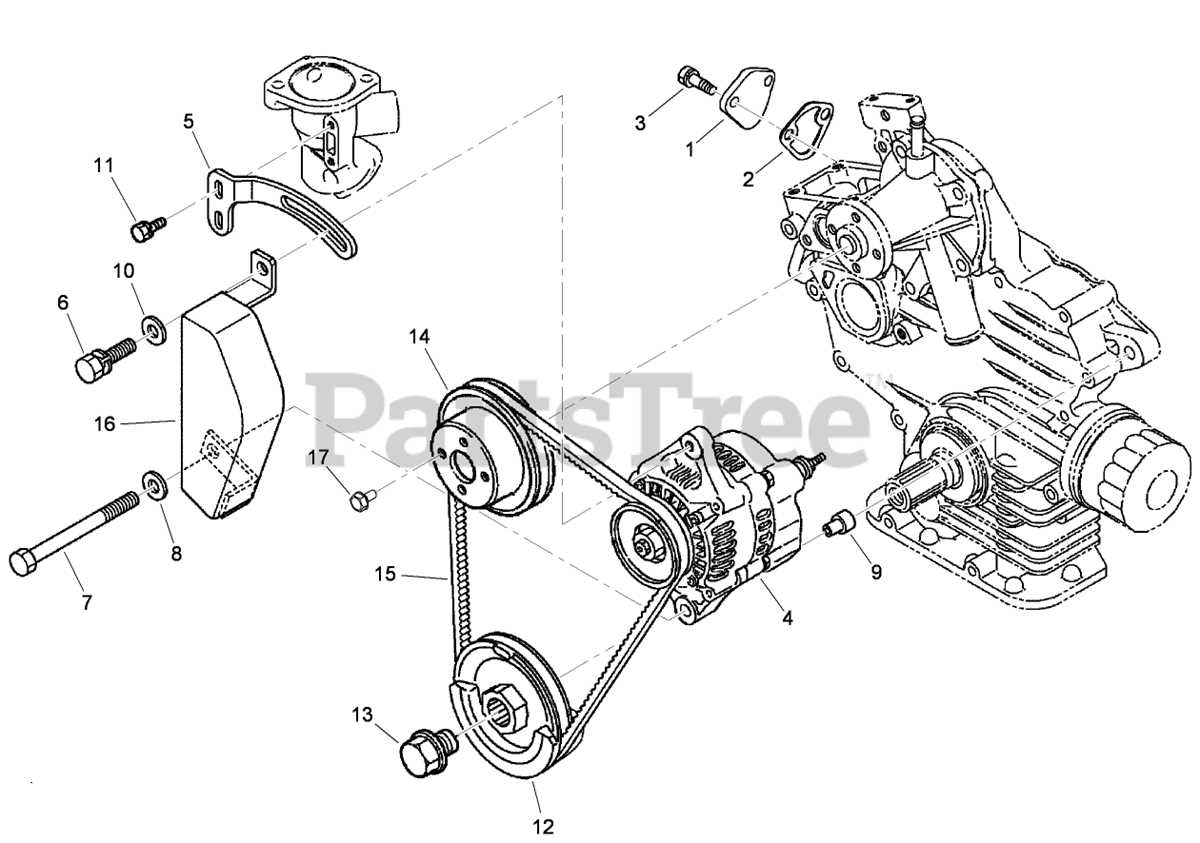

Drive belts have unique identifiers (e.g., “A-12” or “B-8”) etched on their edges; these must match the exploded view in the transmission section. Incorrect sizing here leads to slippage or excessive heat buildup–use a caliper to measure width and compare with the schematic’s tolerances. The deck belt tensioner’s spring has a specific load rating; deviations cause uneven wear patterns on blades.
Fuel system layouts are critical for carbureted models. The float bowl and jets are labeled with micron sizes–never swap them. For injectors, follow the numbered flow paths to ensure proper spray angles; clogged nozzles create lean conditions detectable via spark plug analysis. The emissions canister’s purge valve, shown near the firewall, must be vented per EPA standards–seal any leaks immediately.
Attachments like mulching kits or snow blades alter the original schematics. The PTO clutch’s electrical draw varies by accessory–confirm compatibility with the fuse ratings listed in the power distribution chart. Grease fittings, often omitted in user manuals, are mapped in the chassis sub-assembly; apply NLGI #2 grease every 25 hours to pivot points marked with an arrow.
For troubleshooting, use the numbered callouts on the right-side legend. Component “345” (cooling fins) must remain unobstructed–clean with compressed air at a 45° angle to avoid damaging the thin aluminum. If hydraulic leaks occur, trace the path backward from the wet spot to the source; seals and O-rings have distinct part numbers for different fluid viscosities.
How to Locate and Identify Engine Components in Zero-Turn Mower Schematics
Begin by locating the engine section labeled on the right side of the schematic–most manufacturers group components by function, and the powerplant assembly typically occupies 30–40% of the total illustration. Reference numbers adjacent to each element correspond to a numbered legend; cross-check these against the accompanying bill of materials to confirm part names and specifications. For example, Kawasaki FX engines feature a distinct oval air filter housing, while Briggs & Stratton models often integrate the filter into a rectangular plastic shroud.
Focus on the crankcase area first. On exploded-view drawings, the carburetor is usually positioned directly above the intake manifold, identifiable by its bowl shape and fuel line connections. Look for the following:
- A float bowl with a drain plug–common on gravity-fed systems
- Throttle linkage rods extending to the governor
- A choke lever marked by a butterfly symbol
If the schematics include color coding, fuel-related components often appear in green or red; consult the legend for exact conventions.
Cooling system elements cluster near the flywheel. The fins of the cylinder head radiate outward and are flanked by:
| Component | Visual Clue | Typical Location |
|---|---|---|
| Flywheel | Large circular disc with magnets embedded | Mounted on crankshaft, behind shroud |
| Blower housing | Plastic or metal enclosure with directional vanes | Covering flywheel, bolted to crankcase |
| Fan blades | Curved plastic or stamped metal blades | Inside blower housing, attached to flywheel |
Measure the bolt pattern if replacing–the dominant 3-hole arrangement spans 72mm on most Kohler Command engines, while 4-hole patterns at 85mm indicate a Honda GX series.
Ignition components hide beneath the flywheel cover. The ignition coil appears as a rectangular module with two wires leading to the spark plug boot. On the opposite side, the alternator–often a small black box–connects via spade terminals. Verify wire gauge against the diagram: 14 AWG for primary ignition circuits, 18 AWG for charging systems. If troubleshooting, note Kawasaki engines position the kill switch wire into a white connector, while Briggs models use a gray plug with a single tab.
Exhaust system schematics depict the muffler as a cylindrical or trapezoidal shape mounted to the cylinder head via two bolts. Look for a thermal wrap or mesh guard–omitted diagrams may still show a dotted outline where shielding should exist. Compare bolt thread pitch: metric M8x1.25 fasteners secure most Japanese-made engines, while American units frequently use 5/16″-18 UNC.
Lubrication details appear fragmented across sections. The oil dipstick tube inserts into the crankcase near the sump; diagrams often omit the dipstick itself but include a dashed line indicating its path. Oil filters–where present–are drawn as oblong cylinders with an internal thread pattern matching either spin-on (2.0″ diameter) or cartridge styles (1.5″ diameter). Always cross-reference the oil capacity: 2.0 quarts for most V-twin engines below 25 HP, 2.8 quarts for models exceeding 30 HP.
Governor linkages demand careful tracing. The governor arm connects to a splined shaft protruding from the crankcase–visible as a small lever with a tension spring. Follow the linkage rod to the carburetor throttle plate; diagrams typically mark the governor spring with a distinct red or blue line. If the spring appears stretched in the illustration, measure free length: 1.75″ for factory-spec, less than 1.5″ indicates potential failure.
Step-by-Step Guide to Locating Cutting Component Assemblies in Equipment Blueprints
Access the manufacturer’s official service portal or authorized reseller database. Input the model number etched on the engine housing–typically a 5-7 digit alphanumeric code–and select the “Illustrations” section. Expand the “Rotary System” category in the exploded view; blades, spindles, and mounting hardware are grouped under sub-assemblies 12-15. Use the callout numbers to cross-reference the parts list–quantities, OEM identifiers, and compatible aftermarket alternatives are listed in adjacent columns. For older models (pre-2018), toggle the revision history to verify superseded components.
Key Troubleshooting Checks
- Measure blade thickness and arbor hole diameter before ordering–tolerances vary by +0.005″ between series.
- Inspect the schematic’s torque specifications for fasteners–over-tightening distorts decks on aluminum frames.
- Compare the illustration’s version date (bottom corner) with your unit’s serial plate–retrofits may require updated washers or spacers.
- For disassembly, note the orientation of anti-scalp rollers (if equipped) in the side-view–incorrect reinstallation causes uneven cutting.
