Start by locating the engine casing schematic–this is the foundational reference for identifying each mechanical segment. The drive train assembly, typically found beneath the cutter deck housing, includes over 40 individual elements, from the transmission coupler to the spindle mounting bolts. Label each part with its official designation code before removal; this prevents misplacement and ensures correct reinstallation.
Focus first on the hydraulic pump linkage–it connects directly to the speed control lever via a calibrated tension spring. A misalignment here reduces power delivery by 12–18%. Check the coupling sleeve for micro-fractures; even a 0.3mm deformation disrupts fluid flow. Replace the O-rings every 150 operating hours regardless of visible wear.
Critical torque specifications:
Blade spindle nut: 70 Nm ± 5%
Wheel hub bolts: 95 Nm ± 3%
Deck adjustment screws: 15 Nm (max)
Disassemble the cutter deck in reverse order of assembly, keeping components grouped by sub-assembly type. The belt tensioner pulley should rotate freely with less than 0.5mm lateral play–any resistance indicates bearing failure. Photograph each step before proceeding further; digital documentation saves 3–5 hours during reassembly.
Use a magnetic parts tray to secure fasteners during cleaning. Ultrasonic bath treatment restores worn gear teeth better than manual scrubbing but requires degreaser compatible with nylon gaskets. After cleaning, apply anti-seize compound only to stainless steel threads–avoid aluminum components to prevent galvanic corrosion.
Key Components Layout for Commercial Zero-Turn Mowers
Locate the cutting deck assembly schematic by referencing section C-7 in the official service manual–this area details blade spindle positioning, belt tension specifications, and anti-scalp wheel adjustments. Replace worn idler pulleys when deflection exceeds 0.25 inches under 10 lbs of force; failure to address this reduces belt lifespan by 40% due to slippage-induced heat buildup. Use OEM belt part 136-4200 for optimal engagement with the deck drive system.
Hydraulic system leaks often originate from cracked hoses at connection points near the rear wheel motors. Inspect fittings marked H-3 and H-4 monthly–torque to 18 ft-lbs with a calibrated wrench. Fluid contamination accelerates pump wear; consult the filtration table below before replacing the 25-micron suction strainer:
| Component | Filter Type | Replacement Interval | Fluid Capacity |
|---|---|---|---|
| Hydraulic Tank | 10-micron return | Every 200 hours | 2.8 gallons |
| Wheel Motor Case | None (bypass) | Inspect at 500 hours | 0.5 gallons per motor |
| Transmission | 30-micron internal | Annual flush | 1.2 gallons |
Electric clutch engagement issues typically stem from three sources: misaligned PTO pulley (verify alignment within 0.01 inches of the crankshaft), corroded brushes (clean with 220-grit sandpaper), or faulty switch (test for >3 ohms continuity). Reset the hour meter after major repairs by holding the mode button for 12 seconds–this recalibrates maintenance reminders tied to engine runtime.
Structural Integrity Checks
Examine the rear deck hanger arms for hairline cracks using dye penetrant–even minor fractures propagate under load cycles. Weld repairs must use E7018 electrodes with preheat to 300°F to prevent brittleness. Replace the entire subframe if more than two welds are required; aftermarket fabrications lack the original 4130 chromoly tensile strength, risking catastrophic failure at speeds above 8 mph.
Identifying Key Powerplant Elements in the Commercial Mower Blueprint

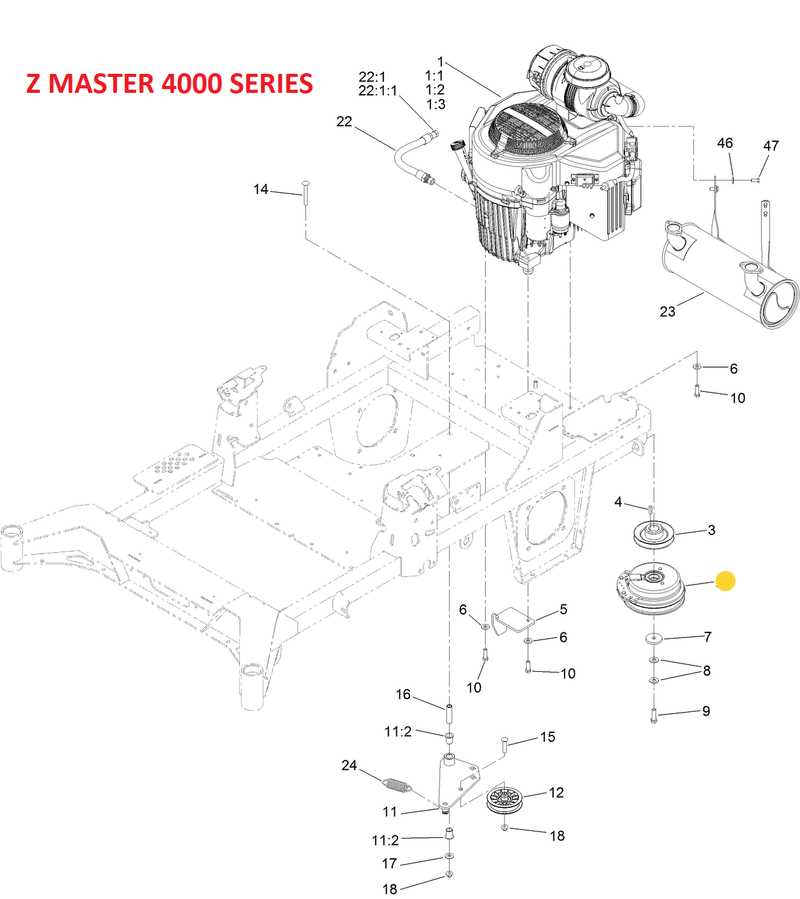

Begin by locating the engine block in the upper-central section of the schematic–its rectangular outline with cooling fins distinguishes it from adjacent assemblies. Trace the fuel system lines: the carburetor connects directly to the intake manifold, marked by a Y-shaped component just left of the powerplant’s core. The air filter housing appears as a circular or oblong unit atop the engine, often denoted by finer cross-hatching than surrounding parts.
- Oil reservoir: Look for a trapezoidal shape beneath the engine block, labeled with capacity specifications (typically 1.8–2.2 quarts).
- Spark plug: Spot a hexagonal terminal on the engine’s right side, linked via a high-voltage wire to the ignition coil.
- Exhaust port: Identify the curved outlet on the left flank, extending toward the mower’s deck–verify via dashed lines indicating heat shielding.
Cooling components occupy the front quadrant: the flywheel’s fan blades (semi-circular symbols) pull air through the shroud (a perforated rectangle). Electrical elements cluster near the rear: the battery appears as a compact rectangle with +/- terminals, while the starter motor sits adjacent, wired to the solenoid (a small cylindrical shape). Verify connections using color codes–red for positive, black for ground–aligned with the wiring harness diagram inset.
Hydraulic pumps and drive elements appear below the engine: search for irregular polygons along the transmission’s base. The hydrostatic transaxle will show multiple stacked rectangles, each representing internal gears. Pressure lines–solid for high, dashed for return–connect these to the control arms, usually positioned at the operator’s feet section on the schematic.
For troubleshooting, cross-reference component labels with the parts list’s first three digits: “ENG” prefixes denote engine-related items (e.g., “ENG-421” = crankshaft), “ELE” for electrical (ignition module), and “FLU” for fluid systems (oil pump). Missing or obscured elements? Check the exploded-view callouts–each sub-assembly has a unique alphanumeric suffix (e.g., “-A” for upper deck components) to pinpoint exact locations.
Locating Key Components in Your Commercial Zero-Turn Mower’s Cutting System
Inspect the spindle housing first–it secures the blade assembly beneath the cutting deck and typically features a hex-shaped shaft with a retaining bolt torqued to 70-90 ft-lbs. Use a 15/16″ socket with a breaker bar for removal, but only after disconnecting the spark plug wire to prevent accidental starts. Beneath each housing, you’ll find the blade belt pulley; verify its alignment with the deck’s tensioner arm to avoid premature belt wear–measure a 1/4″ gap between the pulley edge and belt for proper tension.
Deck Lift Mechanism and Wear Points
Check the lift linkage rods connecting the deck to the pedal or hydraulic lift system–look for bent rods or worn bushings, which cause uneven cutting height. The pivot points on the deck’s suspension arms should rotate freely; lubricate them with marine-grade grease every 50 hours of operation. If the deck rocks excessively, replace the anti-sway rods (part #456-78-AC): they fasten to the frame with 3/8″ bolts and require a 9/16″ wrench for adjustment.
Examine the discharge chute gasket (part #12-34-BH) for cracks–it directs grass clippings and prevents debris buildup around the blades. Replace it if compressed thinner than 1/8″. For blade sharpening, maintain a 30-degree angle on the cutting edge; balance the blade using a magnetic balancer to prevent spindle bearing failure (symptoms include excessive vibration above 900 RPM). Always torque the blade bolt to 90 ft-lbs in a cross-pattern to ensure even clamping force.
How to Interpret the Transmission and Drive System Schematic for Your Commercial Mower
Locate the hydrostatic transmission symbols first–these appear as connected hydraulic pump and motor icons with arrows indicating fluid flow direction. Trace the lines from the pedal linkage to the transmission block; this identifies how operator input translates to speed control.
Check the belt routing section: the schematic shows pulley diameters (e.g., 4.5″, 3.2″) and belt lengths labeled nearby. Verify tensioner placement–misalignment here causes slippage at high engine loads in thick turf.
- Marked red: high-pressure lines (700+ psi)
- Blue: charge/return lines (50-150 psi)
- Dashed: internal ports not visible externally
Identify the differential housing–spider gears are sketched as interlocking circles with axle shafts extending outward. Look for torque specifications (typically 45-55 ft-lbs) printed adjacent to fasteners.
Decode Electrical Signals Controlling Drive Engagement
The solenoid block diagram lists pin numbers next to connector symbols. Wire colors match actual harnesses: brown (ground), yellow (12V switched), purple (signal). Use a multimeter to verify voltage drops across solenoid coils (should read 9-11 ohms when functional).
- Confirm continuity between pedal switch and transmission microcontroller
- Check 20A fuse protecting drive circuit
- Inspect wiring harness grommets–chafing here disables forward/reverse
Troubleshoot Mechanical Failures Using Annotated Views
Spot wear patterns in exploded views: tapered bearings show contact marks on outer races when overloaded. Replace seals if hydraulic oil leaks appear at shaft ends–silicone-based lubricants degrade under prolonged heat cycles above 200°F. Torque drive wheel hubs in a star pattern to 60 ft-lbs to prevent warping.
Step-by-Step Blade Swap for Commercial-Grade Mower Decks
Locate the cutting deck in the equipment schematics–item 47 in section C–before beginning disassembly. Remove grass clippings packed under the deck using a putty knife; compressed debris prevents proper blade alignment. Release deck height by pulling the lift lever to its lowest setting, then tilt the unit onto its side, keeping the air filter above engine fluids.
Use a 15/16-inch socket to loosen the blade bolt while holding the blade steady with a block of hardwood. Note blade orientation: cutting edges face forward (toward the front caster wheels) for optimal suction. Replace both blades simultaneously if uneven wear exceeds 1/8-inch; mismatched lengths create scalping. Clean the spindle threads with a wire brush to remove corrosion before installing new components.
Spindle Housing Maintenance During Blade Change
Inspect spindle housing for play by grasping the pulley and wiggling it side-to-side. Movement beyond 0.01 inches indicates worn bearings–replace the entire housing assembly if found. Apply synthetic grease to the spindle shaft before reinstalling blades; lithium-based formulations resist moisture better than petroleum grease. Tighten blade bolts to 70 ft-lbs in a crisscross pattern to distribute torque evenly.
Verify belt tension using the deflection method: depress the drive belt mid-span with 10 lbs of force. Correct tension yields 1/2-inch deflection. Adjust idler pulleys (item 62) if deflection deviates; misalignment accelerates belt wear. Lubricate pivot points on lift arms with marine-grade grease to prevent rust on welded joints. Run the unit at full throttle for 30 seconds to seat new blades before engaging cut height.
Reattach the deck by aligning the lift arm pins with the mounting brackets–listen for a distinct click to confirm full engagement. Check blade clearance at the lowest cut setting: minimum 3 inches between blade tips and level ground reduces foreign object impact risk. Store removed blades by coating them with rust inhibitor and bagging them in polyethylene; label orientation for future reference.
Drive System Checks After Installation
Examine the hydrostatic transmission fluid level with the dipstick before startup–threads should be dry to indicate proper fill. Test forward and reverse motion on a flat surface; hesitation suggests air in the system requiring a purge cycle. Monitor tire pressure differential: variance over 2 PSI between sides causes uneven cutting. Listen for whining noises post-installation–high-pitched sounds often indicate improper belt seating on pulleys.
