Begin your repair by identifying the engine assembly schematic. Most manufacturers provide numbered breakdowns with 15–25 key elements: filters, gaskets, belts, blades, and ignition modules. Request the official service manual from the distributor–part codes differ even between similar models. Universal adaptors rarely fit if tolerances exceed ±0.2 mm.
Check the carburetor sub-assembly first; 65% of performance issues stem from clogged jets or worn diaphragms. The intake manifold gasket should be replaced if any deformation appears–spark loss often follows compression leaks. Avoid generic rebuild kits; OEM diaphragms maintain precise fuel-to-air ratios without requiring recalibration.
Belt tension must be measured with a spring gauge: 30–35 lb tension prevents slippage without overloading bearings. Replace the drive belt if cracks appear–visual inspection alone misses 40% of internal fraying. For blade sharpening, maintain a 30° bevel angle and check balance on a knife-edge jig before reassembly to prevent vibration-induced crankshaft wear.
Hydraulic lines should be flushed every 200 hours–contaminants degrade seals within 10 hours of exposure to debris. Use original brand-specific fluid; synthetic alternatives alter viscosity under temperature swings, causing erratic movement. Drain valves require periodic cycling to prevent valve seizure–test at full extension before each season.
Electrical schematics are rarely included in basic manuals. Label connectors before disassembly; misrouted wires cause short circuits in ignition systems within 48 hours of operation. Test solenoids individually with a multimeter–resistance values should fall between 0.5–1.5 ohms. Rotate the flywheel by hand before startup to ensure crank position sensor alignment.
Understanding Your Commercial Mower’s Component Layout

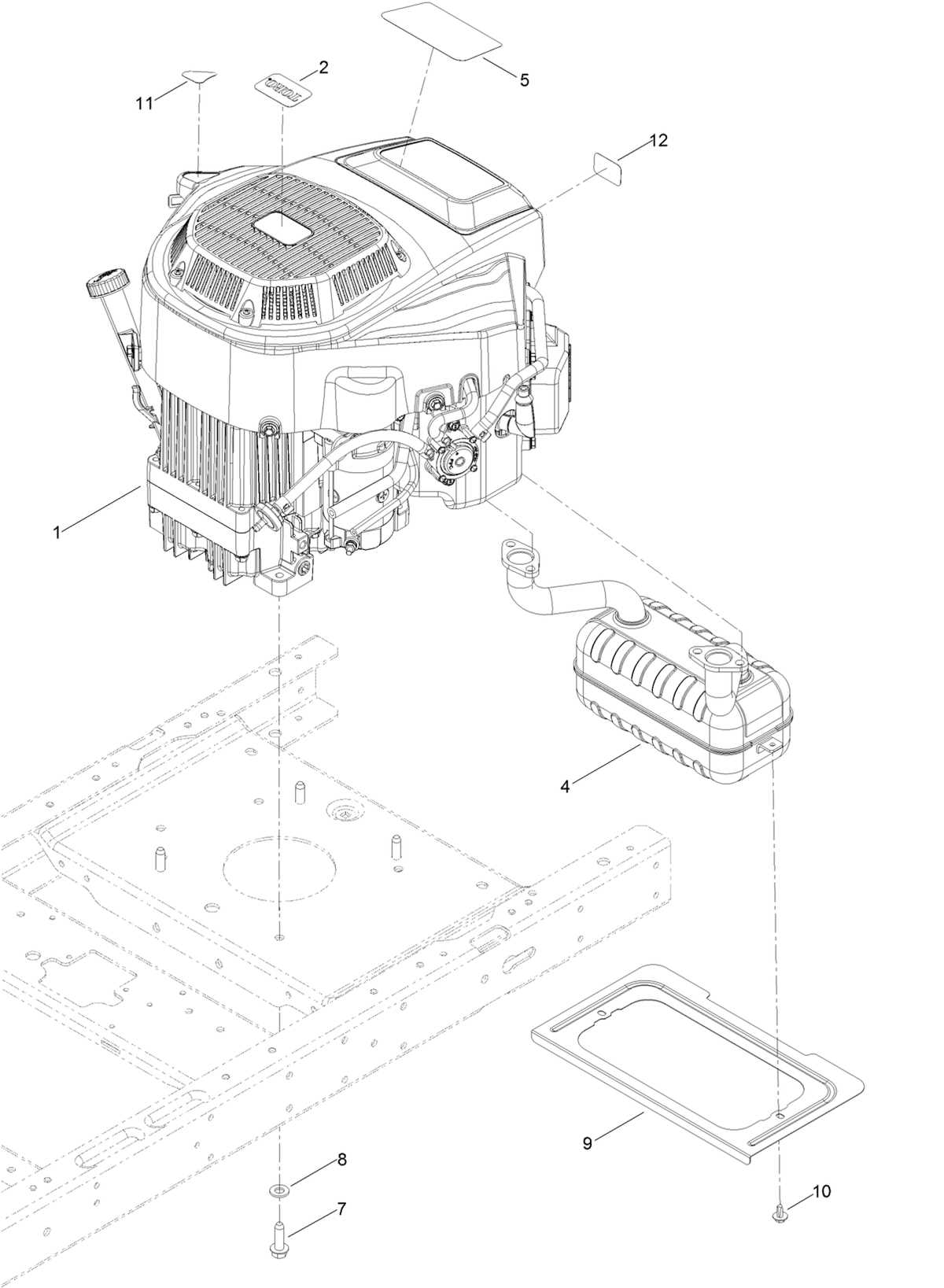

Locate the engine assembly first–it sits centrally on the frame, secured by four bolts. Verify torque specs at 45-50 ft-lbs to prevent vibration damage. Adjacent to it, the fuel pump connects via two fuel lines: a 3/8″ inlet from the tank and a 1/4″ outlet to the carburetor. Replace both lines every 400 operational hours; brittle rubber causes inconsistent pressure drops.

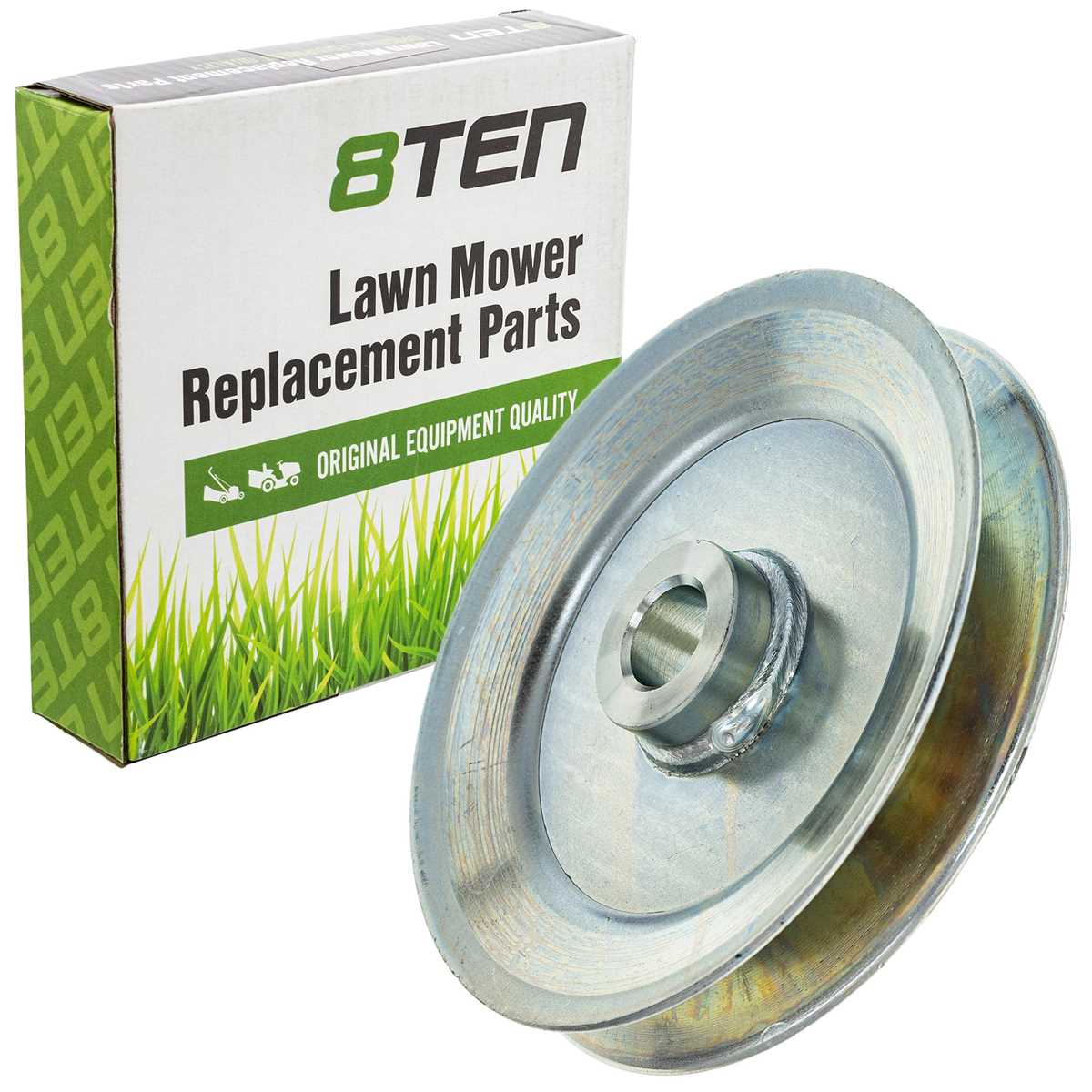

Inspect the cutting deck’s pulley system before disassembly. The primary belt measures 168″ (outside length) with a 1/2″ width. Check for fraying at the tensioner pulley–excessive wear here reduces blade speed by up to 18%. The idler pulleys should rotate freely; apply lithium-based grease sparingly–over-lubrication attracts debris, increasing drag.
- Blade spindle housing: Remove with a 15mm socket; check for snapped shear pins (replace in pairs, regardless of condition).
- Hydrostatic transmission: Drain fluid at 250 hours; use SAE 20W-50 synthetic to extend seal life by 30%.
- Steering linkage: Tighten rod ends to 25-30 ft-lbs–loose connections cause uneven cut patterns.
The electrical schematic runs along the left side panel. Key components: a 20-amp circuit breaker (test with multimeter for 12.6V output) and three ground wires–clean corrosion with wire brush before reattaching. The ignition switch plugs into a six-pin harness; misalignment triggers intermittent starting issues. Label wires before disconnecting to avoid cross-wiring during reassembly.
For the grass chute, the discharge flap’s spring tension dictates clipping spread. Adjust the tension knob clockwise in 1/8″ increments to improve side dispersion. If replacing the chute, ensure the new part’s mounting holes align with the deck’s threaded inserts–mismatched parts cause clogging at bends. The deflector shield attaches with two 1/4-20 bolts; torque to 12 ft-lbs.

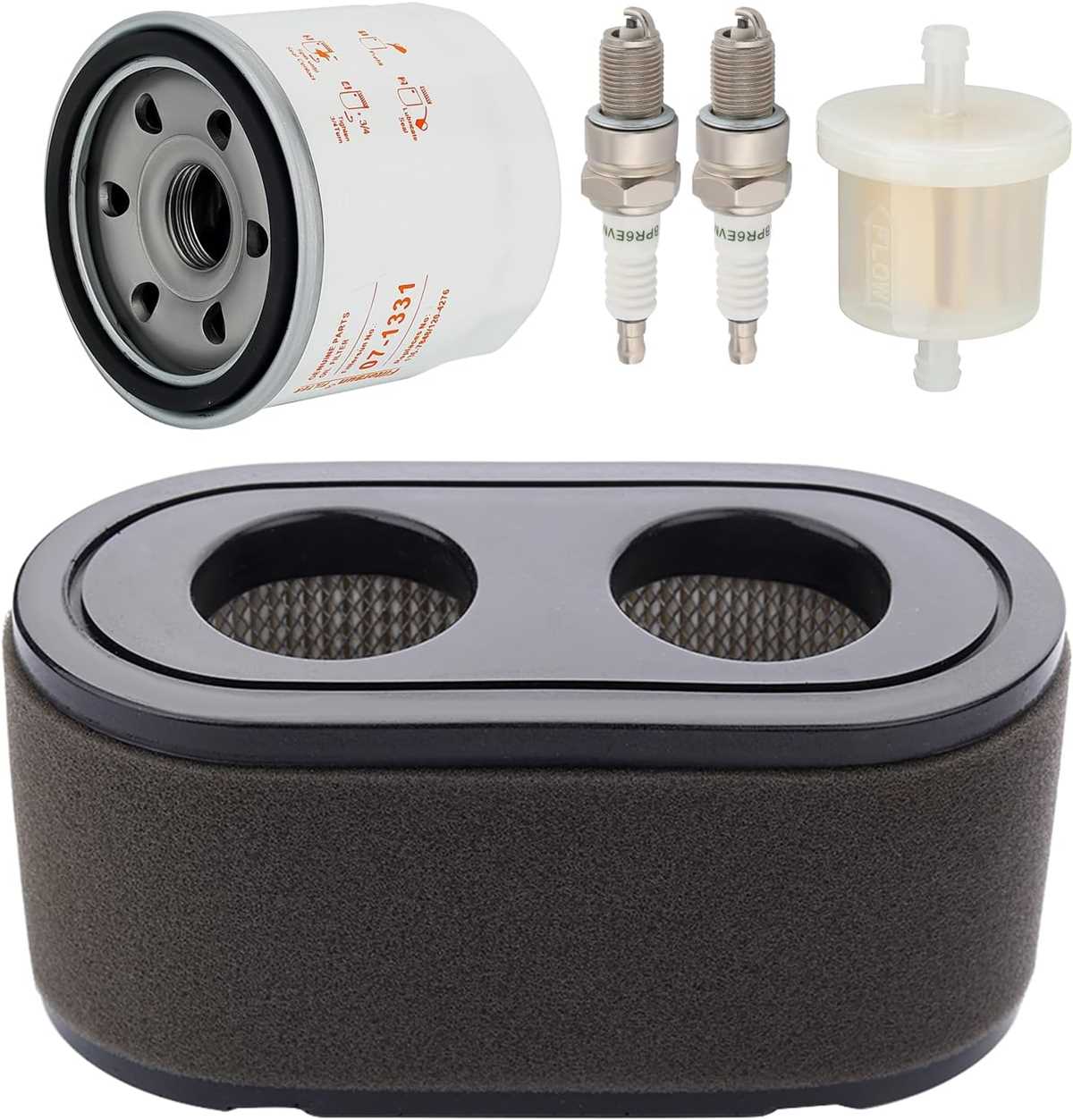

- Air filter: Tap the cartridge gently to remove debris; replace if pleats are collapsed or soaked with oil.
- Mower deck wheels: Set tire pressure to 15 PSI–overinflation damages turf, underinflation causes scalping.
- Seat safety switch: Bypass temporarily to test; if engine stalls, check the microswitch’s plunger for obstruction or wear.
Identifying Key Motor Elements on Your Mower’s Schematic
Begin by locating the overhead valve cover at the top of the engine block–this component shields the rocker arms and valves. On most illustrations, it’s marked with a numerical identifier near the upper-left quadrant, labeled distinctly with a red or black outline. Trace the adjacent lines downward to find the camshaft and crankshaft pulleys, typically positioned below and connected via a timing belt or chain, depending on the model variant.
Next, examine the carburetor assembly, usually situated on the right side of the engine. It’s often depicted with a small, detailed inset in exploded-view schematics, showing the air filter housing, fuel inlet, and throttle linkage. The fuel pump, if present, attaches nearby, identifiable by its inlet and outlet fuel lines leading to the tank and carburetor.
Focus on the flywheel, a large circular component on the opposite side of the crankshaft pulley. It’s critical for magneto ignition systems, as it houses the magnets that generate spark via the ignition coil. Look for the starter motor–either electric or recoil–mounted adjacent to the flywheel, connected by a gear or pulley for initial engine rotation.
The oil dipstick and filler cap are typically grouped near the base, often on the left or rear of the engine housing. Oil passage routings may be faintly indicated by dashed lines in some schematics, directing to the crankcase and cylinder walls. Verify placement by cross-referencing the numerical key, as some models integrate these features into a single access point with a threaded cap.
Locating Gearbox Components in the Equipment Blueprint
Begin by securing the official machinery schematic, typically labeled with a model-specific identifier near the bottom right corner. If the document lacks clear indexing, flip to the reverse side where a detailed contents section often lists assemblies by page number. The transmission sub-system usually appears after the engine and drive train sections–expect pages 12 through 18 for most configurations.
Scan for a labeled cutaway illustration showing the gearbox housing and its internal arrangement. Key identifiers include shafts marked “input” or “output,” clustered clusters of numbered circles (gears), and triangular symbols (bearings). Cross-reference these visual cues with the accompanying legend, which decodes symbols into component names and part codes.
For precise part tracing, locate the exploded view spread that isolates the transmission assembly. Below is a quick reference table mapping common symbols to components:
| Symbol | Component | Part Range |
|---|---|---|
| Solid circles (small) | Gears | 4500-4599 |
| Dashed circles | Synchronizers | 4700-4749 |
| Triangles | Bearings | 6100-6199 |
| Horizontal lines | Shift forks | 7850-7875 |
| Diagonal hashing | Seals | 8900-8949 |
Use a ruler to trace power flow from the input shaft through each gear stage. Note that odd-numbered components usually denote smaller, high-speed elements, while even numbers belong to larger, torque-converting parts. This numbering convention holds across most variants of the 5-series models.
Highlight any bolt-hole patterns or flange interfaces–these often correspond to mounting points for auxiliary clutches or PTO units. The schematic’s marginal notes frequently describe torque specifications; record these values as they dictate compatible replacement hardware.
If the exploded view omits a specific sub-assembly, switch to the hydraulic circuit page. Overlapping symbols between mechanical and hydraulic layouts often indicate integrated components like cooling plates or filter adapters that interact directly with the transmission’s oil pathways.
Troubleshooting Missing References
When a component lacks a numeric tag, cross-check adjacent assemblies. Common oversight areas include:
– The differential carrier, often mislabeled as part of the axle housing.
– Intermediate support bearings, shown only in sectional views.
– Gaskets, depicted as thin outlines but rarely assigned discrete part numbers.
Consult the supplementary parts catalog if ambiguity persists–supplemental sheets frequently include revisions not present in the primary blueprint.
Locating Key Electrical Components in Your Grounds Care Equipment Schematic

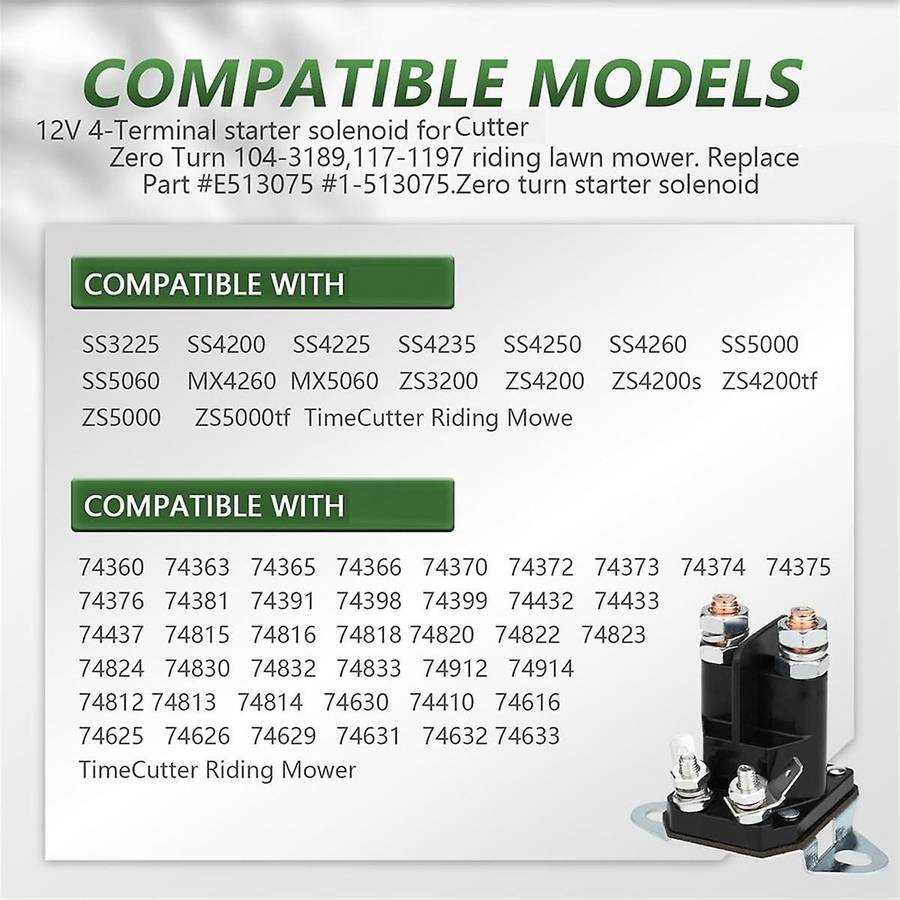

Start by tracing the battery terminals in the wiring blueprint–black wires connect to the negative post, red or yellow to the positive. Verify connections against the legend; inconsistencies often point to faulty relays or blown fuses. The starter solenoid, typically mounted near the engine block, should show two thick cables (one from the battery, one to the motor). If voltage drops below 12.4V at this junction during ignition, inspect the ground strap for corrosion.
Examine the ignition module next–a small rectangular box with 3-5 wires exiting it. Use a multimeter to test resistance between pins; readings should align with the service manual (commonly 1.5–3.5 ohms). If values deviate, check the flywheel magnets for debris or misalignment, as this disrupts signal generation. The coil pack, often confused with the module, handles spark delivery–its two-prong connector must show continuity to ground when unplugged.
Decoding Switches and Safety Interlocks
Seat switches, blade engagement levers, and PTO assemblies share a 5-amp circuit in most configurations. Probe each switch with the system activated; voltage should toggle between 0V (off) and ~12V (on). Failed switches often stick–apply dielectric grease to contacts after cleaning with a wire brush. For models with hour meters, confirm power flows through the red wire only when the engine runs, as incorrect readings drain the battery over time.
Fuse blocks cluster near the instrument panel, labeled with amperage ratings (e.g., 10A for lights, 15A for accessories). Swap suspect fuses with an identical amperage spare–never exceed ratings. If a new fuse blows immediately, isolate the circuit by disconnecting components sequentially. Headlight systems frequently overload; check bulb wattage against the schematic’s maximum (typically 55W for halogens).
Troubleshooting Charging Circuits
The alternator’s stator output wire (yellow or white) must register AC voltage (20–30V) at 3000 RPM. No voltage indicates a failed stator or loose rotor bolts–remove the recoil housing to inspect. Rectifiers convert AC to DC; test diodes with a multimeter in diode mode–readings should show ~0.5V in one direction only. Reversed polarity commonly fries controllers; always disconnect the battery before servicing. Voltage regulators stabilize output–if battery voltage exceeds 14.8V at idle, replace the regulator to prevent premature failure.
