For accurate rebuilds or troubleshooting, reference the exploded view of the 3-speed automatic transmission found in GM vehicles from 1969 to 1986. Begin by locating the valve body assembly near the transmission pan–this houses the critical springs and solenoids controlling shift timing. The intermediate clutch pack sits directly above the input shaft, containing friction plates (typically 4-5) and 5 steel reaction plates. Measured clearance should fall between 0.030–0.050 inches for proper engagement.
Inspect the torque converter’s stator–damaged blades disrupt fluid flow, leading to poor acceleration. The pump assembly, driven by the converter hub, requires precise alignment with the housing bushing. Replace both if wear exceeds 0.002 inches. For overhaul kits, prioritize seals: the front pump seal (Part #862008) and rear housing bushing (Part #361087) fail frequently. Always check the vacuum modulator diaphragm for cracks–this small part dictates shift firmness based on engine load.
Critical measurements include the output shaft’s end play (0.004–0.014 inches) and reverse band adjustment (1/4 turn past contact). Use a digital caliper for bearings: mainshaft front bearing (Part #14068518) should show no more than 0.001 inch radial play. The governor assembly (spline-driven) often collects debris; clean passages with compressed air before reinstallation. Replace the speedometer gear if teeth are chipped, as this corrupts vehicle readings.
Common failure points include the planetary gearset (check sun gear teeth for spalling) and the 1-2 accumulator piston (cracked seals cause harsh 1-2 shifts). The case itself rarely cracks, but inspect the bellhousing area for stripped threads–Helicoil inserts restore damaged bores. For wiring harnesses, note the shift solenoid resistance should measure 20–30 ohms. If replacing the tailshaft housing, verify the bearing preload using a inch-pound torque wrench (0.5–2.0 in-lb).
Breakdown of Critical Transmission Elements and Their Practical Use
For precise component identification during rebuilds, reference the torque converter’s front pump assembly–specifically the stator support and impeller blades–using OEM schematics like GM’s 1982 service manual, page 47. Mismatched clearances here (ideal: 0.008–0.012″) lead to premature slippage under 2,500+ RPM loads. Cross-check housing bore diameters with a micrometer before sourcing replacements; aftermarket units often neglect the +/-0.002″ tolerance required for proper stator alignment.
Hydraulic Valve Body Mapping
Label each valve body spring and spool according to GM’s “Transmission Hydraulic Circuits” chart (Figure 9-3). The 1-2 shift valve spring (part #2950267) must exert 14.5–16.2 lbs/in force at compressed length; deviations cause harsh or delayed shifts. Use acetone to remove old gasket material from separator plate channels, then pressure-test passages at 70 PSI to verify no cross-leaks exist between the 2-3 accumulator feed circuit and main line.
Sprag clutches in the rear planetary gearset degrade fastest under towing stress. Replace the #2950067 roller assembly if rotation resistance exceeds 12 ft-lb torque in the clockwise direction or 8 ft-lb counterclockwise–test with an inch-pound torque wrench. For 1977–1979 models, the intermediate band (#2950057) requires a 3/8″ bore reamer to restore surface finish after glazing; failure to correct this causes erratic 2-3 upshifts under partial throttle.
Electrical and Sensor Considerations
Verify the throttle position sensor output curve before installing the transmission control module. At WOT, readings should sweep from 4.2–4.8V (+/-0.1V) across the entire pedal travel; recalibrate using a Tech II scanner or GM’s “Driveability Shield” procedure (bulletin #82-71-02). The vehicle speed sensor (VSS) pickup ring teeth count–40 pulses per revolution–must match the ECM’s stored calibration, or cruise control and shift timing will suffer.
Gasket sets for the tailhousing often omit critical seals–always source the rear oil seal (#2950172) with a durometer of 70 Shore A and lip diameter matching the output shaft’s 1.250″ polished surface. Use Loctite 515 on the tailhousing bolts (torque: 35 ft-lb) to prevent fluid migration into the driveshaft yoke splines, a common failure point in units exceeding 100K miles.
Locating Key Automatic Gearbox Elements in Schematics
Start by isolating the main housing assembly in the schematic–this section anchors nearly all internal mechanisms. Look for a large, centralized casing with bolt patterns and mounting points; these often hold torque converters, pump assemblies, and valve body linkages. Misidentifying this core structure will disrupt tracing subsequent systems.
Torque converter appears as a rounded, multi-piece unit near the bellhousing. Key features include stator blades, turbine fins, and impeller veins–each drawn with distinct layered curves. Verify blade alignment; reversed orientation indicates a non-functional rebuild. Match schematics to actual components by counting spline teeth and hub diameters.
Oil pump components concentrate along the transmission’s front face. Identify the crescent-shaped rotor and ring gear nesting inside the pump body. Schematic callouts show drive gear teeth meshing with a snout extending from the torque converter hub. Any mismatch here prevents proper fluid pressure buildup, leading to delayed shifts.
The valve body dominates schematics as a maze of passages and solenoids. Trace bore layouts–each channel corresponds to a specific shift valve (1-2, 2-3, etc.). Use color-coded arrows if available; bright hues typically denote pressurized circuits. Overlapping lines often signify accumulator pistons or modulator controls.
Planetary gearsets occupy the schematic’s midsection, depicted as concentric circles with internal teeth. The input and output carriers link via sun gears, pinions, and ring gears–all critical for gear ratio calculations. Check for ratio markings; mismatched counts skew shift timing. One-way sprag clutches appear as diagonal wedge symbols adjacent to ring gears.
Band servos and clutch packs cluster near the rear housing. Servos show as cylindrical pistons with spring assemblies, while clutches display stacked friction plates interleaved with steel discs. Count plates–omitting a single disc alters engagement feel. Schematic annotations mark servo apply rates; faster release rates prevent harsh downshifts.
Governor valves locate at the output shaft’s tail end, resembling two weighted sleeves or balls within a rotating cage. Moving parts connect via linkage to throttle valves, balancing engine load against vehicle speed. Incorrect governor calibration causes premature upshifts or lugging under load.
Electrical connectors and solenoids populate modern revisions as rectangular modules with pin layouts. Verify harness compatibility–early models use mechanical switches, later designs integrate PWM solenoids. Schematic legends identify these by numerical codes (e.g., ED1, EPC); cross-reference wiring diagrams if voltage readings deviate from specified ranges.
Navigating Core Components in Automatic Transmission Blueprints
Study the hydraulic assembly schematic first–focus on the upper-right quadrant where the pump is typically illustrated as a circular or oval component with internal vanes. Look for labels like “front pump,” “oil pump,” or “input housing” to confirm its position. If the diagram lacks clear markers, trace fluid lines leading from the bellhousing; the pump will always connect directly to the torque converter’s hub via a splined drive.

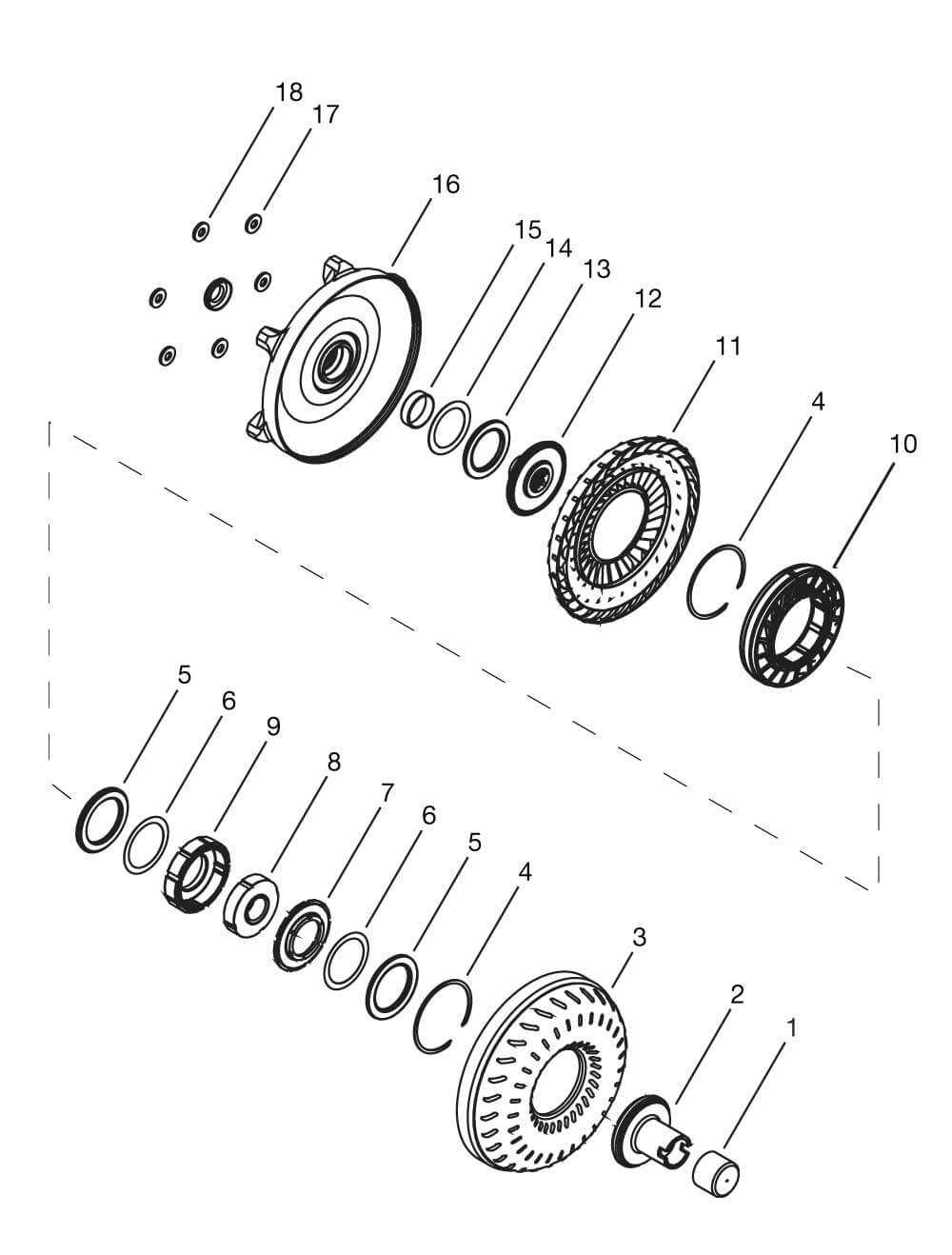

Identify the torque converter in exploded views by locating the large, dome-shaped assembly attached to the transmission’s front. Key visual cues include stator blades, impeller fins, and the turbine’s curved vanes. In cross-section diagrams, the converter’s three primary elements–impeller, turbine, and stator–will appear nested together, often highlighted in contrasting colors. If the stator isn’t visible, check for a one-way clutch symbol between the impeller and turbine, as this distinguishes it from non-lockup variants.
Valve Body Positioning and Key Landmarks
The valve body appears as a flat, multi-layered plate with drilled passages, usually positioned beneath the transmission casing in side-view schematics. Look for solenoid clusters or pressure regulator components adjacent to it–these confirm proximity. In top-down illustrations, locate the manual valve detent as the central pivot; shift valves radiate outward like spokes. Use the following reference points to verify placement:
| Landmark | Typical Location | Visual Identifier |
|---|---|---|
| Pressure Regulator Valve | Upper-left quadrant | Largest spring-loaded spool |
| 1-2 Shift Valve | Near separator plate seam | Tandem springs, smaller ports |
| Torque Converter Feed Passage | Directly below pump connection | Bypass orifice to cooler lines |
| Accumulator Piston | Between valve body and case | External bore with snap ring groove |
For obscure schematics, use the transmission cooler lines as a guide–they exit the valve body’s side channel and terminate at the cooler fittings. Follow these backward to find the converter feed circuit, which originates from the valve body’s torque converter regulator valve. If the pump occupies the right side, the valve body will sit 3-5 inches aft, aligned with the input shaft’s centerline.
When examining torque converter illustrations, measure the distance between the flexplate mounting holes (10.75″)–this helps distinguish between lockup and non-lockup units. Lockup converters show a secondary piston plate and damper assembly near the turbine hub. Non-lockup variants lack these but will have thicker pump drive tangs (0.25″ vs. 0.1875″). In gear train diagrams, the converter’s output shaft (turbine) couples directly to the forward clutch hub, identifiable by its six friction plates and backing plate.
Diagnostic Anomalies in Schematics
Check for unexplained gaps between the pump and bellhousing–this indicates a missing torque converter housing adapter or flexplate spacer, common in aftermarket builds. If the pump’s suction line isn’t clearly routed to the pan, trace the pickup tube’s weld location; misalignment here causes cavitation. Valve body schematics often omit separator plate gasket channels–use a 0.004″ feeler gauge to verify port alignment during reassembly. For converters, verify the stator’s one-way clutch by rotating it clockwise (should lock) and counterclockwise (should free-wheel); reversed rotation confirms internal failure.
