Complete Guide to Sunroof Components and Assembly Layout

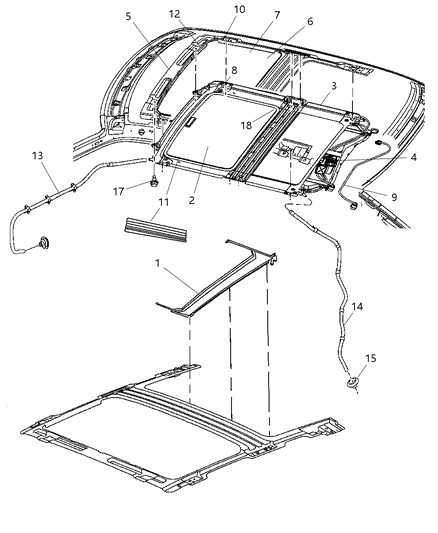

sunroof parts diagram

Start by locating the drafting assembly under the glass panel–this is the horizontal rail mechanism that slides open or tilts. To access it, remove the interior trim panel along the roof’s headliner using a trim removal tool, avoiding excessive force to prevent cracking clips. The drafting assembly consists of two main segments: the guide track (typically aluminum or reinforced plastic) and the drive cable, which engages with the motor gear. If the roof sticks when opening, inspect the track for debris–common culprits include dried lubricant or misaligned rear drain tubes.

For the glass panel itself, check the adjustment brackets on each corner. These threaded anchors allow fine-tuning alignment; a 3mm discrepancy can cause wind noise at highway speeds. Use a torque wrench set to 8 Nm when securing the brackets–over-tightening warps the frame. If moisture appears inside the cabin, focus on the seal around the perimeter. The primary gasket is a one-piece EPDM rubber compound, while the secondary seal (often overlooked) sits beneath the glass. Apply dielectric grease sparingly to the seals before reassembly to prevent premature cracking.

The motor and control module demand precise diagnostics. Use a multimeter to test voltage at the motor’s two-pin connector while activating the switch–values should read 12V DC. If voltage is present but the motor doesn’t engage, the issue lies in the worm drive or limit switches. The limit switches, located at the rear of the track, use resistors to signal open/closed positions. Clean the contact points with 600-grit sandpaper if corrosion is visible, then reconnect with crimp connectors rather than solder to avoid melting the housing.

For drain tube maintenance, trace each tube from the roof’s corners to the vehicle’s firewall. Clogs frequently occur at the tube bends–insert a 2mm wire or compressed air to clear blockages. If water pools near the sunroof’s rear, the left-side tube (driver’s side in LHD vehicles) is often the culprit. Replace cracked tubes with OEM-spec silicone tubing; aftermarket alternatives collapse under temperature fluctuations. After clearing drains, test by pouring 500ml of water into each rear channel–the exit points near the rocker panels should drain within 30 seconds.

Understanding Your Vehicle’s Retractable Panel Components

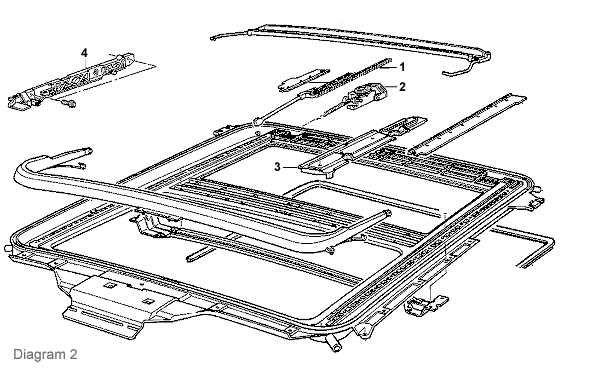

sunroof parts diagram

Start by locating the sliding glass panel at the roof’s center–this is the visible moving element, but beneath it lies a complex assembly. The motorized mechanism typically includes a drive cable (spiral-wound steel) spanning the roof’s perimeter, connecting to guide rails on either side. Check for wear on the rubber gaskets framing the opening; hardened or cracked seals cause water leaks and wind noise. Replace them if they show gaps wider than 2mm. For manual systems, the crank handle engages a gear track–ensure the track’s teeth aren’t stripped to avoid slippage.

  • Track system: Two lateral rails (left/right) with nylon sliders; lubricate with silicone spray every 6 months.
  • Drain tubes: Four 4mm hoses (corners) routing water away–clear obstructions with compressed air if pooling occurs.
  • Electric motor: Mounts near the rear header, fused at 20A–test with a multimeter if the panel stalls mid-operation.
  • Control module: Often integrated with the vehicle’s body computer; reset by disconnecting the battery for 10 minutes.
  • Wind deflector: The mesh or solid component at the front; adjust height to reduce buffeting at speeds above 40 mph.

Key Elements of an Automotive Glass Panel System

Locate the sliding mechanism rails by examining the frame’s interior channels–these are typically aluminum or reinforced polymer tracks secured with 3–5 mounting screws per side. Mark their position before disassembly: the front rail often sits 2–3 mm higher than the rear to ensure proper drainage. If misaligned, water ingress will pool near the motor housing, triggering corrosion on electrical connectors within 6–8 months.

Inspect the glass panel seal for compression consistency–use a micrometer to measure thickness at 10 cm intervals. Ideal readings should vary no more than ±0.2 mm; deviations signal material fatigue or improper installation. Replace seals if shore hardness drops below 55A or if UV exposure causes surface cracking under 5x magnification. Below is a comparison of common seal materials:

Material Durability (months) Temperature Range (°C) Resistance
EPDM 72–96 -40 to 130 Ozone, UV
Silicone 48–60 -60 to 200 Chemical, heat
TPV 60–84 -45 to 120 Abrasion, flex

Test the drive motor’s current draw with a multimeter–expected values range from 3.5A (idle) to 8A (peak load). Anything exceeding 10A indicates brushed motor wear or obstructed transmission gears. Lubricate the cable-driven systems with molybdenum disulfide grease every 15,000 km; neglect accelerates gear tooth degradation by 40%. For modular assemblies, verify module alignment using laser guides–the rear edge must sit flush within ±0.5 mm to prevent wind noise at speeds above 80 km/h.

How to Take Apart a Retractable Roof Panel: Detailed Procedure

Wear protective gloves before handling any components–sharp edges and grease residues are common in tracks and frames. Gather tools: a T20 Torx driver, plastic trim removal tools (two or three sizes), needle-nose pliers, and a flashlight. Disconnect the vehicle battery; electrical short risks exist when detaching the motor or switches.

Remove interior trim panels first. Locate the fasteners along the headliner–most use hidden clips that pop out with slight prying pressure. Start at the front corners and work backward. Keep screws organized by grouping them with tape and labeling their origin. The rear seal often doubles as a fastening point; peel it back gently using the trim tool to expose additional bolts.

Lift the glass panel carefully by releasing it from the front track guides. These guides typically slide out once a retaining tab is depressed–press firmly on the tab while pulling the guide forward. If stuck, apply penetrating oil (WD-40 or similar) along the rail edges, wait five minutes, then retry. Avoid forcing; excessive pressure bends aluminum tracks. For manual systems, check for a tension cable–detach it only after confirming it’s not under load.

Detach the motor assembly by unbolting it from the frame carrier–usually secured with three to four Torx screws. Label the connector wires before unplugging; some motors employ a single modular plug, others have separate door harnesses. Inspect the drain tubes if clogs caused misalignment; clear them using fishing line or compressed air directed from below the vehicle.

Reassemble in reverse sequence, lubricating all moving components with silicone grease–lithium-based products attract dust and accelerate wear. Test functionality before reinstalling trim; ensure the panel seals evenly across the frame. If misalignment persists, loosen frame carrier bolts slightly, reposition, and retighten while applying slight inward pressure on the panel edges.

Key Components of a Sliding Roof Mechanism Prone to Wear

sunroof parts diagram

Track rails–often made of lightweight aluminum or reinforced plastic–degrade after 50,000–70,000 miles, especially in humid climates. Replace them if gaps exceed 1.5 mm between the rail and the glass panel, or if corrosion appears along the grooves. Brands like Webasto and Inalfa use proprietary rail coatings; swapping to aftermarket rails without matching specifications accelerates wear.

Drain tubes, typically 6–8 mm in diameter, clog from debris like pollen, leaves, or road grit. A blocked tube causes water to pool near the headliner, leading to electrical failures within 12–18 months. Flush tubes with compressed air every 15,000 miles, and replace cracked or brittle tubes immediately–silicone versions outlast cheaper PVC by 3–4 years.

Motor assemblies fail silently; signs include delayed movement or unusual whirring. Most motors operate between 12–18 watts, drawing 1–1.5 amps. If voltage tests at the connector drop below 11V during operation, the motor’s brushes or worm gear need replacement. Lubricate gears with molybdenum disulfide grease sparingly–overapplication attracts dust, forming an abrasive paste.

Seals–usually EPDM rubber or thermoplastic elastomers–harden and crack after 7–10 years. Inspect for splits wider than 0.5 mm; ultraviolet exposure accelerates degradation. Clean seals with isopropyl alcohol before applying UV-resistant silicone spray, but avoid petroleum-based products, which cause swelling and premature failure in EPDM compounds.

Glass panels with threaded adjustment bolts loosen under vibration, causing misalignment. Check torque every 30,000 miles; OEM bolts typically require 4–5 Nm. Replace broken bolts–aftermarket equivalents often strip threads in the aluminum frame. Tinted panels reduce solar heat gain by 20–25%, but improper films void manufacturer warranties due to adhesive failures.

Interpreting Convertible Roof Electrical Schematics

Locate the motor’s power leads first–usually marked red (+) and black (-) on the wiring chart. Verify polarity with a multimeter set to DC voltage before connecting: reverse polarity risks damaging the actuator. Trace the circuit path to fuses (typically 15-20A) and relays (commonly a 5-pin SPDT type). Note color codes:

  • Yellow/white: signal wire (often connected to the switch)
  • Blue: limit switch input
  • Green: ground reference

If the schematic shows dotted lines, these indicate shielded cables–test for continuity without piercing the insulation, or interference may corrupt sensor readings.

Check the direction control module–most systems use a reversing relay (bosch DC type) that flips motor rotation via two coils. One coil (terminals 85/86) activates the open function, the other closes it. Look for thermal overload protection: a bimetallic strip or PTC resistor near the motor housing. If the system stalls, measure voltage drop across this component–values above 1.5V suggest failure. For aftermarket installations, match wire gauge to original specs: 18AWG for signal, 14AWG for power lines. Always disconnect the battery’s negative terminal before probing live circuits to prevent shorting the ECU.
