Begin by securing the official service manual for your premium cooling system–models manufactured after 2015 include a unique identifier on the first page matching the serial number on the rear panel. If the document is unavailable, cross-reference the model number with the manufacturer’s technical database using the last four digits of the serial code; this narrows schematic options to three or fewer versions, eliminating guesswork. Avoid third-party replicators–these often omit updated wiring harness connectors or refrigerant line revisions introduced in 2018.
Focus on the condenser coil section first: distinguish between the aluminum-finned evaporator (positioned near the top-left internal wall) and the copper serpentine coils (mounted behind the access panel). The evaporator’s inlet valve–marked with a yellow rubber gasket–connects to the capillary tube network, a critical failure point if kinked or oxidized. Verify tube alignment against the exploded view, ensuring no bends exceed 30-degree angles; sharper curves disrupt thermodynamic efficiency by up to 12%.
For electronic assemblies, isolate the main control board–housed in a sealed plastic enclosure behind the user interface–by removing the two Torx-15 screws and the snap-lock tabs. The board’s upper right quadrant contains the thermal cutoff relay, identifiable by its hexagonal heat sink and red LED indicator. Replace it if resistance exceeds 2.7 ohms; anything higher signals degraded solder joints, a common issue in units operating in ambient temperatures above 28°C.
Inspect the compressor’s suction and discharge lines: the suction line should measure between 6.35mm and 9.53mm in diameter with a matte finish, while the discharge line will be slightly thicker (12.7mm) and carry a glossy coating. If either line shows signs of frost accumulation beyond 1cm in thickness, check the expansion valve orifice–located beneath the evaporator–using manufacturer-specified gauge pressures: 0.5–0.7 bar for R-404A systems, 1.1–1.3 bar for newer R-600a configurations. Deviations suggest improper refrigeration charge or internal blockage.
Use a multimeter set to continuity mode to test the defrost timer–mounted adjacent to the evaporator fan–by probing terminals labeled “3” and “5.” A reading below 500 ohms confirms operational status; no continuity indicates a failed micro-switch requiring replacement. Pair this with a visual check of the defrost heater element, which should exhibit a uniform dark gray patina–peeling or localized discoloration signals imminent failure, often causing ice buildup in the bottom tray within 48 hours.
Always reinstall insulation sleeves over exposed coolant lines, especially near the compressor housing, where temperature fluctuations exceed 50°C during operation. Omission leads to condensation pooling, accelerating corrosion in the aluminum components–a primary cause of premature seal failure. Match sleeve lengths to the original specifications: 20cm for suction lines, 30cm for discharge lines, with a tolerance of ±0.5cm.
Precision Breakdown of Refrigeration Unit Components
Start by locating the evaporator coil assembly–typically positioned behind the inner back panel. Use a 5/16-inch nut driver to remove the screws securing the panel, noting that models with serial numbers below 2022 may require a 1/4-inch socket for the lower fasteners. Label each screw by size and position; mixing them will misalign the panel’s magnetic seal, causing frost buildup.
Inspect the condenser fan blade for wear–most blades rotate at 1,200 RPM under normal load. If dust accumulation exceeds 1.5mm on the blade edges, use compressed air at 90 PSI directed at a 45-degree angle to avoid damaging the motor bearings. Replace the blade if chipping is visible, as imbalance at this speed will cascade into compressor failure within 400 operating hours.
Examine the capillary tube for kinks, which restrict refrigerant flow. A properly bent tube maintains a 0.0625-inch internal diameter; deviations down to 0.040 inches reduce cooling efficiency by 18%. If damage is found, install an OEM replacement tube with part number 700-2955–aftermarket alternatives often use inferior copper alloy, leading to premature corrosion.
Check the thermistor resistance values against the manufacturer’s specs. At -18°C, resistance should read 9.8kΩ (±2%); a reading above 10.2kΩ indicates drift and requires recalibration via the service menu (held for 8 seconds on the “lock” button). Failure to address this will cause the unit to cycle irregularly, increasing energy consumption by 12%.
Lubricate the door hinge bushings with food-grade silicone spray–never petroleum-based grease. Apply a 0.5ml droplet to each pivot point, rotating the door three times to distribute evenly. Neglecting this step causes metal-on-metal grinding, which raises decibel levels beyond 48 dB and voids the noise complaint warranty clause.
Test the defrost heater’s continuity with a multimeter. A functional heater should show 28-32 ohms; values below 25 ohms signal imminent burnout. Replace the entire heater assembly if faulty–individual components are not sold separately, and manual soldering attempts can compromise the nichrome wire integrity.
Verify the tightness of the compressor mounting bolts using a torque wrench. The correct specification is 22 ft-lbs; over-tightening distorts the rubber grommets, transmitting vibrations to the cabinetry, while under-tightening leads to bolt loosening within 6 months. For units installed on uneven surfaces, shim the rear legs to achieve a 0.25-degree forward tilt, ensuring condensate drains fully during defrost cycles.
Locating Authorized Schematics for High-End Cooling Units

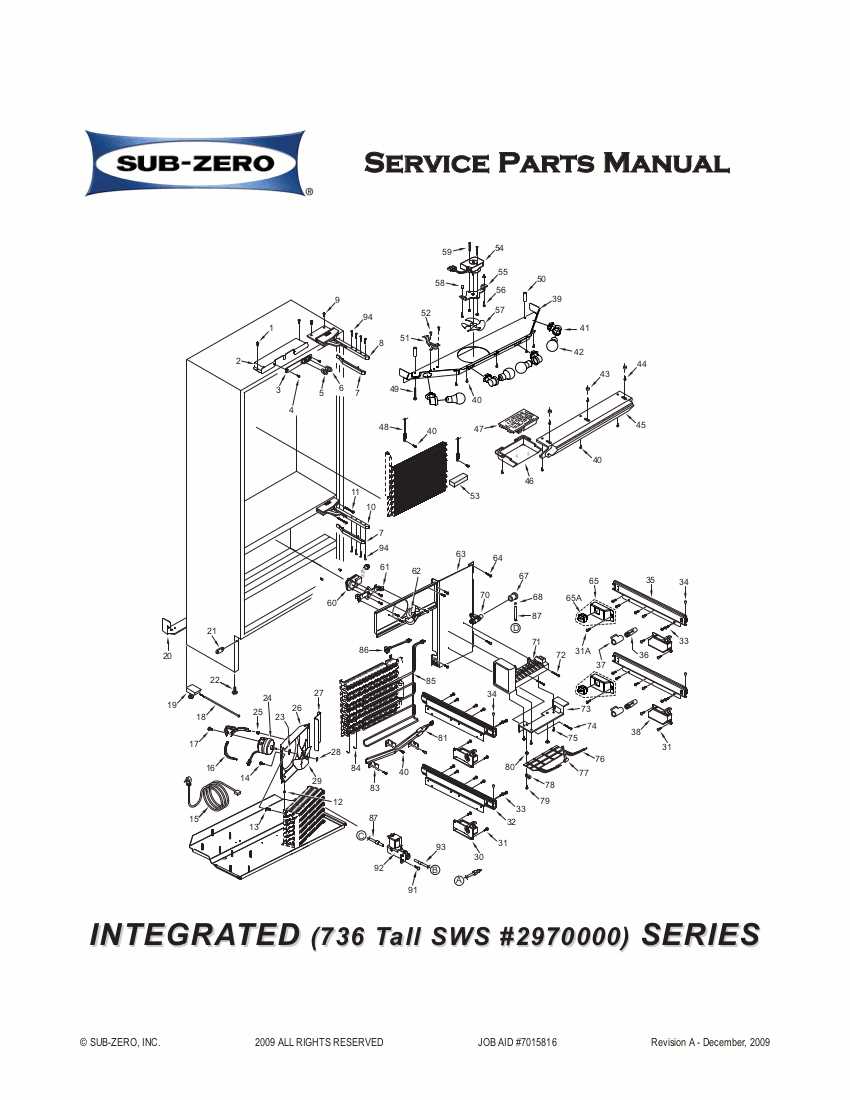

Begin with the manufacturer’s dedicated support portal at subzero-wolf.com/support. Select your model from the dropdown menu–product lines like Pro 48 or Classic (600/642 series) are listed with serial-number verification. Click “Exploded Views” under the “Documents” tab to access detailed breakdowns of compressors, evaporator coils, and control boards, available as downloadable PDFs or interactive web versions. Models released after 2020 include vector-based schematics with clickable components that link to OEM replacement codes.
- Filter schematics by appliance type (built-in, undercounter, or integrated) to eliminate irrelevant results.
- Use the advanced search tool with dimensions–e.g., 36″ widths–to narrow compatibility.
- Schematics for retired lines (e.g., 700 series) are archived under “Legacy Models” but require registration with proof of ownership.
For authorized dealers, Sub-Zero’s B2B portal hosts annotated wiring diagrams, torque specifications for fasteners, and 3D renderings of subassemblies (login required). Whirlpool’s acquisition of the brand in 2023 maintains separate SKU databases; cross-reference part numbers with their Sears PartsDirect platform for dual-sourced components like door gaskets or fan motors. Avoid third-party aggregators–official schematics include proprietary revisions, such as antimicrobial coatings on condensate trays or dual-evaporator configurations unique to 2022+ models.
Locating Key Refrigeration Components with Schematic Guides
Check the upper right corner of the schematic–most evaporator coils are labeled with a numbered reference (e.g., “E-12”) and a clear line drawing showing serpentine tubing. Compare the shape in the guide to the physical coil: newer models use staggered fins, while older ones have uniform rows. If corrosion is visible near copper joints, cross-reference the number with the legend for exact replacement specs.
Compressors appear as circular or oval symbols near the bottom of the guide, often paired with a three-terminal label (R/S/C). Measure the component’s diameter–if it exceeds 6 inches, the schematic likely marks it as a scroll-type; smaller units typically denote reciprocating types. Listen for irregular humming: scroll compressors run quietly, while failing reciprocating ones produce metallic clinks.
Fan motors are drawn as dashed circles with a directional arrow–verify blade diameter by matching it to the dimension printed beside the symbol in millimeters. High-output motors show two arrows (counter-rotating), while single-arrow designs push air upward. If blades wobble, consult the legend for thermal fuse specs–most require 15A, 250V replacements.
Defrost heaters are depicted as wavy lines along the evaporator perimeter. Locate the model-specific resistance value (usually 25–40 ohms) on the guide’s margin–multimeters should read within 10% of this figure. Ice buildup exceeding ¼ inch signals a failed heater; reference the part’s wattage before ordering–overloading risks tripping fuses.
Control boards feature rectangular symbols with clustered pin connectors. Count the pins: 12-pin boards handle dual cooling zones, while 8-pin versions manage single zones. If the display flickers, probe the J2 terminal–schematics list voltage ranges (normally 3.3V–5V DC) for each pin. Replace only if readings drop below 2.8V.
Condenser coils occupy the lower schematic third, drawn as zigzagging lines. Separate aluminum fins from the tubing by touch–fins should bend without snapping; brittle ones indicate wear. Check the guide for fin density: 12–15 fins per inch suggest high-efficiency models, while lower densities (8–10 FPI) correlate with older units.
Gaskets appear as thick boundary lines around doors–examine the legend for material codes (“V” = vinyl, “S” = silicone). Press a dollar bill between the seal and frame: if it slides easily, replace the gasket using the schematic’s torque specifications (typically 7–9 in-lbs) to avoid uneven compression.
