Begin by identifying the combustion chamber assembly–typically positioned near the base of the unit. Remove the access panel (secured with 4–6 screws, usually #10 or M5) to reveal the sail switch, ignition module, and blower motor. Label each wire connection before disassembly using masking tape or a digital camera; mismatched wiring risks system failure or intermittent operation. The blower wheel should spin freely–any resistance indicates bearing wear, requiring replacement with an OEM-matched part (check amperage specs on the motor label against manufacturer guidelines).
Inspect the control board for corrosion or burn marks, a common failure point in high-humidity environments. Test input voltage (should read 12VDC at the thermostat terminals) before replacing the board–ensure the new unit matches both voltage and connector pinout. The limit switch cluster (often two or three devices) sits adjacent to the heat exchanger; use a multimeter in continuity mode to confirm each switch functions within ±2°F of its rated temperature (typically 160–180°F for primary, 250°F for high-limit).
For the gas valve, verify coil resistance (50–120 ohms for most models) and clean the orifice with compressed air–never use wire brushes, which can deform the opening. The flame sensor requires sanding with 600-grit emery cloth to remove oxidation, but avoid excessive pressure that could bend the probe. When reassembling, apply dielectric grease to electrical connections and torque screws to 8–12 inch-pounds to prevent stripping. Keep a reference sketch of the layout; misaligned seals or reversed airflow pathways can trigger overheating errors.
Critical measurements: the exhaust vent length must not exceed 10 feet total, with no more than two 90° bends–longer runs cause incomplete combustion and soot buildup. The intake filter (if equipped) should be washed in mild detergent and dried thoroughly; clogged media reduces efficiency by up to 30%. For troubleshooting, log error codes (e.g., E1 for flame failure, E2 for lockout) alongside ambient temperature and runtime duration to isolate intermittent issues.
Understanding Your Mobile Home Heating Unit Schematic
Begin by locating the air intake grille on the exterior of your unit–it’s typically a louvered panel near the bottom. Remove the screws holding it in place to reveal the combustion chamber assembly. This component houses the igniter, sail switch, and flame sensor, all critical for safe operation. If your system fails to start, check for debris blocking the intake or a faulty sail switch, which may need cleaning or replacement.
The blower motor sits adjacent to the combustion chamber, often secured with a single bracket. Disconnect the electrical connector before attempting removal–use a multimeter to test for continuity if the motor doesn’t spin. Lubricate the bearings annually with silicone-based grease to prevent wear. Common failure points include seized bearings or a burnt-out winding, indicated by a humming noise without rotation.
Examine the gas valve mounted on the side of the unit, identifiable by its brass fittings and solenoid coil. Verify gas flow by checking for a hissing sound when the thermostat calls for heat–if absent, test the valve’s coil resistance (typically 30-60 ohms). A failed coil won’t open the valve, cutting off fuel supply. Always purge air from the gas line after reinstalling a replaced valve to avoid delayed ignition.
The control module, a circuit board nested behind the access panel, coordinates ignition, blower timing, and safety lockouts. If your unit cycles erratically or displays error codes, inspect for corroded solder joints or burnt traces. Replace the module if diagnostics confirm it’s unresponsive. Avoid static discharge when handling–ground yourself to an unpainted metal surface before touching the board.
Inspect the heat exchanger by removing the outer cover. Look for cracks or rust spots along the thin metal fins–compromised integrity risks carbon monoxide leaks. Use a flashlight to check internal passages for soot buildup, a sign of incomplete combustion. Clean minor deposits with a soft brush, but replace the exchanger if corrosion is widespread. Sealant or temporary patches are unsafe and violate manufacturer guidelines.
Test the flame sensor by removing it from its bracket–it’s a thin, often bent rod near the burner. Clean the tip with fine steel wool to remove oxidation, then reinstall and check for proper grounding. A weak sensor current (below 1.5 microamps) triggers false lockouts. Avoid adjusting the sensor’s position; factory alignment ensures reliable detection.
Reassemble components in reverse order, ensuring all seals and gaskets sit flush. Tighten screws evenly to avoid warping panels. After reconnecting power, monitor the first heating cycle for unusual noises or odors–persistent issues require professional diagnosis. Keep a spare igniter and limit switch on hand; these are the most frequent points of failure during cold snaps.
Identifying Critical Elements in Your Motorhome Heating System Blueprint

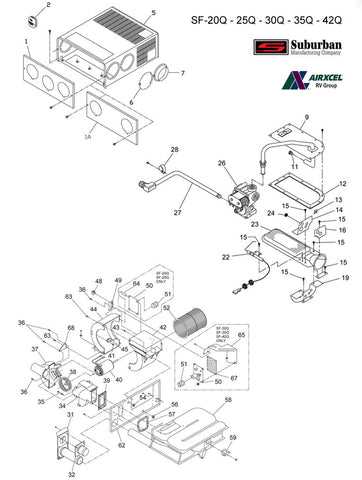

Begin by pinpointing the combustion chamber–typically represented as a central rectangular block in schematics. Trace the intake and exhaust vents adjacent to it, marked by arrows indicating airflow direction. Verify the heat exchanger’s position; it should wrap around the chamber, often depicted as a coiled or finned component in exploded views. Locate the blower motor next–it usually sits below or beside the exchanger, connected via a belt or direct drive symbol.
- Gas valve: Shown as a small, separate unit with inlet/outlet ports, connected to the chamber via tubing.
- Igniter: Illustrated as a thin rod or spark gap near the burner assembly.
- Sail switch: A triangular or paddle-shaped icon positioned in the airflow path.
- Limit switch: Round or square symbol, often labeled “hi-limit” on wiring overlays.
Check for labels like “HSI” (hot surface igniter) or “SP” (spark probe) near ignition points. Wiring harnesses appear as thick lines linking components–follow these to the control board, a compact box with multiple terminal blocks. Note voltage ratings on connectors; high-voltage leads are typically thicker, while sensor wires use thinner gauges.
Step-by-Step Guide to Identifying Heating Unit Combustion Chamber Components
Locate the access panel on the front of your heating appliance–it’s typically secured with screws or clips. Remove it carefully, ensuring no wires or sensors dislodge. Inside, the combustion chamber sits centrally, distinguishable by its metallic housing and venting tubes. Note the burner orifice at the base, a small brass or steel fitting where propane or natural gas enters. Nearby, look for the igniter or electrode, usually a thin ceramic rod or spark probe positioned above the orifice.
Follow the vent pipe upward from the combustion area to spot the heat exchanger. This component resembles a series of thin, curved steel fins or tubes designed to transfer warmth without direct flame contact. If corrosion or soot is visible, it signals airflow issues or incomplete fuel combustion. Adjacent to this zone, the blower motor assembly pushes heated air, identifiable by its fan blade and housing. Check for debris clogging the intake or discharge areas.
Trace the gas line back to the control valve. This critical module regulates fuel flow and often integrates a thermocouple–a thin wire thermostat that confirms ignition before allowing gas release. If your unit fails to ignite, inspect this safety feature for wear or misalignment. The valve itself connects to the main gas supply via a thin, flexible tube or rigid piping, depending on model. Ensure all fittings are tight and free of rust.
Examine the air intake and exhaust ports–typically two identical tubes exiting the housing. The intake draws fresh air, while the exhaust expels combustion byproducts. Both should be clear of obstructions like nests, dirt, or ice. A damper or flapper valve inside the exhaust prevents backdraft; verify it moves freely. Some models include a sail switch here, a safety device that halts operation if airflow drops below safe levels.
Inspect the circuit board if your setup includes electronic controls. This small panel manages power distribution, ignition sequencing, and safety locks. Look for burnt connections, swollen capacitors, or erratic LEDs–indicators of electrical failure. Test continuity between components using a multimeter if the unit exhibits erratic behavior. Replace damaged wires or connectors immediately, ensuring proper gauge and insulation type.
Reassemble carefully, reconnecting all wires and sensors as marked. Test-run the system in short cycles, monitoring for unusual noises, smells, or inefficiency. If flames appear weak or yellowish, realign the burner assembly and clean the orifice with compressed air. Confirm the venting pathways remain unblocked before extended use. Document each step for future reference, noting serial numbers and part specifications unique to your model.
Wiring and Thermostat Connection Points in Mobile Home Heating Units
Locate the control board behind the access panel on the right side of the unit–typically secured with two screws. Label each wire before disconnecting to avoid misplacement during reassembly. Use a multimeter set to 20VDC to verify voltage on the thermostat leads: the “R” (power) terminal should read 12V, while “W” (heat call) drops to 0V when activated. If readings deviate, inspect the transformer for loose connections or corrosion on the spade terminals.
Most models use a 4-wire setup for thermostat connections:
| Terminal | Wire Color | Function | Voltage (Active/Idle) |
|---|---|---|---|
| R | Red | Power supply from transformer | 12V / 12V |
| W | White | Heat call to relay | 0V / 12V |
| G | Green | Fan control (optional) | 12V / 0V |
| C | Blue or Black | Common ground | 0V / 0V |
Splice connections with crimp connectors (not wire nuts) to prevent vibration-induced failures. Ensure the thermostat’s anticipator is set to 0.4A for models with mechanical controls–incorrect settings cause short cycling or overheating. For digital thermostats, use the “RV” mode setting to match the 12V system; standard home settings (24V) will damage the control board.
Test the limit switch by temporarily bypassing it with a jumper wire (18-22 AWG) between the “R” and “W” terminals while monitoring the unit’s response. If the blower engages, the switch is faulty and requires replacement. Never leave the jumper connected–this bypasses critical safety features. For units with sail switches, verify airflow by holding a thin sheet of paper near the intake vent; if the paper doesn’t adhere, clean the burner assembly or check for obstructed ducts.
Check the ignition module’s ground wire (typically a bare or green wire) for continuity to the chassis using a multimeter. Resistance should read less than 1Ω. Higher readings indicate a corroded connection–scrub the contact points with 320-grit sandpaper and apply dielectric grease. Replace the module if the spark electrode fails to arc during startup (visible through the combustion chamber peephole).
Reassemble the access panel only after confirming all connections with a torque screwdriver (in-lb setting: 15-20). Loose screws cause vibration noise and may loosen terminals over time. Program any digital thermostats to “Auto” mode for fan operation–manual mode risks overheating if the fan fails to engage after the heat call ends.
