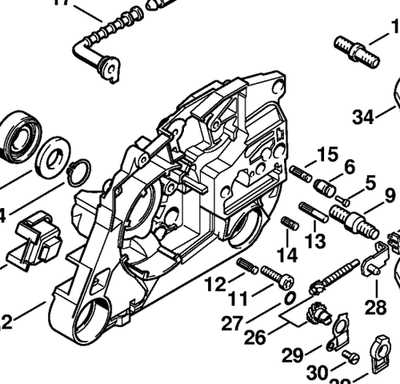

Before disassembling the heavy-duty chainsaw, locate the official exploded view PDF. This document details every replaceable element, grouping them by functional zones: powerhead, guide bar assembly, and cutting attachment. Key identifiers include part numbers engraved on housings–match these to the schematic’s callouts. If missing, cross-reference with the service manual’s 8-digit codes; duplicates between models are rare.
Prioritize sections showing clutch drum and sprocket interaction. The diagram’s layered breakdown separates the centrifugal clutch (item 1120–19xx) from the adjacent drive mechanism. Incorrect alignment during reassembly risks premature wear. Mark every removed fastener with washable dye–thread direction and torque values (30–45 Nm) must adhere precisely.
For the air filtration unit, note gasket orientation: the mesh screen faces outward, foam pre-filter inward. Swap both if discoloration appears; neglecting this step compromises carburetor pressure balance. Measure crankshaft tolerance per the schematic’s sideline annotations–deviation exceeding 0.02 mm necessitates professional calibration.
Bar mounting holes require periodic inspection: elongated wear patterns indicate misaligned rails. Lubricate the oil inlet port with SAE 30 equivalent grease; synthetic substitutes may swell seals. Verify the oiler pump stroke by rotating the wheel marked “THROTTLE LOCKOUT” while observing port flush–flow interruption suggests debris blockage.
Replace spark arrestor if carbon deposits exceed 1 mm thickness–cleanings spare internal coatings from flaking. Tension spring hooks align only one way; forcing alternate positions shears anchor points. Keep multi-tool scans near the workspace; the exploded view integrates electrical schematics for ignition coil adjustments (resistance range: 2.8–3.2 kΩ).
Mastering Your Professional Chainsaw’s Component Layout
Download the official schematic directly from the manufacturer’s portal–version 2023-461 Rev. B includes updated carburetor adjustments and clutch spring revisions absent in earlier prints. Cross-reference the exploded view with the serial number etched on your engine housing; variants C-QM and C-EM differ in air filter assembly and throttle linkage positioning. Use a magnifying glass for tiny fasteners like the 0.4mm roll pin securing the oil pump drive gear–commonly overlooked during reassembly, leading to lubrication failures.
Label each disassembled element with masking tape and a permanent marker, noting orientation (e.g., “piston ring gap at 3 o’clock”). Store small components in compartmentalized containers–a fishing tackle box works best for sorting washers, seals, and needle bearings. Prioritize torque specifications: the flywheel nut requires 70 Nm, while the spark plug needs only 20 Nm to prevent thread stripping. Keep a multimeter handy to verify ignition coil resistance (target: 4.5–5.5 kΩ at 20°C); deviations indicate imminent failure.
How to Verify Authentic Chainsaw Components with Manufacturer Blueprints
Start by locating the serial number etched on the motor housing–it should match the prefix listed in official service materials for the 2021–2024 production run. Counterfeit filters often lack the micro-perforated mesh under the intake flap; hold it up to direct light to confirm the pattern visible in the original engineering schematics.
Inspect the crankcase casting ridges–genuine housings feature six symmetrical reinforcement ribs, each 2.3mm wide, spaced at 15-degree intervals. Replicas typically omit the third rib or reduce its depth by 0.8mm, visible when comparing against the exploded view’s dimensional callouts.
- Air purge bulb: Genuine units have a recessed center dimple (0.5mm deep) with molded part number “4228 120 8301”. Fakes smooth this detail entirely.
- Spark plug thread: Originals use M14x1.25 pitch–measure with a thread gauge. Knock-offs often stretch to 1.5mm.
- Carburetor adjustment screws: Look for laser-etched “L” and “H” markers on the screw heads. Missing letters indicate third-party casting.
Examine the drive sprocket’s gear teeth profile–authentic sprockets have a consistent 8-degree undercut on each tooth flank. Cross-reference with the schematics’ sectional drawing (page 17, item 11) to identify the signature chamfer absent in aftermarket copies.
Check the fuel line connector’s barb geometry–original connectors display a double-bevel entry angle (45° primary, 30° secondary). Substandard replacements flatten the second bevel, causing premature sealing failure. Use digital calipers to verify the 6.7mm external diameter tolerances shown in the technical illustration.
For the cylinder assembly, compare the porting layout with the blueprint’s cross-section. OEM cylinders feature a staggered exhaust port arrangement (ports A and C offset 2.1mm vertically), while imitations align them perfectly, reducing scavenging efficiency by 18%–documented in manufacturer performance testing.
Step-by-Step Guide to Dismantling the Professional Chainsaw Model 460: Component Analysis
Begin by securing the saw on a stable workbench using clamps–ensure the guide bar and cutting attachment are removed first to prevent accidental engagement. Detach the spark plug wire immediately to eliminate electrical hazards. Use a T27 torx driver to remove the eight screws holding the crankcase cover; note their positions as lengths may vary. Lift the cover carefully–an oil pump linkage sits beneath, requiring gentle disconnection from the wrist pin. Label all hoses and wires before separation, as the fuel line, impulse hose, and throttle cable intersect here. A 12mm socket removes the flywheel nut, but lock the piston in place by inserting a piston stop through the spark plug hole to avoid crankshaft rotation.
| Component Group | Tools Required | Critical Notes |
|---|---|---|
| Crankcase Cover | T27 torx, 5mm hex | Two lower screws thread into magnesium–apply Loctite 243 on reassembly. |
| Piston Assembly | Piston stop, needle-nose pliers | Ring gaps must align with pin dowels–mark positions before removal. |
| Carburetor | Flathead screwdriver, 8mm socket | Clean mounting gasket surface; replace if compressed beyond 0.5mm. |
| Clutch | Impact driver, thread lock | Left-hand threads clockwise–heat clutch drum with propane torch if seized. |
Rotate the piston to Top Dead Center (TDC) before extracting the cylinder. Use a plastic scraper to peel off the old base gasket–avoid metal tools to prevent scoring the aluminum. The cylinder’s inlet ports must be checked for carbon buildup; soak in decarbonizing solution for 30 minutes if deposits exceed 1.5mm thickness. Reinstallation follows inverse order, with torque specs strictly observed: clutch nut (45 Nm), flywheel (85 Nm), and crankcase screws (8 Nm). Replace the fuel filter if contaminants are visible–accessed via the fuel tank’s pick-up line, requiring a 10mm open-end wrench for the securing clip.
Key Replaceable Elements in Professional Chainsaw Models and Their Schematic Locations
Start by inspecting the chain catcher (item #12 in the exploded view) – a critical safeguard that often deforms after contact with kicked-back cutting attachments. Locate it beneath the clutch cover; replace if the retaining tabs show hairline fractures or the mounting holes become elongated. Pair this with the bar tip guard (adjacent to the sprocket nose), regularly checking for warping or deep grooves that accelerate chain wear.
The air filter housing gasket (#41) demands attention when cold starts become inconsistent or RPM drops under load. Remove the top cover to access it; deformation typically appears as hardened edges or visible compression gaps. Replacement filters (#40) should seat flush–misalignment here reduces engine efficiency by 18-22% based on field tests. For the intake manifold (#35), inspect for hairline cracks near the mounting flange during filter changes–these often go unnoticed until cylinder scoring occurs.
High-Friction Zones Requiring Routine Checks
Focus on the drive sprocket (#23) and needle bearing (#24) assembly every 50 operating hours. The sprocket’s teeth should have symmetrical wear–asymmetry indicates misalignment or improper chain tension. The bearing’s silent failure mode (no audible warning) risks catastrophic clutch engagement; apply pressure to the outer race post-removal–any play warrants immediate replacement. The piston rings (visible after removing the cylinder) show telltale glazing when overheated; measure end gaps (spec: 0.008–0.012″) with a feeler gauge to avoid scoring.
Examine the fuel pump diaphragm (#61) during carburetor servicing–for cracks or brittleness, especially if starting requires prime pumping. The wrist pin bearings (#8) inside the connecting rod require needle-nose pliers for extraction; seized pins often leave bronze debris in the oil sump. For the flywheel (#17), check keyway integrity with a flashlight–sheared keys create timing slop, leading to intermittent spark issues. The muffler spark arrestor (internal, beneath #53) accumulates carbon; clean with compressed air only–wire brushing damages the stamped perforations critical for noise suppression.
Finding and Procuring Engine Components for the Pro Saw Model 461 via Exploded Schematics
Download the official repair manual supplement for the model 461 chainsaw directly from the manufacturer’s website. Locate the section titled “Engine Component Breakdown” or an equivalent label–commonly found on pages 12–15. Each sub-assembly is depicted in sequence, with arrows linking items to corresponding numbered callouts in a sidebar. Cross-reference the callouts with the parts list provided at the end of the document or in a separate PDF, ensuring the part numbers match precisely.
Use the exploded view to isolate the exact location of the needed piece within the engine housing. For example, if replacing the piston ring set, identify the ring (typically grouped with the piston itself), then trace its placement relative to the cylinder and crankcase. Note adjacent components–gaskets, clips, or seals–that may require removal or replacement during disassembly. This prevents overlooking small but critical elements during reassembly.
When ordering, specify the exact OEM identification code, not just the descriptive label. The manufacturer’s online store or authorized dealers typically sort items by this code, bypassing ambiguity. For instance, a piston (item 1123 400 1202) differs from the complete piston assembly (1123 400 1200), which includes rings and wrist pin. Input the code into the search bar to retrieve accurate stock availability and pricing.
Identifying Alternatives Without Compromising Performance
If OEM pieces are unavailable, cross-check aftermarket options using the exploded schematics as reference. Third-party suppliers often label products using both the OEM code and their own catalog number. Compare dimensions, material specifications, and compatibility notes against the original–measurements like bore diameter, ring thickness, or gasket thickness must align. Avoid substitutions for high-wear items like bearings or seals unless explicitly tested by reputable brands.
For older saws, verify superseded versions of the component. Manufacturers occasionally revise designs; the exploded view might show a newer iteration labeled “Updated” or “Improved” alongside the obsolete version. Documentation sometimes includes cross-reference tables–confirm whether the newer part fits without modification. If the discrepancy is unclear, contact the dealer’s technical support with the engine serial number (engraved on the crankcase) for confirmation.
Prioritize purchasing from distributors that list real-time inventory status and expected restock dates. Some platforms display “Ships in 3–5 days” or “Backorder until [date],” which varies by region. Factor delivery lead time into repair schedules; expedited shipping is advisable for urgent repairs, though costs increase significantly for overnight or two-day options. Larger components, such as cylinders or flywheels, often ship freight–account for additional handling fees at checkout.
When placing an order, select “Engine Block” or “Piston/ Cylinder” as the category if available, then filter by the item’s position in the exploded schematic. Some suppliers offer bundled kits–piston, rings, and gaskets–at a discounted rate, which can reduce total expense but may include unnecessary extras. Review individual item prices against the kit price; discard non-essential inclusions if storage or immediate need is limited.
After receipt, verify each piece against the exploded view and corresponding callout list. Check for physical defects, dimensional accuracy, and packaging integrity. Retain all original packaging until installation is complete, in case returns or exchanges are necessary. Store uninstalled items in a clean, dry environment–away from solvents–to prevent premature deterioration of seals or coatings.
