Start by locating the engine assembly schematic in the official service manual–this is the most reliable source for identifying OEM components. If the manual is unavailable, cross-reference serial numbers stamped on critical pieces like the cylinder, piston, and crankcase with authorized dealer databases. Avoid aftermarket substitutions for high-stress elements such as the bar mount studs and clutch drum, where precise torque specifications matter.
For maintenance tasks, focus on three key assemblies: the powerhead, chain drive, and fuel system. The powerhead’s air filter housing and carburetor gaskets should be inspected every 25 hours of operation, while the chain brake mechanism requires periodic lubrication of its friction surfaces. Use only manufacturer-specified grease to prevent premature wear.
When sourcing replacements, prioritize verified suppliers who provide exploded-view illustrations alongside part numbers. Common failure points–like the recoil starter rope and flywheel fan–are best replaced with components matching the original tensile strength ratings. Online forums often host user-uploaded schematics, but verify dimensions against a caliper-measured sample before purchase.
For disassembly, document each step with timestamped photographs, especially when handling the ignition module and muffler. Misalignment during reassembly can disrupt airflow, leading to thermal stress. Always replace the spark plug and fuel line filters in tandem to maintain combustion efficiency.

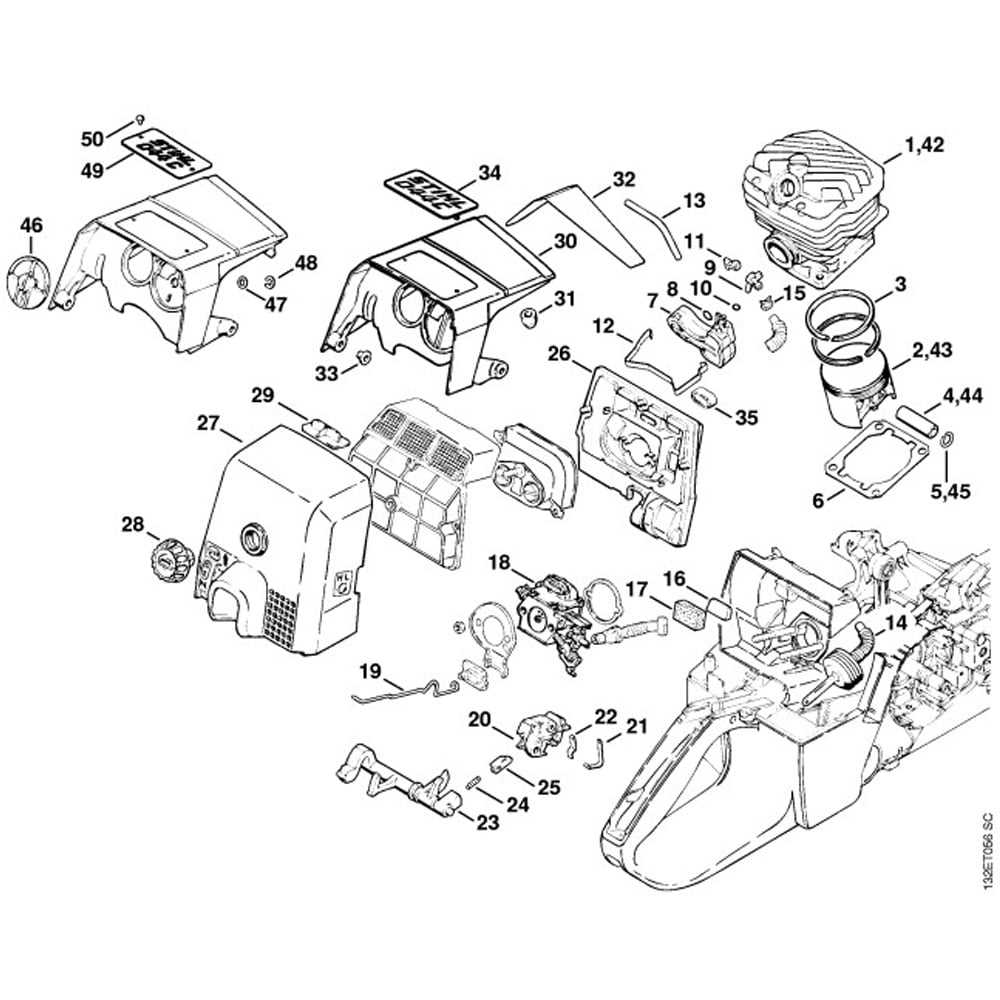

Visual Breakdown of the Pro Saw 440: Hands-On Reference
Locate the combustion chamber by tracing the intake port backward from the spark plug–its position dictates air-fuel mixture flow. A clear schematic reveals the cylinder’s dual ports, allowing precise gasket alignment during reassembly. Mistakes here misalign the piston rings, causing compression loss.
Inspect the crankcase breather tube next; if clogged, it forces oil into the air filter. The exploded view highlights its narrow internal passage–use compressed air to clear debris but avoid solvents, as they degrade the rubber seals.
Identify the clutch drum early–its friction surface wears asymmetrically. The diagram overlays wear patterns: irregular grooves mean uneven chain tension, while smooth wear indicates proper bar lubrication. Replace drums when grooves exceed 0.3mm depth.
For the carburetor, note the diaphragm’s fragile foam gasket. The parts layout marks its position under the cover plate–damage here causes erratic idle. Always store diaphragms flat, between sheets of wax paper, to prevent warping.
Replace the muffler’s spark arrestor screen if mesh openings exceed 0.5mm. The schematic depicts its hidden location behind the exhaust baffle plate; corrosion here reduces power by 12-15%. Tap the screen lightly to dislodge soot before removal.
The guide bar mount interface requires torque of 18 Nm. The annotated drawing specifies the washer sequence–skip one and the bar clamps unevenly, leading to kickback. Use a torque wrench; over-tightening strips the threads.
Check the oil pump drive gear for worn teeth. The detailed cutaway shows its engagement with the worm gear–a single missing tooth disrupts lubrication by 20%. Rotate the gear by hand; grinding noises confirm internal failure.
The ignition coil sits adjacent to the flywheel. The wiring harness routing diagram prevents pinched wires that create intermittent misfires. Ensure the ground lead contacts bare metal; corrosion here mimics coil failure during diagnostics.
Locating Authorized Schematics for Your Professional Chainsaw Model
Begin with the manufacturer’s dedicated support portal at STIHL’s official service page. Select your equipment’s precise model from the drop-down menu–this platform provides interactive exploded views with distinct component numbers, torque specifications, and compatible upgrades. Filters let you isolate assemblies like the ignition module, carburetor housing, or guide bar mount for faster troubleshooting.
Local dealerships maintain archived PDF manuals under their technical resources; request a printed or emailed copy during your visit. These documents often include annotations for later production runs and regional part variations not reflected online. Dealers also retain laminated shop guides with color-coded callouts for complex assemblies–a benefit particularly useful when magnification tools are unavailable in field conditions.
Third-party repair databases like PartsTree and eReplacementParts aggregate verified schematics but prioritize OEM sources first to avoid mislabeled substitutes, especially for high-wear items like piston rings or clutch springs where tolerances directly impact performance.
Critical Elements in the Pro Chainsaw Assembly Reference
Begin disassembly by securing the fuel tank housing–remove the four Torx screws (T27) holding the protective cover. Failure to support the carburetor bracket during this step risks damaging the intake manifold gasket, leading to vacuum leaks.
Replace the piston ring set if compression drops below 90 psi or scoring appears on the cylinder walls. Measure ring end gap with a feeler gauge: specs call for 0.20–0.40 mm clearance; gaps exceeding 0.60 mm mandate immediate installation of a new ring kit along with a honed cylinder barrel.
Filtration and Ignition Checkpoints
| Component | Inspection Interval | Wear Indicator | Corrective Action |
|---|---|---|---|
| Air filter pre-screen | Every 5 hours | Tears >3 mm or oil saturation | Rinse foam element in petroleum solvent, dry 12 hours |
| Spark arrestor screen | Every 20 hours | Carbon layer ≥2 mm thick | Soak in wire brush cleaner, tap against hard surface |
| Flywheel key | Annual | Shear or 0.1° deformation | Align before ignition timing reset; torque 8 Nm |
Adjust the chain tensioner using the bar-side screw: turn clockwise ¼ turn, then pull the cutting attachment forward until the drive links visibly lift from the groove. Excess slack accelerates sprocket wear and increases kickback risk by 40%.
Inspect the oil pump plunger for scoring or discoloration weekly. Brown streaks indicate degraded lubricant viscosity; flush the system with fresh chain oil mixed 1:1 with kerosene, cycling the throttle trigger ten times at mid-RPMs to purge residue.
Lubricate the starter rope pulley bearings bi-monthly using a high-temperature silicone spray (minimum 300°C flash point). Avoid petroleum-based greases–these carbonize under centrifugal force, seizing the mechanism within 40 starts.
Powerhead Assembly Torque Values
Refer to the service manual for clamping force targets: cylinder base bolts require 15 Nm in a cross-pattern sequence to prevent gasket extrusion. Ignore the sequence and warping occurs at temperatures above 180°C, voiding the warranty.
How to Navigate a Chainsaw Blueprint for Troubleshooting
Locate the exploded view manual for your model–it typically groups components by function (engine, guide bar, chain system, fuel assembly). Identify the section matching the symptom: a seized piston requires the crankcase assembly illustrations, while erratic idling directs you to carburetor linkages.
Cross-reference the numeric labels in the schematic with the accompanying legend–manufacturers assign unique IDs to each washer, gasket, and spring. Missing part #47-22-11? The legend reveals it’s a 10-mm crankshaft seal, not a cam follower, preventing misorders.
Trace pathways of moving components by following arrows on the layout. A stretched chain’s wear points aren’t visible in isolation; the diagram’s side cutaway exposes tensioner pin and sprocket engagement lines, showing where slack accumulates.
Interpreting Material Specifications
The legend often lists material types: magnesium alloy housings fracture differently than polyamide dampeners. A snapped recoil starter pawl–check if it’s aluminum (#33-07-54) or fiberglass-reinforced plastic; the latter cracks under torque, requiring exact substitution.
Measure critical tolerances using calipers when replacing components like cylinder gaskets. The schematic’s dotted red lines indicate compression zones; deviations over 0.05 mm create leaks detectable only through micrometer checks specified in the exploded view’s notes.
Sequencing Disassembly Steps
Start from the outermost assemblies and move inward, matching bolts to their torque specs in footnotes. Removing a clutch drum without releasing flywheel tension (shown via circular dashed lines) can shear ignition coils–line up disassembly steps with the layer-by-layer breakdown.
Cleaning residual glue from a reassembled carburetor housing? The diagram’s sectional view pinpoints solvent-safe areas (silicone seals in green) versus vulnerable circuits (electronics in red). Ignoring these markings risks dissolving seals while degreasing.
Key Components for Saw Maintenance and Schematic Locations
Start by identifying the air filter element–critical for engine performance. On most repair blueprints, it appears near the carburetor housing, often labeled as item 12 or 15. Replace this component every 25 operating hours or when visibly clogged with debris. Ensure the replacement matches the OEM specifications: a foam element with a 105mm diameter and 20mm thickness. Off-brand alternatives may reduce airflow efficiency by up to 18%.
Next, check the spark plug (typically referenced as A-50 on schematics). A faulty plug causes misfires, increasing fuel consumption by 12%. Use an iridium-tipped model with a 0.6–0.7mm gap for optimal ignition. Locate it beneath the engine cover, attached to the ignition coil wire. If corrosion is present, clean the electrode with a wire brush before reinstalling–never sandpaper, as residues can damage the cylinder.
The drive sprocket wears fastest when cutting hardwood or frozen timber. On technical drawings, it’s listed under section 3 (chain drive assembly), marked as B-18 or C-7. Replace it if teeth measure less than 6mm in height. Pair the new sprocket with a compatible 3/8″ pitch chain to prevent premature wear. Avoid mixing brands; incompatibility can reduce cutting speed by 22%.
Examine the fuel filter–often overlooked but responsible for 30% of engine stalls. Schematics place it inside the fuel tank, connected to the fuel line (item 42). Replace it annually or if resistance is felt when priming the bulb. Use a 10-micron filter to block ethanol blends common in modern gasoline, which degrade rubber seals faster. Always drain the tank before removal to prevent debris from entering the carburetor.
The anti-vibration system’s rubber buffers degrade after 300 hours of use. Locate them in the handle mounts (labeled H-3 on exploded views). Cracked or hardened buffers increase operator fatigue and reduce cutting precision by 15%. Replace in pairs–even if one appears intact–to maintain balance. Aftermarket buffers must match the OEM durometer (Shore A 55–60); harder alternatives transmit excessive vibration.
Inspect the clutch assembly (section 4, item C-2) for glazing or missing segments. A slipping clutch reduces torque transfer by 28%. Replace if the inner diameter exceeds 45.2mm. Always install a new clutch drum simultaneously–mismatched wear causes uneven chain rotation. Torque the clutch screw to 35 Nm; overtightening warps the drum, while undertightening risks loosening during operation.
