Begin troubleshooting or maintenance by locating the air filter housing–a critical element often overlooked. Remove the cover by pressing the tabs on both sides; failure to clean it every 10 operating hours leads to poor combustion and reduced power. Replace the filter if torn or saturated with debris; a new OEM replacement costs under $15, while aftermarket options may compromise engine longevity.
Next, inspect the spark plug, accessible by unscrewing the orange cap. A normal reading should show a light brown electrode; black deposits indicate a fuel mix too rich or a choke left engaged. Gap the plug to 0.5mm–use a feeler gauge for precision. Ignition failures often stem from incorrect gapping, not just a fouled plug.
For the bar and chain assembly, disconnect the spark plug wire first to prevent accidental starts. The drive sprocket–located at the bar’s tail–should have clearly defined teeth; worn sprocket teeth cause chain skipping and increased wear. Replace if teeth measure under 0.5mm in height. Lubricate the bar’s oil inlet hole with 2–3 drops of bar oil before reassembly to prevent seizing.
The carburetor adjustment screws are marked “H” (high speed), “L” (low speed), and “LA” (idle). Factory settings are 1.5 turns out for H and L, but altitude and fuel quality may require fine-tuning. Turn the H screw clockwise until the engine runs roughly at full throttle, then back it out ¼ turn. Adjust L similarly for smooth acceleration. Incorrect settings waste fuel and damage piston rings.
Lastly, the flywheel cover hides the crankshaft bearing, which rarely fails but should be checked if the unit vibrates excessively. Remove the flywheel (requires a 19mm socket) to inspect the bearing race for scoring. A damaged bearing produces a rough idle; replacement is a $30 part but demands precision torque–tighten the flywheel nut to 60 Nm to avoid thread stripping.

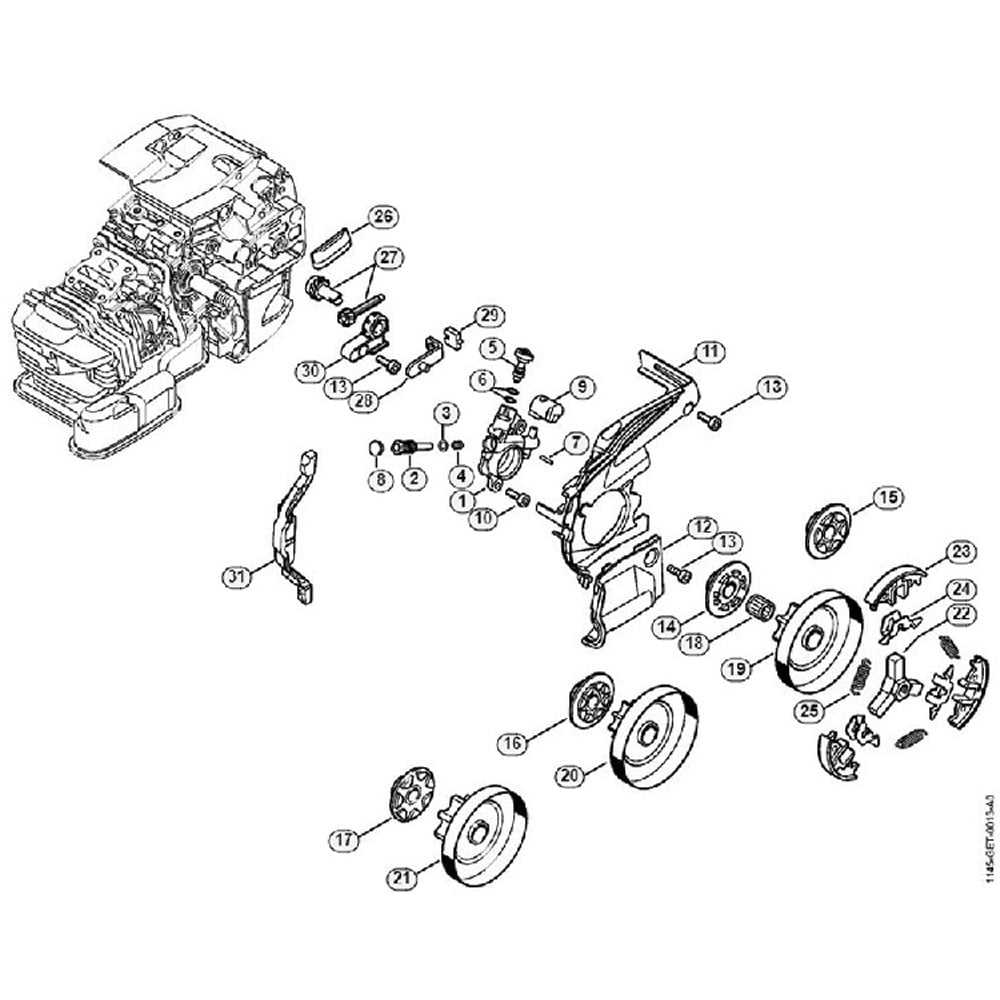

Exploded View Reference for Your Chainsaw Model: Expert Tips
Locate the spark plug by following the upper left quadrant of the schematic, typically near the recoil starter assembly. The plug (OEM #1116 120 2102) unscrews with a 13mm socket–replace every 25 hours of runtime to prevent misfires. Below the plug, the cylinder (OEM #1130 460 3705) and piston (OEM #1130 120 3700) are depicted with torque specs: 12 Nm for cylinder bolts, 8 Nm for exhaust flange.
- Air filter housing (OEM #1119 120 5400) detaches by removing two Torx T25 screws; clean with compressed air or soak in soapy water biweekly.
- Carburetor (OEM #1111 120 2000) adjustments use three screws: H, L, and idle–turn H/L 1/8 clockwise from flush for optimal fuel mix, then reset idle to 2800 RPM.
- Clutch assembly (OEM #1123 120 0319) disassembles by removing the E-clip with snap-ring pliers; replace drive drum if grooves exceed 0.3mm depth.
Refer to the lower right section for the guide bar and chain system. Chain tension is set by turning the side-access screw clockwise until slack is 3-5mm at the bar’s midpoint–over-tightening causes premature sprocket wear (OEM #1125 120 1800). Replace the bar (OEM #3005 000 5003) if rails measure below 0.635mm; sharpen the chain (OEM #3632 000 0060) with a 1/4″ round file every fourth refueling. Store components in labeled ziplock bags with silica packets to prevent corrosion during off-seasons.
Identifying Core Power Unit Elements on the Saw Schematic
Start by pinpointing the cylinder on the exploded view–typically labeled near the top center. This cast-aluminum housing contains the piston, rings, and spark plug bore. Cross-reference the part number (e.g., 1123 020 1205) with the service manual to verify compatibility before disassembly, as aftermarket components often vary in thermal conductivity.
- Crankshaft: Locate adjacent to the flywheel, identifiable by its counterweights–critical for balancing reciprocating forces. Lubrication ports (0.3mm diameter) should be inspected for carbon buildup if starting difficulties occur.
- Carburetor: Positioned beneath the air filter, marked by fuel lines and throttle linkages. The diaphragm (3-stage design) regulates fuel delivery at 0.5 psi; diaphragm replacement requires torque specs of 3 Nm for housing screws.
- Ignition module: Mounted opposite the flywheel, includes coil and trigger plate. Gap distance between flywheel magnets and pickup must remain 0.2–0.4mm; deviations cause misfires.
Examine the piston crown via the exhaust port–scoring or discoloration indicates lean fuel mixtures or poor lubrication. The wrist pin (part #1128 100 2004) should rotate freely but resist lateral play; excessive movement accelerates bushing wear on the connecting rod. Replace if axial clearance exceeds 0.05mm.
Inspect the flywheel’s keyway alignment–a sheared key disrupts timing, causing backfires. The fan blades (plastic composite) must be checked for cracks; even minor fractures propagate under 12,500 RPM stress. Use a dial indicator to confirm crankshaft runout does not exceed 0.03mm, or bearing failure follows within 50 operating hours.
Locating and Swapping the Combustion Engine Air Intake Element
Shut off the power unit fully before servicing. Detach the spark plug wire to prevent accidental ignition. The intake element sits behind the top cover on the right side, secured by a single latch or screw. Remove the housing by lifting the latch or unscrewing the fastener–no tools are typically needed unless corrosion is present. Inspect the filter for debris; if clogged beyond cleaning, proceed with replacement.
Matching the Correct Replacement
Verify the model-specific intake element number from the official illustration guide. Common dimensions for this saw’s filter measure 65mm x 40mm x 15mm with pleated paper construction. Aftermarket equivalents may vary in density–prioritize OEM-spec components to maintain airflow rating. Incorrect density accelerates wear on the carburetor by disrupting fuel mixture balance.
Clean the intake cavity thoroughly using compressed air or a stiff brush. Residual sawdust or oil residue reduces the effectiveness of the new element. Wipe surfaces with a lint-free cloth; solvents degrade plastic housings over time. Align the replacement filter’s grooves with the mounting rails inside the cover. Press firmly until it clicks into place without gaps.
Reassembly Sequence
Reattach the cover, ensuring the latch snaps shut or the screw torques to 1.5 Nm. Reconnect the spark plug wire. Start the unit and monitor for unusual vibration or rough idle–both indicate improper installation. If performance remains suboptimal, recheck the filter seating; misalignment restricts airflow, forcing the engine to run lean.
For heavily used saws, replace the intake element every 25 operating hours or seasonally. Paper filters degrade even when visually intact, losing pore integrity after prolonged exposure to fuel vapors. Keep spares sealed in their original packaging away from petroleum fumes to prevent premature breakdown. Rotate two filters if routinely operating in dust-heavy environments.
Test the saw’s acceleration under load post-replacement. Hesitation or bogging signals potential issues with either the filter or adjacent components like the fuel line or carburetor gaskets. Consult the technical schematic to cross-reference nearby assemblies if troubleshooting extends beyond the intake element.
Step-by-Step Guide to Locating the Carburetor in an Exploded Engine View
Begin by identifying the air filter housing–marked as item 12 in most schematic breakdowns. Directly beneath it, the carburetor assembly (typically labeled with a three-digit number starting with 114) is secured by two screws or bolts, visible as small circular fasteners on either side. Trace the intake manifold from the cylinder to confirm the connection point; the carburetor will sit between these components.
Key Reference Points
Locate the throttle linkage (a slender metal rod or cable) extending from the trigger assembly. Follow it downward–it attaches to the carburetor’s control lever, exposing the unit’s position. Nearby, the fuel line (thin, pliable tubing) will lead into the carburetor body, further verifying its placement. If the schematic includes a side view, note how the assembly aligns vertically with the engine’s crankcase.
Remove the air filter cover first by unscrewing its retaining bolt (often item 15). With the housing detached, the carburetor’s upper section–including the choke plate and fuel chamber–becomes accessible. Some models show a gasket (item 115) between the carburetor and crankcase; ensure this is intact when reassembling. The exploded view may separate the carburetor into subcomponents like jets, diaphragms, and springs–verify their positions against the numeric labels.
For precise disassembly, reference the numeric sequence: start with the outermost parts (air filter, linkages) before progressing to internal elements (diaphragm, needle valve). The carburetor’s body (main block) is usually item 114, while smaller parts like the metering lever (item 114.1) or pump cover (item 114.2) are grouped nearby. Use a magnifying tool to cross-check tiny screws or O-rings against the schematic’s callouts.
If the assembly appears misaligned, check the orientation of the intake manifold–some carburetors have asymmetrical mounting holes. Reinstall by reversing the order: reattach the diaphragm and jets before securing the main body to the crankcase. Confirm the fuel line routing to avoid leaks, and tighten screws incrementally in a diagonal pattern to prevent warping the housing.
