Start with the exploded view schematic provided in the official service manual–this document includes numbered references for every replaceable element, from the piston assembly to the carburetor linkage. Locate the air filter cover first; removing it exposes the spark arrestor screen and fuel mixture adjustment screws, typically marked L (low) and H (high). The chain brake mechanism sits directly beneath the front handle, secured by two torx bolts–ensure the brake band is disengaged before attempting disassembly.
Trace the starter housing on the right side of the powerhead–this section contains the recoil spring, starter pawls, and flywheel magnets. Detach the clutch drum by locking the piston with a rope through the spark plug hole, then apply a counter-clockwise torque to the crankshaft nut using a specialized clutch removal wrench. The oil pump drive gear aligns with the chain sprocket, regulated by the automatic oiler system; inspect the oil feed port for blockages if the chain fails to lubricate during operation.
Examine the cylinder head carefully–it houses the exhaust port and should be pried off only after removing the four socket-head screws. The piston skirt and rings can be inspected through the cylinder bore once the head is removed; measure ring gap clearance with a feeler gauge before reassembly to avoid premature wear. The carburetor diaphragm, gasket, and needle valve form a sealed vacuum system–clean these components with non-residue solvent to restore precise fuel metering.
Reference the numbered legend in the schematic when ordering replacement parts–cross-check measurements of worn components like the drive sprocket (teeth should not exceed 0.5mm wear) and guide bar rails (groove depth must remain within 0.2mm tolerance). Keep a magnetized tray nearby to secure small fasteners like the muffler springs and retainer clips during disassembly.
Understanding Your Chainsaw’s Component Layout
Begin repairs by locating the air filter cover (item #1111 120 0605) on the left side–remove the single screw (PH2x12) to access the filter. Clean or replace it every 10 hours of operation; clogging reduces engine efficiency by 20-40%. Mark the filter’s orientation before removal–misalignment causes improper air intake sealing.

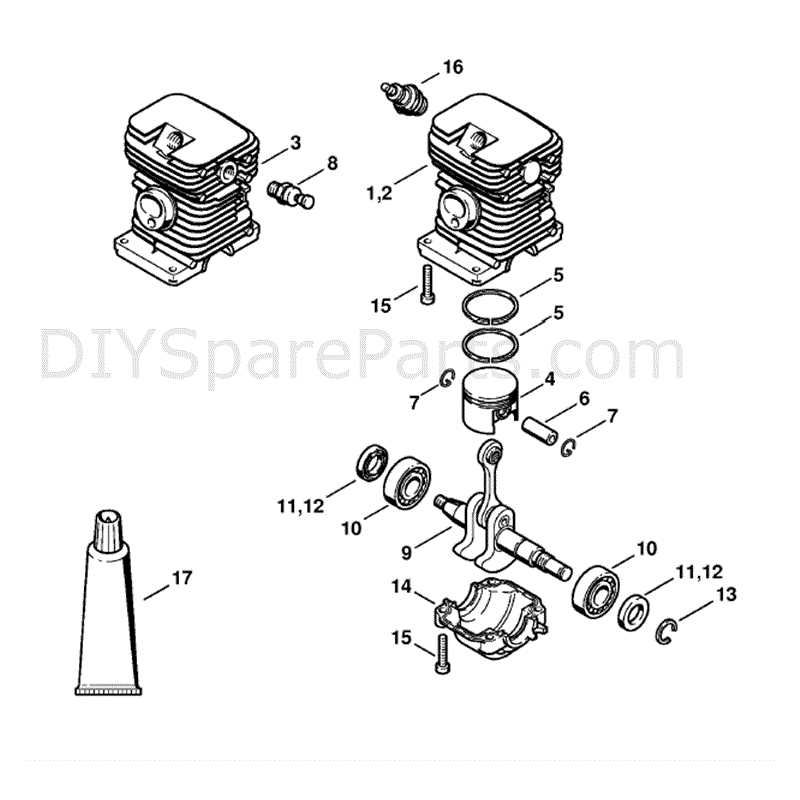

Key Engine Components
Identify the cylinder (part #1130 120 0800) near the rear–inspect the piston for scoring every 50 hours. Check the spark plug (NGK BPMR7A) gap at 0.5mm; wider gaps misfire at high RPM. The flywheel (item #1120 120 0802) sits behind the clutch; damage here disrupts ignition timing. Use a crankshaft puller (part #5910 890 2002) for safe removal–avoid prying tools.
Fuel system maintenance starts with the carburetor (Zama C1Q-S85). Adjust mixture screws cautiously–turning the idle screw (LA) clockwise increases RPM, while the H screw affects high-speed fuel flow. A lean mixture overheats the engine; rich settings foul the plug. Replace the fuel filter (part #0000 930 2106) annually–contaminants clog the pump diaphragm.
The chain brake assembly (part #1126 120 0604) requires monthly tension checks. Loosen the bar nuts, then turn the adjusting screw (3mm Allen) until the chain sags 3-5mm above the bar. Over-tightening wears the drive sprocket (part #1122 120 6400) faster–replace it every 3 sharpenings. Lubricate the bar groove with SAE 30 oil to prevent rail wear.
Disassembling the housing? Note the carburetor’s mounting order–intake manifold (blue), gasket, then carb. Reassemble with new gaskets (part #1119 120 0901) to prevent air leaks. The starter rope (item #1141 120 0201) frays at 50 pulls–inspect the recoil spring (part #1141 120 0205) for fatigue. Always secure the spark plug wire during work to avoid unintended starts.
Key Elements of the MS180C Compact Saw: A Breakdown
Before disassembling, locate the powerhead’s clutch assembly (beneath the sprocket cover) to prevent accidental engagement–secure the chain brake by pulling the hand guard forward. The ignition module sits adjacent to the flywheel, identifiable by two high-voltage leads terminating in a single spark plug boot; disconnect the kill switch wiring first, using needle-nose pliers to release the terminal clips without damaging the silicone insulation.
- Air filter housing: Remove the single Phillips screw, then lift the cover to access the pleated paper element–tap the filter against a hard surface to dislodge debris rather than using compressed air, which can collapse internal pleats.
- Carburetor linkage: Trace the throttle trigger cable to its mounting pivot on the fuel pump body; pivot the lever counterclockwise to reveal the idle speed screw (marked “LA”) and high-speed mixture screw (“H”). Adjust these only after warming the engine to operating temperature (2,000–2,200 RPM idle).
- Guide bar mounting: Loosen the bar-adjusting screws using a 13mm socket, then slide the bar outward to inspect the wear pattern on the drive sprocket–replace the sprocket if more than 0.5mm of the teeth’s original profile is worn.
- Fuel system: Drain the tank before servicing; the primer bulb (located on the right side of the housing) shares a vacuum line with the carburetor pulse port–check for brittle seals if fuel leaks at the bulb’s base.
- Muffler assembly: Remove two 8mm hex bolts to detach the exhaust; use a wire brush to clear carbon buildup from the spark arrestor screen, ensuring no particles enter the cylinder port during cleaning.
Step-by-Step Guide to Disassembling the Chainsaw for Maintenance
Unscrew the bar nuts using a 13mm socket wrench and remove the guide bar and chain. Store the nuts in a magnetic tray to prevent loss–these components are critical for reassembly. Next, detach the sprocket cover by lifting it away from the housing; it often sticks due to resin buildup, so use a flathead screwdriver to pry gently if needed. Inspect the clutch drum and sprocket for wear; replace if grooves exceed 0.5mm depth.
Removing the Engine Components
- Release the fuel tank by unscrewing the single 8mm bolt securing it to the chassis. Drain residual fuel into an approved container if necessary.
- Disconnect the spark plug wire and remove the cylinder cover by unfastening four Torx T25 screws. Keep track of their positions–two are shorter and belong near the muffler.
- Slide the piston stop tool into the spark plug hole to lock the piston in place before loosening the flywheel nut. Use a 19mm socket with a breaker bar; counterclockwise force is required.
- Pull the flywheel off with a universal flywheel puller, threading it into the two M6 holes on the flywheel’s face. Apply steady pressure to avoid damaging the crankshaft taper.
Access the carburetor by removing the air filter box (two Phillips screws) and disconnecting the throttle linkage. Label all hoses–there are three: fuel, pulse, and breather–using masking tape to avoid cross-connection during reassembly. The carburetor itself is held by two 10mm bolts; replace the gasket if compressed or torn. For deeper repairs, split the crankcase by separating the housing halves after removing all peripheral screws, but note that this step requires a mallet and cautious tapping on dowel pins to avoid cracking the aluminum.
Key Components for Quick Repairs and Where to Find Them
Begin with the air filter assembly–located behind the protective cover on the right side of the housing. A clogged or damaged filter restricts airflow, forcing the engine to work harder and reducing efficiency. Replace it every 25 operational hours or sooner if operating in dusty conditions. The filter’s mounting bracket often collects debris, so clean it thoroughly during replacement to maintain proper sealing.
The spark plug sits beneath a small rubber gasket near the rear of the engine block. Faulty ignition is a common issue, so check for corrosion, electrode wear, or improper gap (0.5 mm for optimal performance). A misfiring plug wastes fuel and causes inconsistent starts. Swap it out if deposits are visible or resistance exceeds 5 kΩ. Always use the manufacturer-specified model to avoid compatibility issues.
Examine the drive sprocket–positioned at the base of the cutting attachment–if the chain rotates sluggishly or slips. Wear here is often overlooked but critical; inspect for uneven teeth or excessive play. A worn sprocket accelerates bar and chain degradation. Replace it simultaneously with the chain to prevent premature wear. The sprocket cover should be secured with the correct torque (4-5 Nm) to avoid loosening during operation.
The guide bar mounting studs and bar itself require regular inspection for straightness, groove wear, and oil port clogs. Misalignment here leads to uneven cutting and increased vibration. Measure the bar’s groove depth–if worn beyond 0.5 mm, it’s time for a replacement. Clean the oil holes with a fine wire to ensure proper lubrication reaches the chain. Always pair a new bar with a sharp chain for balanced performance.
Keep an eye on the fuel filter inside the tank and the carburetor diaphragm beneath the starter assembly. Sediment in the filter disrupts fuel flow, while a cracked diaphragm causes erratic idling. Both should be checked annually or if performance drops suddenly. For the diaphragm, observe fuel seepage around the primer bulb–this signals failure. Replace immediately to avoid engine flooding or air leaks.
Interpreting the Chainsaw Assembly Blueprint for Repairs
Locate the engine housing near the top of the schematic–marked with a numerical identifier like #12. This section groups critical components: cylinder, piston, and crankcase seals. Verify the numbers match the legend before disassembly to avoid mismatched replacements. Tools required: T27 torx bit, circlip pliers, and a micrometer for precision measurements.
Examine the guide bar attachment area (#34-#38). The diagram splits this zone into three distinct layers: sprocket nose, bar mount, and chain tensioner. Check the alignment holes on the bar plate–misalignment during reassembly causes uneven wear. Tighten the tensioner screw incrementally, testing chain slack after each quarter turn until it glides smoothly without sagging.
Decoding Component Relationships
| Section | Key Parts | Failure Signs | Inspection Method |
|---|---|---|---|
| Air Filter Assembly | Foam pre-filter, paper element | Reduced power, excessive exhaust smoke | Blow compressed air from inside out; replace if fibers tear |
| Clutch Mechanism | Drive sprocket, clutch shoes | Chain rotates at idle, slipping under load | Rotate by hand; measure shoe wear (>1mm groove requires replacement) |
| Fuel System | Carburetor, fuel line, primer bulb | Hard starting, stalling | Inspect diaphragm for cracks; clean jets with carb cleaner |
Trace the ignition module (#22-#25). The exploded view separates the flywheel, ignition coil, and stop switch. Gaps matter: maintain a 0.2mm distance between flywheel magnets and coil legs. Use a non-magnetic feeler gauge to adjust–ferrous tools disrupt calibration. Replace the coil if insulation shows cracking, indicated by intermittent spark.
Focus on the recoil starter (#40-#47). The schematic distinguishes the pulley from the starter rope and spring housing. Wind the spring clockwise only–counterclockwise rotation weakens tension, causing slow retraction. Lubricate the pawl mechanism with graphite powder annually to prevent sticking.
Procedural Checks During Reassembly
Cross-reference the muffler assembly (#18-#20) with the exhaust port on the cylinder. The diagram specifies gasket orientation–metal-side faces outward to reflect heat. Torque the muffler bolts to 8 Nm; overtightening distorts the flange, leading to exhaust leaks.
Verify the oil pump linkage (#50-#52). The exploded view isolates the pump body, worm gear, and adjustment screw. Test functionality by filling the reservoir with bar oil–dry clamping damages the pump housing. Replace seals if oil leaks from the drive shaft area, confirmed by slick residue on the clutch cover.
