Begin troubleshooting with the air filter–a clogged element reduces engine efficiency by up to 30%. Locate it beneath the cover, secured by a single screw. A torn filter requires immediate replacement; debris entering the carburetor will accelerate wear on internal engine parts. Use the OEM part number 1118 020 1307 for direct compatibility.
Inspect the spark plug (OEM: 4103 070 0026) next–fouling or electrode damage disrupts ignition timing. A gap of 0.5mm is critical; deviations cause misfires. Replace every 100 operating hours or at the first sign of carbon buildup. Ensure the cylinder’s compression reading exceeds 90 PSI; lower values signal piston ring or cylinder wear.
The drive sprocket (OEM: 1125 640 0603) wears unevenly under heavy load. Check for missing or rounded teeth–replacement is mandatory if chain slippage occurs. Pair this with the guide bar (OEM: 3005 000 4108 for 16″ models); excessive grooves or bent rails indicate metal fatigue and demand a swap to prevent kickback.
Access the carburetor by removing the air filter housing. Clean jets with compressed air–never use wire, which damages delicate passages. Adjust the idle screw (turn clockwise ¼ turn from base setting) to stabilize RPM; erratic idle suggests diaphragm deterioration (OEM: 1111 120 0604). Replace the entire module if hesitation persists after tuning.
Examine the clutch assembly (OEM: 1126 170 0900) for glazing or cracked shoes. Engagement slippage at high RPM warrants disassembly; clean surfaces with brake cleaner, not solvents, to preserve friction material. The chain catcher (OEM: 1106 182 0404) fractures under stress–replace immediately if chipped to prevent chain ejection.

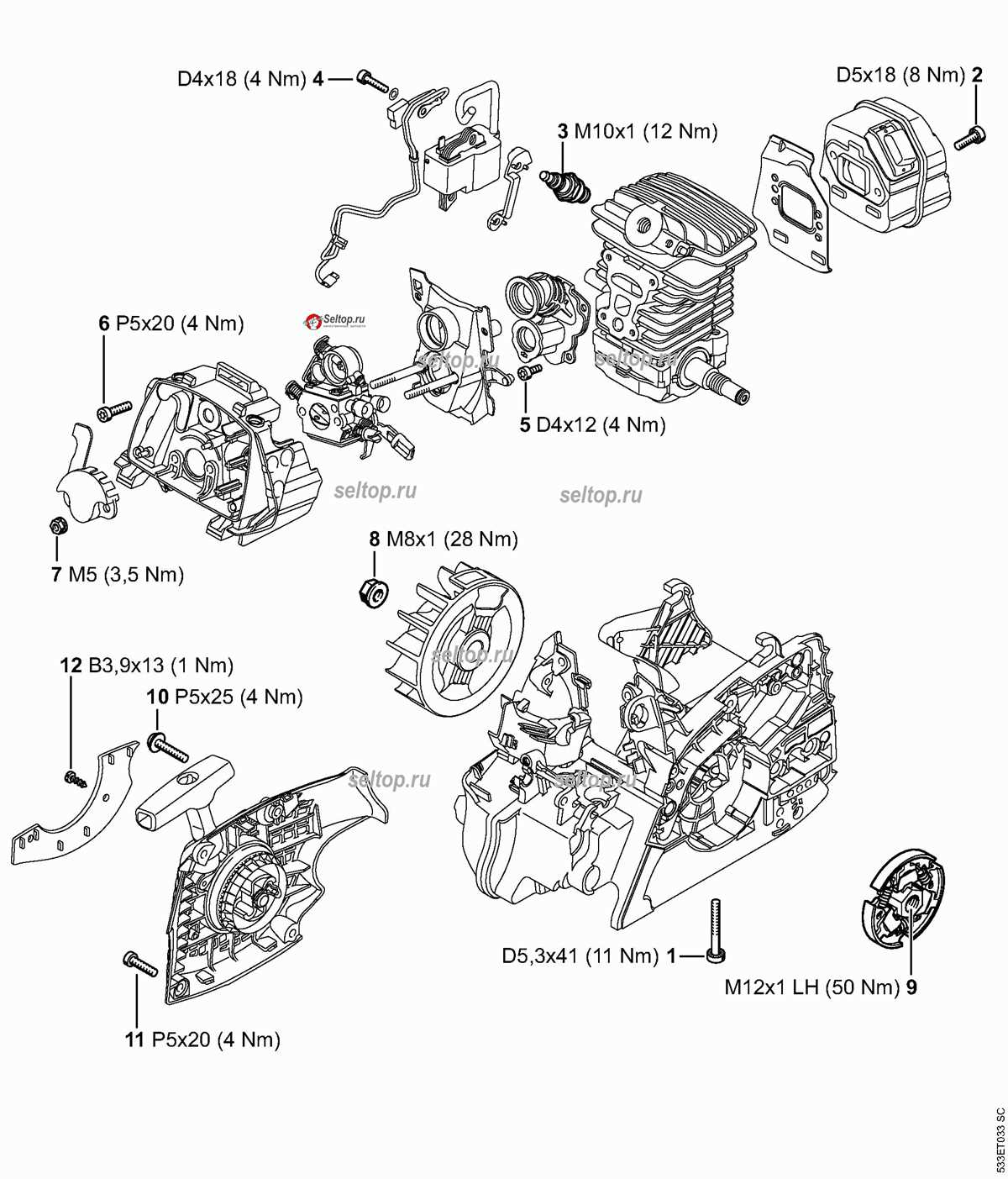

For precise reassembly, reference the technical schematic included in the service manual (document 0000 979 0605). Torque specifications: spark plug (25 Nm), bar nuts (6 Nm), flywheel cover (5 Nm). Ignoring these values risks thread stripping on the magnesium crankcase.
Practical Guide to Identifying Components on Your Chainsaw Schematic
Locate the air filter housing (item 15 in most schematics) by removing the top cover screws–typically T25 Torx. Clean the filter every 5 hours of use with compressed air at 30 PSI or wash in warm soapy water (
| Component | Schematic Ref. | Torque Spec (Nm) | Wear Limit |
|---|---|---|---|
| Flywheel nut | 34 | 50 ± 5 | Thread stripped |
| Clutch drum | 42 | 8 ± 1 | Groove depth |
| Crankcase bolts | 11, 12 | 10 ± 2 | Visible cracks |
Inspect the bar adapter (ref. 61) for lateral play: slide the bar sideways; movement >0.3mm requires shim adjustment (use 0.1mm shims under the bar). Lubricate the pivot with 2 drops of SAE 5W-30 every 10 hours. For the chain tensioner (ref. 63), turn the adjustment screw clockwise until the drive links engage the bar groove with
Finding the Air Intake System on Your Chainsaw Schematics
Locate the air intake housing at the rear of the engine compartment in the illustrated breakdown–positioned directly beneath the cylinder cover, marked by a hexagonal bolt pattern. The component is depicted as a rectangular casing with internal ribbing, often highlighted in light gray or beige on exploded views.
Identify the retaining screws: three Phillips-head fasteners secure the filter base to the carburetor flange. These fasteners are consistently shown adjacent to the intake snorkel, which protrudes perpendicularly from the casing in technical drawings.
Trace the flexible intake tube–visible as a corrugated hose–extending from the snorkel to the throttle body. The schematic typically labels this connection “air duct,” ensuring no confusion with fuel lines or wiring harnesses.
Examine the filter element itself: represented as a pleated paper insert sandwiched between the base and top cover. Factory diagrams distinguish it with a dotted texture or cross-hatching pattern to indicate porous material.
Check for alignment notches on the filter’s perimeter–visible on both the element and housing rim. These features prevent incorrect installation and are emphasized in red or bold outlines in manufacturer’s blueprints.
Observe the crankcase breather valve integrated into the intake top plate. This one-way nipple is often annotated with an arrow indicating airflow direction, critical for proper ventilation without drawing debris.
Consult the legend if symbols aren’t immediately clear: the air filter assembly carries identifier codes like “AF-1” or “Item 12” followed by quantitative details (e.g., “Pleated paper, 85mm x 60mm”).
Verify compatibility across production years–while the housing shape remains constant, newer revisions might feature upgraded gasket materials, discernible by revised part numbers in revision notes accompanying schematics.
Step-by-Step Guide to Swapping the Ignition Component in Your Chainsaw
Disconnect the spark plug wire by pulling the boot straight off the electrode–twisting can damage the connector. Use a 13/16-inch deep-well socket or dedicated spark plug wrench to loosen the component counterclockwise; torque specs are 18–22 Nm (13–16 ft-lb). If corrosion is present, apply penetrating oil and wait 10 minutes before attempting removal to prevent rounding the hex flats.
- Inspect the electrode gap–set to 0.5 mm (0.020 in) using a feeler gauge, bending only the side electrode.
- Check the insulator for cracks or carbon tracking; replace if damaged.
- Apply dielectric grease inside the boot before reinstalling to prevent moisture ingress.
Thread the new component by hand first to avoid cross-threading–misaligned starts strip the cylinder head. Tighten until snug, then turn an additional 1/8–1/4 turn for gasket crush. Reattach the boot firmly until it clicks; tug gently to confirm retention. Test the engine: a weak or absent spark indicates faulty wiring or ignition module failure–consult the service schematic for troubleshooting.
Locating Key Carburetor Elements in the Chainsaw’s Exploded Schematic

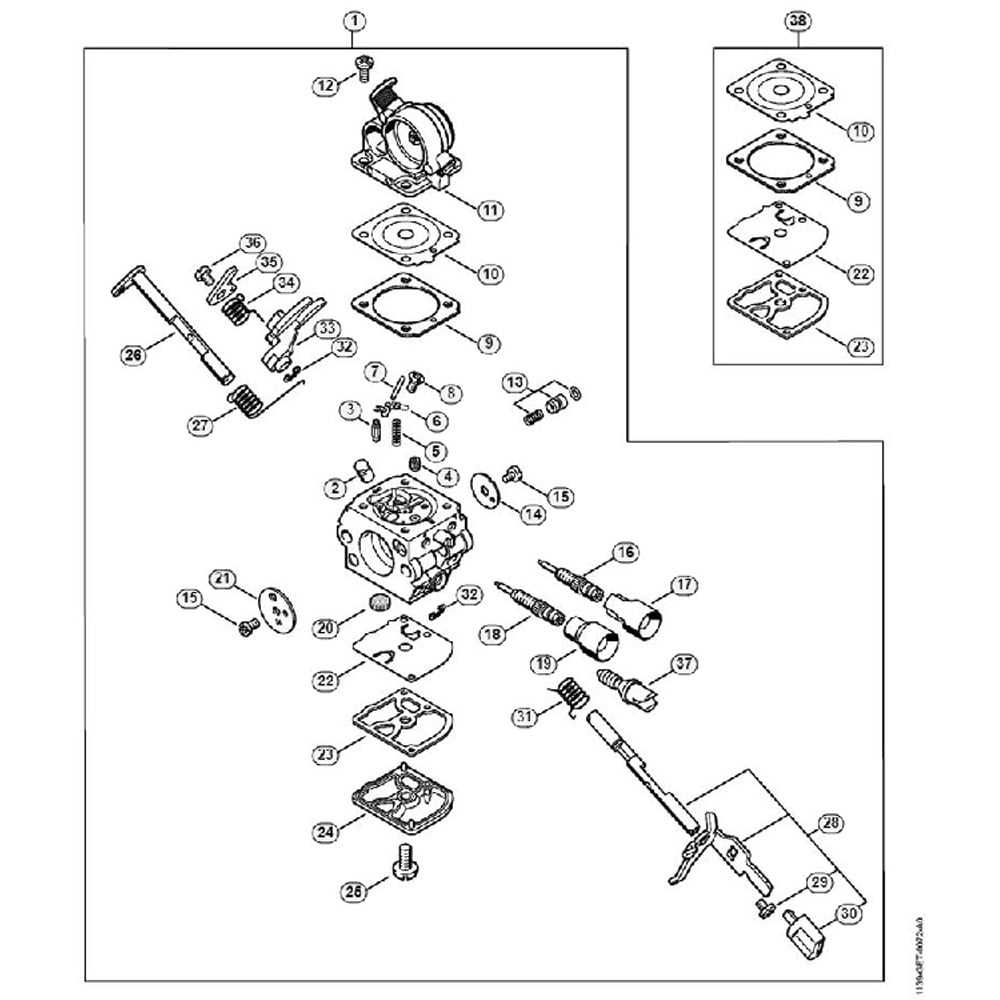

Begin by isolating the carburetor assembly in the technical breakdown–typically clustered near the engine housing, identifiable by its compact, rectangular metal body. The three adjustment screws (idle, low-speed, high-speed) protrude from the side, each labeled “LA”, “L”, or “H” for precise tuning. Verify their presence before disassembly; missing screws indicate prior tampering or wear requiring immediate replacement to prevent fuel mixture imbalance.
Critical Internal Components
The diaphragm sits beneath the carburetor cover, regulating fuel flow via a flexible membrane–inspect it for cracks or hardening, which disrupts engine performance. Adjacent to it, the needle valve (controlled by the metering lever) must move freely; corrosion here causes inconsistent fuel delivery. Check the gasket sealing the cover; even minor warping leaks air, diluting the mixture. Replace aged gaskets preemptively during maintenance.
Fuel inlet components include the strainer mesh and inlet needle–both prone to clogging from debris. Remove the mesh by unscrewing its brass housing; soak it in clean solvent if discolored, scraping hardened residue gently with a nylon tool to avoid punctures. The pump diaphragm beneath the strainer should flex without resistance; stiffness signals failure, leading to hard starts. Always cross-reference part numbers with the official service manual to confirm compatibility before sourcing replacements.
Locating and Swapping the Chain Stop Band in Your Saw’s Blueprint
Begin by securing the front handle with a clamp to prevent movement. The braking mechanism’s friction band lies beneath the top cover–remove the two 5mm hex screws anchoring the cover plate. Lift it carefully to expose the clutch assembly and guide bar mount. The brake band, a thin steel strip, wraps around the clutch drum near the sprocket. Use needle-nose pliers to detach the band’s hooked end from the spring-loaded lever, noting its orientation for reassembly.
Inspect the band for cracks, wear, or deformation. A compromised band will show polished or discolored sections where it contacts the drum. Measure its thickness at the thinnest point–replace if under 0.8mm. Match the new band’s dimensions: 120mm length, 10mm width, and 0.5mm thickness (OEM specifications). Clean the clutch drum surface with a lint-free cloth and 220-grit sandpaper to remove glazing or debris before installation.
Attaching the New Band
Hook the replacement band’s inner tab into the spring lever’s slot first. Align the band’s outer edge flush with the drum’s circumference, ensuring no twists. Compress the spring lever slightly while rotating the band fully around the drum–verify the band sits evenly along the entire arc. Reattach the top cover, tightening screws in a cross pattern to 4.5 Nm torque. Test the brake three times before startup: engage the lever fully, then release–it should snap back briskly with an audible click.
Lubricate the band’s contact area with a thin coat of graphite powder or dry moly grease to extend service life. Avoid petroleum-based products, which attract sawdust and accelerate wear. During reassembly, check the clutch’s condition–replace if the drum shows grooves deeper than 0.3mm. Misaligned brake bands will cause uneven wear, leading to premature failure or inconsistent braking performance.
Finalize adjustments by verifying the chain’s tension. With the brake engaged, the chain should not move when pulled firmly. Disengage the brake: the chain must rotate freely without binding. If drag persists, loosen the cover screws by 1/8 turn, recheck, then retighten. Document the replacement date–bands typically last 50–80 hours of use under normal conditions, less in dusty or abrasive environments.
