If you need precise breakdowns of the engine housing, bar mounting system, or carburetor assembly, obtain the official exploded-view schematics directly from the manufacturer’s service manual. Avoid third-party interpretations–these often omit critical torque specifications, O-ring placements, or lubrication points.
Key assemblies to examine include:
Crankcase and cylinder – Focus on gasket positioning (part #3257 007 1030) and piston ring orientation. Misalignment risks compression loss and premature wear.
Clutch drum and sprocket – Verify sprocket teeth condition (replace if hook depth exceeds 0.5mm) and clutch spring tension (spec: 3.5–4.2Nm).
Fuel system – The impulse hose (part #4141 130 2702) must be free of cracks; even minor leaks disrupt primer bulb function.
Use a magnifying glass when inspecting small components like the needle bearing (part #1128 640 5200) in the drive shaft–hairline fractures cause catastrophic failure under load. For replacement parts, cross-reference serial numbers against the manufacturer’s updated parts list: post-2018 models incorporate revised air filter frames (part #1126 120 1613) with integrated drainage channels to prevent debris buildup.
Tools required:
Torx T27 for engine housing bolts.
Feeler gauges (0.05–0.20mm) for spark plug gap (0.20mm spec).
Clutch removal tool (part #5910 893 3100) to avoid damaging the drum during disassembly.
Measure bar rail thickness (minimum 1.1mm); worn rails reduce chain retention and accelerate guide bar distortion.
Prioritize components exposed to high friction: the starter pawl (part #1128 400 4100) wears faster than the recoil spring–check engagement surfaces for pitting. For field repairs, carry a spare drive link (part #3005 005 8050) and rivet kit (part #5910 890 3000); improper insertion during chain replacement causes derailing.
Practical Reference for Your Professional Saw Model Breakdown
Locate the air filter housing beneath the top cover–press the two release tabs at the rear and lift forward. Inside, you’ll find the filter element secured by a single retaining clip; replace every 25 operating hours if working in dusty conditions. Note the intake grid pattern: finer mesh on the left side, coarse on the right–orientation matters for optimal airflow.

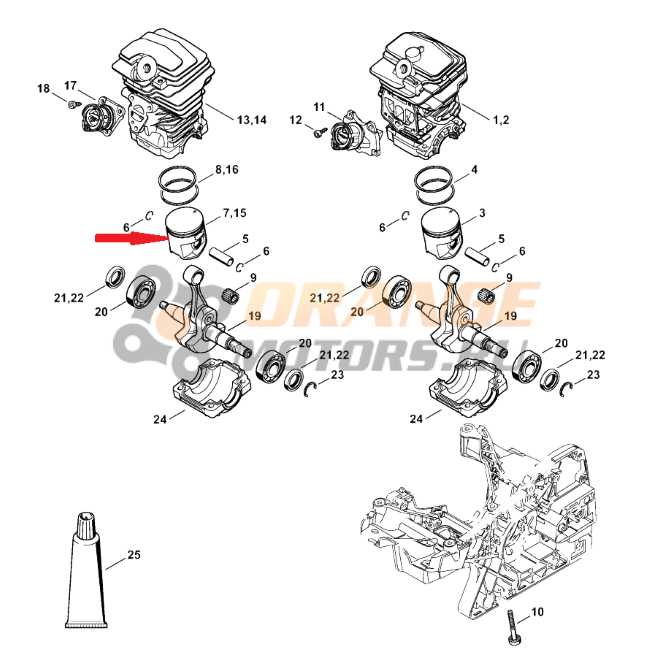

When servicing the crankcase assembly, drain the fuel first, then remove the spark plug and pull the starter rope to clear cylinder compression. Unscrew the four 8mm bolts in a diagonal sequence using a torque wrench (target 12 Nm). Inside, inspect the piston rings–measure gap with a feeler gauge; tolerance exceeds 0.06 mm, replace immediately. The wrist pin clips must snap audibly into grooves; soft clicks indicate wear.
Critical Components Checklist
- Bar mounting studs: clean threads with tap, apply Loctite Blue 242, torque 25 Nm
- Chain tensioner: turn wheel clockwise until chain sags 3–5 mm off rail bottom
- Muffler gasket: replace if brittle–identify by carbon buildup around exhaust port
- Fuel cap diaphragm: flex with fingernail; cracks require new o-ring kit (#1123 007 1030)
- Clutch drum bearings: spin by hand; growling noise = failed bearing, replace drum assembly
Diagnose ignition issues without disassembly: set multimeter to 20k ohms, probe spark plug boot and engine ground. Resistance should measure 4–6 kΩ; higher readings indicate a faulty ignition coil (#4140 400 5100). If adjusting the carburetor, turn H and L screws clockwise to seated position (no force), then back out 1.5 turns for baseline settings before fine-tuning.
For bar maintenance, rotate monthly to prevent uneven wear–mark the nose with chalk to track rotation. Remove bar, scrub rail groove with brass brush, then apply bar oil generously to sprocket nose bearing. Check chain drive links: hooks should be symmetrical; deformed or missing hooks reduce cutting efficiency by 18%.
Fastener Torque Specifications
- Cylinder base nuts: 10 Nm
- Flywheel nut: 50 Nm (use holding tool on magneto side)
- Pull starter screws: 5 Nm
- Side cover screws: 4 Nm
- Handle mounting bolts: 8 Nm
Where to Locate the Authorized Chainsaw Model Breakdown Schematic
The manufacturer’s official website provides the most reliable exploded view schematic for this gasoline-powered cutting tool. Visit the brand’s global portal, select “Support” or “Manuals,” then filter by model number–enter the product code found on the tool’s housing near the engine or handle. Downloadable PDFs are available in multiple languages, including high-resolution versions with callouts for every component.
Regional dealership portals often host localized schematic archives. For instance, the North American network offers a dedicated “Parts Lookup” tool requiring the serial number to generate an interactive diagram. European dealers provide similar resources through their “Service” sections, sometimes with visual zoom functions for intricate assemblies like the carburetor or chain tensioner.
Physical Documentation Sources
Authorized service centers distribute printed repair manuals with embedded schematics. These are typically included with warranty registrations or available for purchase–check for part number 1123 011 3101 (English edition). Some centers also supply fold-out posters sized A1 or A2, detailing the combustion engine, clutch system, and guide bar alignments.
Original equipment manufacturer (OEM) catalogs, such as those from Fast or Midwest Industrial, index this model’s breakdown by chapter–chapter 5 often covers powerhead components, while chapter 7 focuses on the cutting attachment. These catalogs may require dealer credentials for access, though some third-party retailers sell digital copies without restrictions.
Third-Party Technical Resources
Online repair databases like RepairClinic or Partsfish aggregate exploded views from multiple brands. Search using the tool’s serial or product code–these platforms cross-reference internal part numbers (e.g., spark plug WSR6F) with the schematic’s callouts. Some sites offer step-by-step disassembly videos synced to the diagram’s components.
Technical forums, including ArboristSite or ChainsawBlogger’s community threads, frequently upload annotated schematics. Users attach scans or screen grabs of official breakdowns, often highlighting common wear points like the crankcase seals or anti-vibration mounts. Ensure the image resolution is at least 300 DPI for readability.
Industrial supply warehouses occasionally host downloadable schematics as part of product listings. Grainger’s website, for example, includes PDFs under “Documents” for compatible models, though these may lack proprietary updates. Verify the diagram’s date–manufacturing revisions occur biannually for fuel-related assemblies.
If digital sources fail, contact the brand’s customer service with the serial number. Agents can email the schematic directly or reference specific nodes, such as the oil pump drive link (part 5134 182 0201) by coordinates on the exploded view grid. Some regions offer 24/7 support for urgent repairs.
Core Elements of the Professional-Grade Timber Cutter and Where to Find Them
Inspect the powerhead assembly–located at the rear–immediately if starting issues persist. The ignition module, nestled beneath the flywheel cover, must maintain a 0.3–0.4 mm air gap between its coil and the flywheel magnets. Clean the spark arrestor screen every 10 operating hours to prevent carbon buildup, or risk a 30% drop in exhaust flow efficiency. Replace the element if mesh openings exceed 1.0 mm in diameter.
Track bar durability depends on maintaining proper tension–adjust the chain to glide smoothly over the nose sprocket with a 3–5 mm sag at the midpoint. Use a 0.325-inch pitch gauge to verify wear; grooves deeper than 0.5 mm signal replacement. Lubricate the oil port every third refill with SAE 30 synthetic blend to prevent seizing under high RPM. Bar tip rollers should rotate freely–replace if binding occurs, as friction increases fuel consumption by 8–12%.
The centrifugal clutch engages at 2,800 RPM; inspect shoes for cracks exceeding 2 mm deep or uneven wear patterns. Pad thickness below 3.5 mm reduces torque transfer, forcing the engine to compensate with higher fuel intake. Clean the cooling fins after each extended cut to avoid overheating–debris packed tighter than 2 mm thick raises operating temperatures by up to 22°C.
Air filter integrity directly impacts combustion ratios: wash foam elements in warm soapy water, then soak in 20:1 fuel-oil mix before air-drying. Replace paper filters if pores appear clogged under a 10x magnifier. Throttle linkage adjustment requires a 0.1 mm tolerance–misalignment causes erratic idling, confirmed by a tachometer reading ±150 RPM from 2,500. Store the tool horizontally to prevent fuel seepage into the crankcase, which dilutes oil viscosity by 40% within 72 hours.
Step-by-Step Breakdown of the MS 290 Chainsaw for Component Recognition
Begin by securing the powerhead on a stable surface using a clamp–never rely on improvised holds. Remove the bar and chain first; failure to do so risks damaging the sprocket cover. Use a T27 Torx driver to unfasten the cover screws in a crisscross pattern, then lift it away to expose the centrifugal clutch assembly.
The clutch drum sits atop the crankshaft and must be pried off carefully using a specialized puller. Avoid using pliers or screwdrivers, as these can score the drum’s internal splines. Once removed, inspect the needle bearing beneath; this component often requires greasing during reassembly. The flywheel, located directly behind the clutch, is held by a single left-hand-threaded nut–use a 19mm socket and breaker bar, counterclockwise to loosen.
To access the cylinder, remove the four bolts securing the engine housing with a 5mm Allen key. Gently tap the housing with a rubber mallet to loosen any carbon buildup adhesion. Inside, the piston and cylinder walls can be examined; look for scoring or excessive wear, which indicates the need for honing or replacement. The intake manifold and reed valve plate attach here–take note of their orientation, as incorrect reinstallation will disrupt fuel flow.
| Component | Tool Required | Torque Spec (Nm) | Common Failure Signs |
|---|---|---|---|
| Clutch drum | Clutch puller | N/A | Worn splines, slipping engagement |
| Flywheel nut | 19mm socket | 50-55 | Loose fit, vibration, spark issues |
| Cylinder bolts | 5mm Allen | 8-10 | Carbon buildup, compression loss |
| Reed valve plate | Tweezers/pliers | N/A | Cracked reeds, poor acceleration |
Disconnect the ignition module by unclipping its wire harness and removing two Phillips screws. The coil sits against the flywheel; check for cracks in the winding or corrosion on the contacts. Next, extract the starter assembly by unfastening three screws–inspect the recoil spring for fatigue, as a snapped spring renders the starter inoperable. The fuel tank can be detached by removing its mounting bolts, but drain residual fuel first to prevent spills.
The carburetor and air filter box form a single unit secured by two screws beneath the tank. Remove the box first, then detach the carburetor linkage from the throttle shaft–label each connection to simplify reassembly. Inside the crankcase, the crankshaft bearings and seals require specialized tools for extraction; use a bearing puller to avoid damaging the housing. Replace seals if leakage is evident, as oil seepage degrades engine performance.
Reassembly demands cleanliness; wipe all mating surfaces with acetone to remove debris. Apply thread locker to critical fasteners like cylinder bolts and the flywheel nut, adhering to torque specifications. Lubricate the piston rings with two-stroke oil before fitting the cylinder, ensuring they align correctly in their grooves. Reinstall the clutch drum with the arrow marking matching the crankshaft’s direction of rotation–incorrect alignment causes premature wear.
