Locate the exploded view schematic for the C-E engine model equivalent to your tool’s build–this document lists every component with numbered references. Start by identifying the carburetor assembly (item 22), drive shaft (item 41), and cutting head (item 58) as primary disassembly points. Match these numbers to the corresponding labels in the legend before removing any fasteners.
Use a torque wrench calibrated to 12-15 Nm for the clutch housing screws (item 35) and 8-10 Nm for the spark plug (item 12). Over-tightening risks thread stripping; under-tightening leads to loose assembly. Replace the fuel line (item 27) if brittleness or cracks appear–original equipment measures 3.5mm internal diameter.
Reassembly follows reverse order, but verify the flywheel (item 15) rotates freely after installing the starter mechanism (items 9-11). Apply thread locker to the engine housing bolts (item 2) only–standard blue-grade compound prevents loosening from vibration. Avoid lubricants on the ignition coil (item 14) to prevent misfiring.
For the air filter housing (item 20), clean with compressed air at 40 PSI max–higher pressure damages the pleated media. Inspect the drive cable (item 40) for fraying or kinks; replacements require precise routing through the shaft guard (item 45) to avoid binding.
Store the schematic digitally or print it on 110gsm paper for field repairs. Cross-reference part numbers with the manufacturer’s update bulletins–some revisions change fastener lengths or gasket materials.
Exploded View Guide for the Professional Brushcutter Model FS56RC
Begin troubleshooting by locating the air filter assembly (part #4137-120-0600) under the top cover. Remove two Torx T25 screws securing it, then inspect the foam element for debris–replace if saturated with oil or dirt exceeds 3mm thickness. Cleaning with compressed air is insufficient; soak in warm, soapy water for 10 minutes, rinse, and air-dry fully before reinstallation.
To access the crankshaft seal, disconnect the spark plug wire first–this prevents accidental ignition. The seal (part #1121-141-1313) sits behind the flywheel, pressed into the crankcase. Use a seal puller tool (or a flat-head screwdriver carefully) to avoid damaging the housing. Apply a thin layer of manufacturer-approved grease to the new seal’s lip before installation to prevent premature wear.
The carburetor rebuild kit (part #4137-120-0403) includes gaskets, diaphragms, and needles–replace all components as a set. Before disassembly, note the orientation of the throttle and choke linkages. Clean all jets with carb cleaner (not brake cleaner) and verify passages with low-pressure compressed air. Ensure the needle valve seats properly; misalignment causes fuel leaks and erratic idle.
Replace the mowing head (part #4142-710-0600) if the automatic line feed mechanism fails. Remove the retaining bolt (left-hand thread) with a 13mm socket. Check the spool for cracks–plastic degradation leads to inconsistent line release. Wind new trimmer line (0.095″ diameter) in the direction marked on the spool, ensuring even coils to prevent tangling.
The ignition module (part #4137-120-0800) rarely fails, but symptoms like sporadic starting or engine cutting out at high RPM indicate potential issues. Test the module with a multimeter: resistance between the stator and ground should read 0.5–1.5 ohms. If outside this range, replace the entire assembly–partial repairs void the warranty and risk engine damage.
For clutch maintenance, remove the drum (part #4137-121-1000) by holding the crankshaft with a strap wrench. Inspect the clutch shoes for glazing or wear–if the lining thickness is below 2mm, install a new clutch kit (part #4137-120-0700). Lubricate the bearing with high-temperature grease, but avoid over-packing, which can attract debris and cause slippage.

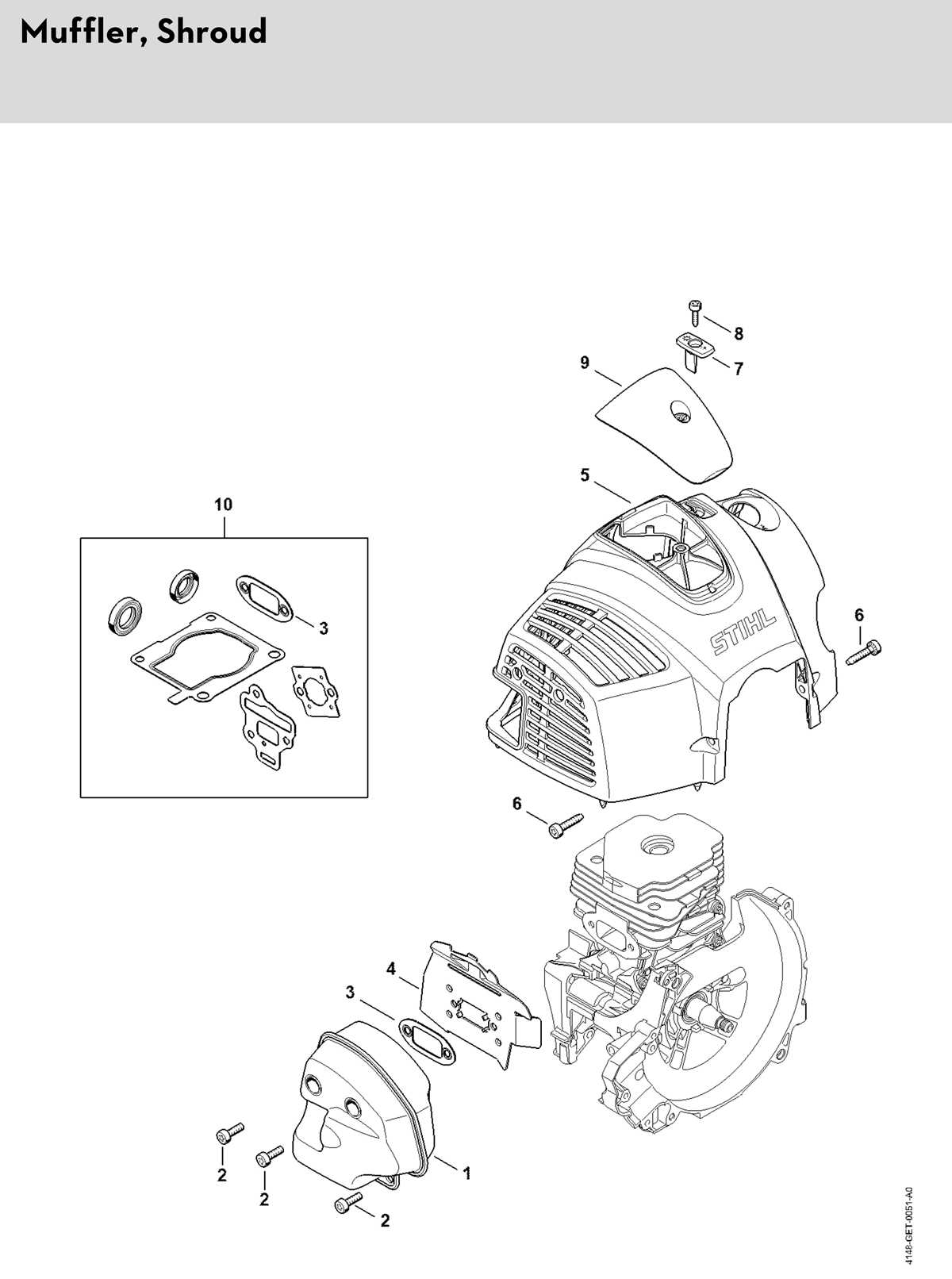

When replacing the exhaust system (part #4137-120-0901), note the copper gasket between the muffler and cylinder–omit it only if installing a new component. Failure to replace the gasket causes exhaust leaks, reducing engine performance and increasing noise. Torque the mounting bolts to 8 Nm in a cross pattern to prevent warping.
Store spare components–like the piston ring set (part #1121-020-0900)–in a dry environment. Before installation, measure piston-to-cylinder clearance with a feeler gauge: maximum allowable gap is 0.05mm for the top ring, 0.10mm for the second. Coat new rings with engine oil during assembly, aligning ring gaps 120° apart to prevent pressure loss.
Locating the Authorized Service Schematic for Your Trimmer Model
Visit the manufacturer’s global portal at www.stihl.com–select your country, then navigate to Support → Instruction Manuals & Schematics. Input the engine’s 10-digit serial code (engraved on the housing near the spark plug) into the search field. The portal instantly returns the exact exploded illustration tailored to your unit’s build date, including superseded components.
Local dealers maintain password-protected dealer portals (STIHL DealerNET) that house high-resolution schematics. Present your ownership documents at any authorized service center; technicians can email the PDF directly to you within minutes. Ensure the schematic version matches your engine’s emission sticker (EU Stage V vs. EPA Phase 3) to avoid compatibility errors during reassembly.
Trade-specific platforms like Partstree.com or Jackssmallengines.com index OEM schematics by model variant. Filter by “Telescopic Shaft” or “Straight Shaft” to eliminate mismatches. Both sites embed clickable callouts linking to genuine part numbers, allowing on-the-spot ordering without cross-referencing separate catalogs.
Technical forums such as ChainsawBBS.com often archive member-uploaded schematics. Search threads tagged with “FS56” or “brushcutter schematic”–moderators verify authenticity before attaching files. Downloads include layer adjustments for zoom, ideal for identifying miniaturized components like the fuel pump diaphragm or throttle linkage bushings.
Print service manuals purchased from eBay or Amazon may contain outdated revisions. Request the seller’s invoice copy to confirm the PDF originates from an official STIHL imprint year–2021 or newer iterations reflect the latest crankcase venting modifications and muffler gasket updates.
Essential Elements Highlighted in the Trimmer’s Schematic
Start replacements with the air filter assembly–located behind the engine cover on the right side. The FS-series schematic marks it as item #4112-120-0600. Clean or swap this every 25 operating hours; clogged filters reduce RPM by up to 15%, straining the carburetor.
The ignition module–identified as #4137-400-1402–resides under the flywheel. Test resistance between its terminals: 8–12 kΩ indicates function; lower readings confirm failure. Replace using a torque setting of 8 Nm to prevent flywheel damage.
Examine the drive shaft coupling–#4140-107-9000–connecting the gear head to the shaft. Misalignment here causes excessive vibration; inspect splines every 50 hours for wear. Apply molybdenum grease sparingly during reassembly to extend lifespan.
The cutting head spindle–#4140-107-2002–requires annual inspection. Check thread engagement: partial strips accelerate string ejection. Locktite 243 prevents loosening; apply a single drop before torquing to 22 Nm.
Fuel lines–#5300-180-0124 (inlet) and #5300-180-0123 (outlet)–must be replaced every two seasons. Internal cracks lead to hard starts; use only OEM-spec lines rated for ethanol blends. Route the new lines identically to the schematic’s dotted path to avoid engine flooding.
Gearbox seals–#4140-190-4003 (output) and #4140-190-4100 (input)–should be lubricated with Mobil 1 Synthetic during each bearing service. Leaking seals contaminate the clutch drum, reducing clutch lifespan by 40%. Pack grease uniformly around the lip before installation.
Identifying Correct Components for Your Grass Trimmer Using the Schematic
Locate the exploded view in the maintenance manual for your model–typically found on page 12 under “Engine Assembly.” Cross-reference the numbered items on the page with the table below to confirm dimensions, thread pitch, and material composition before ordering. Mismatches in shaft length (standard 1.5 mm variance) or bushings (measured in situ with calipers) will cause premature wear.
| Component | Schematic Ref. | Key Specifications | Compatibility Check |
|---|---|---|---|
| Crankshaft | #42 | 72.35 mm length, M8×1.25 thread | Aluminum alloy with hard-anodized coating |
| Throttle Trigger | #19 | Polyamide PA66, UL94 V-0 rating | Lever arm must match existing linkage slot (4.5 mm) |
| Fuel Line | #31 | FKM 5 mm ID × 8 mm OD, -40°C to 120°C | Verify barb length against carburetor inlet (min. 6 mm) |
For components lacking explicit measurements–such as the recoil starter spring–compare the existing unit’s coil count (standard: 52 turns) and wire gauge (0.45 mm). Deviations beyond ±3 turns will alter tension, risking either insufficient pull or housing damage during engagement. Pre-assembly dry-fitting is mandatory; lubricate pivot points with NLGI #2 lithium grease before final torque (recoil housing: 8 Nm).
When selecting replacement cutting heads, prioritize models with identical bolt patterns (dual M6×1.0 holes spaced 40 mm apart) and guard clearance (≤ 2 mm from housing). Aftermarket blades optimized for synthetic vegetation require balancing–use a static jig to check for sub-0.3 g·cm imbalance. Install a new spark plug (NGK BPMR7A) if gap exceeds 0.6 mm, then verify ignition timing against marks on the flywheel (aligned at TDC).
