For precision repairs on your 55cc brushcutter, locate the engine housing assembly first–it’s marked as component #4140 180 1201 in official schematics. Remove the starter cover (#4140 120 2000) by unscrewing the three M4 bolts holding it in place. The flywheel sits directly beneath; handle it with care to avoid damaging the magnets.
The carburetor (#4140 141 3500) connects via two fuel lines–label them before disconnecting to prevent mixing. The air filter housing (#4140 120 1001) detaches by squeezing the two tabs on the lower edge; replace the foam element every 25 hours of operation. For the driveshaft, focus on the lower bearing (#9330 500 5400); failure here causes excessive vibration.
Refer to the official exploded view for torque specs: crankcase bolts require 12 Nm, while the clutch nut (#4118 181 3002) tightens to 40 Nm. Use Loctite 243 on threads if components show wear. The fuel tank (#4140 140 1000) has a non-removable mesh filter–flush it with carb cleaner if flow is restricted.
When reassembling the cutting head (#4140 200 0300), ensure the spool aligns with the drive shaft’s splines. Misalignment shreds the line feed mechanism. The muffler (#4140 160 0500) should be checked for carbon buildup every 50 hours; excess deposits reduce power output by up to 15%. Keep a spare ignition module (#4140 400 0100) on hand–failure often mimics fuel issues.
Trimmer Model Breakdown: Essential Elements for Maintenance and Repair
Begin disassembly by securing the cutting head with a vice grip–this prevents spindle rotation while loosening the retaining bolt. Use a 13mm socket for the bolt and a 10mm wrench to hold the clutch drum steady. The clutch assembly itself consists of three primary pieces: the inner hub, friction plate, and spring-loaded pawls. If the trimmer fails to engage, inspect the pawls for wear; replacement requires removing the flywheel (part #4140-120-3400) with a specialized puller (tool #5910-200-0300).

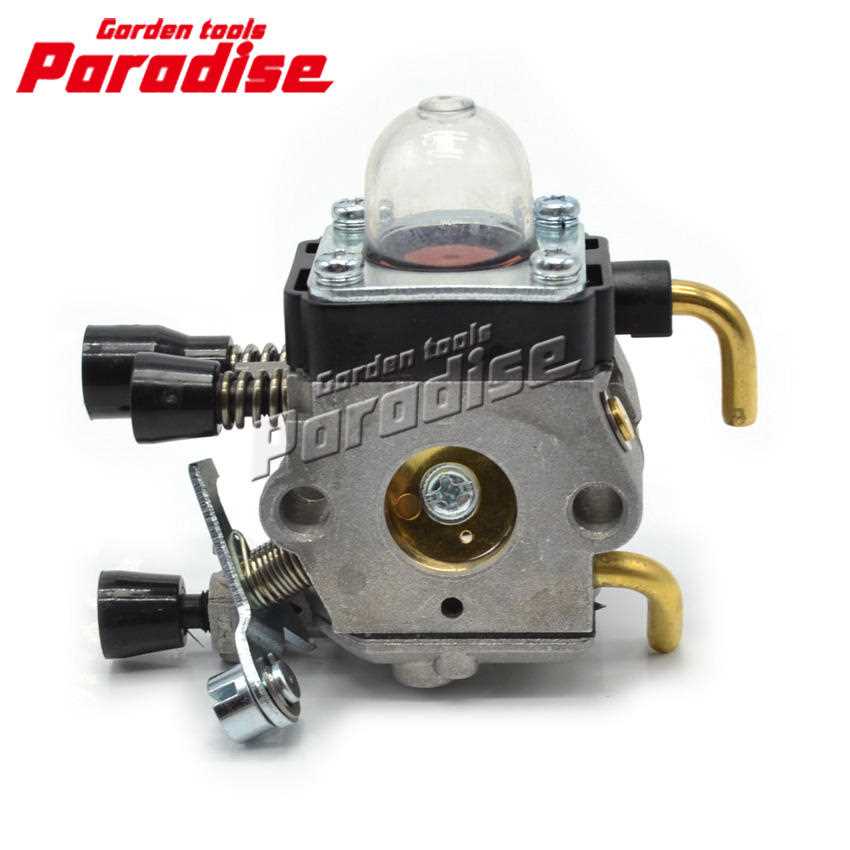

Critical engine components are housed beneath the recoil starter cover. The air filter (foam and mesh hybrid, #4140-120-3420) demands cleaning every 10 operating hours–soak in warm soapy water, rinse, and dry thoroughly before reinstalling. The carburetor (Zama model C1Q-W10) requires periodic adjustment via three screws labeled L (low speed), H (high speed), and T (idle). Turn screws clockwise until lightly seated, then back off L/H by 1.5 turns and T by 0.75 turns as baseline settings. Fuel lines (diameter 3mm inner, #4140-120-3460) should be replaced if brittle or cracked; route the new lines avoiding sharp edges near the cylinder.
Electrical and Ignition System Checkpoints
- Ignition coil (#4140-120-3440): Test resistance between spark plug boot and coil ground–expected range 3-5 kΩ. Replace if outside parameters.
- Spark plug (NGK BPMR7A or equivalent): Gap set to 0.5mm; inspect electrode erosion every 25 hours.
- Flywheel key: Misalignment causes timing issues–ensure it sits flush with the crankshaft slot.
- Kill switch: Verify continuity with a multimeter–corrosion often disrupts function.
For the drivetrain, the flexible shaft (#4140-120-3450) transmits power from the motor to the cutting head. Lubricate with lithium-based grease during reassembly; lack of lubrication causes excessive vibration or shaft failure. The shaft housing (aluminum tube, #4140-120-3480) should be checked for dents–even minor deformations impede rotation. Gearbox components (bevel gear set, #4140-120-3470) require molybdenum disulfide grease (part #0781-201-1100); apply sparingly to avoid clumping. When reassembling, torque the gearbox bolts to 8 Nm–over-tightening distorts the housing.
Locating the Authorized Engine Dismantling Blueprint for Your Brushcutter Model
The manufacturer’s regional portal remains the primary source for precise schematics. Select the product support section, input the serial number found on the crankcase housing, and navigate to the “Technical Documentation” tab. European users can access this directly via stihl.com under “Service & Support,” while North American customers should visit stihlusa.com and select “Product Manuals.” The exploded view appears as a downloadable PDF with numbered callouts matching the official repair guide.
Authorized dealers archive printed copies, often bound in the service technician’s reference binder. Request access to their workshop materials during a routine maintenance appointment–most will permit review while on-site. Independent repair centers specializing in handheld outdoor equipment, such as those certified by the Outdoor Power Equipment Institute, also maintain these documents and may provide quick scans if asked directly.
Third-party aggregators lack the manufacturer’s verification but offer instant downloads. Partstree and eReplacementParts host interactive schematics with clickable components; verify each part’s OEM code against your serial plate before ordering. Avoid non-indexed forums–illustrations there frequently mislabel critical assemblies like the ignition coil or carburetor linkage.
Key Wear Components in the Carburetor of Your Brushcutter
Replace the diaphragm every 50 operating hours or at the first sign of stiffness–hardened material disrupts fuel metering, causing erratic idle or failure to start. Inspect the gasket beneath the diaphragm for cracks; even microscopic fissures allow air leaks, leaning the mixture and overheating the engine. The needle valve, typically brass, wears where it seats against the fuel inlet; test by blowing through the opening–obstruction or excessive clearance requires immediate replacement.
| Component | Wear Indicator | Replacement Interval | Consequence of Delay |
|---|---|---|---|
| Diaphragm | Rigid, warped, or perforated membrane | 50–100 hrs or seasonal overhaul | Fuel starvation, lean run, piston seizure |
| Needle Valve | Grooved seat or uneven wear track | 100 hrs or when idle speed drifts | Flooding, rich mixture, spark plug fouling |
| Throttle Shaft Seals | Visible oil residue around shaft housing | Annual inspection, replace if leaking | Unmetered air intake, lean run, pre-ignition |
Step-by-Step Guide to Locating the Fuel Line and Air Filter Connections
Begin by removing the protective housing covering the engine top. Use a T25 Torx screwdriver to unscrew the two bolts securing the plastic cover–one near the recoil starter and another adjacent to the exhaust. Lift the cover carefully to avoid damaging the gasket beneath.
Locate the primer bulb on the right side of the unit; the fuel line connects directly below it. Trace the thin, translucent tube extending from the bulb to the carburetor housing–this is the main fuel supply line. A secondary, smaller return line runs parallel, terminating at the fuel tank. Mark both lines with tape if reassembly is needed.
To access the air filter, flip the unit over and detach the intake cover. The filter sits inside a rectangular plastic tray, held by a single screw. Remove the screw, lift the tray, and extract the foam element. Two hose connections link the filter to the carburetor: a larger intake hose (black) and a smaller crankcase breather hose (white). Ensure both are free of cracks.
Check hose clamps before reinstalling. Tighten them gently with pliers–over-tightening can crush the tubing. Replace any hose showing brittleness or leaks. Use a flashlight to inspect the carburetor inlet port for debris that could clog fuel flow.
Verifying Connections
Reattach all components in reverse order. Slide the fuel lines back onto their fittings until they snap securely–no tools needed. For the air filter hoses, push until resistance is felt. Reinstall the intake cover and housing, ensuring all screws align with their original holes. Test-start the unit to confirm proper fuel delivery.
If hesitation occurs during startup, recheck the primer bulb and lines for air bubbles or improper sealing. The air filter housing must sit flush against the engine surface to prevent unfiltered air intake. Tighten all fasteners evenly to avoid warping the cover.
How to Precisely Pair Components with Your Trimmer’s Power Unit Casing
Inspect the engine block’s serial number etched beneath the muffler before ordering replacements–the prefix “4140” confirms compatibility with early 2008–2015 production runs, while “4144” applies to later models. Cross-reference this with the OEM manual’s exploded view page (typically 12–14) to avoid mismatches in gasket thickness or crankcase bolt patterns.
- Crankcase gaskets: Measure compressed thickness with calipers–0.3mm variants suit pre-2012 units; 0.5mm seals are mandatory for post-2013 revisions due to revised cylinder-head dowel spacing.
- Flywheel magneto assortments: Verify ignition advance specifications. Models with “H” suffix (e.g., “4140-H”) require a 0.2mm air gap; base versions demand 0.35mm.
- Starter housing assemblies: Look for a three-pronged engagement lug count. Older casings accept two-lug starters, which will strip the recoil mechanism within 40–60 operating hours.
Use a thread gauge to confirm bolt specifications–crankcase fasteners switch from M6×1.0 (coarse) to M6×0.75 (fine) beginning with mid-2014 iterations. Secure torque values differ: 12 Nm for coarse, 9 Nm for fine threads to prevent thread galling.
- Slide the new flywheel key into position using a non-marring brass hammer–misalignment beyond 0.1mm reduces ignition timing accuracy by ±2°.
- Align the crankshaft’s Woodruff keyway notch downward when seated at Top Dead Center; verify with a piston stop tool.
- Coat cylinder-head studs with anti-seize compound (Nickel-based, max 1,100°C tolerance) before threading into casing vents–copper-based alternatives corrode aluminum threads within 12–18 months.
Match piston ring end gaps to the engine’s displacement revision: early 26cc variants demand 0.15–0.25mm gap; 27.2cc models (post-2015) require 0.20–0.30mm. Use a feeler gauge inserted 10mm from the ring’s edge–exceeding tolerances accelerates cylinder scoring.
Identify intake manifold gasket composition before installation–synthetic rubber (3-layer laminated) fits 2008–2011 builds; graphite-coated variants (textured, single-layer) are mandatory from 2012 onward to withstand leaner fuel mixtures. Retain original insulator washers between carburetor and casing; substituting with generic M6 washers under-torques mounting bolts by 20–25%, risking vacuum leaks.
Verify carburetor mounting flange bore diameter–19.5mm (±0.05mm) for pre-2013 units versus 20.0mm (±0.03mm) for later revisions. Use digital inside calipers; bore deviation beyond specs necessitates casing machining with a 60° chamfer to prevent diaphragm fouling.
- Apply thread-locking adhesive (medium-strength, ≤150°C service temp) to muffler mounting bolts–factory pre-applied sealant hardens after 3 years, leading to vibration-induced loosening.
- Secure cylinder-head cover with star-patterned tightening sequence–initial torque: 6 Nm, final torque: 10–12 Nm to avoid head gasket warping.
- Replace crankcase vent hoses every 200 hours; inner diameter must match precisely (3.5mm ID, 5.0mm OD). Use OEM-spec hose clamps (6mm band width); alternatives deform, causing air leaks at 4,500 RPM+.
