Begin by obtaining the official service manual for your specific model–this document contains labeled illustrations of every internal and external element. If the manual is unavailable, search for aftermarket exploded-view drawings from verified dealers; these diagrams display screws, impellers, and housing assemblies in precise disassembly order.
Inspect the engine casing first. The ignition module will be positioned near the flywheel, recognizable by its thin wires and metal frame. Remove the top cover to expose the carburetor–its gasket should align flush with the cylinder; misalignment here causes fuel leaks and erratic idle. Use a flashlight to trace fuel lines back to the primer bulb, ensuring no cracks or brittle spots are present.
The air filter box sits adjacent to the intake port; dislodge the cover by pressing its retaining tabs inward or unscrewing the single fastener. Clean or replace the paper element if debris accumulation exceeds 1mm thickness–restricted airflow forces the motor to work harder, shortening impeller life. Behind the filter, locate the throttle linkage; verify the steel cable maintains slack-free tension when engaging full throttle.
Turn the unit over to access the fan housing. The centrifugal impeller–typically yellow polymeric material–secures to the driveshaft with a left-hand threaded nut. Apply counter-clockwise torque to release; clockwise rotation risks stripping splines. Check the impeller blades for wear–chips or uneven edges reduce suction efficiency by up to 30%. Replace immediately if blade tips deviate by more than 2mm from original shape.
Examine the collection bag mounting bracket for cracks, focusing on weld points where stress fractures first appear. Reinforce weak areas with high-strength epoxy if original weld integrity is compromised. Ensure the bag’s zipper teeth align perfectly–mismatched tracks allow debris bypass, defeating the separation chamber’s purpose.
Verify all rubber grommets around handle grips; hardened seals cause vibration fatigue, leading to premature bolt loosening. Lubricate pivot points with light machine oil to prevent squeaking and corrosion. When reassembling, torque screws to 8-10 Nm–over-tightening warps plastic housings, blocking proper airflow pathways.
Understanding Your Power Sweeper’s Component Layout
Start by locating the air impeller housing–the heart of the unit’s suction and propulsion system. Most models feature a labeled decal on the inside of the casing, marking key assembly points. If the decal is missing or faded, refer to the engine’s model number etched near the exhaust port; this number correlates directly with official schematics available through authorized dealers or service manuals.
Remove the rear cover first to access the fan wheel and its securing bolts. Note the orientation of the blades–most are curved to optimize airflow direction, and reversing them will drastically reduce performance. A torque wrench (8-10 Nm for M10 bolts) prevents overtightening, which can warp the housing or crack the plastic. Keep spare washers on hand; losing one during disassembly is common and disrupts proper sealing.
Troubleshooting Common Assembly Errors
If the unit vibrates excessively after reassembly, check the fan wheel’s balance. Place it on a flat surface; if it wobbles, inspect the hub for debris or wear. Mismatched bolts (e.g., using a metric bolt in an imperial-threaded hole) will strip threads, rendering the housing unusable. Use thread-locking compound on bolts prone to loosening from vibration, but avoid applying it to air intake or exhaust screws–residue can clog passages.
Replace the fuel filter every 100 hours of operation or if the engine hesitates under load. The filter sits inside the fuel tank, accessible after removing the cap; pull it out with needle-nose pliers. A clogged filter restricts flow, causing hard starts or stalling. Always use OEM filters–aftermarket versions often use inferior mesh that fails prematurely or disintegrates, clogging the carburetor.
The ignition module–typically a black box near the flywheel–must be secured with the original screws. Over-tightening can crush the internal ceramic components, while under-tightening allows moisture ingress. After replacing it, test the spark with a plug tester; a weak or absent spark indicates incorrect gap (0.5mm) or a damaged flywheel key, often sheared due to kickback.
Lubricate the drive shaft bearings annually with high-temperature grease. The factory fills degrade after prolonged heat cycles, leading to premature wear. Remove the outer tube by unscrewing the coupler nut (left-hand thread), then apply grease via the nipple on the inner tube. Reassemble without cross-threading the coupler–this is a frequent failure point, causing slippage or binding.
Inspect the air intake grille monthly for obstructions. A blocked grille reduces airflow efficiency by up to 40% and forces the engine to work harder, shortening its lifespan. Clean it with compressed air or a soft brush; solvents can degrade the plastic. If the grille is cracked, replace the entire assembly–attempting repairs with epoxy results in uneven airflow and hotspots that warp the housing.
How to Spot Key Components for Your Leaf-Vacuum Maintenance
Begin by locating the impeller–typically positioned behind the intake grille. This finned wheel generates airflow and is secured with a central bolt or retaining ring. Models like the BR 350 or SH 56 often use a 10mm or 12mm bolt; confirm torque specs (usually 8–12 Nm) to avoid warping the plastic housing. If blades show chips or excessive wear, replace the entire assembly rather than balancing–cracks propagate quickly under vibration.
Inspect the spark arrestor screen next. Found inside the muffler, this fine mesh prevents embers from escaping and clogs easily with carbon deposits. Tap it gently against a hard surface to dislodge buildup; stubborn residue may require soaking in a carb cleaner for 10–15 minutes. A torn screen means immediate replacement–stock OEM screens are stamped with a part number visible under direct light (e.g., 4253-007-5000 for older units).
Fuel lines degrade at different rates. The primary feed line (clear, 3mm ID) cracks near bends, while the return line (opaque, 2mm ID) hardens and splits. Replace both simultaneously using fluoroelastomer tubing (Viton) for ethanol resistance. Label line routing before disassembly–mistakes here lead to flooding or air leaks, triggering erratic idle. Pre-cut kits exist (e.g., ST-00012), but measuring lengths during teardown ensures accuracy.
Check the throttle trigger assembly last. The linkage rod (soft metal) bends if forced, misaligning the carburetor butterfly valve. File corrosion off contact points with 400-grit sandpaper–never use wire wool, as fragments lodge in the venturi. Lubricate pivot points with PTFE spray; WD-40 attracts dust and gums up movement within 20 operating hours.
Step-by-Step Guide to Locating the Air Filter Assembly
Begin by switching off the unit and disconnecting the spark plug wire to prevent accidental ignition. Place the machine on a flat, stable surface with the engine cover facing upward–most models position the intake system near the rear or side housing. Use a screwdriver to remove the retaining screws securing the protective cover; these are typically Phillips-head or Torx, depending on the model year. Keep the screws in a small container to avoid misplacement during reassembly.
Lift off the cover carefully–some models include a rubber gasket or foam seal that may adhere to the housing. If present, inspect the gasket for cracks or debris and set it aside. The air filter assembly is usually nested behind this cover, often held in place by a plastic or metal cage. Gently squeeze the sides of the cage if it’s clipped in; some versions require a quarter-turn to release.
If the filter isn’t immediately visible, check for additional clips or screws holding the cage itself. Certain designs integrate the assembly into a larger intake module–look for a rectangular or circular component with pleated paper or foam. Pull the filter straight out to avoid damaging the pleats or dislodging trapped dirt into the carburetor. For units with a pre-filter (often a coarse foam layer), note its orientation; some models direct airflow through both layers sequentially.
In rare cases, the assembly may be concealed under a secondary plate near the engine block–consult the service manual for model-specific illustrations. If resistance is felt when removing the filter, stop and re-check for hidden fasteners; forcing it can snap tabs or warp the housing. Clean the surrounding area with compressed air or a soft brush before inserting a replacement to prevent immediate contamination.
Reinstallation follows the reverse process, ensuring the filter seats flush against the intake port. Misalignment can cause unfiltered air to bypass the filter, leading to premature engine wear. Verify all seals are intact and screws are tightened evenly but not over-torqued. Reattach the spark plug wire only after confirming the cover is securely fastened.

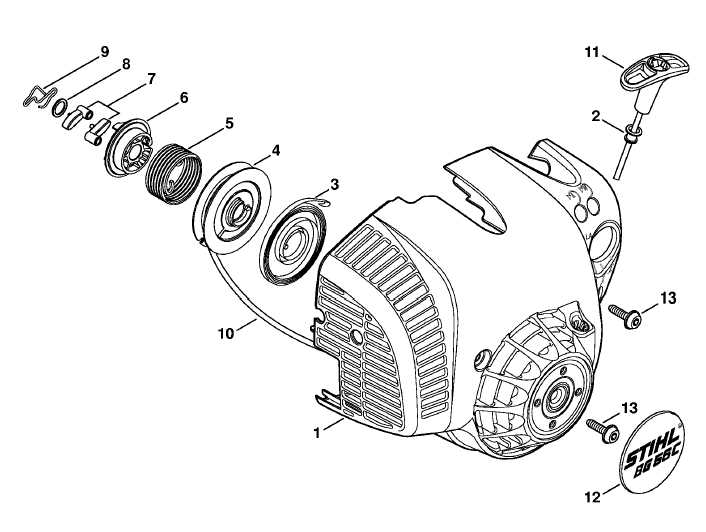

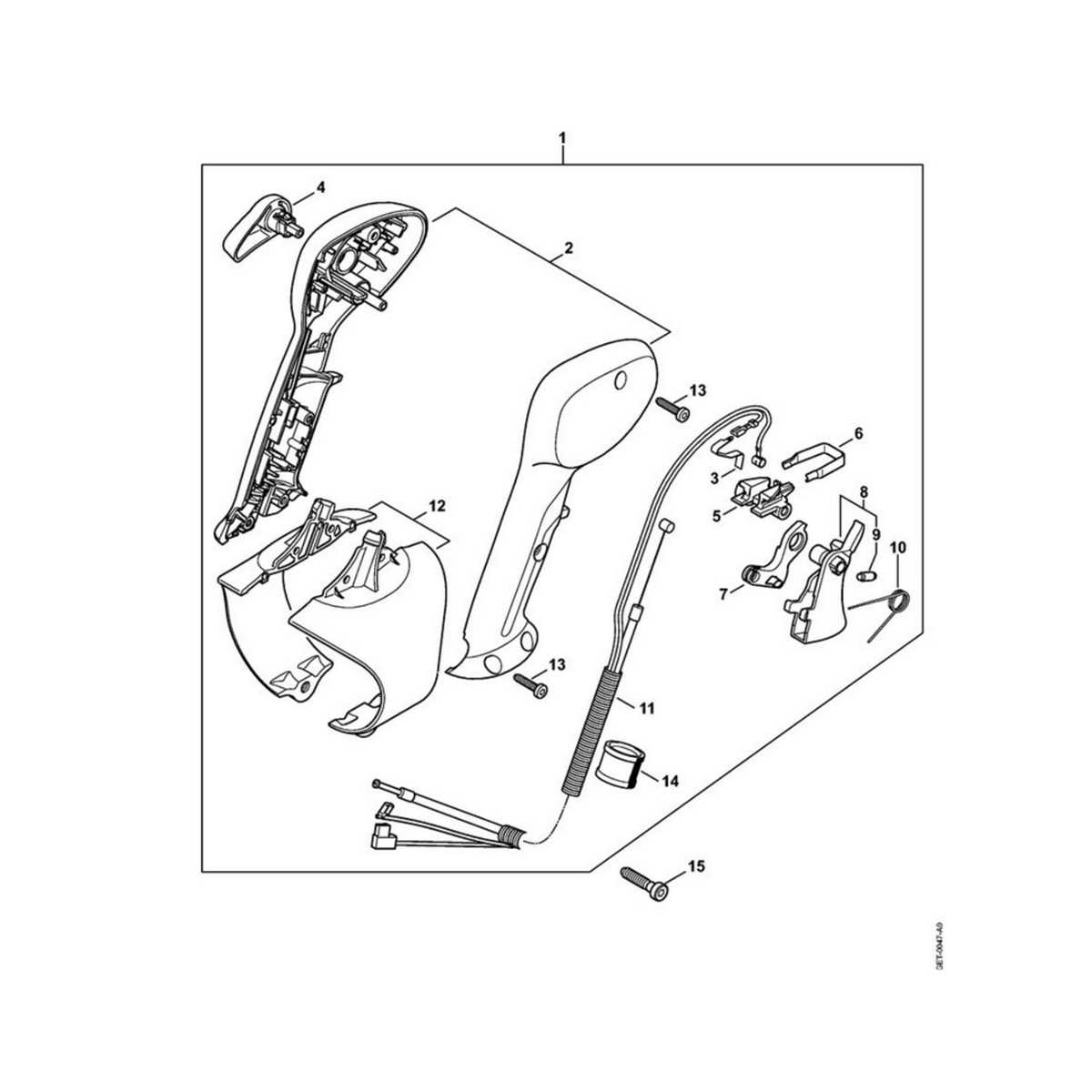

Interpreting an Exploded View Schematic for Outdoor Power Tools
Locate the component reference numbers first–these appear as small digits next to each piece in the illustration. Cross-reference those numbers with the corresponding list in the manual’s legend, which specifies exact names, part IDs, and sometimes torque values or installation notes. Ignore generic labels; focus on standardized codes like “4112 700 1301” rather than vague descriptions. If the schematic includes color-coded lines (red for fasteners, blue for seals), note their paths–these indicate assembly sequences.
Identify subassemblies by looking for grouped items enclosed in dashed boxes or shaded areas. The largest clusters typically represent engine housings, impeller units, or fuel system modules. Within each cluster, trace how smaller elements–gaskets, bolts, bearings–interconnect. For instance, a centrifugal fan assembly will show blades attached to a hub via splined shafts or snap rings; verify thread directions (left-hand threads use reversed markings). If a spring is depicted, measure its wire diameter and coil count–mismatches risk malfunction.
Critical Details Often Overlooked
- Witness marks: Tiny indentations or paint dots indicate pre-set positions for adjustable components (carburetor screws, tensioners).
- Material codes: Letters like “A” (aluminum), “S” (steel), or “P” (plastic) precede part numbers in some schematics.
- Shadow lines: Thin dotted outlines show hidden edges or internal mechanisms (gear teeth inside a crankcase cover).
- Pressure angles: On bladed assemblies, arrows indicate airflow direction–backward installation reduces performance by 30%.
When replacing a worn piece, match not just dimensions but also weight tolerances (±0.5g for rotating components) and heat treatment specs (case-hardened vs. tempered). Some schematics include exploded callouts for specialized tools–allen keys, circlip pliers, or torque wrenches–required for disassembly. Record each step in reverse order before reassembly; missed washers or omitted O-rings frequently cause leaks or seizures. Store detached fasteners by size in magnetic trays to prevent misplacement–mixing a 6mm flange nut with a standard hex bolt can strip threads.
