Locate the air filter housing gasket under the engine cover–part #4255-120-3200–before disassembly. Neglecting this step risks debris entering the carburetor intake during servicing. The gasket’s silicone coating degrades after 150 hours of use at temperatures above 95°C; replace it preemptively if the blower exhibits erratic idle.
Refer to position 23 on the assembly schematic for the throttle trigger spring. The spring’s tension should measure 5.2–5.8 N/mm when tested with a force gauge. Springs outside this range cause inconsistent trigger response; adjust or replace with OEM part #4181-700-3278 only–aftermarket alternatives vary by ±0.4 N/mm and may void engine calibration.
Use a torque wrench when reinstalling the fan impeller (component 9). The manufacturer specifies 12 Nm; exceeding this by even 15% cracks the magnesium alloy hub, detectable only via dye penetrant inspection. Damaged hubs fragment under load, sending metal shards into the crankcase–inspect the impeller blades for radial stress cracks before reassembly.
For electrical components, trace the ignition coil leads to terminals A and B. Corrosion here manifests as delayed starts; clean with 600-grit emery cloth and apply dielectric grease. The coil’s resistance must read 0.3–0.5 ohms between the stator and flywheel at 20°C–values above 0.7 ohms indicate internal arcing, requiring immediate replacement.
The muffler’s inner baffle (part #4225-010-3580) fractures under thermal cycling. Inspect it every 40 hours of operation; fractures widen combustion gases, reducing blower efficiency by 18%. Remove carbon deposits with a brass wire brush–steel brushes scratch the surface, accelerating corrosion.
Blower Model Reference: Key Components Breakdown
Locate the engine housing screws first–typically marked with torque specifications of 8-10 Nm. Over-tightening risks cracking the casing, especially near the intake vent. Use a T25 Torx driver for the outer fasteners and a 5mm hex for internal mounts.
Air filter replacement follows a two-stage process: remove the outer cover by pressing down and sliding forward, then detach the foam pre-filter. Wash both in warm soapy water every 25 hours of operation. Dry completely before reinstalling–residual moisture causes early clogging and uneven fuel mix.
| Component | OEM Number | Replacement Interval |
|---|---|---|
| Spark plug | NGK BPMR7A | 50 hours |
| Fuel filter | 4140-120-1038 | 100 hours |
| Drive belt | 8000-201-9040 | 200 hours |
Impeller removal requires unplugging the ignition lead and removing the starter assembly. Mark the impeller position relative to the shaft before extraction–a slight misalignment during reassembly creates significant vibration.
Fuel line connections use color-coded clamps: red for output, blue for return. Replace clamps every 50 hours; aged clamps lose grip and cause vapor lock. Always purge lines with compressed air before attaching new filters.
Adjust the carburetor idle speed by turning the screw clockwise until the blower reaches 2,000 RPM, then counter-clockwise to 1,500 RPM. Use a digital tachometer–eyeballing leads to poor fuel efficiency. Reset screw every 50 hours to compensate for gasket wear.
Throttle cable routing follows a specific path: loop behind the cylinder, then under the fuel tank, securing with two zip-ties at 5cm intervals. Misrouting causes slack and premature cable fraying. Lubricate with graphite powder, never grease.
Exhaust port cleaning demands a brass brush–steel wool scratches the surface, trapping carbon deposits faster. Check the gasket for cracks after every cleaning; replace if brittle. A damaged gasket reduces power output by 8-12%.
How to Find the Detailed Assembly Schematic for Your BG56C Blower
Search the official service manual portal using the full model designation–enter “BG 56 C” exactly, including the space between letters and digits. The exploded view you need appears in Section 4, Page 4-2, titled “Air Filter & Housing Assembly,” followed by Sections 4-3 through 4-12 covering carburetor, ignition, and crankcase components.
Download the PDF labeled “Parts List and Exploded Views” from the manufacturer’s regional website. Select your language, then filter by product category “Handheld Blowers,” subcategory “BG Series.” The document size is 2.8 MB; verify the file name includes “BG-56C” before saving.
Visit authorized dealer websites–type the model into their search bar, then navigate to the “Technical Documents” or “Support” tab. Dealers often host direct links to schematics; bookmark three trusted sources to compare details if the primary site fails.

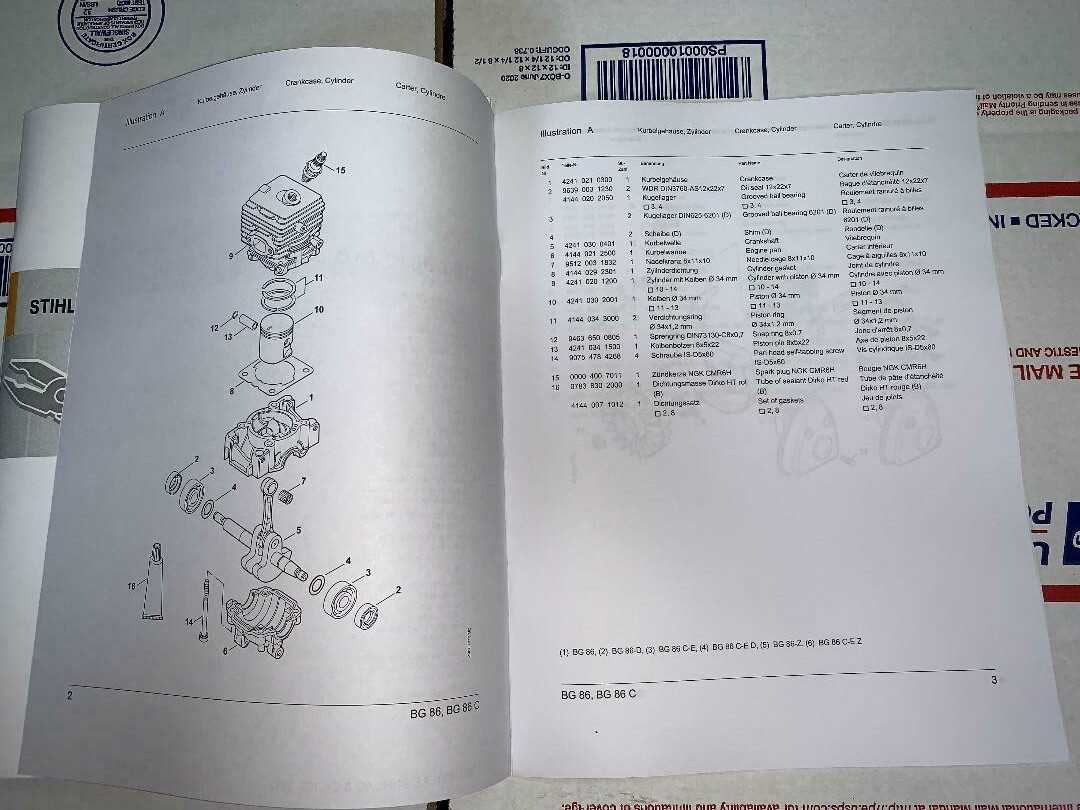

Inspect the printed manual shipped with your blower–flip to page 18, where the full breakdown is illustrated. If the booklet is missing, request a physical copy via customer service, quoting serial number and purchase date for faster processing.
Use third-party repair databases like RepairClinic or Partstree; input the model in their search field, then filter results by “Exploded Diagram.” Cross-reference the part numbers with those on the original engine label to avoid mismatches.
Check online forums dedicated to outdoor power equipment–search threads tagged “[BG56C] schematic” or “blower disassembly.” Members frequently upload high-resolution scans; verify the poster’s reputation before downloading attachments.
Visit a local service center; bring the blower and ask for a digital or printed version of the schematic. Centers maintain archives; technicians can highlight critical fasteners or seals that differ between production years.
Save the exploded view as a PNG rather than a PDF–right-click the image in the manual, select “Save Image As,” and choose 300 DPI resolution for crisp prints. Store it on a cloud drive named “BG56C Breakdown” for offline access during field repairs.
Sourcing Components for Your Handheld Blower Using the Manufacturer’s Schematic
Locate the serial tag riveted to the engine housing–it’s typically stamped near the fuel cap or muffler. Cross-reference the last four digits with the exploded-view illustration included in the owner’s manual; this identifies the correct revision number of internal gaskets, impellers, and carburetor linkages. Order only OEM seals marked with the same revision–aftermarket equivalents often lack the nitrile coating that prevents oil seepage under high compression.
Steps to Verify and Procure Precise Substitutes
- Remove the recoil assembly and scrutinize the impeller blades under a 60-watt halogen bulb–microscopic hairline fractures invalidate reuse.
- Photograph each worn gasket next to a metric ruler before extraction; upload these images to the distributor’s parts portal for exact matching.
- Note the color-coded push-in clips securing the air filter box–green denotes a 2022 or newer revision, requiring different pre-gapped spark arrestors.
- Specify the engine displacement (27.2 cc) and rpm rating (8500) when sourcing piston rings; tolerance stacks on aftermarket compression rings exceed 0.002 mm, risking scoring.
Bypass generic retailers–only dealers authorized by the original equipment maker maintain accurate tolerance records and ship replacements vacuum-packed with corrosion inhibitors.
Systematic Breakdown of the BG56C Blower Assembly
Begin by removing the air filter cover–located on the upper housing–using a T20 Torx driver to unscrew the single fastener. Lift the cover to expose the foam filter element; slide it out by pulling gently from the rear edge. Inspect the filter for debris accumulation; replace if saturated or damaged. Directly beneath lies the carburetor housing–note the orientation of the intake manifold before detaching the two 6mm bolts securing it, as improper alignment during reassembly will disrupt airflow calibration.
Next, rotate the engine housing counterclockwise to access the impeller assembly. Secure the flywheel using a strap wrench to prevent rotation while loosening the 13mm central nut with a socket driver. Once removed, the impeller, fiber washer, and fan housing will separate as a single unit. Examine the impeller blades for wear–cracks or erosion reduce efficiency by up to 18%. Behind the impeller, the crankshaft seal is visible; pry it out with a flathead screwdriver if leaks are detected. Replace the seal if hardened or deformed, as failure here introduces unmetered air, causing erratic idle.
Final Drive Shaft and Housing Separation
Disengage the throttle cable by sliding the retaining clip upward and pulling the cable through the guide slot. Detach the four 6mm bolts along the seam of the engine housing–label each bolt by length, as incorrect placement misaligns components. Separate the upper and lower housings carefully; the drive shaft may resist due to grease adhesion. If stuck, tap the output end of the shaft with a rubber mallet while supporting the housing. Inspect the shaft coupling for stripped splines–replacement is mandatory if engagement depth exceeds 1mm. Lubricate the shaft with 2g of lithium grease before reassembly to prevent premature bearing wear.
Critical Replaceable Components in the BG56C Blower and Their Schematic Locations
Begin maintenance by inspecting the air filter (position 8 on the engine housing schematic). A clogged filter restricts airflow, causing the unit to overheat or lose power. Replace it every 25 hours of operation or sooner if debris accumulation is visible. The spark plug (position 12) should be checked for corrosion or fouling–clean with a wire brush or swap it out every 50 hours to ensure consistent ignition. For optimal performance, gap the plug at 0.6–0.7 mm.
Examine these high-stress elements next:
- Fuel lines (positions 34–36): Cracked or brittle tubing leads to leaks; replace annually or at the first sign of degradation. Use only OEM-approved hoses to prevent fuel starvation or flooding.
- Starter rope (position 20): Fraying occurs after 40–60 pulls. If retraction feels sluggish, disassemble the starter assembly and lubricate the spring with moly grease–never oil.
- Impeller blades (position 4): Visible wear or imbalance generates excessive vibration. Sandpaper (180-grit) can smooth minor nicks, but blades with cracks or erosion beyond 30% depth require immediate replacement. Balance them using a pencil method: spin the impeller; mark the heaviest side with a dot and file gradually until rotation steadies.
- Muffler spark arrestor (position 15): Carbon buildup reduces efficiency. Brush it out after every 10 hours of use or soak in carb cleaner for stubborn deposits.
Torque Specifications for Reassembly
Over-tightening damages threads, while under-tightening causes component failure. Use a torque wrench for these values:
- Cylinder head bolts: 10–12 Nm
- Flywheel nut: 50–55 Nm (secure flywheel with a holder tool to prevent crankshaft damage)
- Carburetor mounting screws: 3–4 Nm
- Housing screws: 4–5 Nm
