Begin by identifying the serial number on the engine housing–usually a six-digit code stamped near the exhaust or carburetor. This number determines compatibility with replacement pieces, as minor variations exist between production years. A mismatch risks improper fit or performance issues, so cross-reference it with the official service manual before ordering.
Disassemble the saw in reverse order of assembly, labeling each piece with painter’s tape to avoid confusion. Focus on high-wear elements like the drive sprocket, clutch drum, and rewind spring, which typically require more frequent servicing. For the air filter housing, inspect the foam pre-filter and paper element separately; replace both if debris or oil saturation exceeds 30% of the surface area.

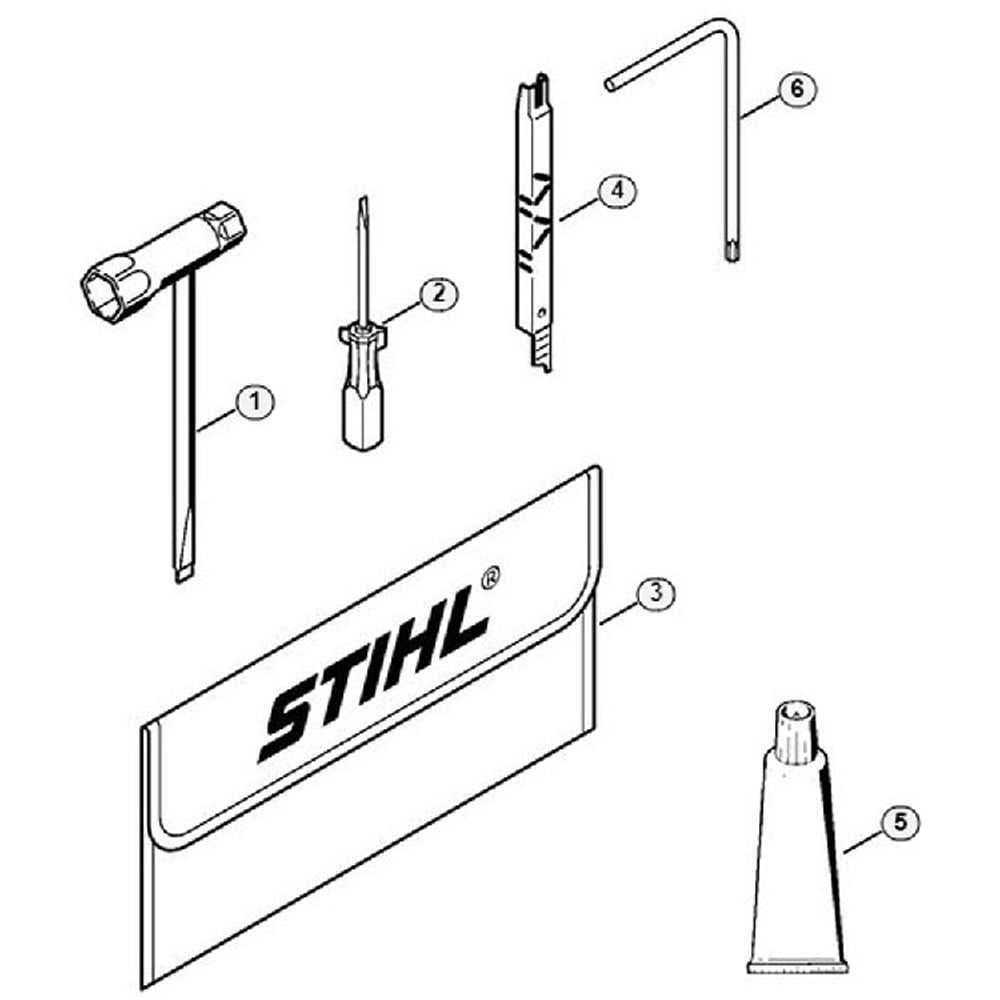

Use a parts breakdown chart from the manufacturer’s website or a licensed dealer–third-party diagrams may lack precision in torque specifications or material grades. Measure twice: a 0.5mm deviation in gasket thickness can cause compression loss. For electrical components like ignition coils, test resistance with a multimeter set to 20 kΩ; values outside 2.5–4.5 kΩ indicate failure.
When sourcing components, prefer OEM suppliers over aftermarket vendors for critical parts like the piston ring set and crankshaft bearings. Validate part numbers against the serial plate–some models feature subtle differences in oil pump gears or throttle linkages. Store disassembled pieces in sealed containers with silica gel packets to prevent moisture absorption, especially for rubber seals and fuel lines.
Before reassembly, clean all surfaces with non-chlorinated brake cleaner and apply specified lubricants: ISO 320 gear oil for the clutch, NLGI #2 grease for the sprocket nose. Torque all fasteners in stages–cylinder bolts at 12 Nm, flywheel nut at 65 Nm–to prevent warping. Perform a vacuum test on the carburetor diaphragm with a -60 kPa gauge; irregular readings demand replacement.
Guide to Identifying Key Components for Your Chainsaw Model
Begin by locating the exploded view schematic specific to engine serial numbers between 1121 and 1151–this range covers the most common variants of this fuel-powered saw. Download the official documentation directly from the manufacturer’s technical portal using the exact model suffix (e.g., “021AV,” “021C”) to ensure compatibility. Third-party repair manuals often mislabel components due to regional naming differences (e.g., “cylinder gasket” vs. “head seal”).
Inspect the carburetor assembly first, as it’s the most frequent source of performance issues. The diagram will show three critical sub-parts: the diaphragm (part #1125 020 0600), the metering lever (part #1125 020 0601), and the needle valve (part #1125 020 0602). Replace these as a set–individual replacements lead to inconsistent fuel-air ratios. Clean the inlet screen (part #1125 020 0603) with compressed air every 25 operating hours; residue from ethanol-blended fuels clogs it rapidly.
For the ignition system, verify the flywheel key (part #1123 020 2000) if the saw fails to start. Misalignment caused by shear damage prevents proper spark timing. The spark plug (NGK BPMR7A or equivalent) should be gapped at 0.5mm–deviations above 0.6mm cause hard starts in cold conditions. Use a multimeter to test the ignition coil (part #1127 020 2000) for resistance between 3.0–4.5 kΩ; readings outside this range indicate internal failure.
| Component | Part Number | Torque Spec | Maintenance Interval |
|---|---|---|---|
| Cylinder base gasket | 1121 020 1200 | 6–8 Nm | Every 100 hours |
| Clutch drum | 1125 020 1500 | 40–45 Nm | Inspect every 50 hours |
| Chain brake band | 1128 020 2000 | N/A | Replace if frayed |
When servicing the piston, measure ring end gap with a feeler gauge–values should not exceed 0.4mm. The wrist pin (part #1121 020 1001) requires high-temperature moly grease during installation; dry assembly scores the cylinder bore. Check the muffler spark arrestor screen (part #1121 020 1800) for carbon buildup, which restricts exhaust flow and reduces power output. Replace if more than 30% of the mesh is obstructed.
Reassemble the crankcase using the sequence outlined in the diagram: install the crankshaft (part #1121 020 0200) first, followed by the bearings (part #1121 020 0202), then torque the case bolts in a cross pattern to 10–12 Nm. Loctite 243 is mandatory on bolts exposed to vibration–standard threadlocker fails under thermal cycling. For the chain tensioner, adjust the screw until the chain deflects 3mm at the middle of the bar, then tighten the bar mounting nuts to 12–15 Nm.
Avoid aftermarket air filters (e.g., “universal” foam pre-filters). The OEM filter (part #1120 020 0400) has dual-stage filtering optimized for sawdust particle size. Replace it at 50-hour intervals or when airflow resistance increases–hold it up to a light source to check for blockages. If the saw ingests dirt post-filter, pull the piston to inspect for scoring; abrasive particles embed in the cylinder wall and require honing or replacement.
The bar oil pump (part #1129 020 1200) rarely fails but requires periodic adjustment. With the chain mounted, run the saw at full throttle and observe oil flow–minimum 1 drop per second is acceptable. If flow is insufficient, check the pump plunger (part #1129 020 1201) for wear; grooves deeper than 0.2mm warrant replacement. Use ISO VG 68 bar oil–vegetable-based oils carbonize at 90°C, clogging the pump reservoir screen.
For storage longer than 30 days, drain the fuel and run the saw dry to prevent varnish buildup in the carburetor. Remove the spark plug, pour 5ml of two-stroke oil into the cylinder, and pull the starter cord to distribute oil across the piston rings. Store the chain in a sealed container with rust-inhibiting oil (e.g., Rocksett Chain Guard). Reinstall the spark plug only after verifying compression (minimum 100 psi)–low readings indicate worn rings (part #1121 020 1002) or cylinder damage.
Finding the Carburetor Assembly in the Exploded Schematic
Identify the fuel system cluster in the upper middle section of the schematic–this is where the carburetor sits among ignition components like the spark plug and flywheel. Look for grouping labels marked “Air/Fuel System” or similar; the assembly typically features a rectangular or oval housing with attached hoses, linkage arms, and a throttle plate.
- Count three primary connection points: intake manifold, fuel line, and throttle cable.
- Verify the part number etched on the body–models vary slightly, so cross-reference with the label Walbro WT-167B or comparable variants.
Trace the linkage arms upward; they connect to the trigger mechanism near the rear handle. The smaller arm engages the choke, while the longer one regulates airflow via the throttle plate. Misalignment here disrupts idle or high-speed tuning, so note each pivot point’s orientation before disassembly.
Locate the diaphragm cover–a circular plate secured by four screws on the side opposite the linkage. This plate conceals the internal fuel pump and metering system. Removal requires torque precision; over-tightening distorts the gasket and causes lean fuel mixtures.
- Inspect the exploded view for three tiny screws holding the diaphragm cover–often overlooked but critical for airtight seals.
- Check for a tiny brass fuel inlet nipple on the bottom; clogs here mimic engine starvation symptoms.
- Confirm the single brass adjusting screw (idle speed) near the base; excessive turning strips threads or floods the engine.
The carburetor assembly appears adjacent to the cylinder shroud in lateral views. Wiring harnesses may partly obscure it, but its distinct shape–bulkier than a muffler, narrower than the air filter housing–helps differentiation. Rotate the schematic clockwise if the orientation confuses; the linkage arms should angle downward rather than upward.
If the schematic omits detail, match these identifiers: dual-stage venturi for cold-start enrichment, anti-vibration mountings at the bracket base, and a phosphor-bronze needle valve inside the float bowl. Replace any deformed o-rings during servicing–deterioration causes phantom leaks even if seals appear intact.
How to Locate Flywheel and Ignition Components for Your Chainsaw Model
Begin by isolating the flywheel nut using a 19mm socket and a flywheel holder tool (part #1123-893-2501). If the nut is stripped, replace it with OEM #1123-100-2603–aftermarket alternatives often misalign with the crankshaft taper, causing vibration. Remove the flywheel carefully to avoid damaging the magneto coil (visible as a black rectangular assembly beneath); check for cracks or dislodged magnets, which require immediate replacement (OEM #1130-400-0701).
Inspect the ignition module’s resistance with a multimeter: the primary coil should read 0.2–0.5 ohms, while the secondary coil demands 5–7 kilo-ohms. Deviations indicate a faulty unit (OEM #1130-400-0203). For the spark plug boot, verify continuity; if absent, replace it (OEM #1130-400-1301). Clean the flywheel fins with acetone–not a wire brush–to prevent removing the delicate balance weights. Misaligned fins disrupt timing, causing hard starts or erratic idle.
Critical Replacement Steps
- Align the flywheel keyway (OEM #1123-100-2401) with the crankshaft slot before reinstalling. A misaligned key causes piston-to-valve contact.
- Torque the flywheel nut to 50 Nm–over-tightening warps the crankshaft taper.
- Gap the ignition module to 0.3–0.4mm from the flywheel magnets using a non-magnetic feeler gauge.
- Test spark quality: a blue-white spark confirms proper function; orange sparks suggest a failing coil or fouled plug (NGK BPMR7A).
- Drain fuel and remove the spark plug to prevent compression during flywheel removal.
- Mark the ignition module’s position with a paint pen before loosening screws–incorrect reinstallation alters timing.
- Lubricate the crankshaft bearing (OEM #1123-100-2700) with Klotz KL-220 during reassembly to prevent seizure.
