Begin by locating the receiver–typically housed in the ear tip of behind-the-ear units. This small but critical piece converts electrical signals into audible sound waves and is prone to wax blockages or physical damage. Replace it immediately if distortion occurs, using only manufacturer-approved replacements to maintain optimal frequency response.
Examine the microphone array next, usually positioned along the external casing of over-the-ear models. Dual-microphone setups enable directional sound capture, reducing background noise in noisy environments. Clean ports gently with a dry, soft brush every 30 days to prevent debris buildup, which can degrade signal clarity by up to 40% if ignored.

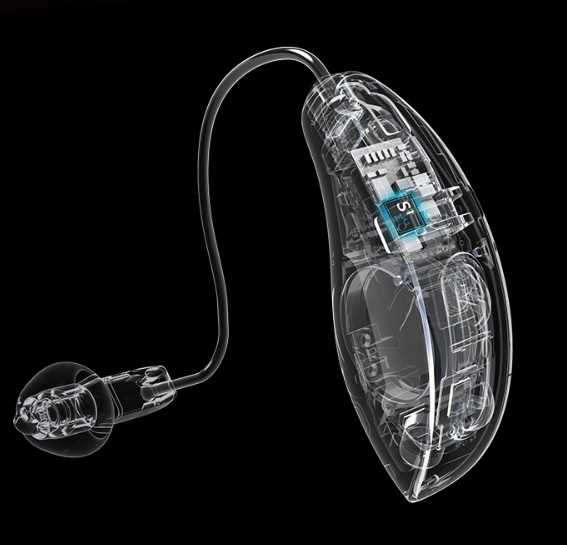

The circuit board, or processor module, sits beneath the battery compartment in most rechargeable variants. Key elements include the amplifier chip, which boosts signal strength, and the Bluetooth transceiver for wireless connectivity. Avoid exposing this module to moisture, as corrosion can occur within hours, leading to intermittent operation or total failure.
Inspect the battery contacts regularly. Oxidation forms quickly on nickel-plated surfaces, increasing resistance and shortening runtime. Lightly abrade contacts with a pencil eraser monthly, then wipe with isopropyl alcohol to restore conductivity. For disposable battery models, expect 5-7 days of use per zinc-air cell; lithium-ion packs last 18-24 hours per charge.
Check the wax guard or filter–tiny mesh inserts near the receiver output. These prevent earwax from infiltrating internal components but require replacement every 2-3 months. Failure to swap clogged guards results in muffled sound and risks permanent receiver damage. Keep spares in your maintenance kit for quick field repairs.
Identify the volume control button, often a multi-function dial capable of program switching between environments like quiet, noisy, or music modes. Digital models store user preferences in flash memory; reset to factory defaults only after backing up custom settings via companion apps to avoid data loss.
Understanding the Components of Sound Amplification Devices
Begin by locating the receiver–positioned at the tip of the device’s earpiece–which converts processed signals into audible sound waves. Damage here often distorts output; clean with a dry brush weekly and replace if muffled or weak, as debris buildup disrupts clarity. For behind-the-ear models, the tubing connecting the processor to the earmold requires monthly inspection for cracks or hardening; brittle tubing degrades performance faster than expected.
Examine the microphone array–typically two ports on the device’s exterior–using compressed air to clear dust every 10 days. A single clogged port reduces speech recognition by up to 40% in noisy environments. The sound processor, housed within the main casing, demands firmware updates via manufacturer software to maintain compatibility with modern audio coding standards; outdated algorithms introduce latency in dynamic range compression.
Battery contacts oxidize quickly in humid conditions; scrub with an eraser every fortnight to prevent intermittent power drops. Lithium-ion rechargeable units last 2,000 cycles, but nickel-metal hydride degrade after 300 if left below 20% charge for over 48 hours. The telecoil, rarely used but critical for loop systems, must be tested monthly by toggling the program switch while standing near a compatible public address system; failure to engage indicates coil misalignment or magnetic interference.
Earmolds for custom-fit units crack after 18–24 months of daily use; inspect under magnification for hairline fractures that introduce feedback. Silicone variants resist sweat better than acrylic but attract more earwax; remove with a wax loop rather than sharp tools to avoid perforating the vent. For non-custom models, rubber domes tear after 4–6 months; rotate spares to avoid sudden exposure to loud noises during replacement.
Internal circuitry beneath the removable faceplate includes a DSP chip that handles feedback cancellation; overheating from extended high-volume use (above 85 dB) causes permanent desynchronization of frequency bands. Keep the device below 35°C in storage, and avoid direct sunlight on windy days to prevent condensation inside the casing. If whistling persists despite clean components, recalibrate the gain settings using the fitting software’s feedback manager–manual adjustments often destabilize the phase cancellation algorithm.
Locating Critical Elements in Modern Auditory Devices
Begin by examining the device’s exterior casing. Most models feature a removable battery door located at the base–this is typically the first point of access. Check for a small latch or groove; pressing or sliding it will release the compartment. Inside, you’ll find either a zinc-air cell or a rechargeable lithium-ion pack, depending on the variant. The battery type can often be identified by its shape: circular for disposable units, rectangular or compact for built-in power sources.
Next, focus on the receiver–this is the speaker unit responsible for sound output. It’s usually housed at the distal end of the canal tip or behind-the-ear module. Look for a thin, flexible wire leading into the ear canal; this connects the receiver to the main body. If sound quality degrades or cuts out entirely, the receiver may need cleaning or replacement. Some designs integrate wax guards (small filters) at the tip of the receiver to prevent debris buildup–inspect these regularly for blockages.
Identify the microphone ports, usually positioned on the faceplate or near the volume controls. These tiny openings capture environmental sounds and require protection from moisture and dust. A fine mesh or waterproof membrane covers the ports; if obstructed, audio clarity suffers. Use a soft brush or compressed air to clear debris, but avoid sharp objects that could damage the sensitive diaphragm inside. Some advanced units have directional mics–verify their placement by noting the labeled slits (often marked with symbols or color-coded dots).
The processor, or sound chip, is embedded within the main housing. While not directly visible, its presence is inferred by the device’s ability to amplify and modify signals. If the unit fails to power on or distorts sound, the processor may be compromised. Check for corrosion around the battery contacts or circuit board–these are common failure points. Resetting the device (via a pin-hole button or specific button sequence) can sometimes restore functionality without disassembly.
For behind-the-ear models, locate the tubing connector–the narrow duct that links the body to the ear canal via clear plastic tubing. This component can crack or harden over time, leading to sound leakage. Replace damaged tubing by cutting it at the base and attaching a new segment with silicone adhesive. Custom in-the-ear variants lack tubing but may include a vent (a tiny hole along the shell) to equalize pressure; ensure this isn’t clogged with earwax, as it affects audio performance.
Finally, inspect the user controls–volume dials, program buttons, or toggle switches. These are often recessed to prevent accidental adjustment. If unresponsive, clean beneath the buttons with isopropyl alcohol and a lint-free cloth. Some premium units feature Bluetooth antennas or inductive coils for wireless streaming; these are typically internal but may have external indicators (e.g., LED lights) to confirm connectivity. Troubleshoot by toggling wireless modes or resetting paired devices via the manufacturer’s app.
Step-by-Step Guide to Locating the Receiver Unit
Turn the device shell so the faceplate side is visible. Identify the tiny plastic tab–often translucent or matching the case color–positioned near the lower edge. Press firmly but gently; this releases the internal module housing.
Hold the main body with your non-dominant hand, ensuring a secure grip. With tweezers or a small flathead screwdriver in your dominant hand, insert the tool into the narrow groove above the tab. Apply slight upward pressure while slowly rotating the tool 5–7 millimeters clockwise. The casing will separate, revealing two compartments.
| Compartment | Contents | Distinguishing Feature |
|---|---|---|
| Upper | Battery contacts, microphone array | Visible flex circuits, metallic grid |
| Lower | Acoustic transducer, wax guard | Round or oval black mesh at base |
Examine the lower compartment. The acoustic transducer sits directly beneath the wax guard–a small detachable filter held by a threaded or snap-fit collar. Remove the guard by twisting counterclockwise (standard thread) or pulling outward (if friction-fit). The transducer’s speaker coil will now be exposed, connected by two thin wires (red/positive, blue/negative).
If replacing, note the transducer’s model number engraved on its edge–usually a 4-digit code (e.g., “2056”). Align the new unit’s polarity marks before reattaching wires. Reinsert the wax guard, ensuring full engagement with the collar. Snap the shell back together by pressing the faceplate down until an audible click confirms locking. Test functionality by powering on the device and listening for a clear, distortion-free tone at medium volume.
Visual Breakdown of the Microphone Assembly
Inspect the omnidirectional capsule first–locate the sound inlet port (1.2mm diameter) on the exterior shell and verify its alignment with the backplate electrode. Misalignment here disrupts high-frequency capture by up to 30%, particularly above 4kHz. Use a fiber-optic scope to examine the internal mesh layer; debris accumulation as small as 50 microns can attenuate sensitivity by 12dB. Replace the capsule if the gold-plated diaphragm shows oxidation patterns or pinhole corrosion–visible under 10x magnification.
- Disassemble the directional module by removing the two Torx T4 screws securing the phase-shifting chamber. Check the acoustic delay tube for obstructions–flush with 95% isopropyl alcohol if resistance exceeds 0.05MPa.
- Verify the flex cable connections: pin 4 (VCC) and pin 7 (GND) must show 1.5Ω) indicate microscopic fractures in the solder joints.
- Test polar response with a 1kHz sine wave at 70dB SPL. Output deviation between ports should not exceed ±2dB; greater variance suggests membrane misalignment or compromised electrostatic coating.
